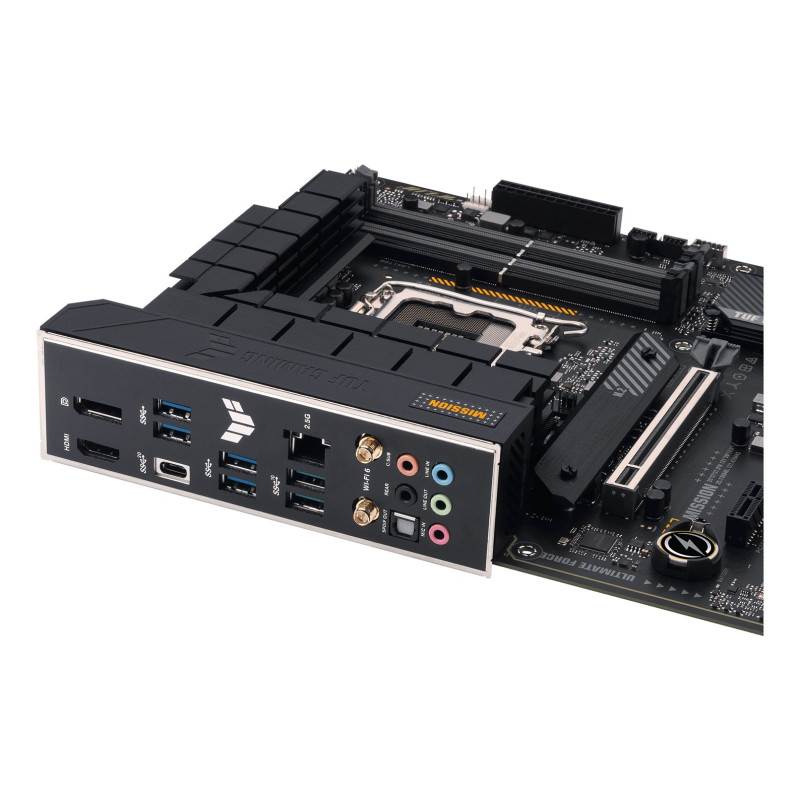

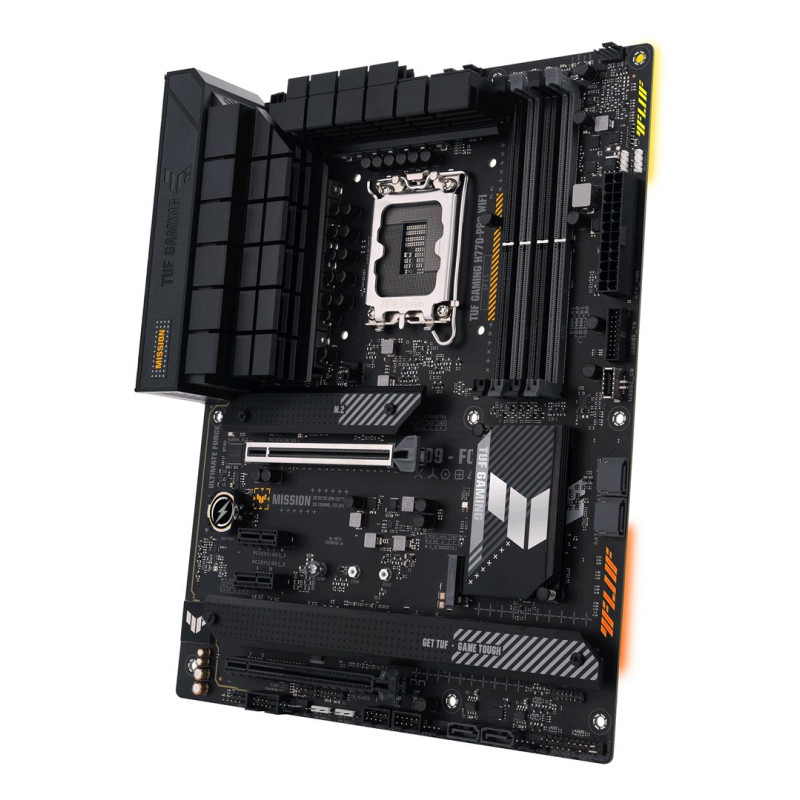

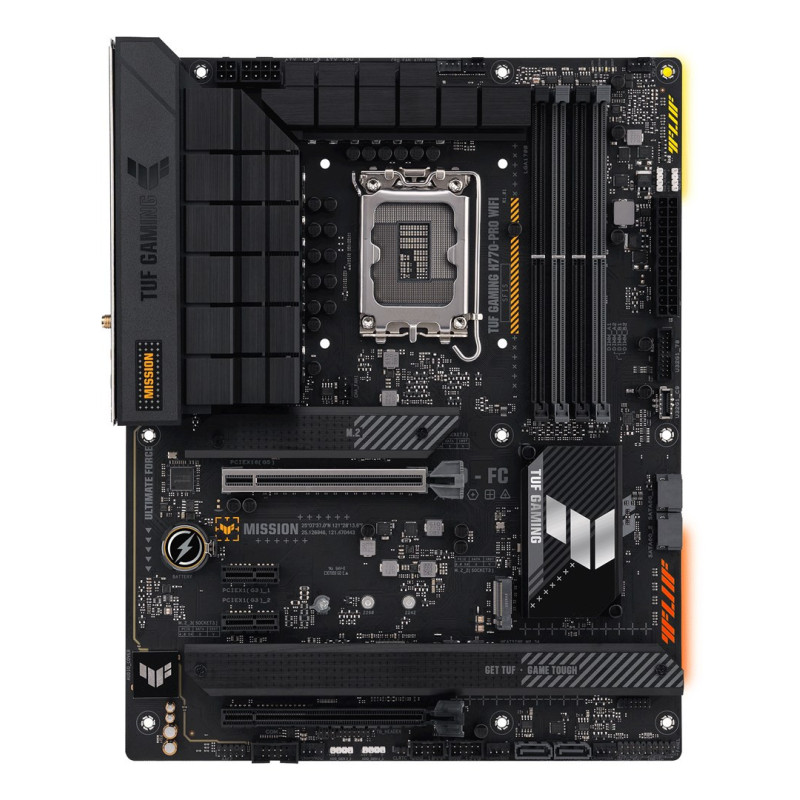

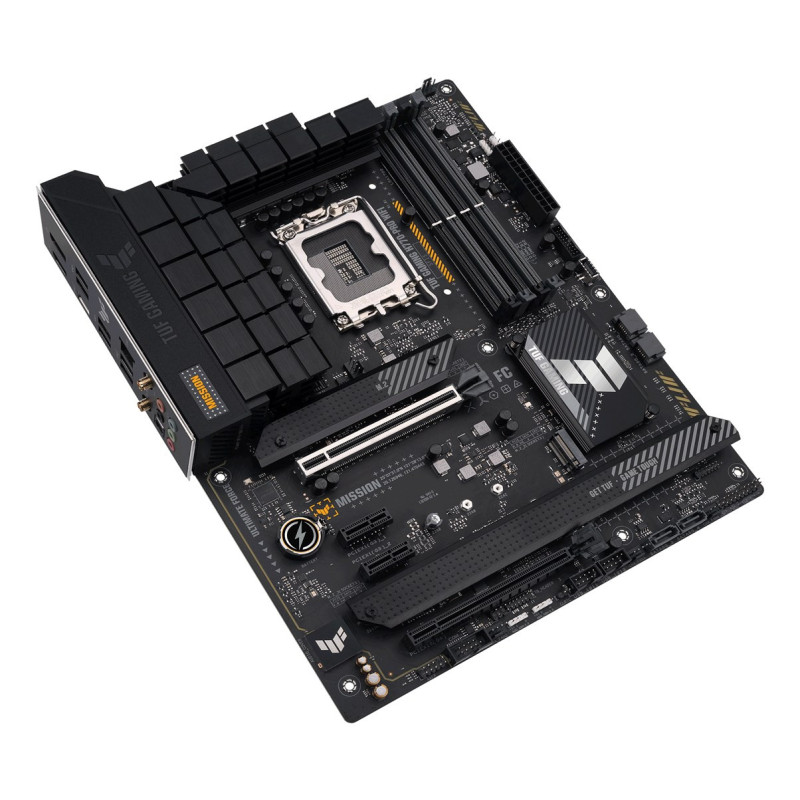

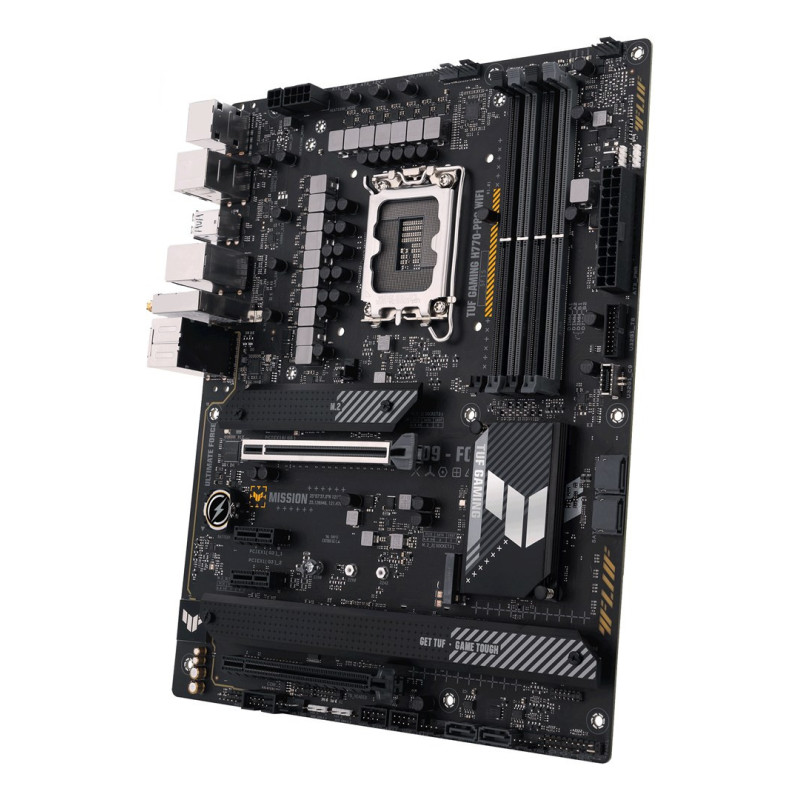

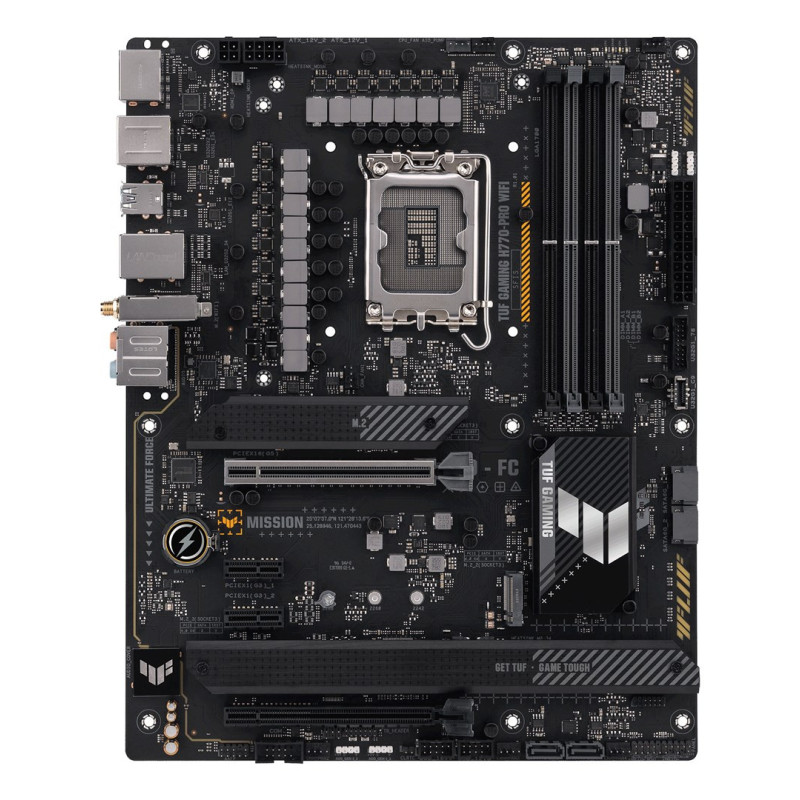

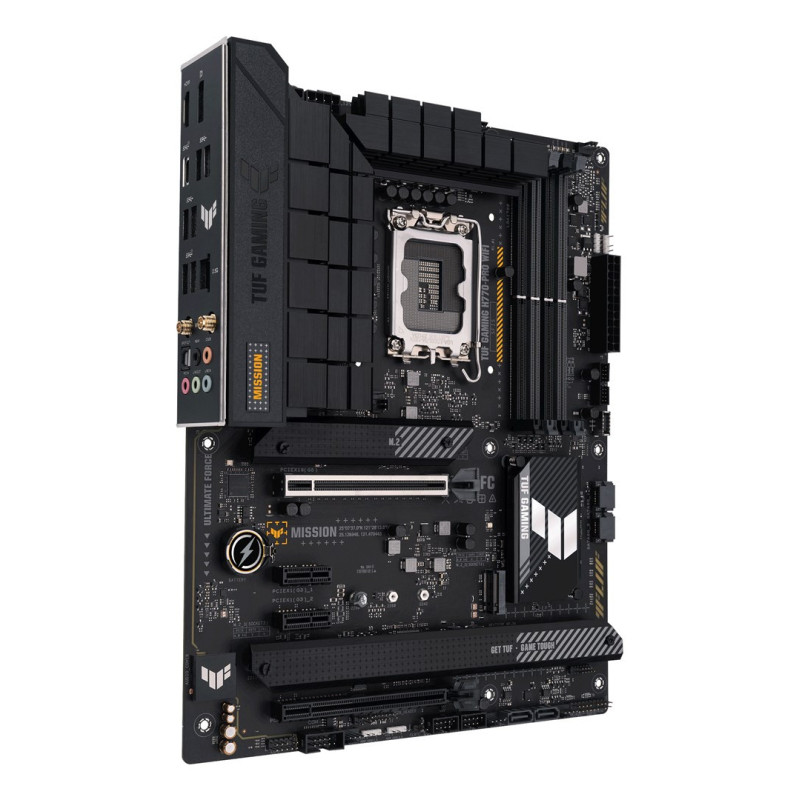

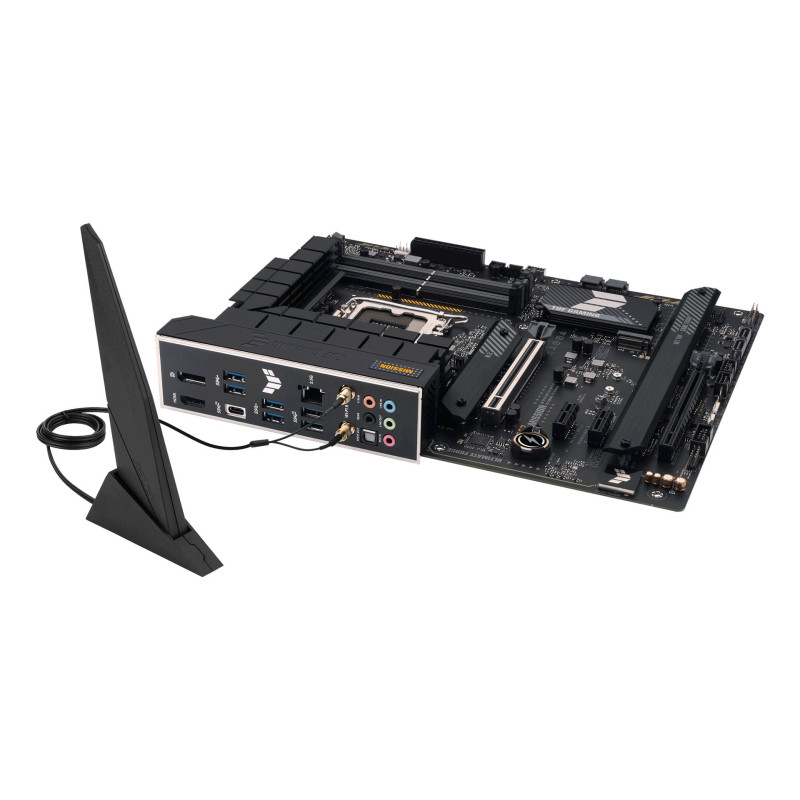

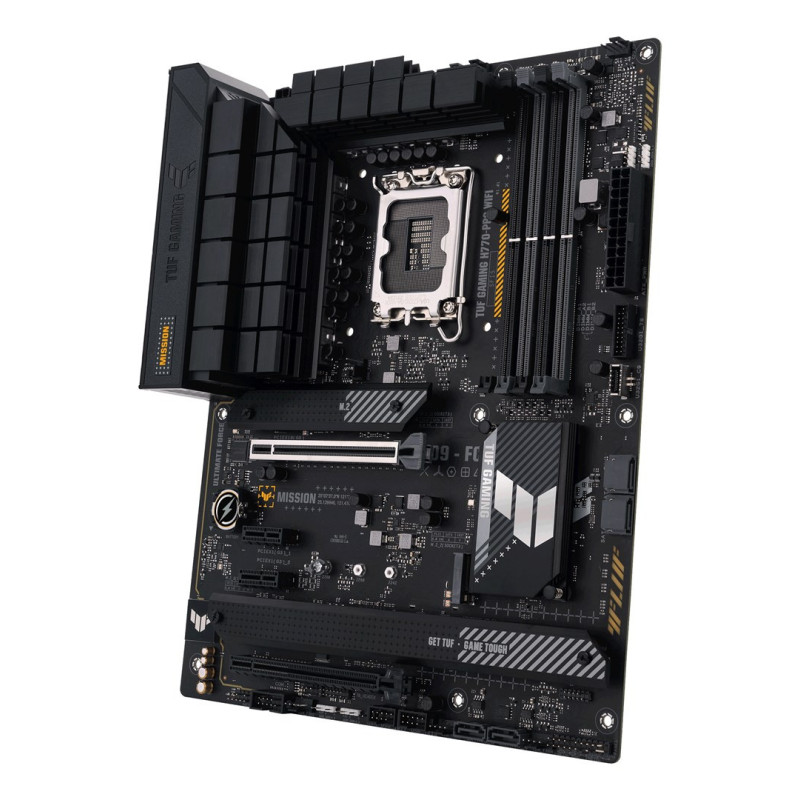

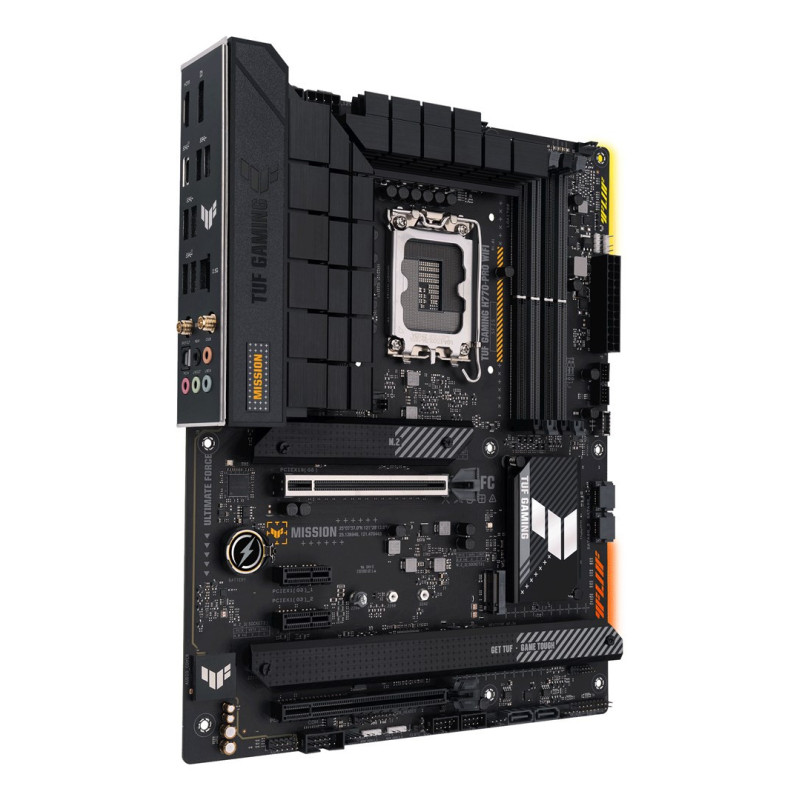

ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
Product reference:
6-90MB1D50-M1EAY0
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
Product reference:
6-90MB1D50-M1EAY0
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H770 |
| Power source type | ATX |
| Windows operating systems supported | Windows 11, Windows 10 |
| Cooling type | Passive |
| Supported memory clock speeds | 5200, 6200, 6600, 6400 MHz, 6800, 5000, 5600, 7200, 4800 MHz, 6000, 7000, 5800, 5400 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Depth | 244 mm |
| Width | 305 mm |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| User guide | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |

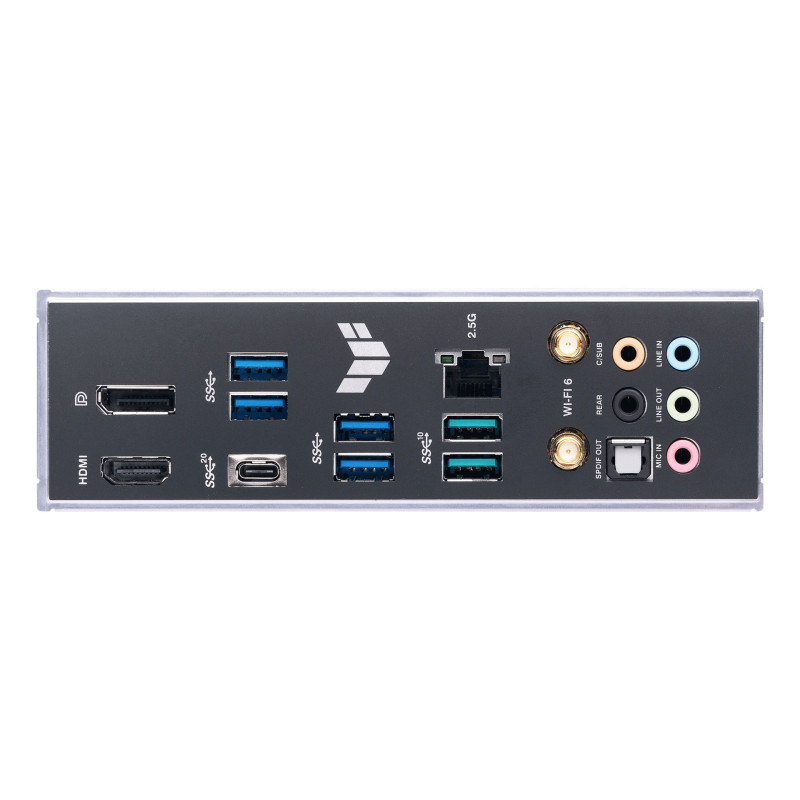

| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage. |
