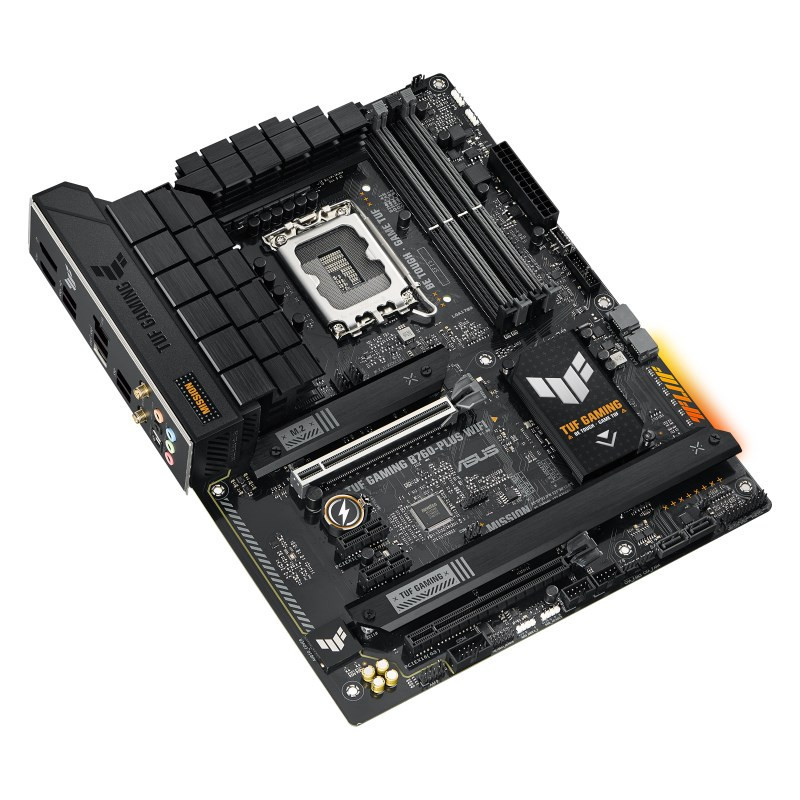

ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
Product reference:
6-90MB1ER0-M1EAY0
ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
Product reference:
6-90MB1ER0-M1EAY0
ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i5, Intel® Celeron® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11, Windows 10 |
| Cooling type | Passive |
| Motherboard chipset | Intel B760 |
| Power source type | ATX |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 5066 MHz |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| Wi-Fi standards | 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Thunderbolt headers | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0, SATA III |
| Number of HDDs supported | 4 |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Line-in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
