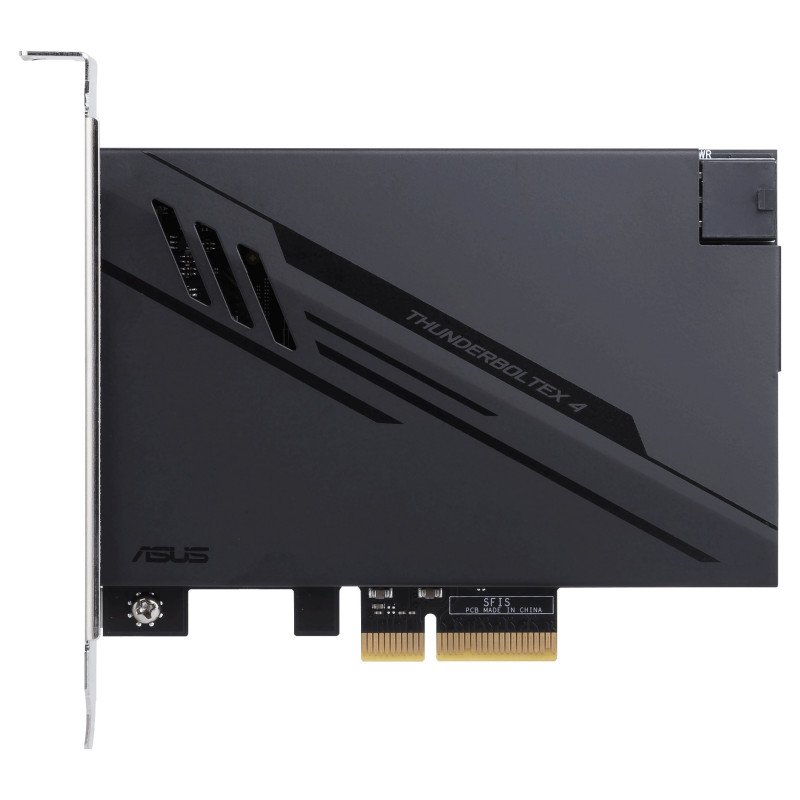

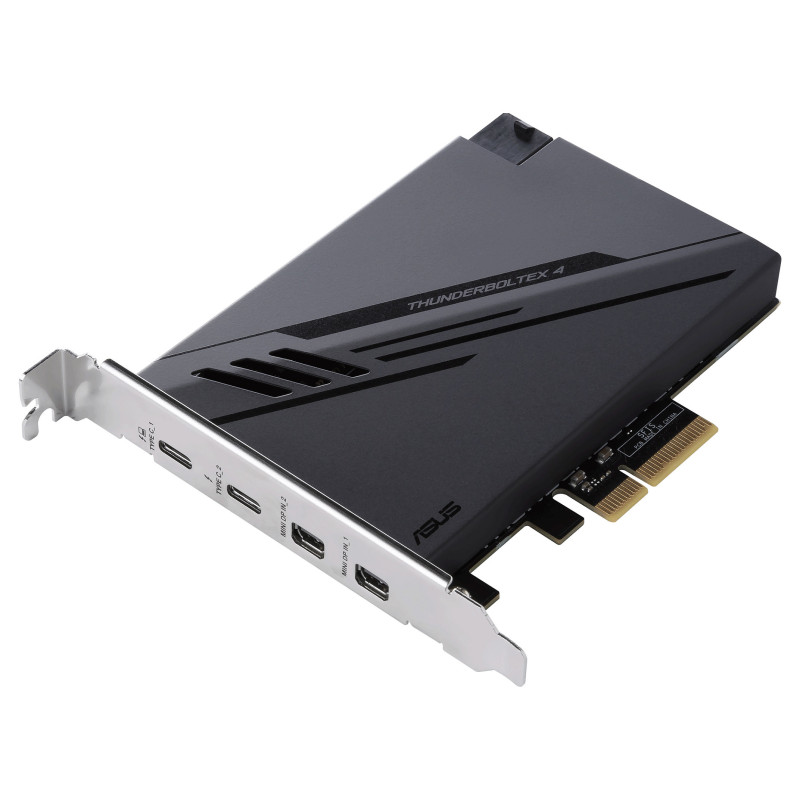

ASUS ThunderboltEX 4 interface cards / adapter

ASUS ThunderboltEX 4. Host interface: PCIe, Output interface: Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Black, Purpose: PC. Chipset: Intel Thunderbolt 4 JHL8540, Data transfer rate (max): 40 Gbit/s. Windows operating systems supported: Windows 10 x64. Width: 117.7 mm, Depth: 180.5 mm
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

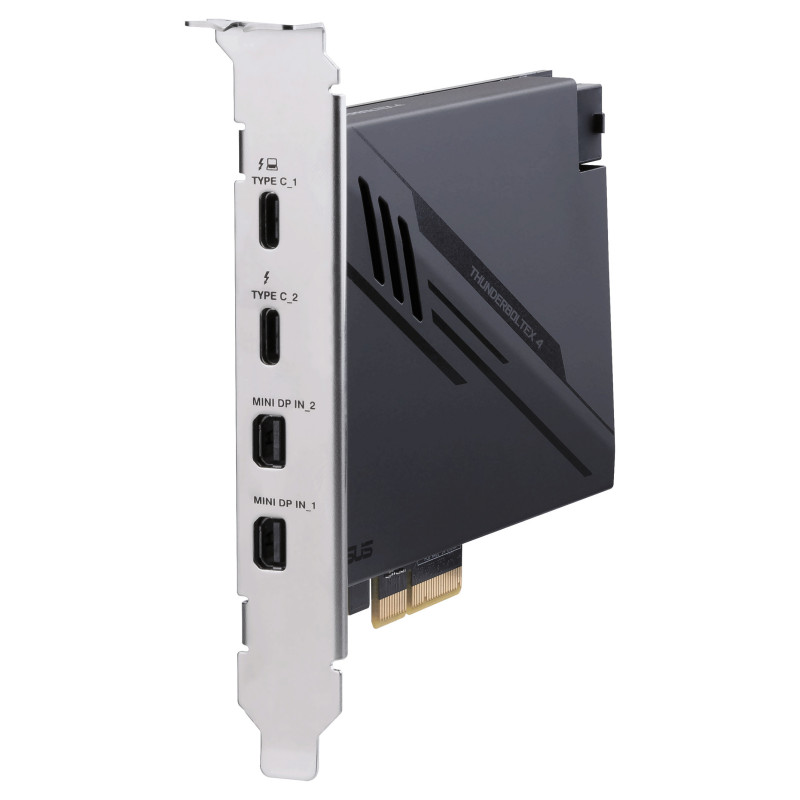

Ports interfaces

Host interface: PCIe
Output interface: Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCIe 3.0
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Design

Internal: Yes
Product colour: Black
Purpose: PC

Features

Chipset: Intel Thunderbolt 4 JHL8540
Data transfer rate (max): 40 Gbit/s
Plug and Play: Yes

System requirements

Windows operating systems supported: Windows 10 x64

Weight dimensions

Width: 117.7 mm
Depth: 180.5 mm

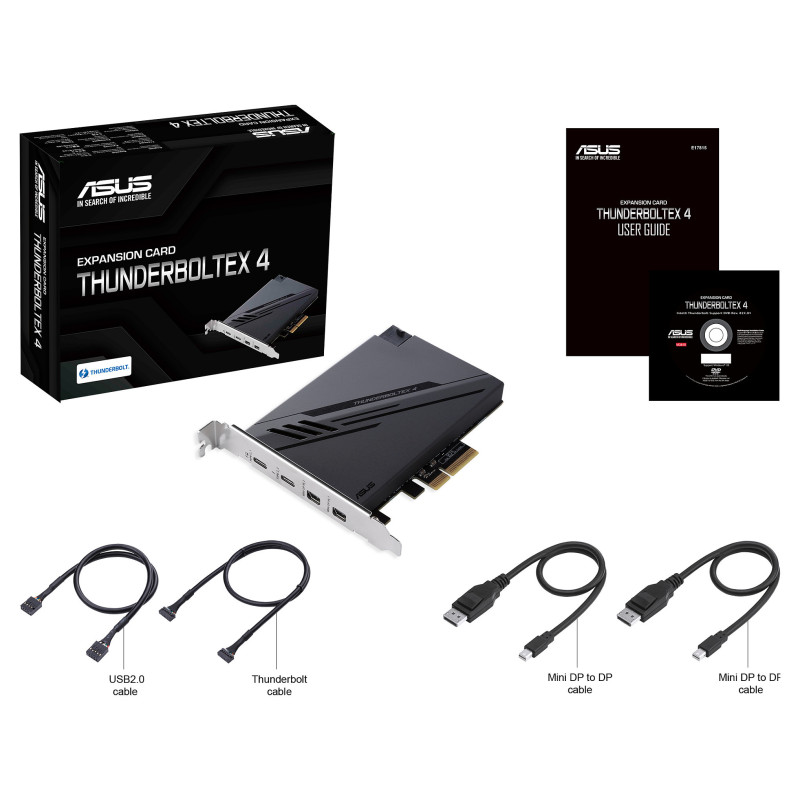

Packaging data

Quantity: 1

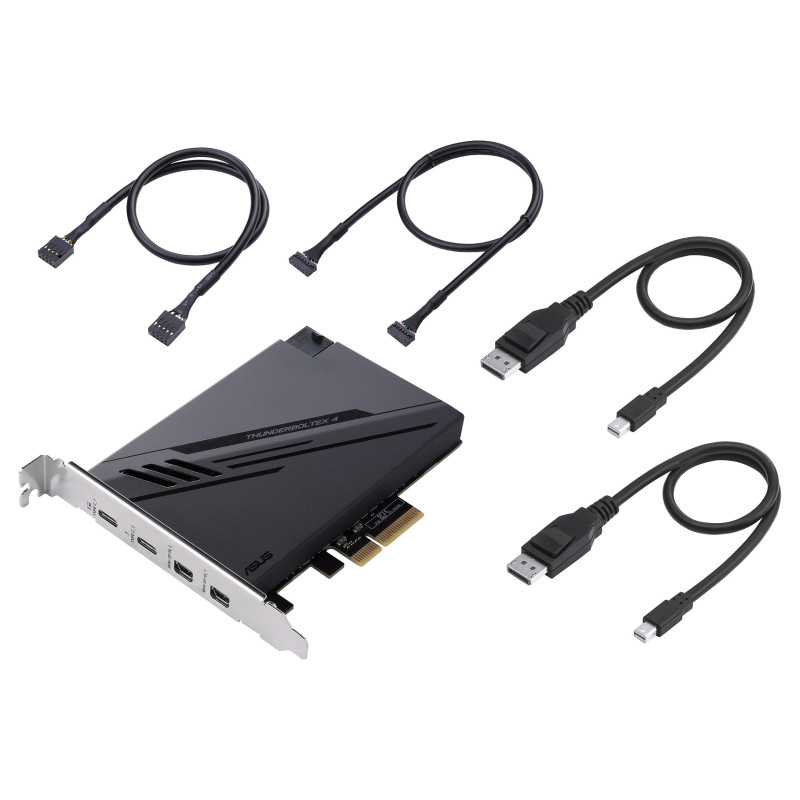

Cables included: Mini DisplayPort, Thunderbolt, USB
Drivers included: Yes
Manual: Yes

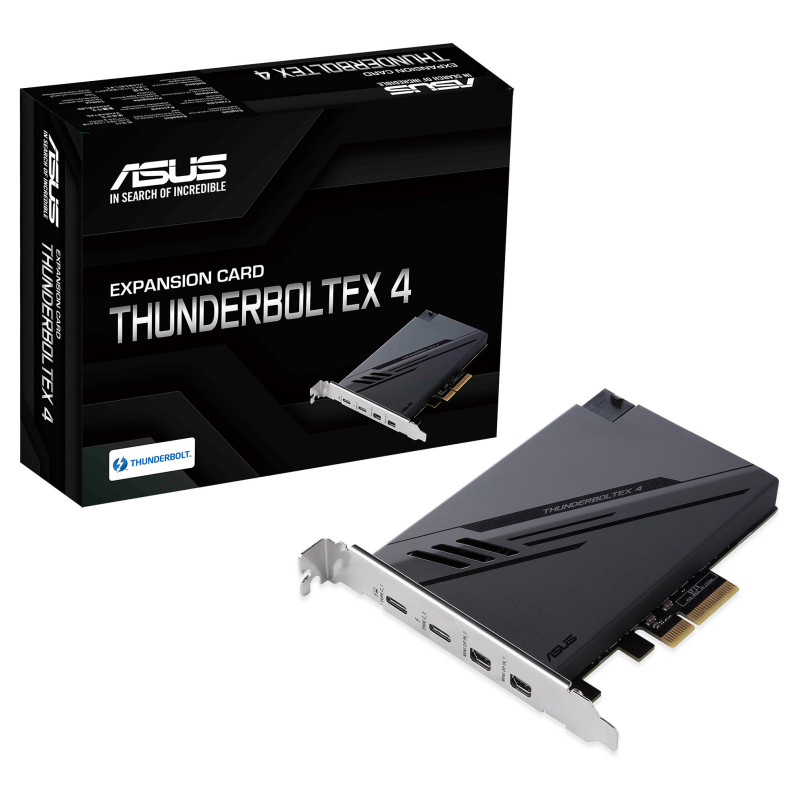

Package type: Box

Logistics data

Harmonized System (HS) code: 84733020

Other features

Maximum resolution: 7680 x 4320 pixels
Compatibility: ASUS Intel 500
