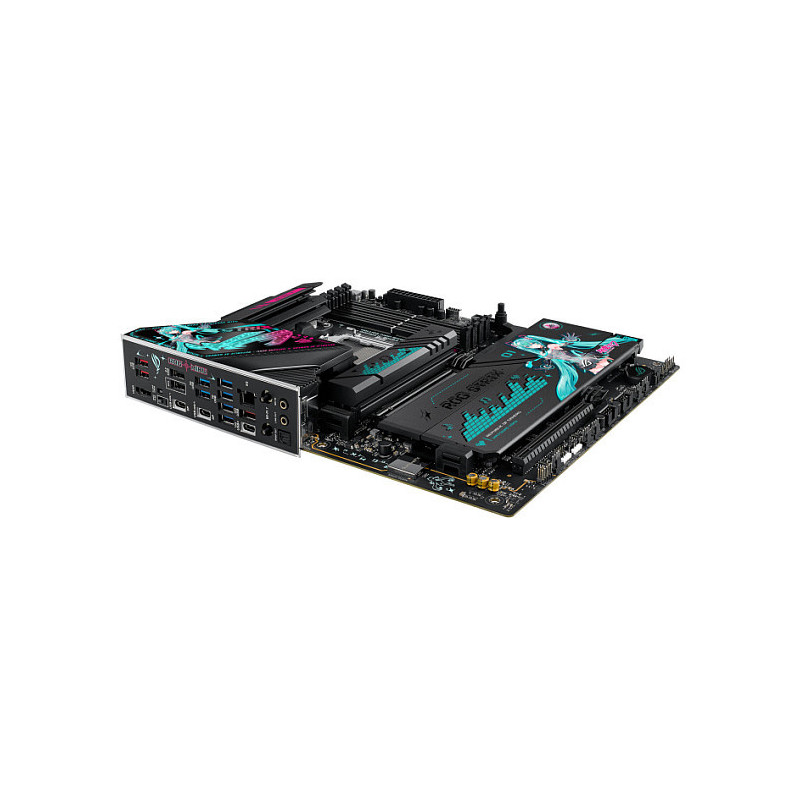

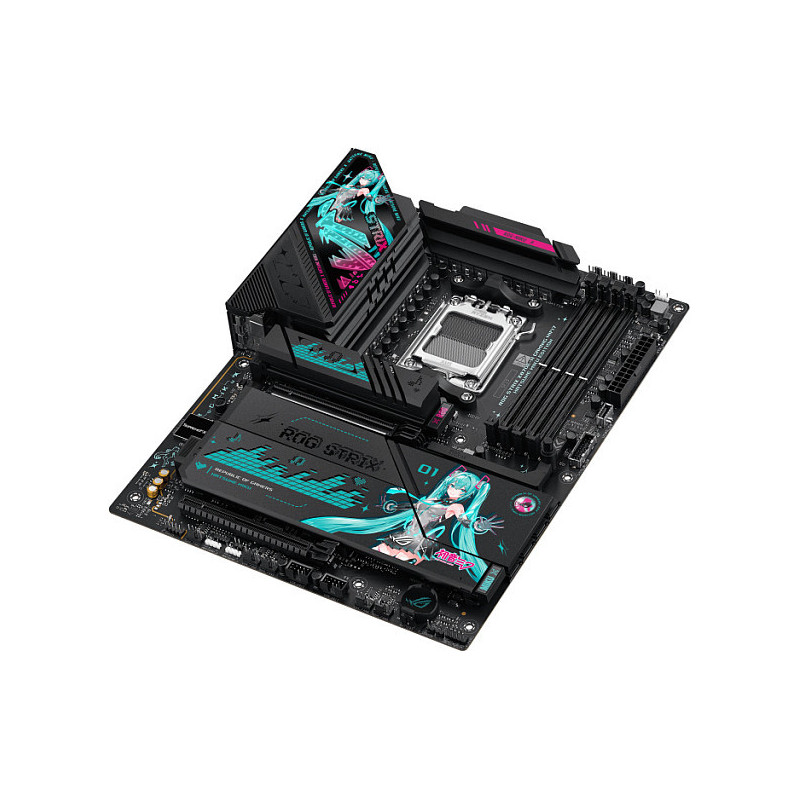

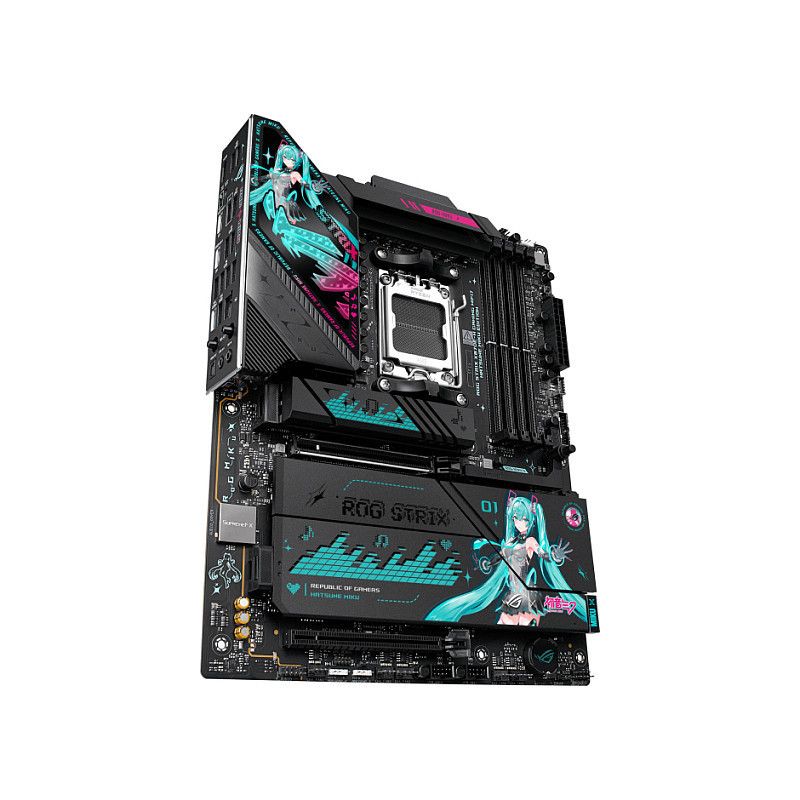

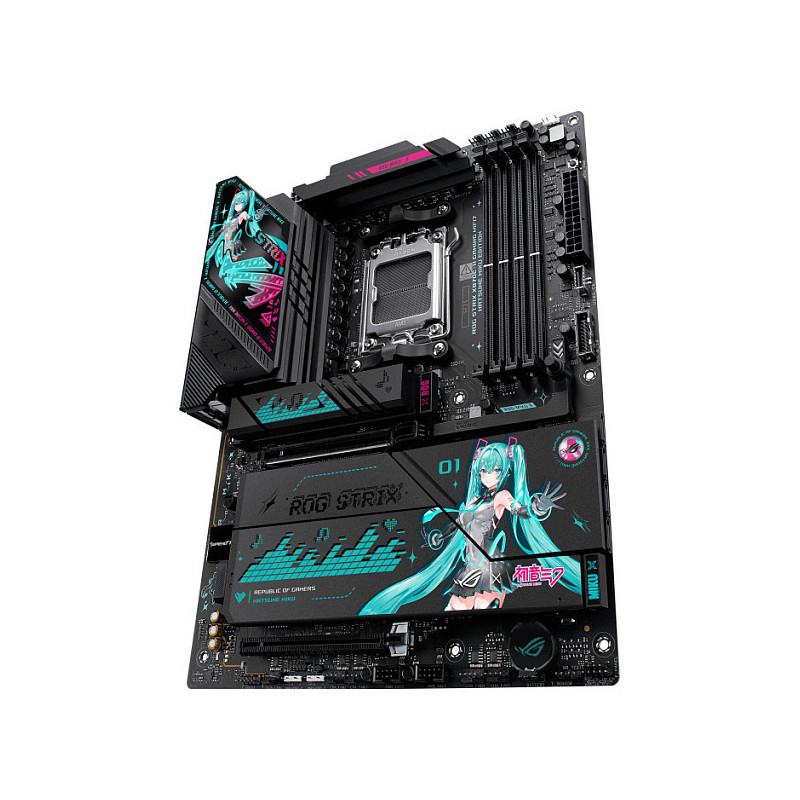

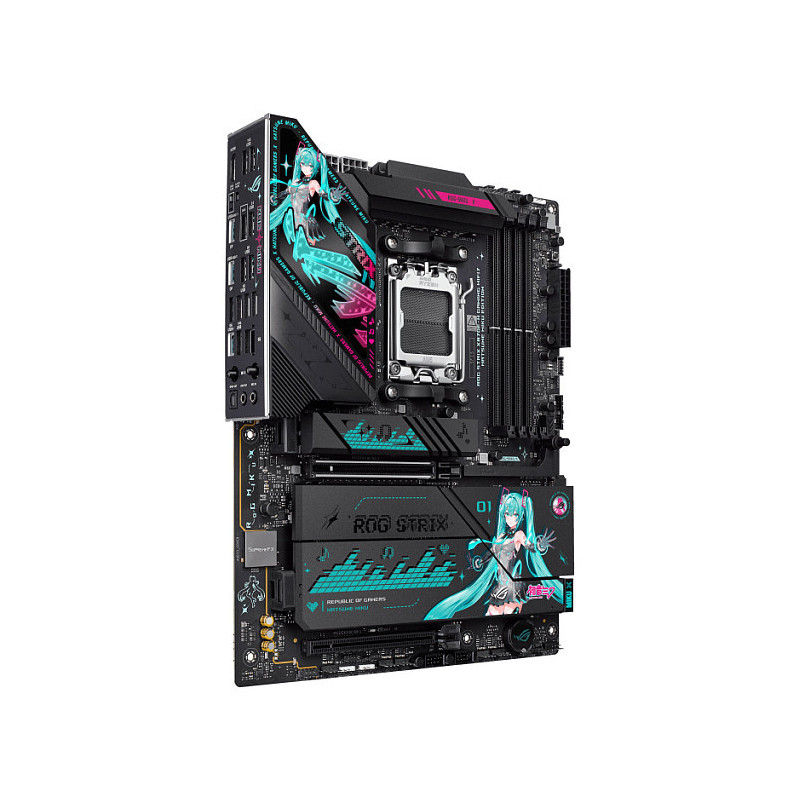

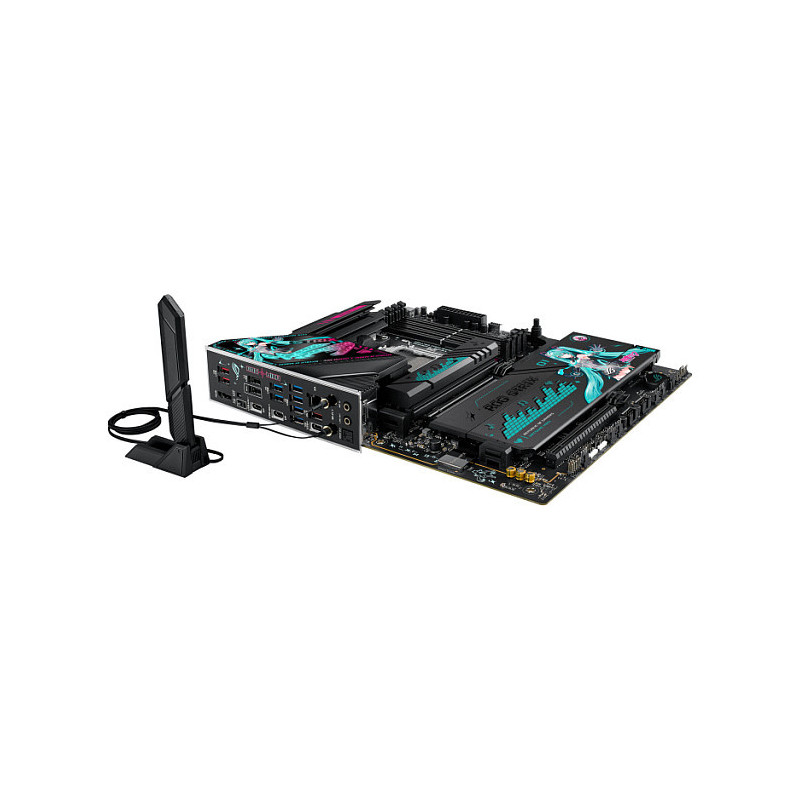

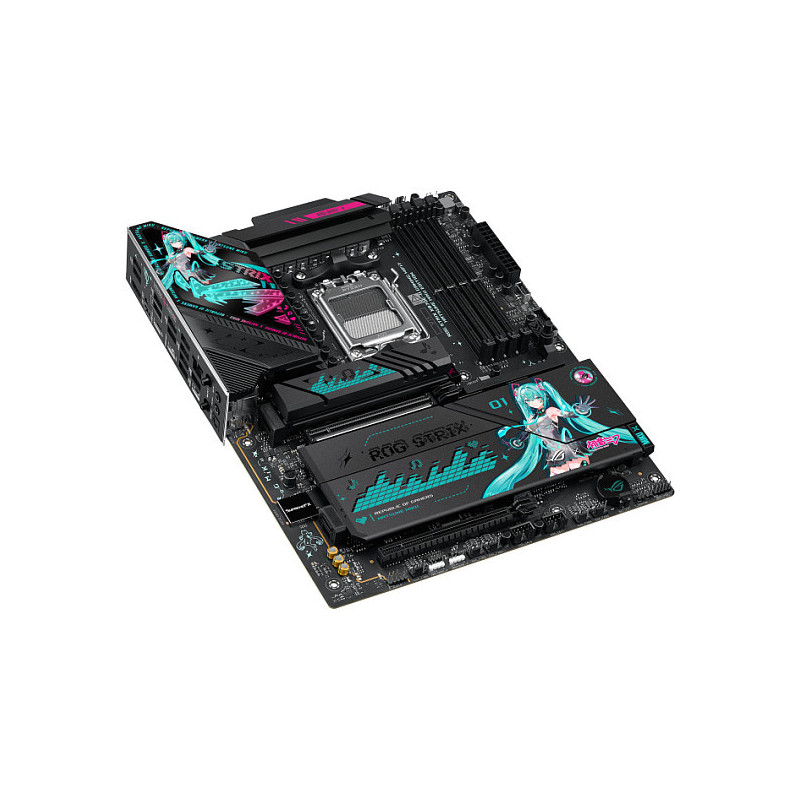

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION

ASUS ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Feel the Beat,
In-Game Feats

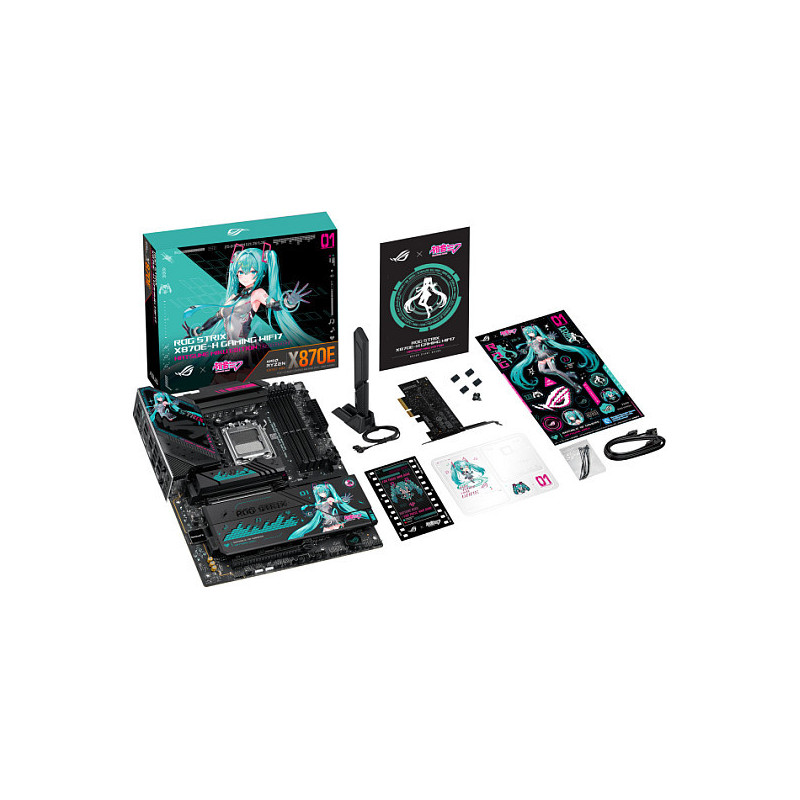

ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku's signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 5
Feature: Chassis intrusion connector
Feature: EPS power connector (8-pin)
Feature: 12V power connector
Number of water pump connectors: 1

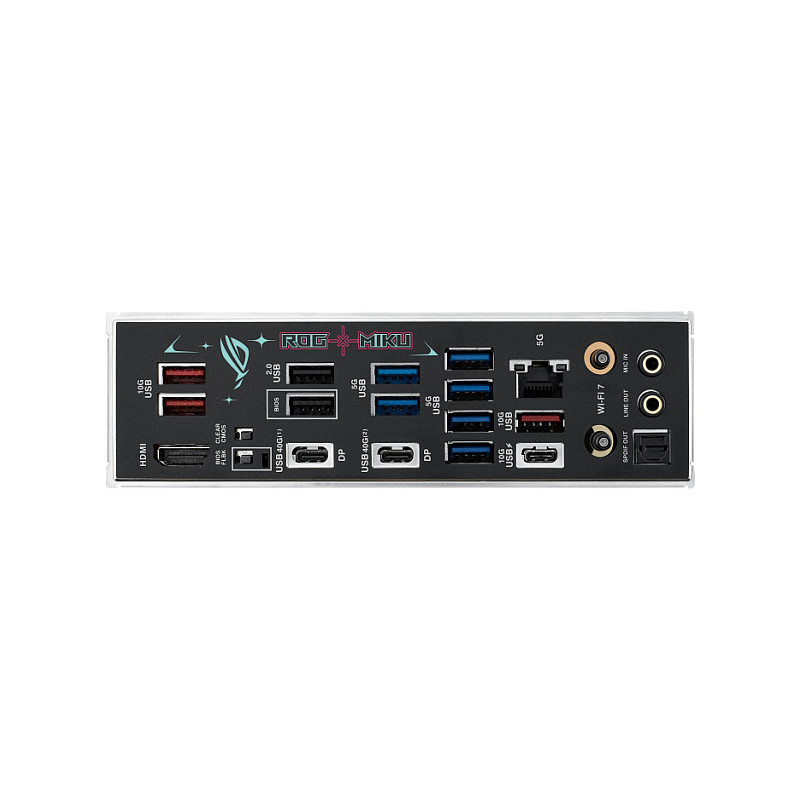

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Feature: Microphone in
Feature: S/PDIF out port

Network

Feature: Ethernet LAN
Ethernet interface type: 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: MediaTek MT7925
Feature: Bluetooth
Bluetooth version: 5.4

Features

Motherboard chipset: AMD X870E
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 2280

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button

Weight & dimensions

Width: 305 mm
Depth: 244 mm
