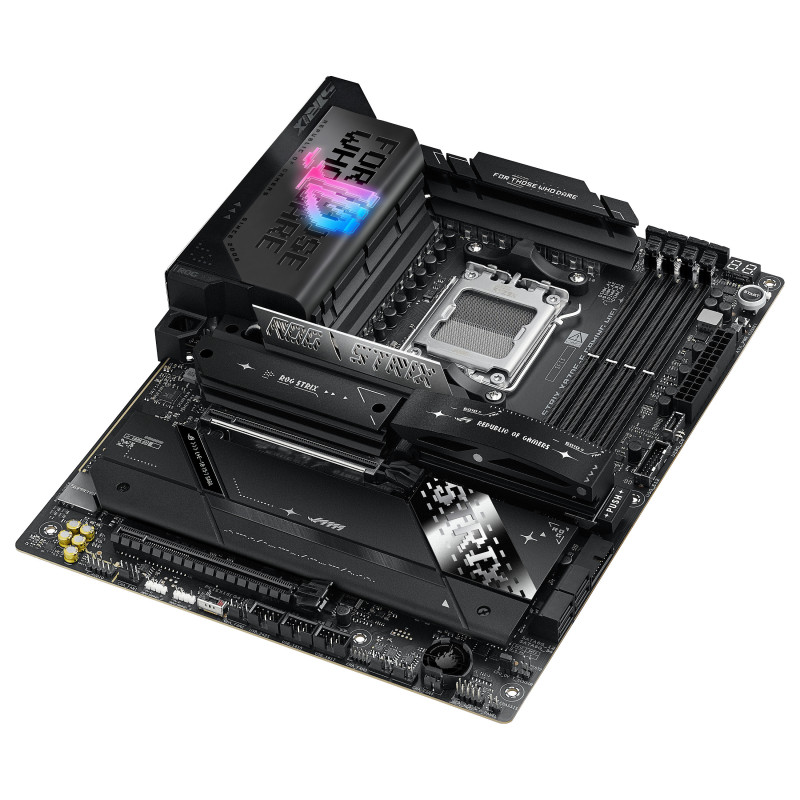

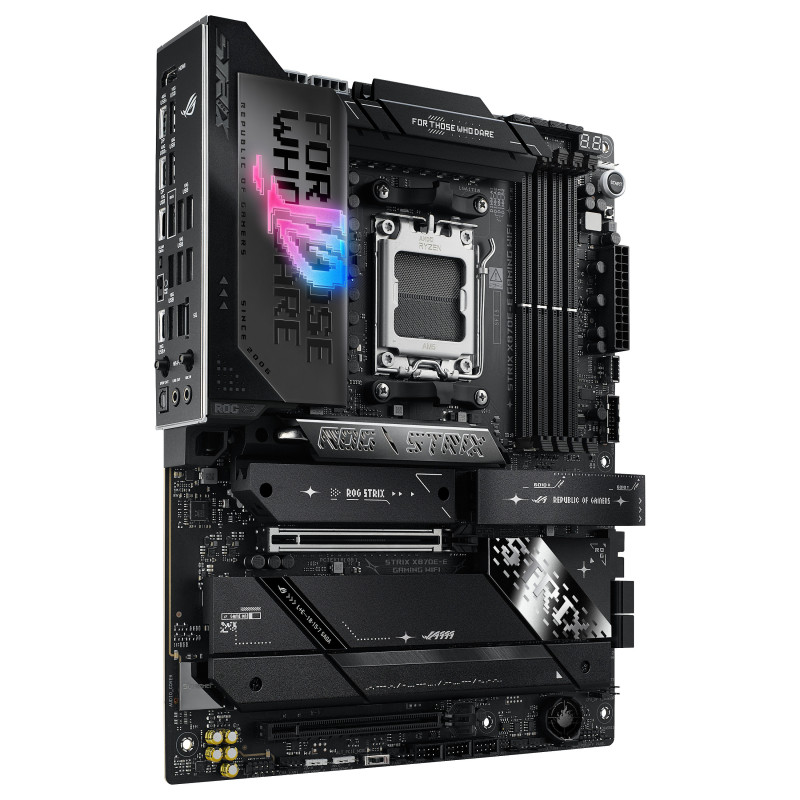

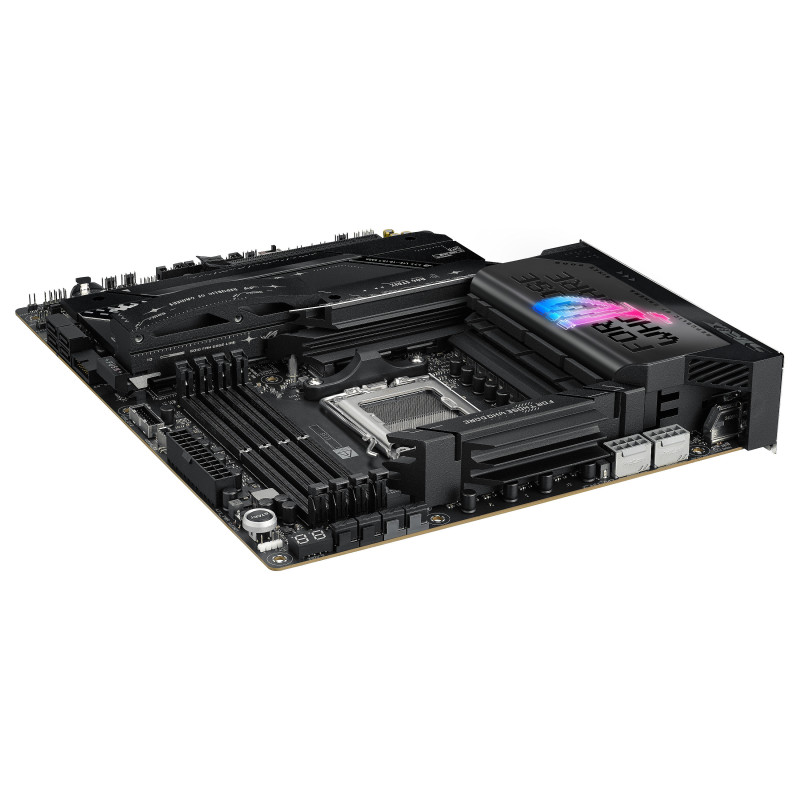

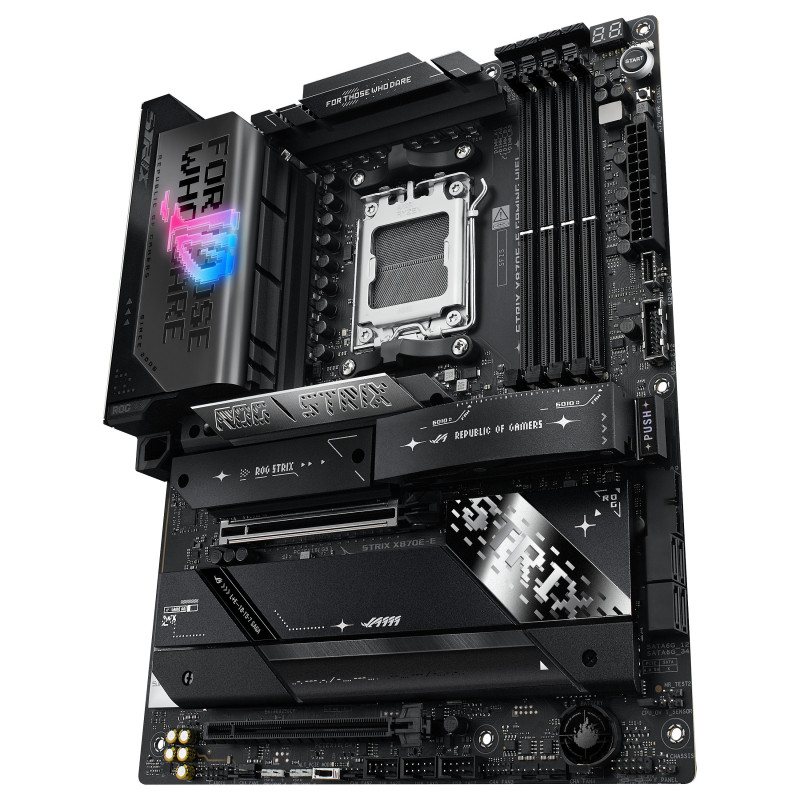

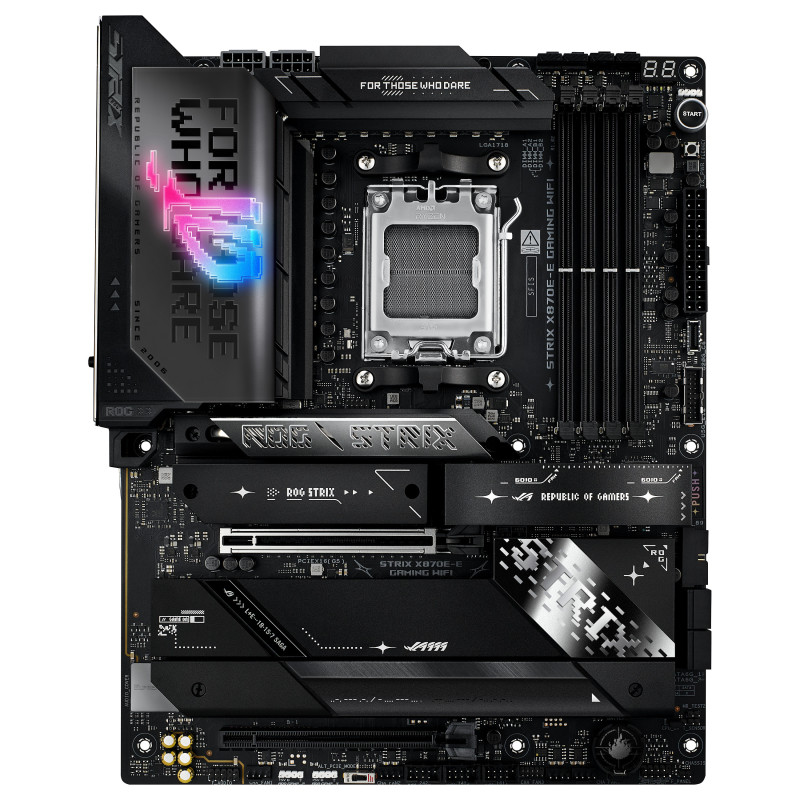

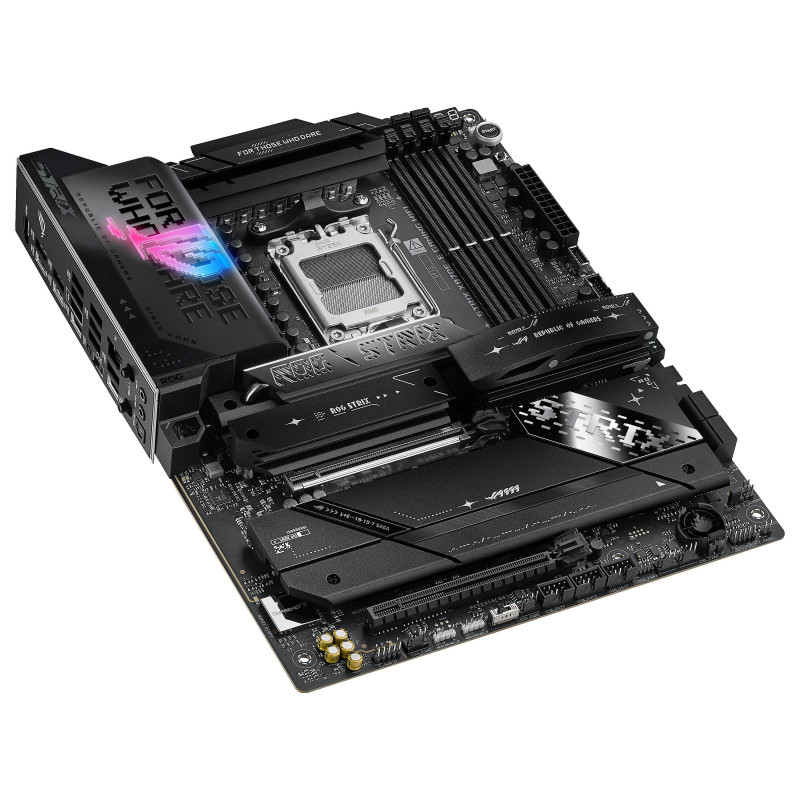

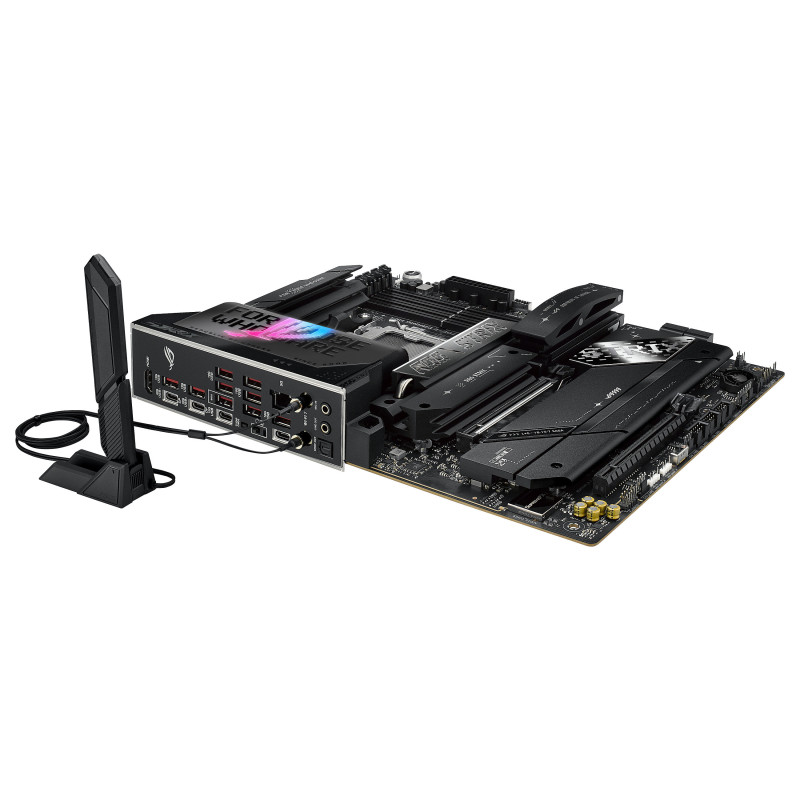

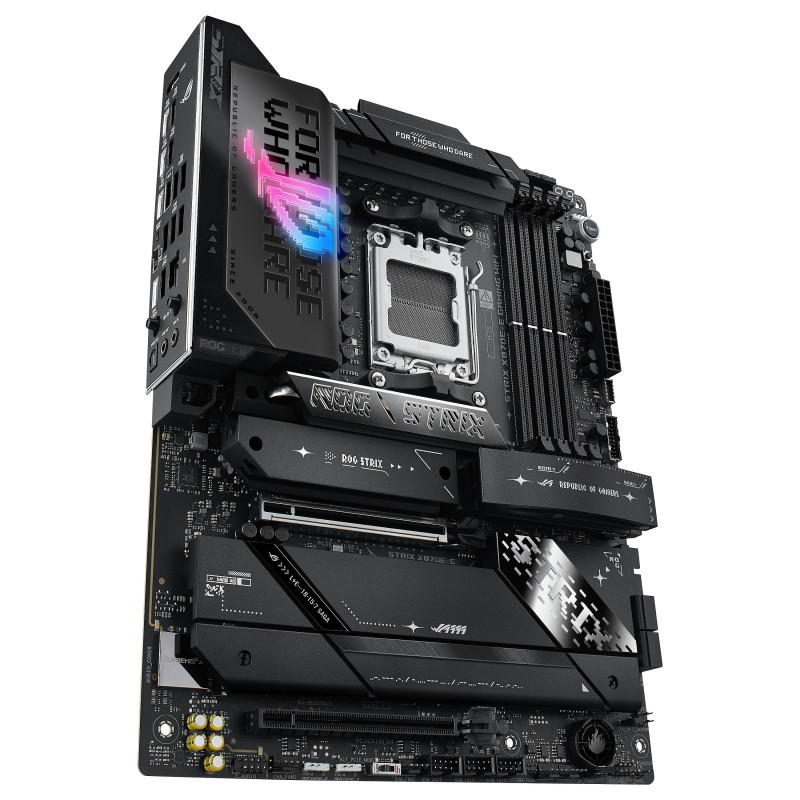

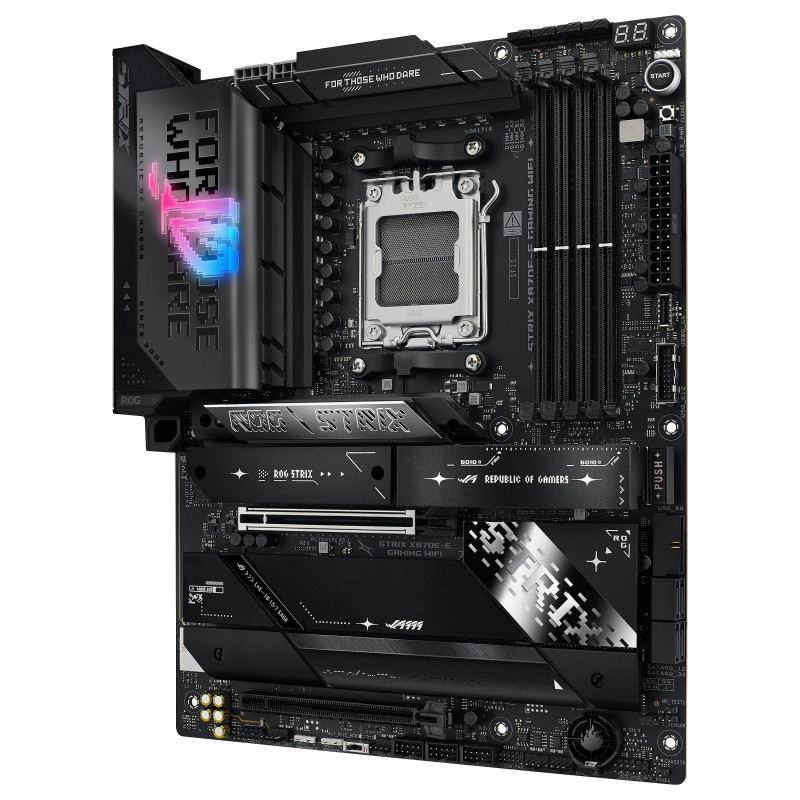

ASUS ROG STRIX X870E-E GAMING WIFI

ASUS ROG STRIX X870E-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI Overclocking
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC Non-ECC
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 9
RAID support: Yes
RAID levels: 0, 1, 10, 5

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
12V power connector: Yes

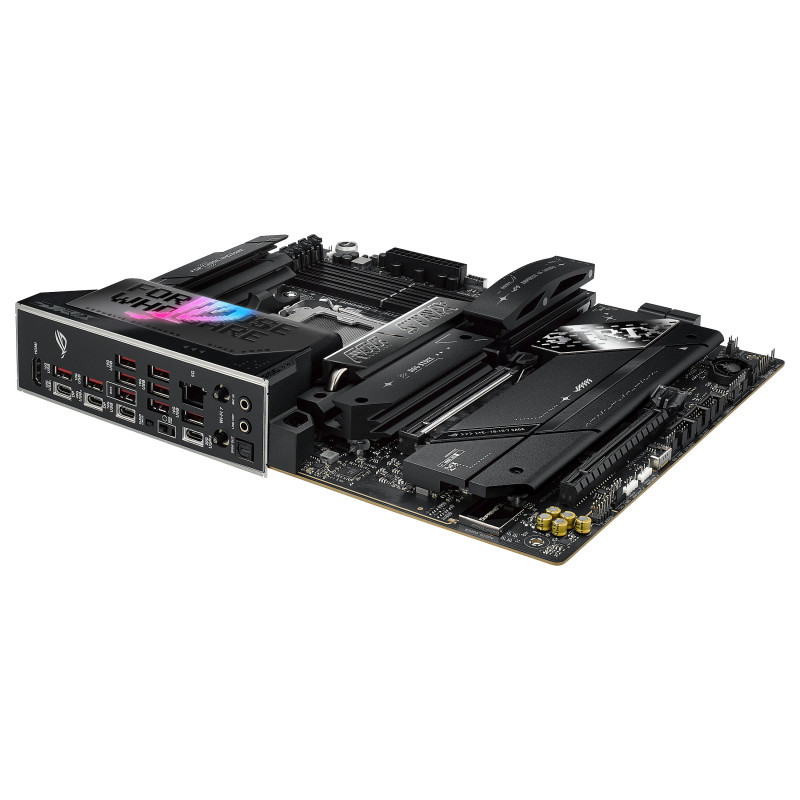

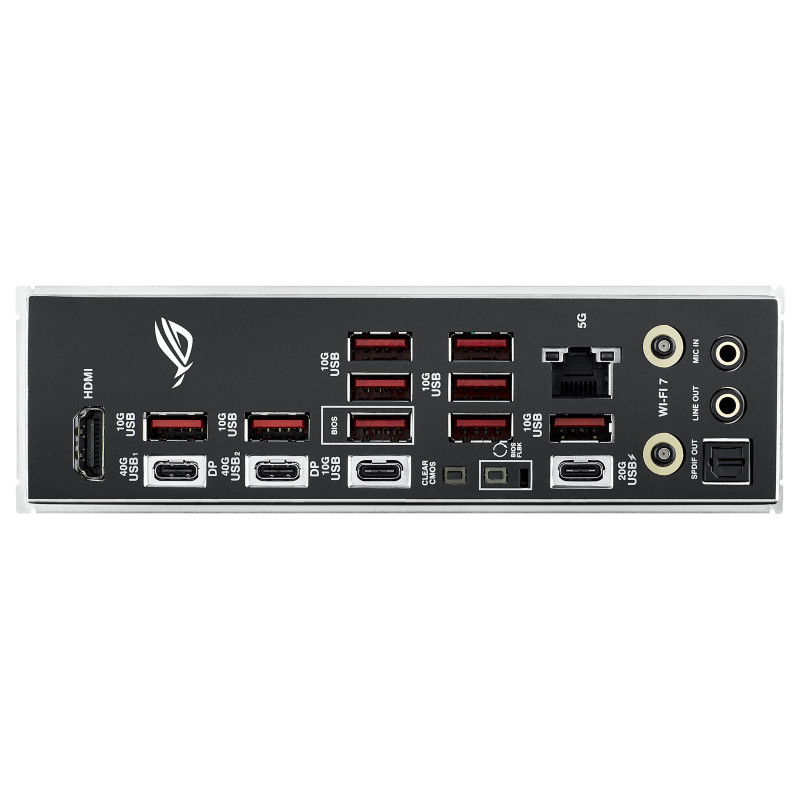

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: AMD X870E
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 5

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Packaging data

Package width: 365 mm
Package depth: 281 mm
Package height: 87 mm
Package weight: 3.02 kg

Weight dimensions

Width: 305 mm
Depth: 244 mm
Height: 50 mm

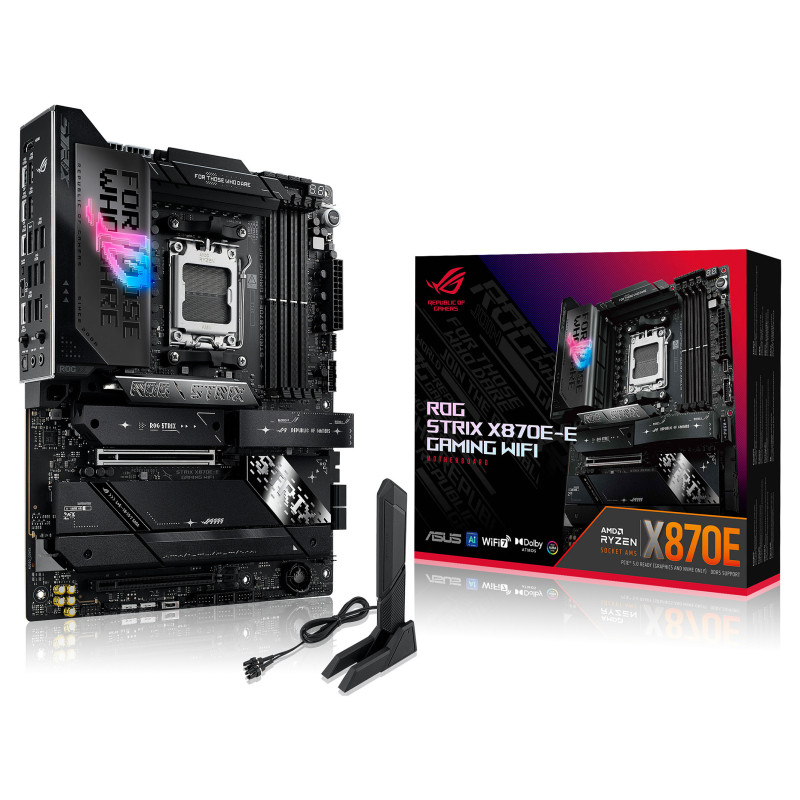

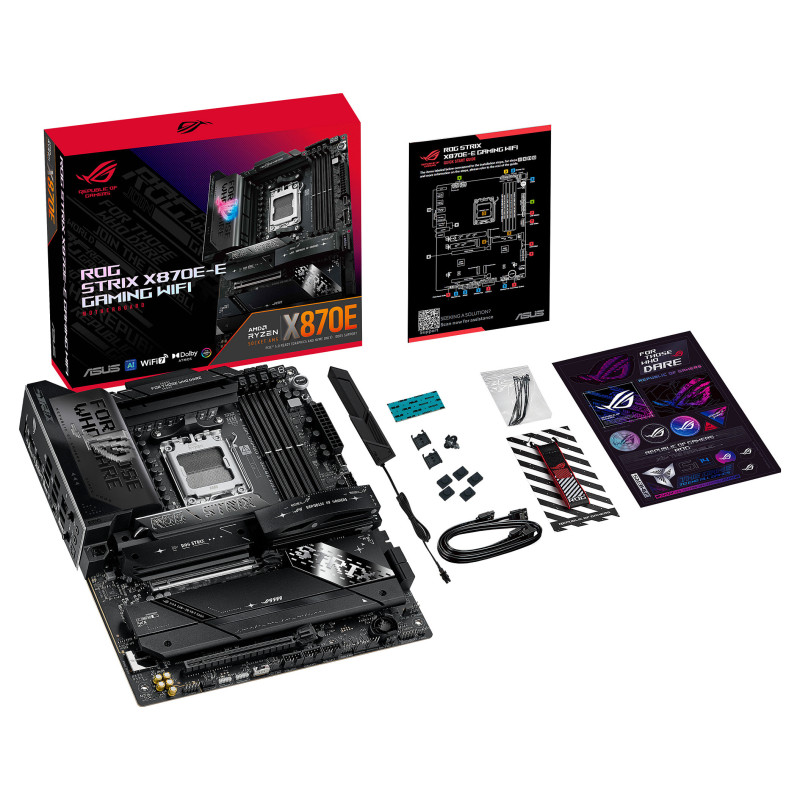

Packaging content

Cables included: SATA

Other features

Weight: 2.06 kg
