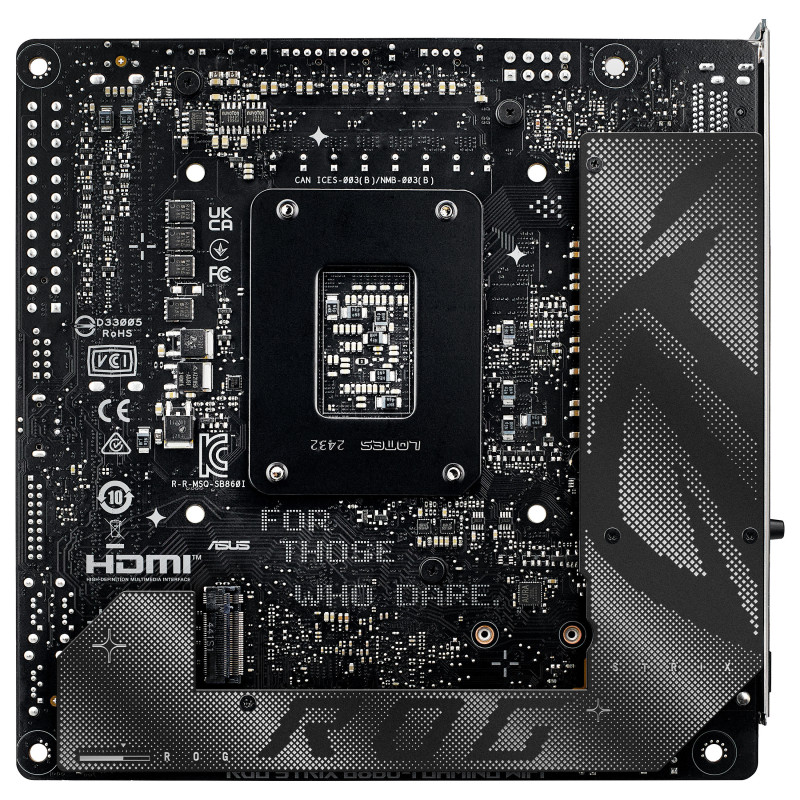

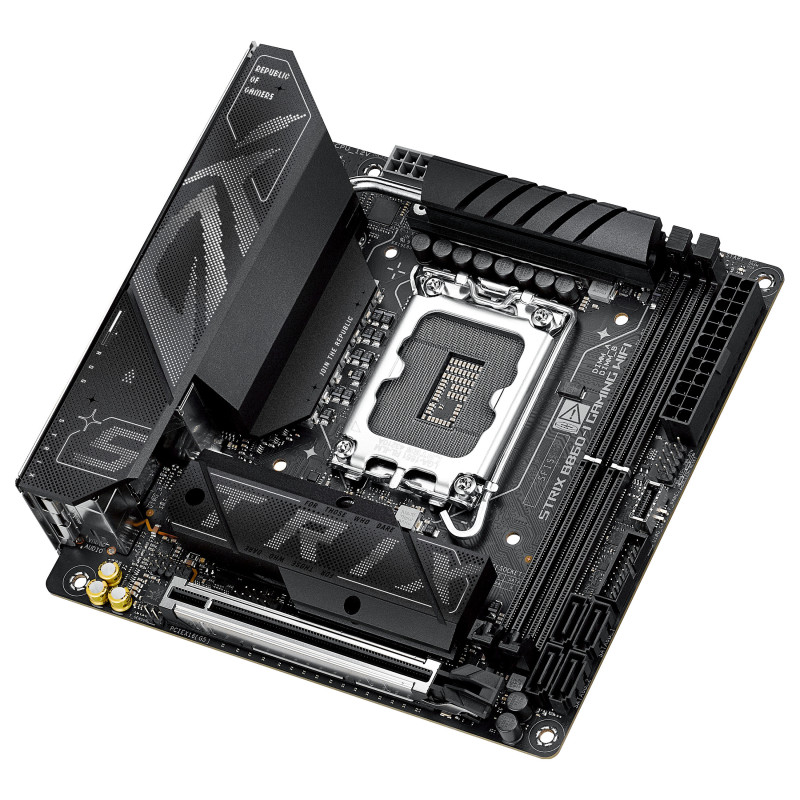

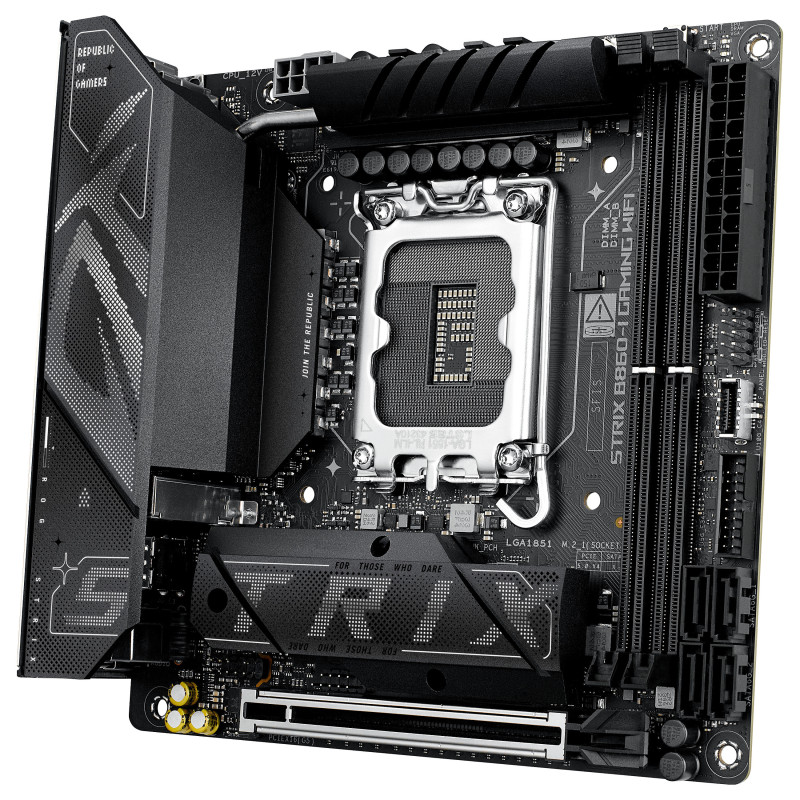

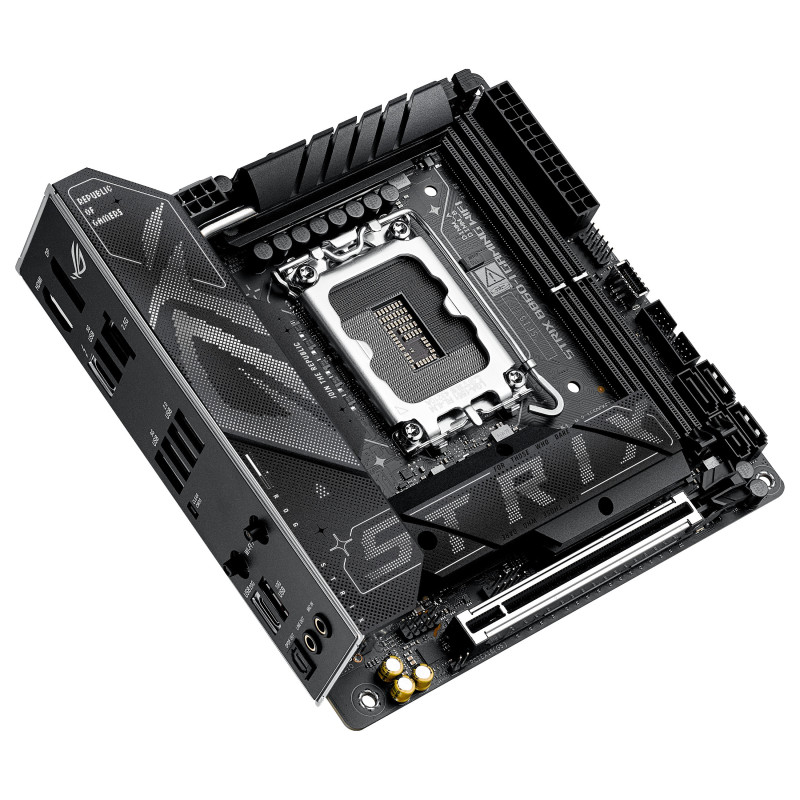

ASUS ROG STRIX B860-I GAMING WIFI

ASUS ROG STRIX B860-I GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 9066 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
12V power connector: Yes

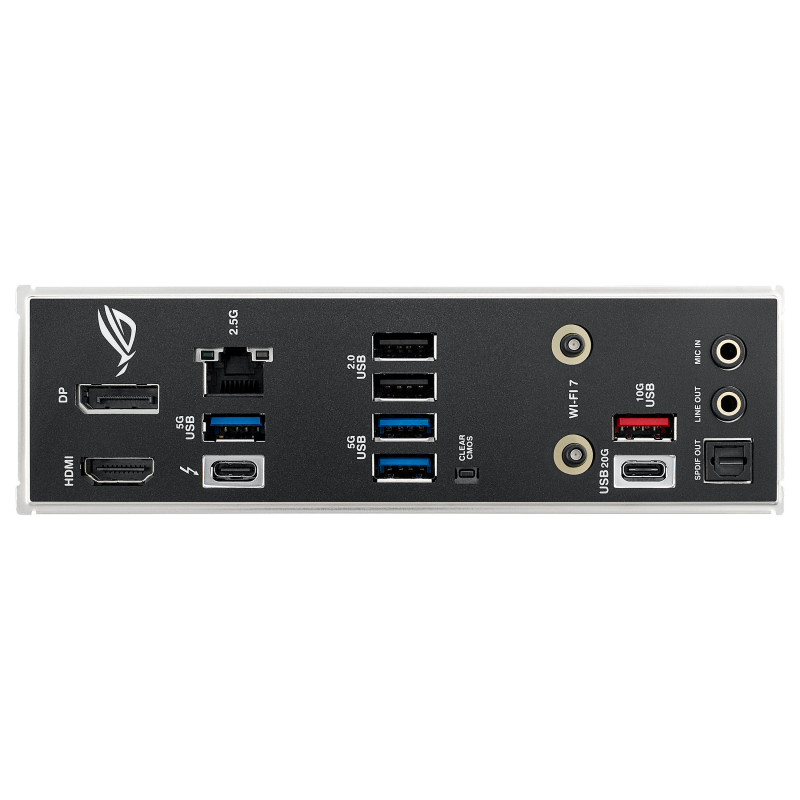

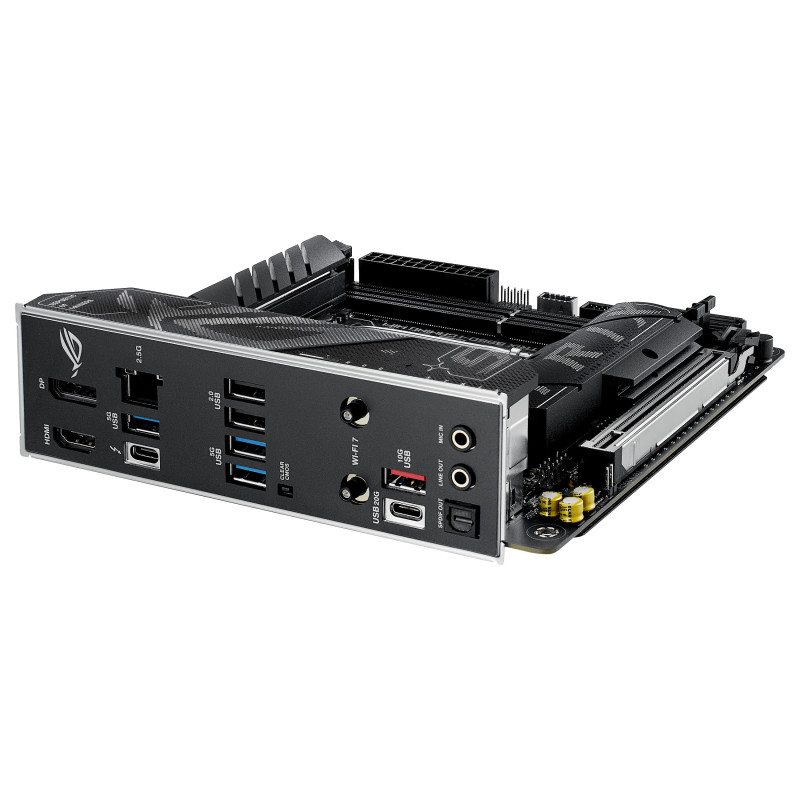

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Microphone in: Yes
S/PDIF out port: Yes
Thunderbolt ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: Intel B860
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Weight dimensions

Width: 170 mm
Depth: 170 mm
