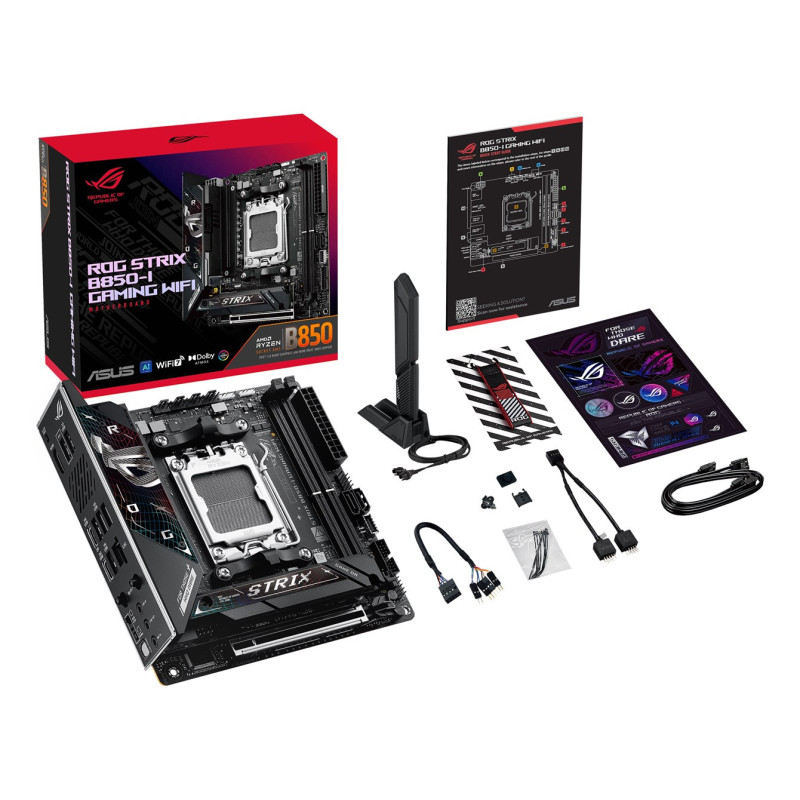

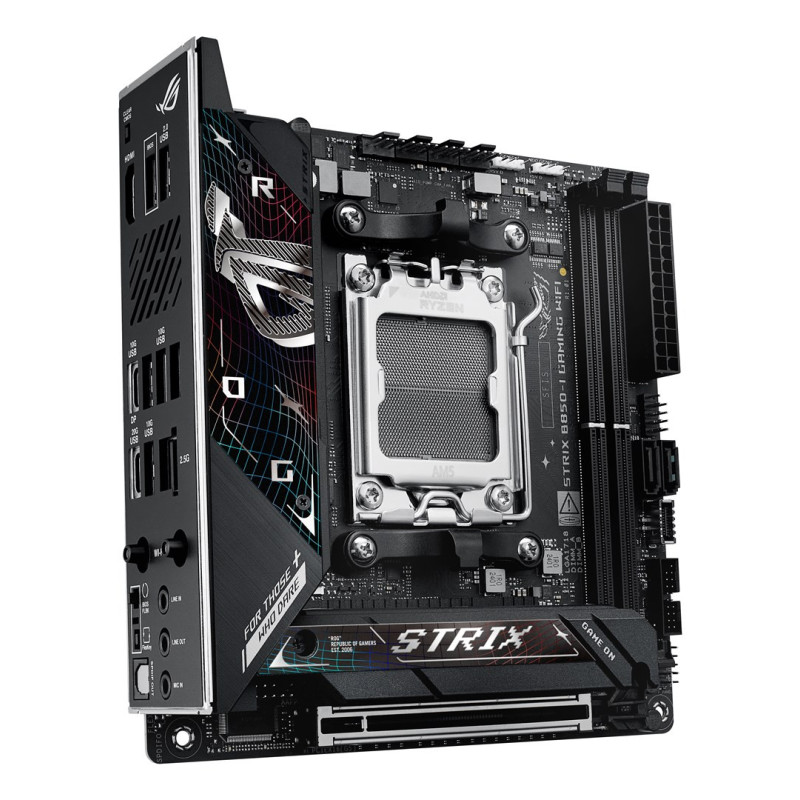

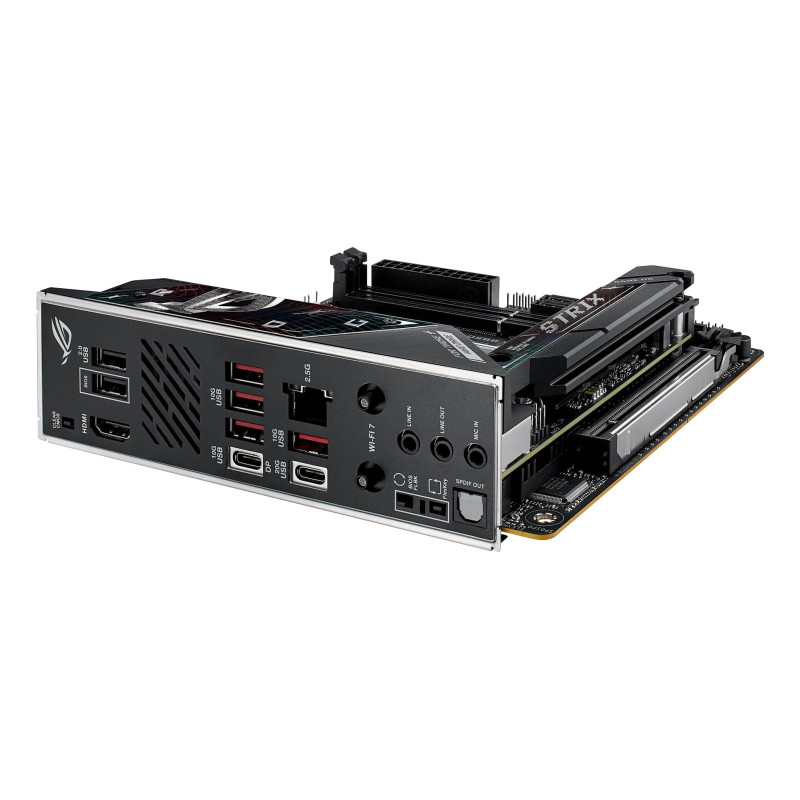

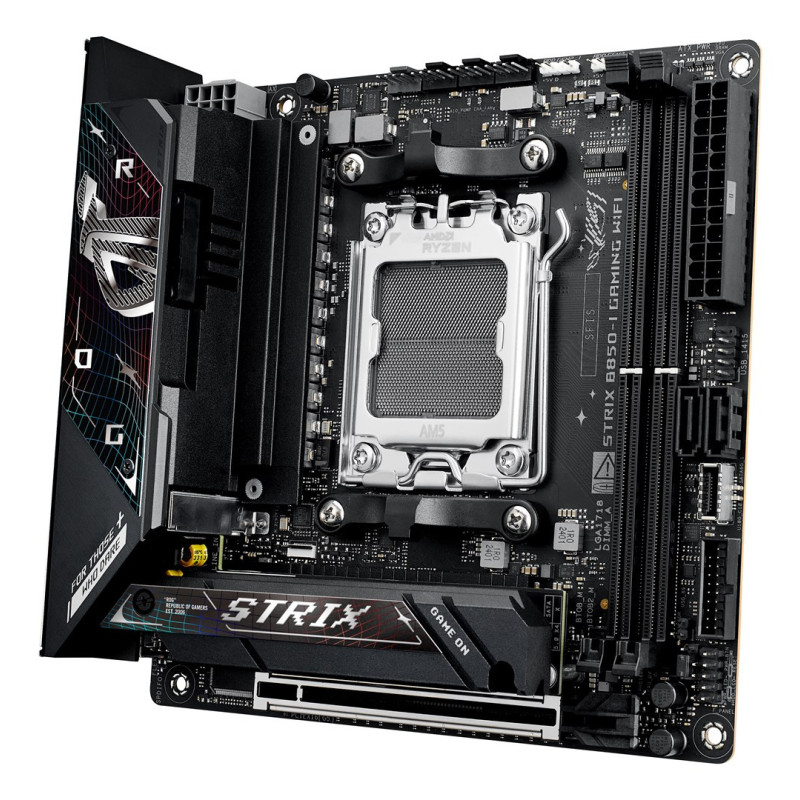

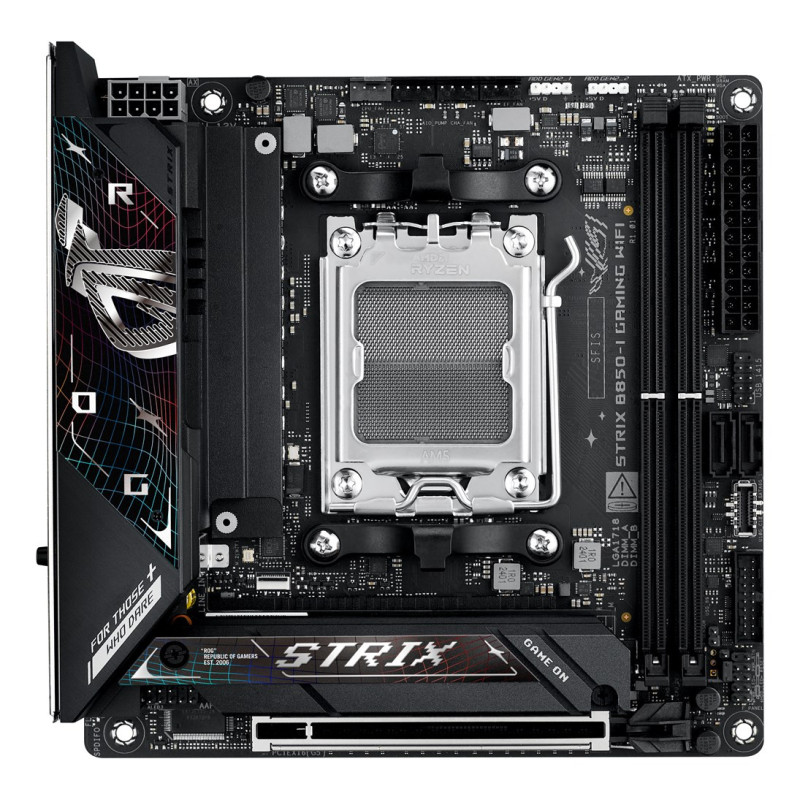

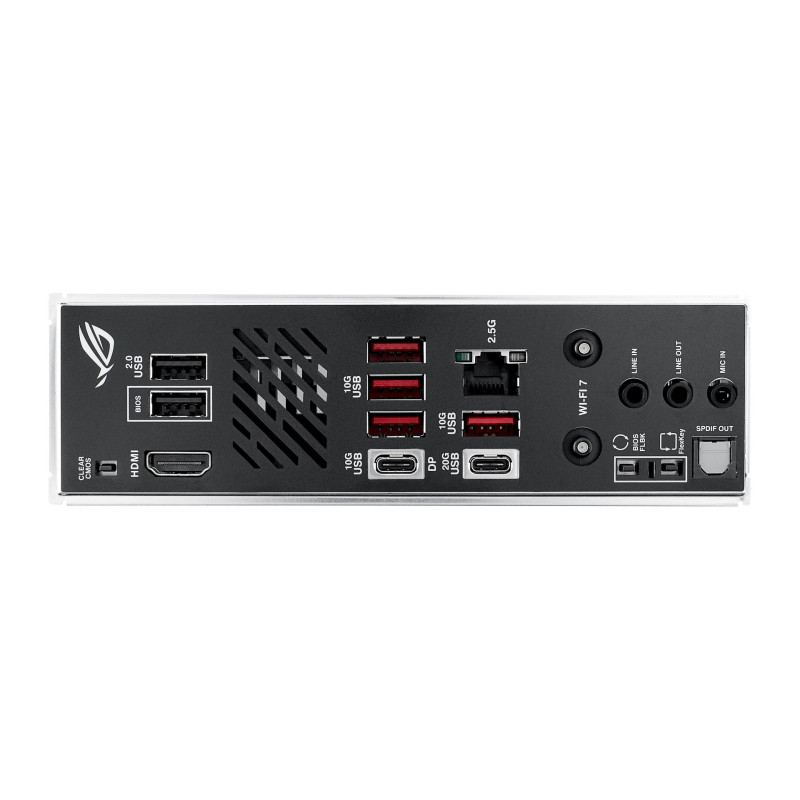

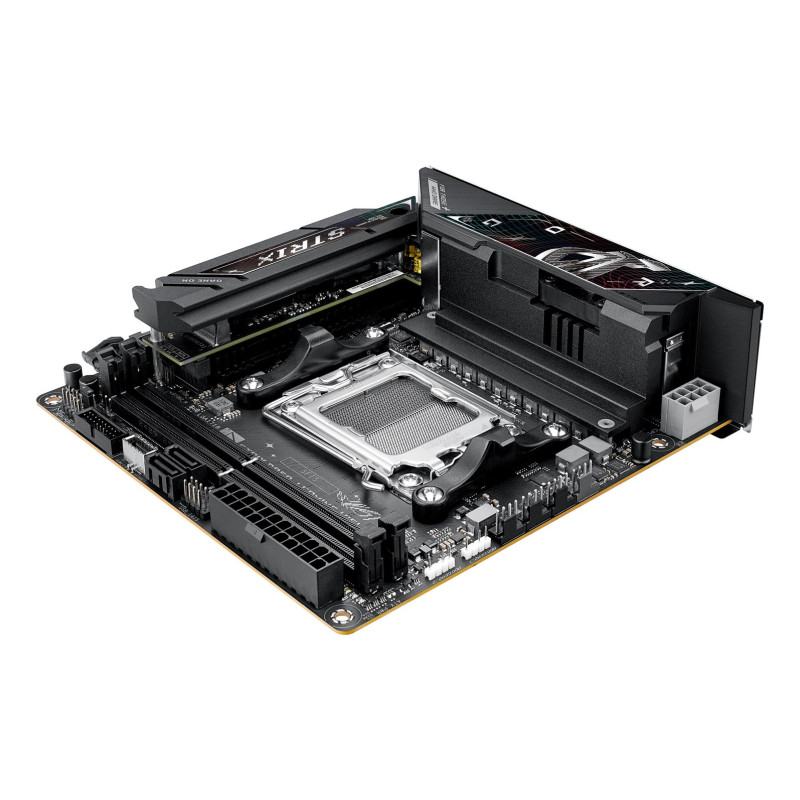

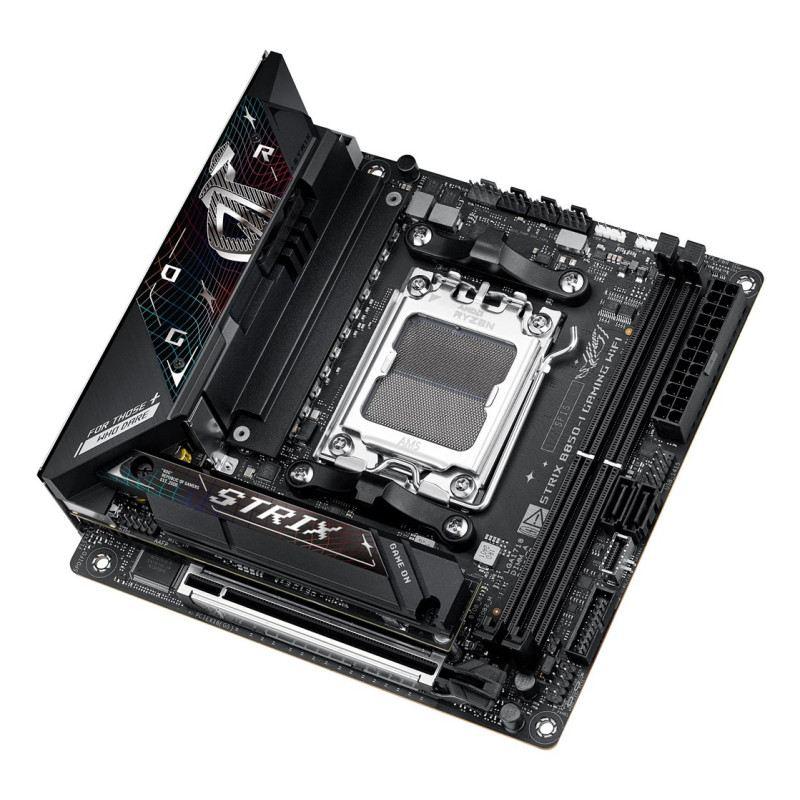

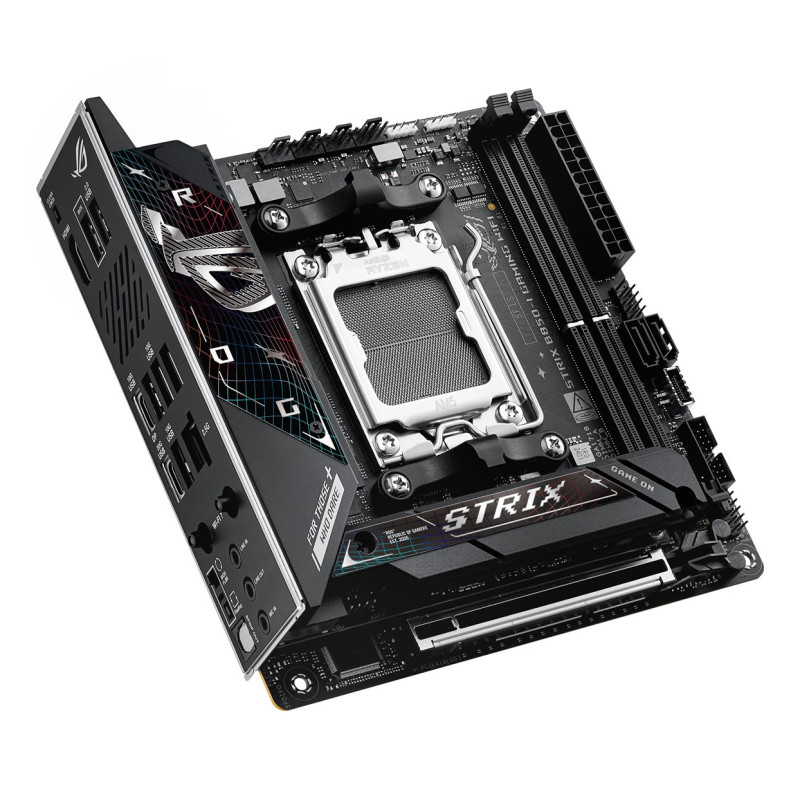

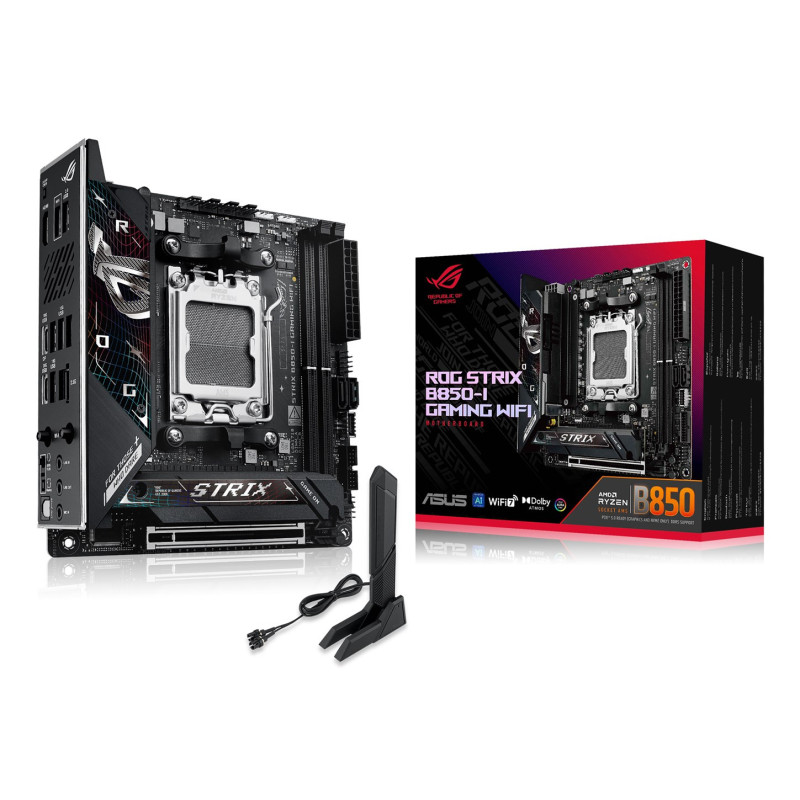

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Product reference:
6-90MB1K30-M0EAY0
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Product reference:
6-90MB1K30-M0EAY0
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Audio chip | Realtek ALC4080 |
| Motherboard chipset family | AMD |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 |
| Motherboard form factor | mini ITX |
| Motherboard chipset | AMD B850 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 96 GB |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8400 MHz |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Width | 170 mm |
| Depth | 170 mm |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Cables included | SATA |
| Antenna included | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Number of HDDs supported | 2 |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Digital audio optical out | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Quick installation guide | Yes |
| Weight | 1.06 kg |
| Warnings | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
