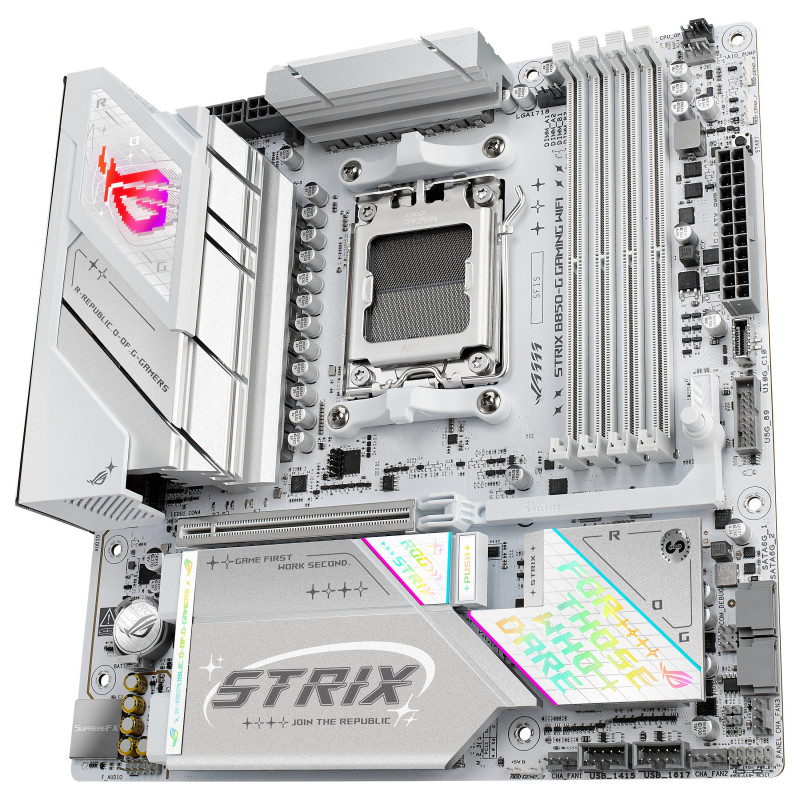

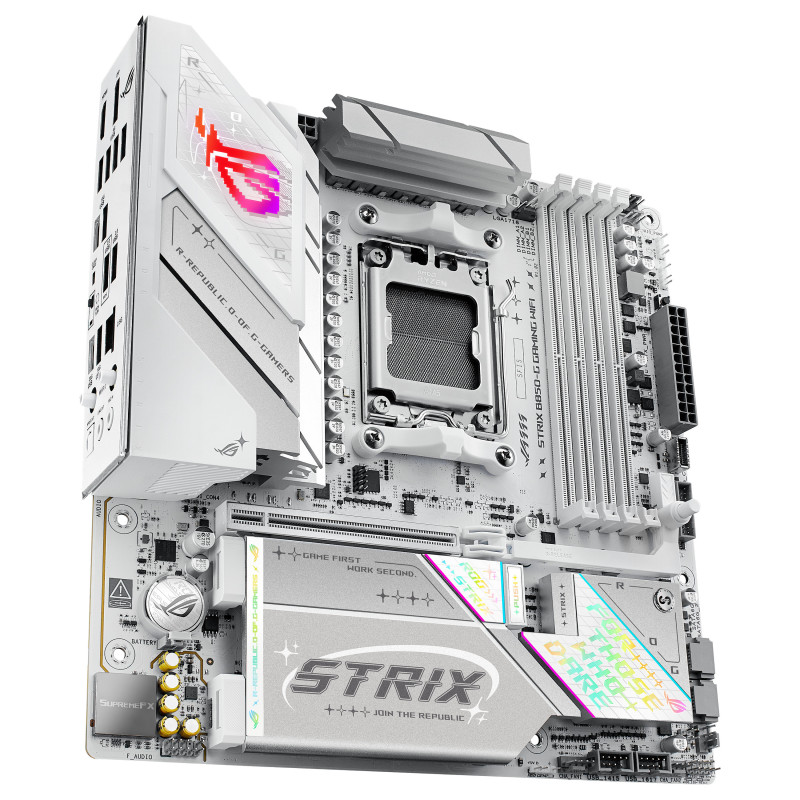

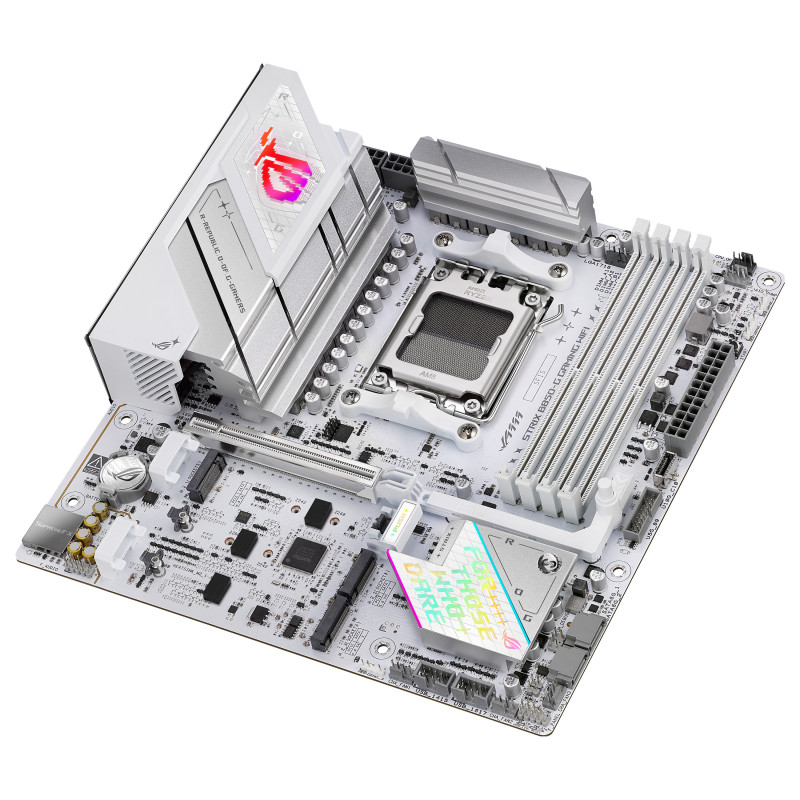

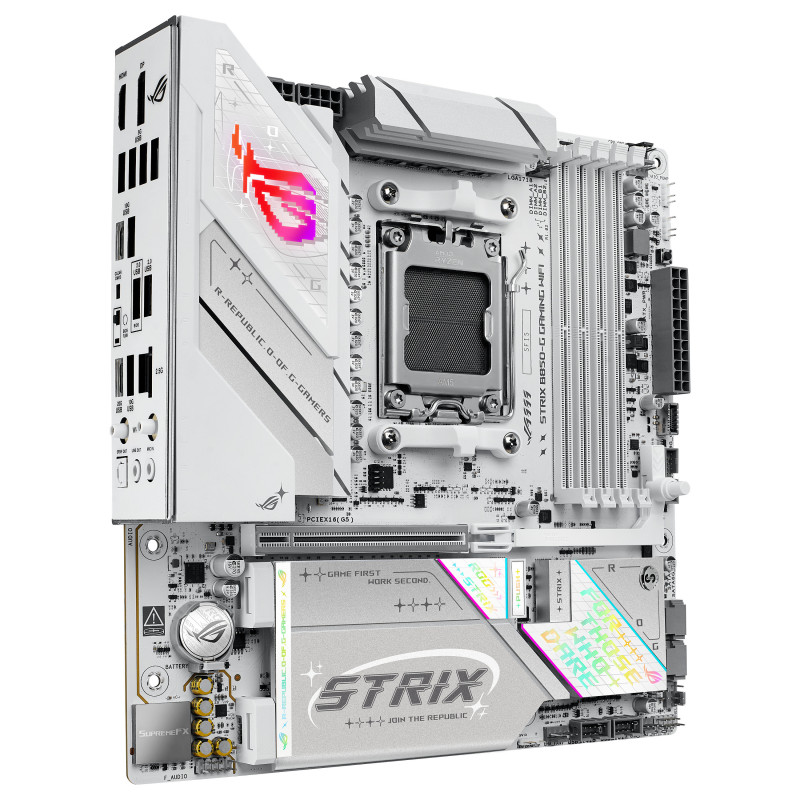

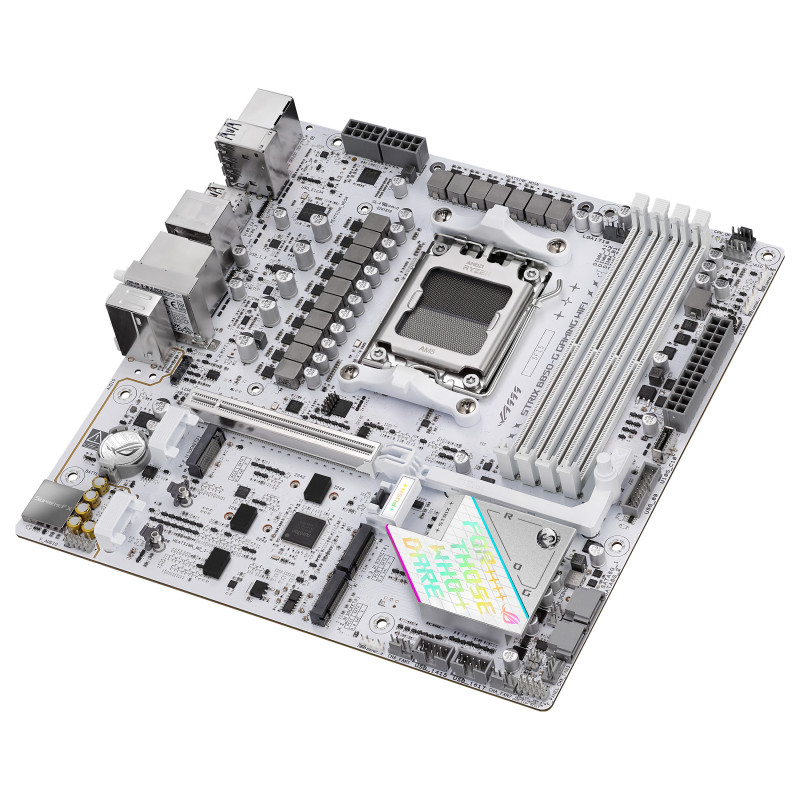

Asus ROG Strix B850-G Gaming WiFi

ASUS ROG STRIX B850-G GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

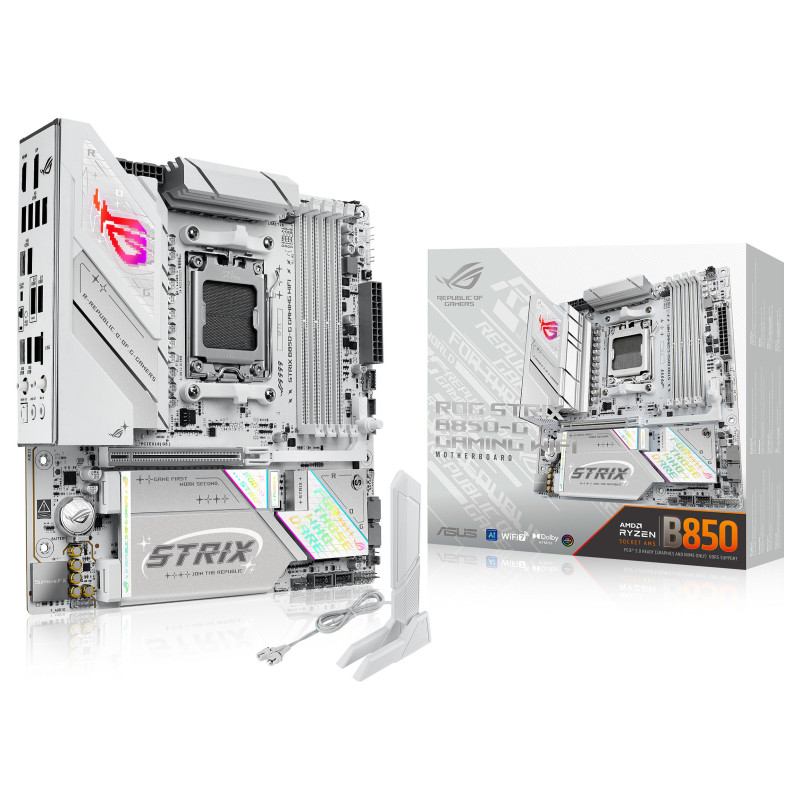

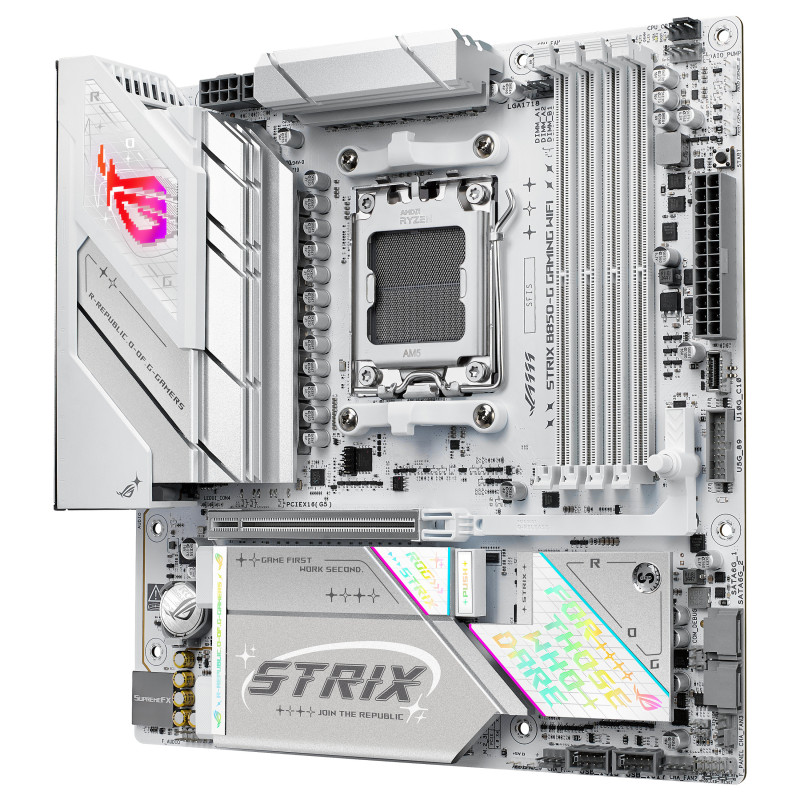

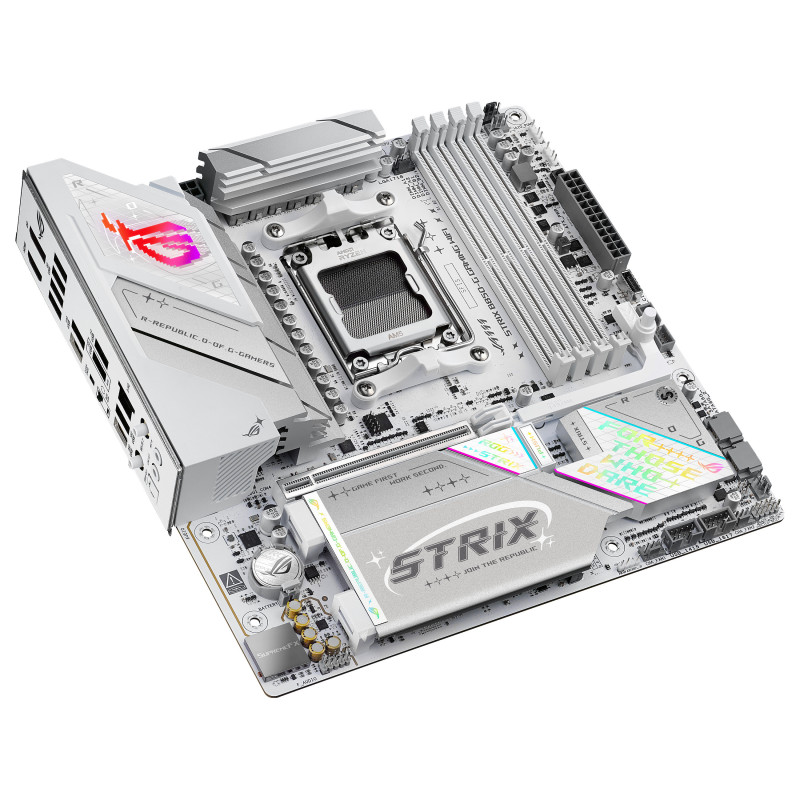

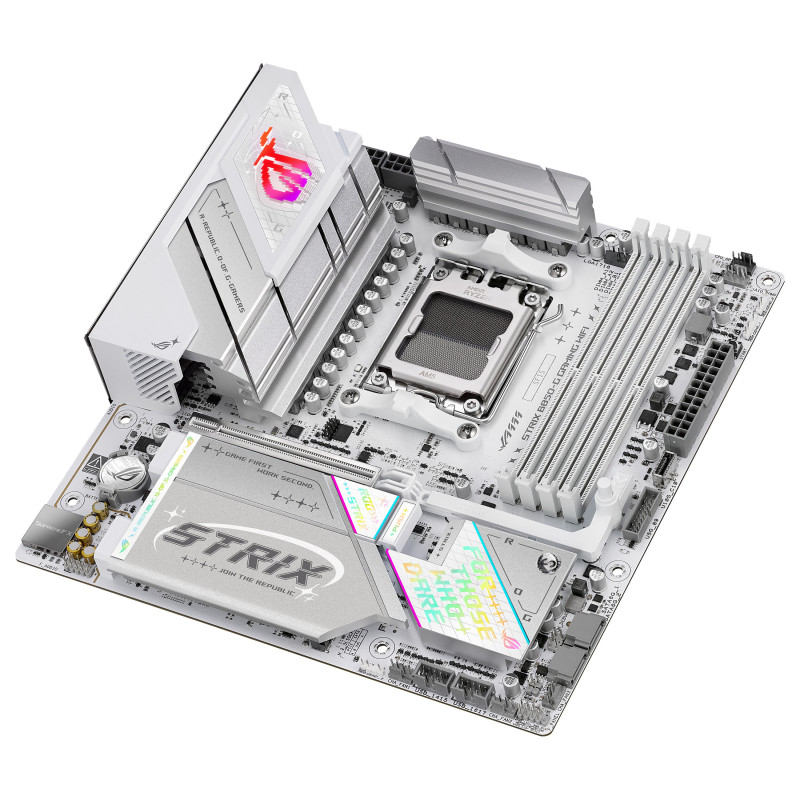

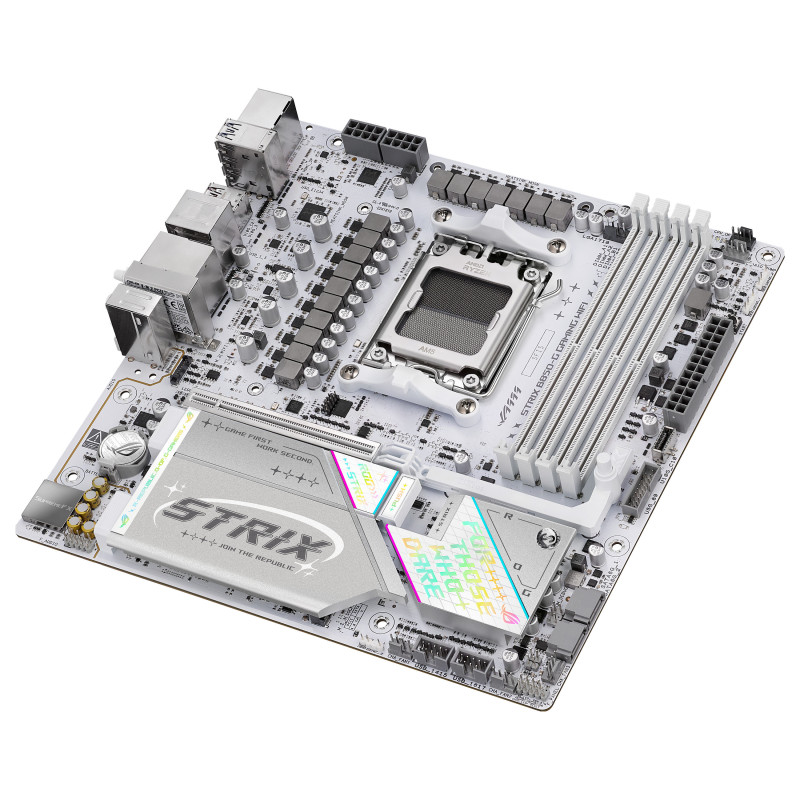

ASUS ROG Strix B850-G Gaming WiFi AMD mATX motherboard, 14+2+1 power stages, DDR5 slots, four M.2 slots, PCIe® 5.0, WiFi 7, USB 20Gbps Type-C® and Aura Sync RGB

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
12V power connector: Yes

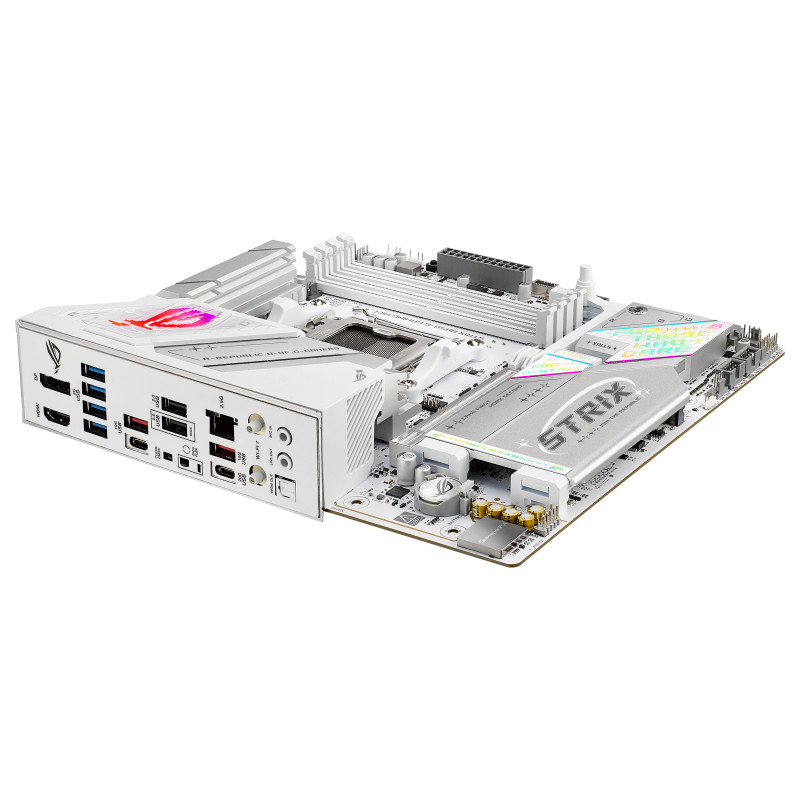

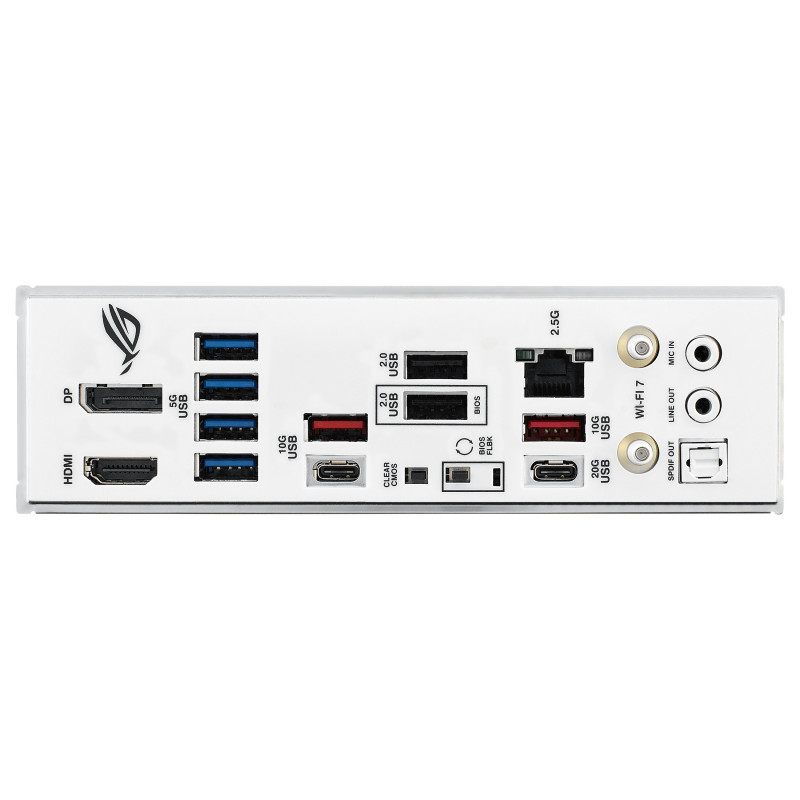

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 2

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: White
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Packaging data

Package width: 285 mm
Package depth: 277 mm
Package height: 72.5 mm

Weight dimensions

Width: 244 mm
Depth: 244 mm

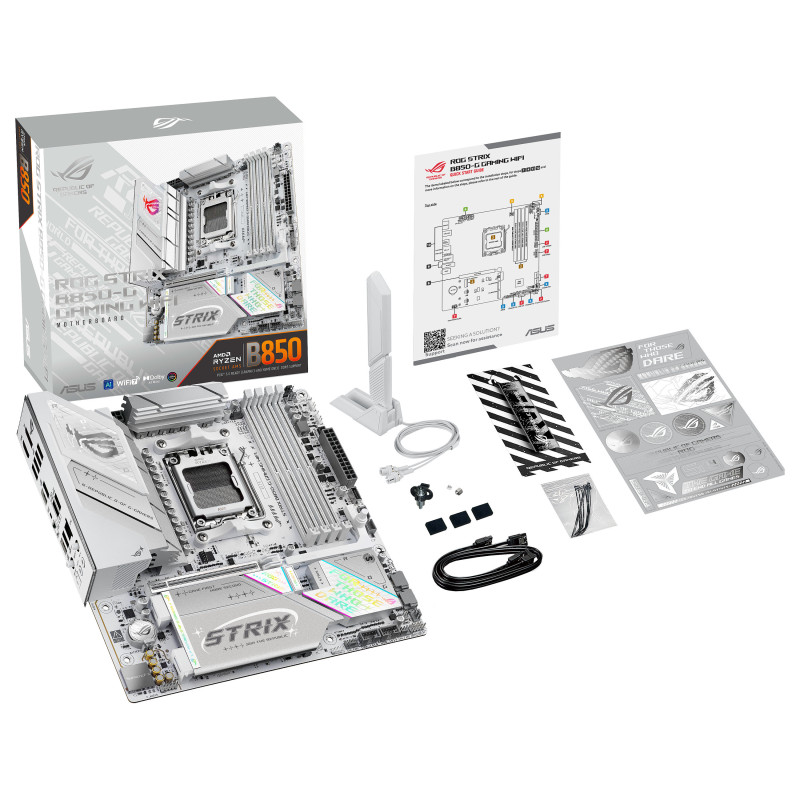

Packaging content

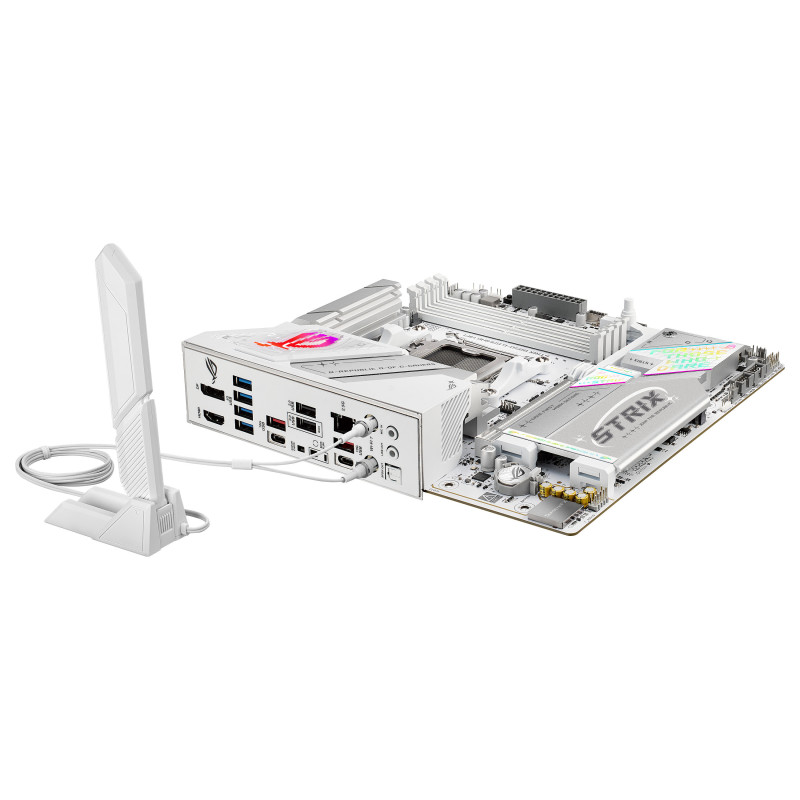

Antenna included: Yes

Other features

Audio output: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special features: Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)

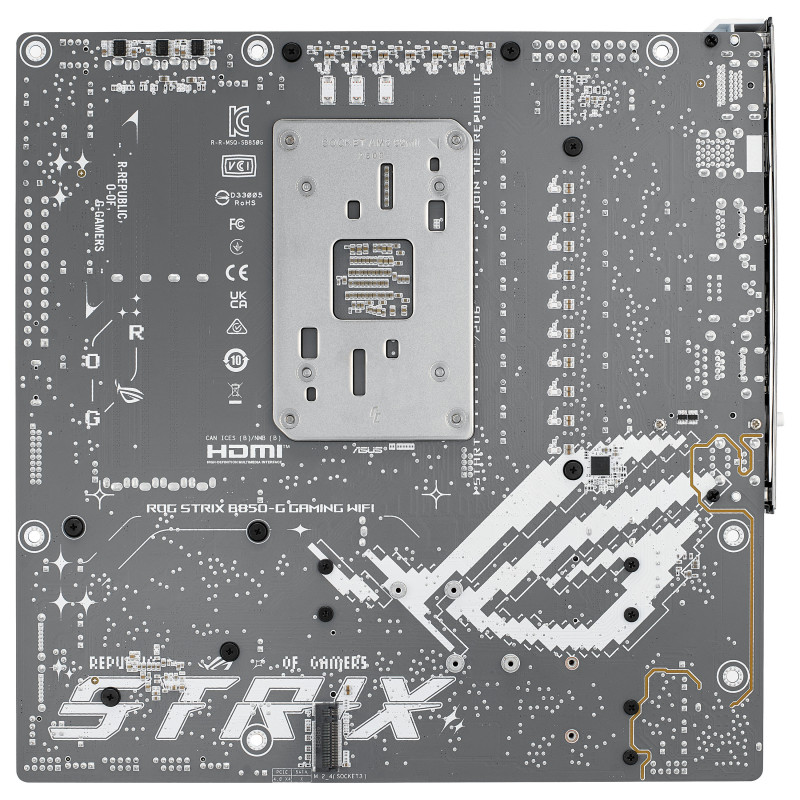

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board
2 x SATA 6Gb/s ports
*Specifications vary by CPU types.
Other features: 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 8000 7000 Series Processors
ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics output: 1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
