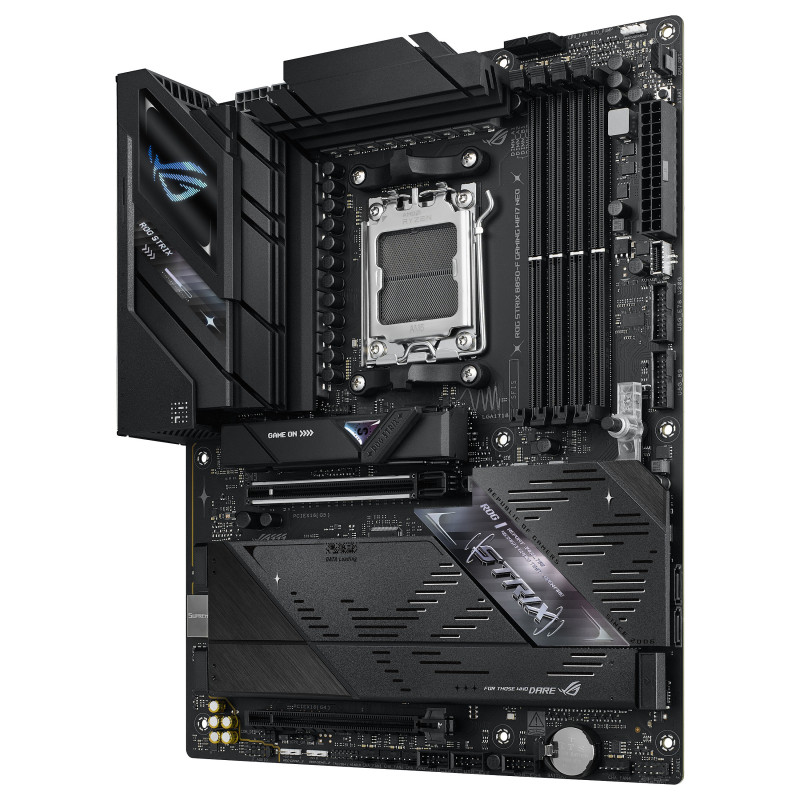

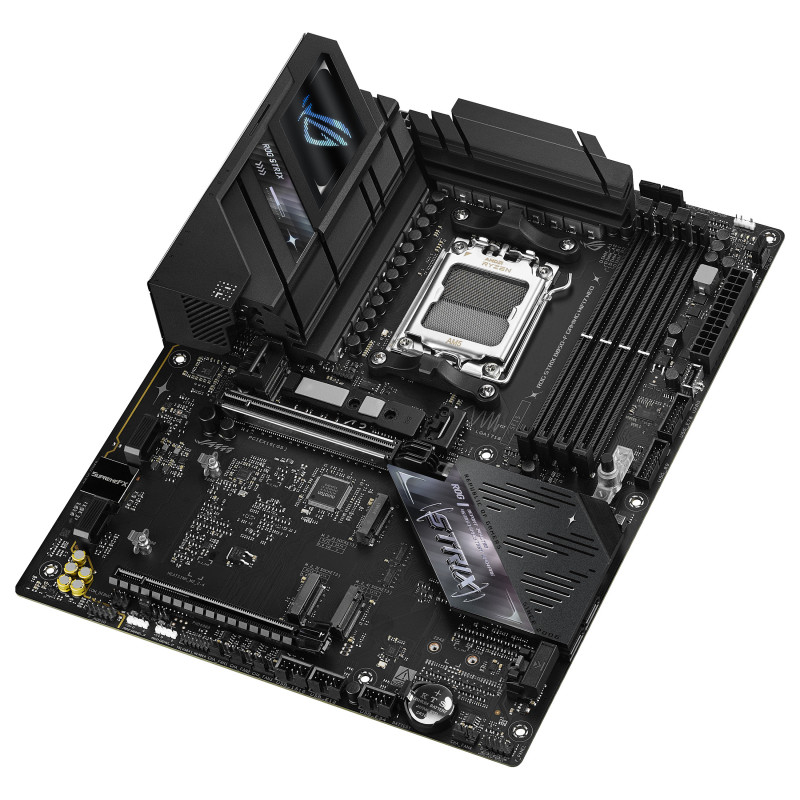

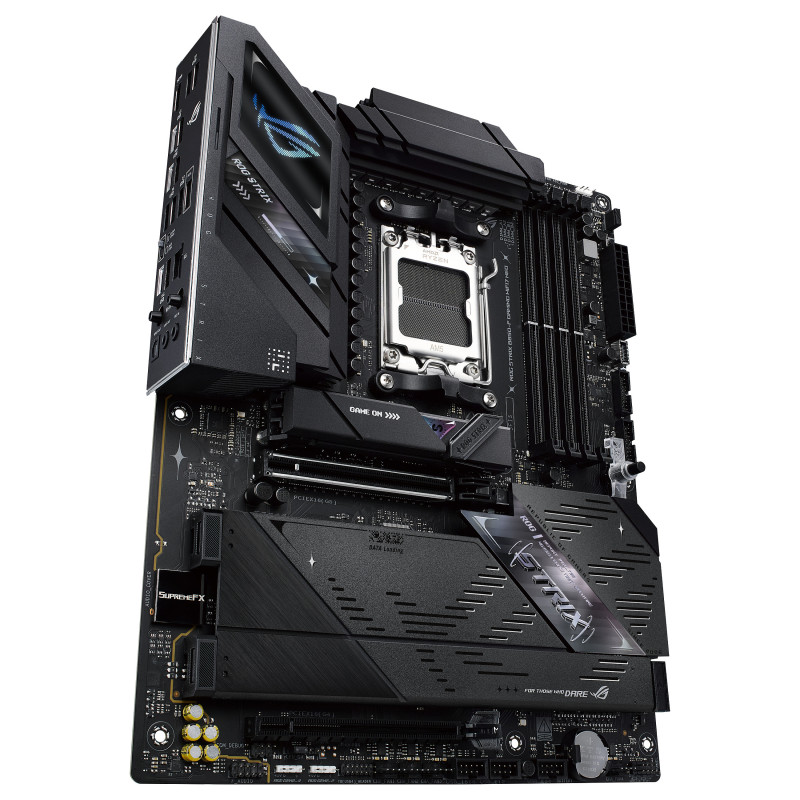

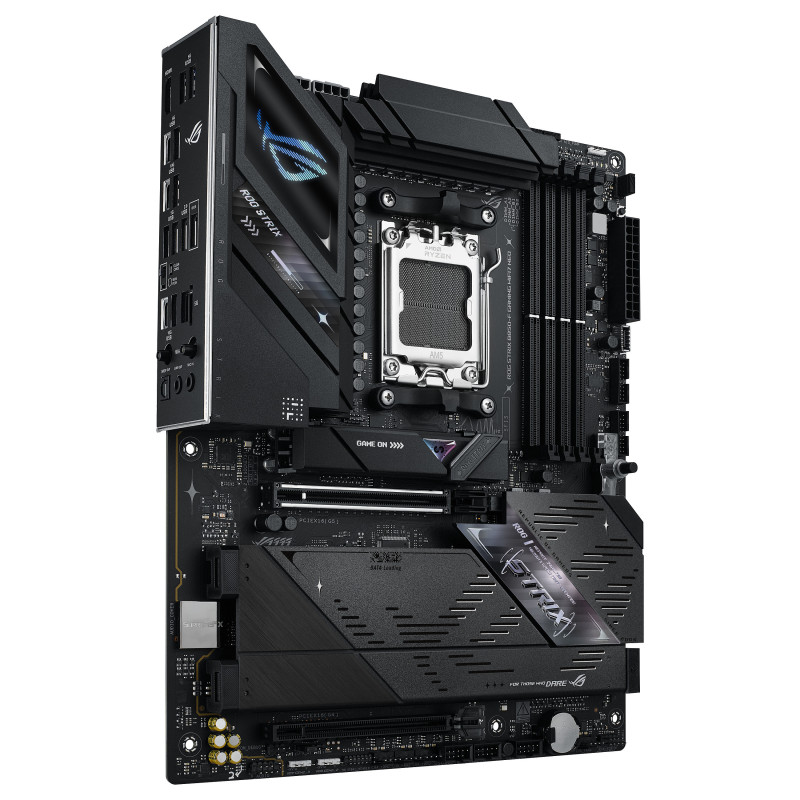

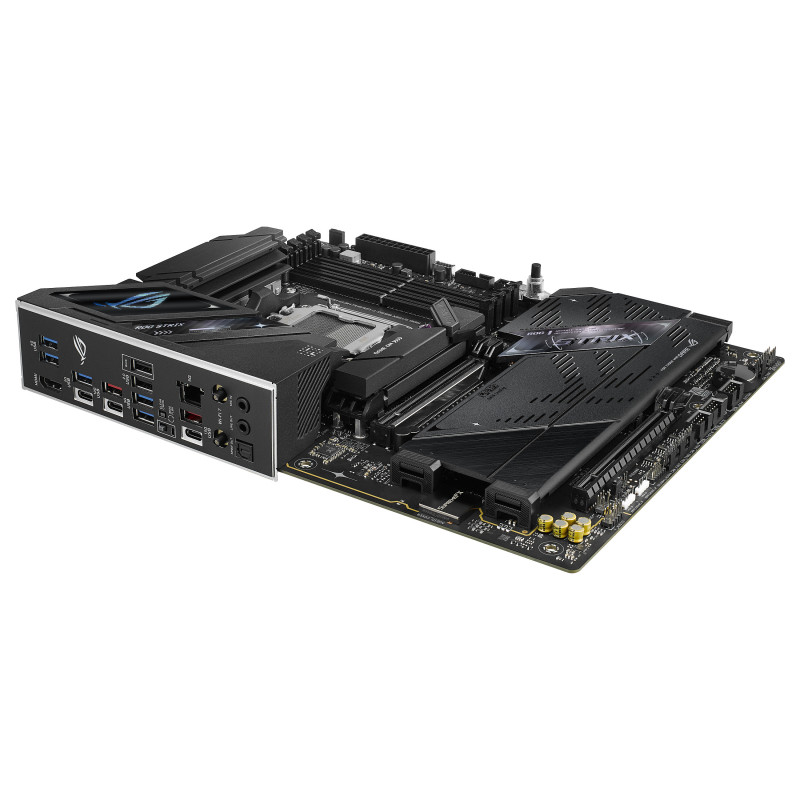

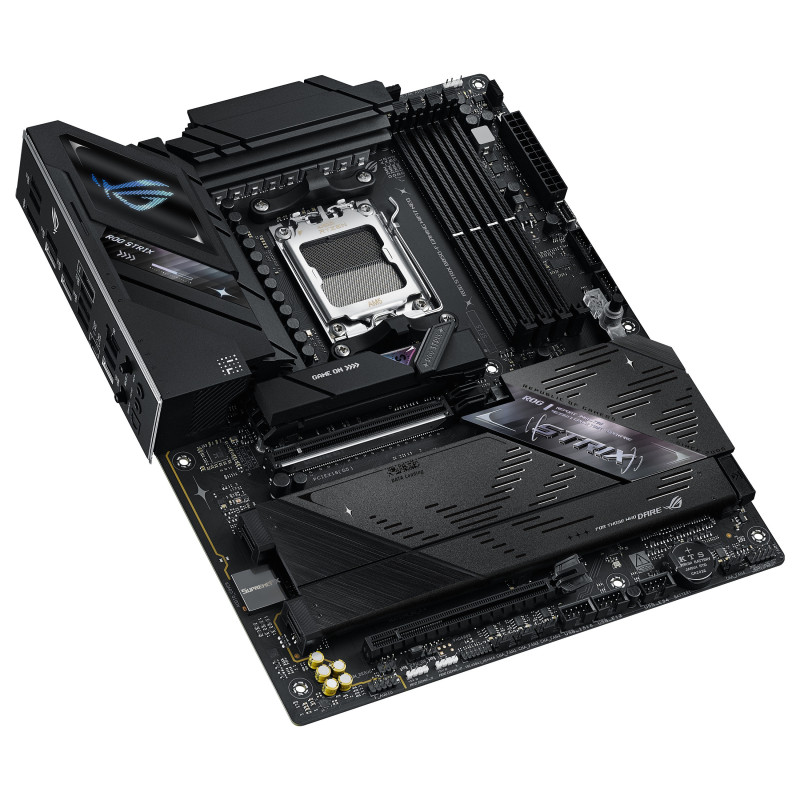

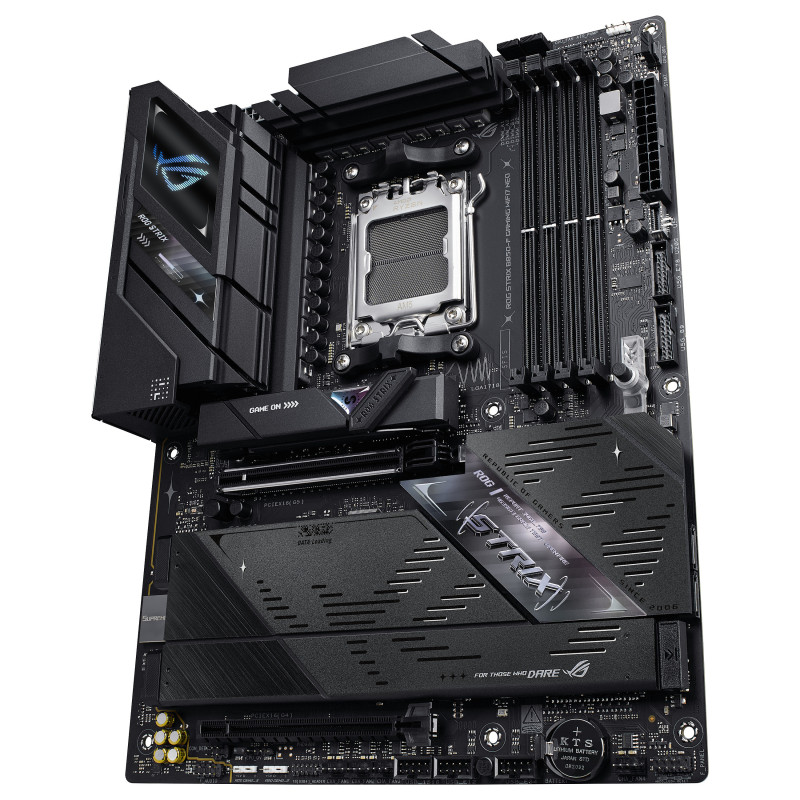

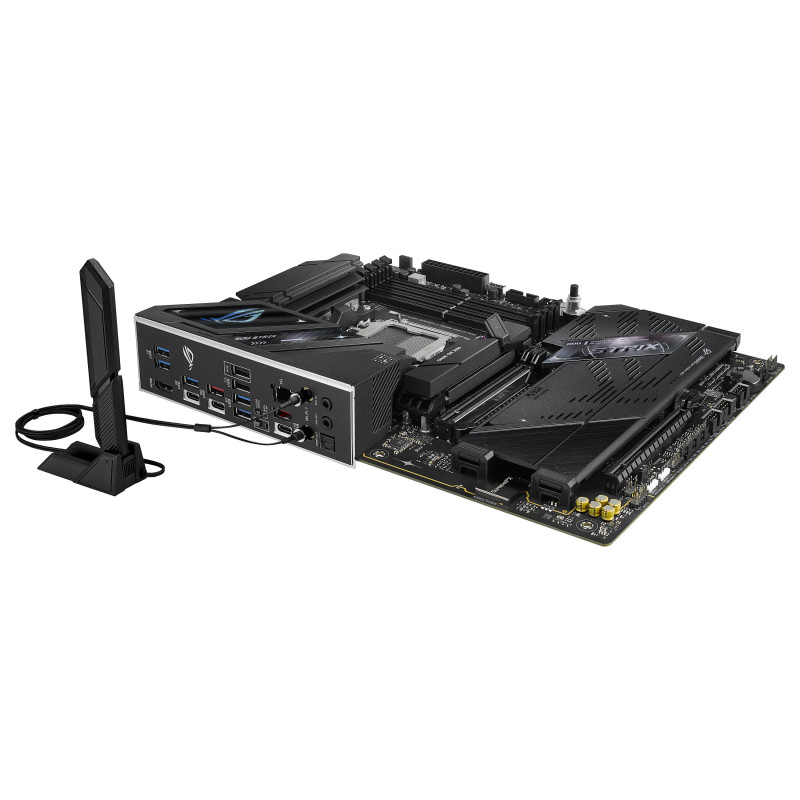

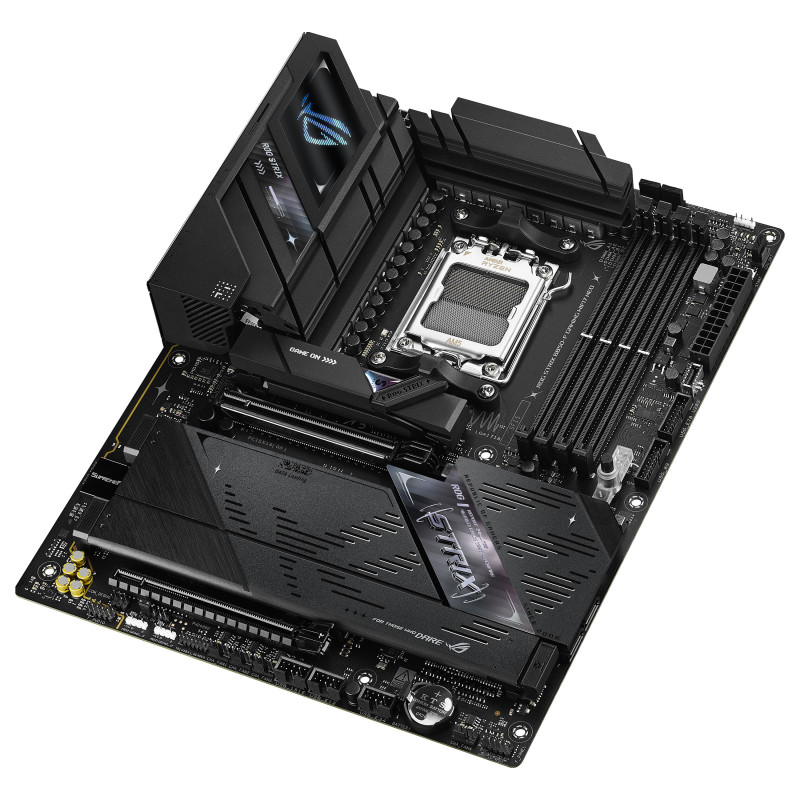

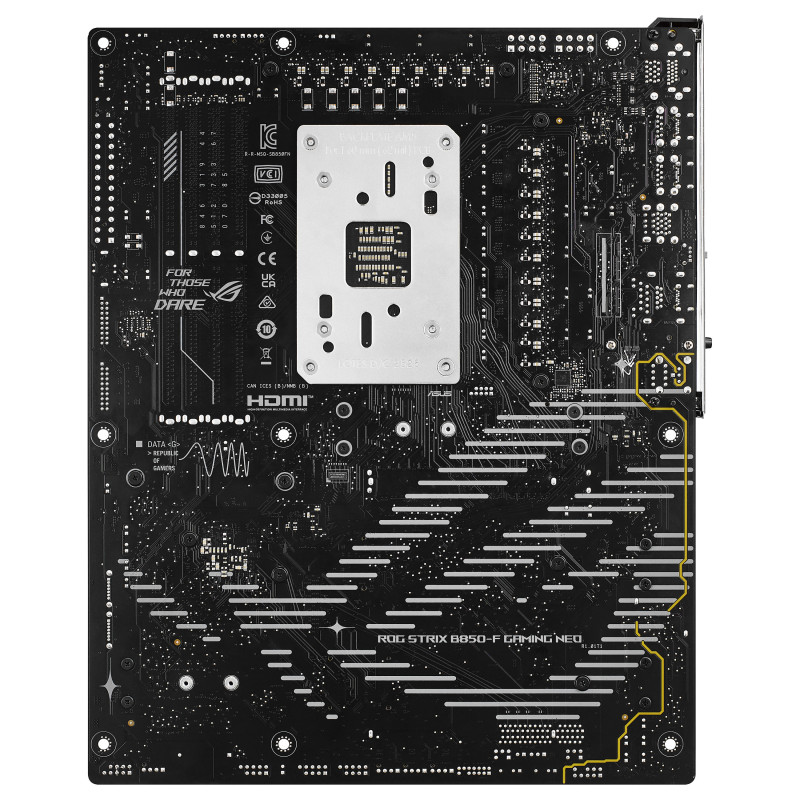

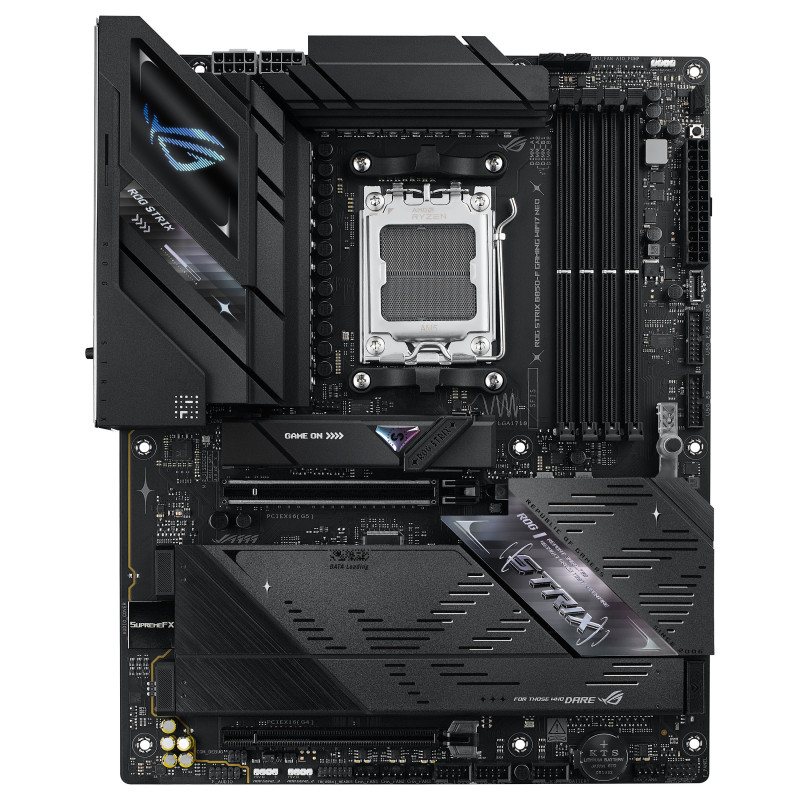

ASUS ROG STRIX B850-F GAMING WIFI7 NEO

ASUS ROG STRIX B850-F GAMING WIFI7 NEO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
ROG STRIX B850-F gaming wifi7 neo
The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
12V power connector: Yes

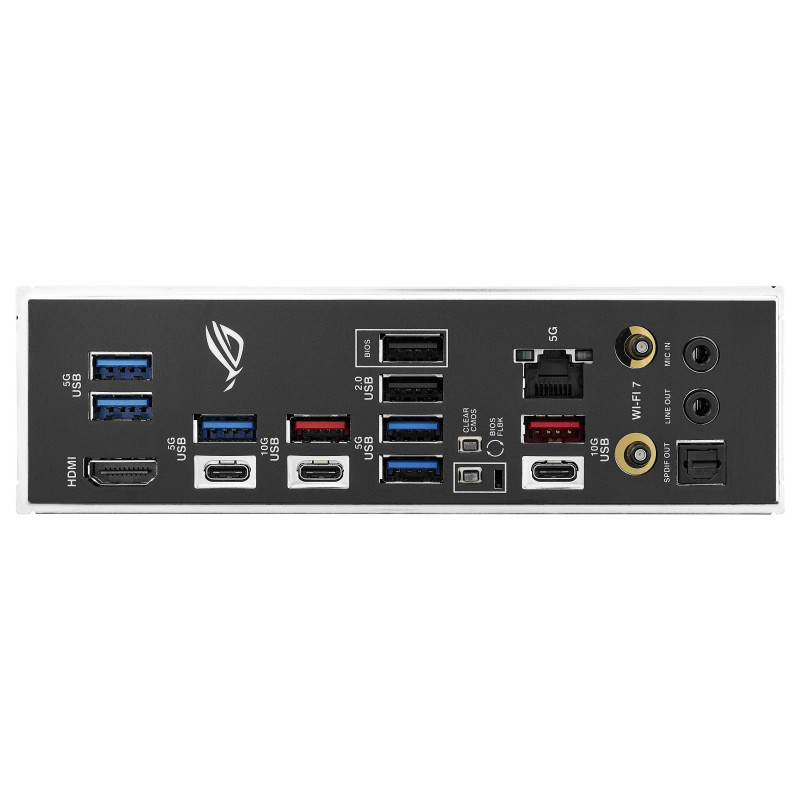

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
S/PDIF out port: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: AMD B850
Audio chip: Realtek ALC4080
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
1st M.2 largest key size: 2280

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Packaging data

Package width: 353 mm
Package depth: 273 mm
Package height: 68 mm
Package weight: 2.18 kg

Weight dimensions

Width: 305 mm
Depth: 244 mm

Other features

Weight: 1.63 kg
