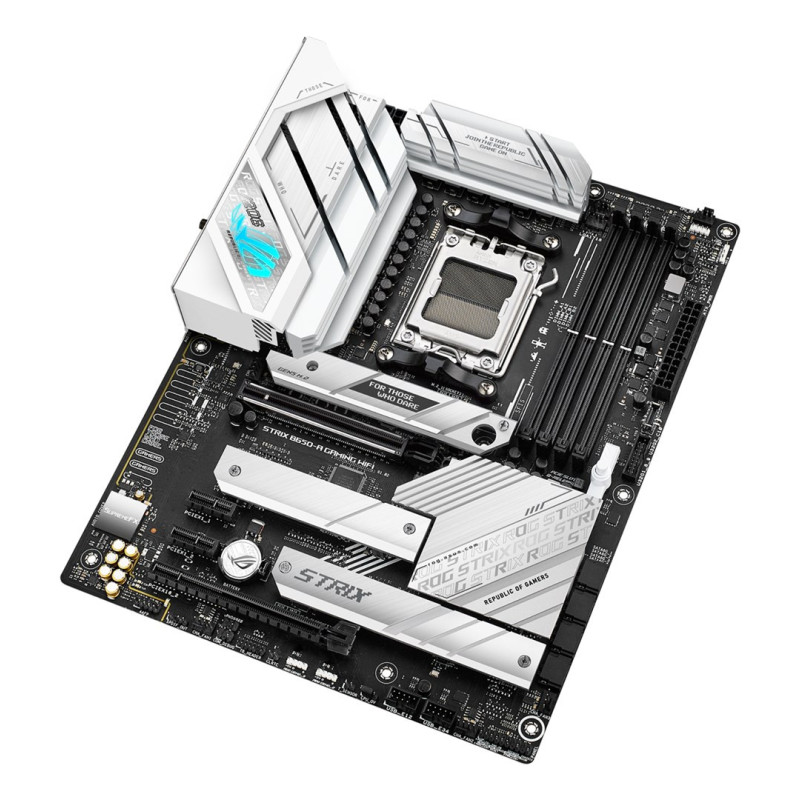

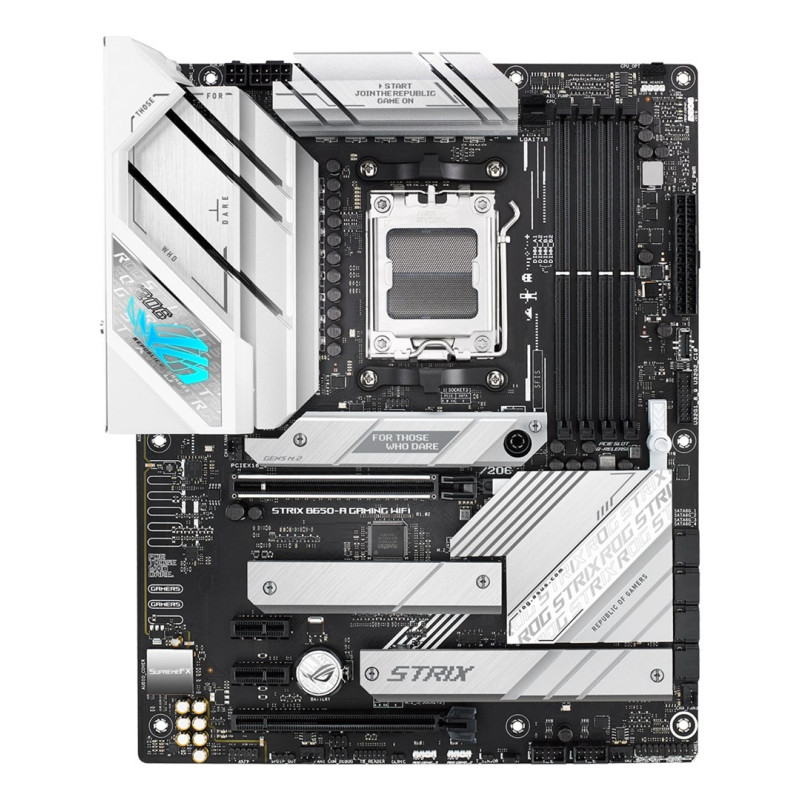

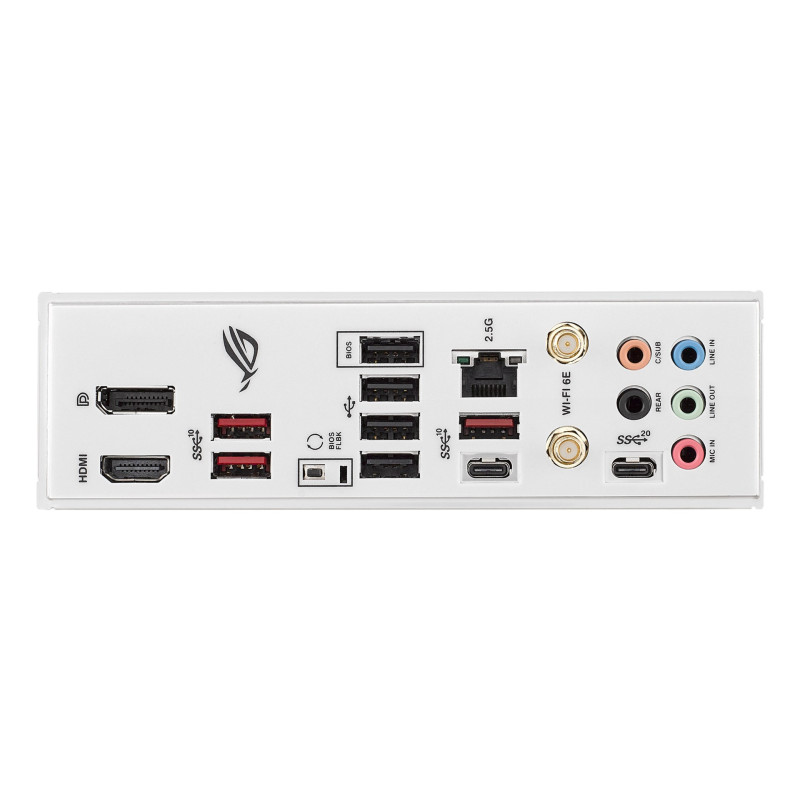

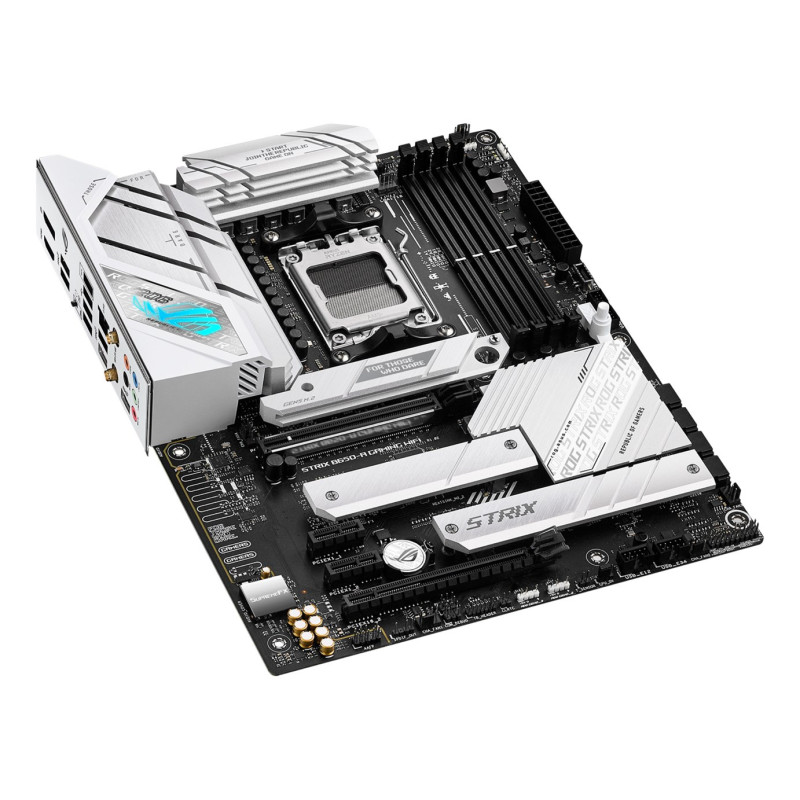

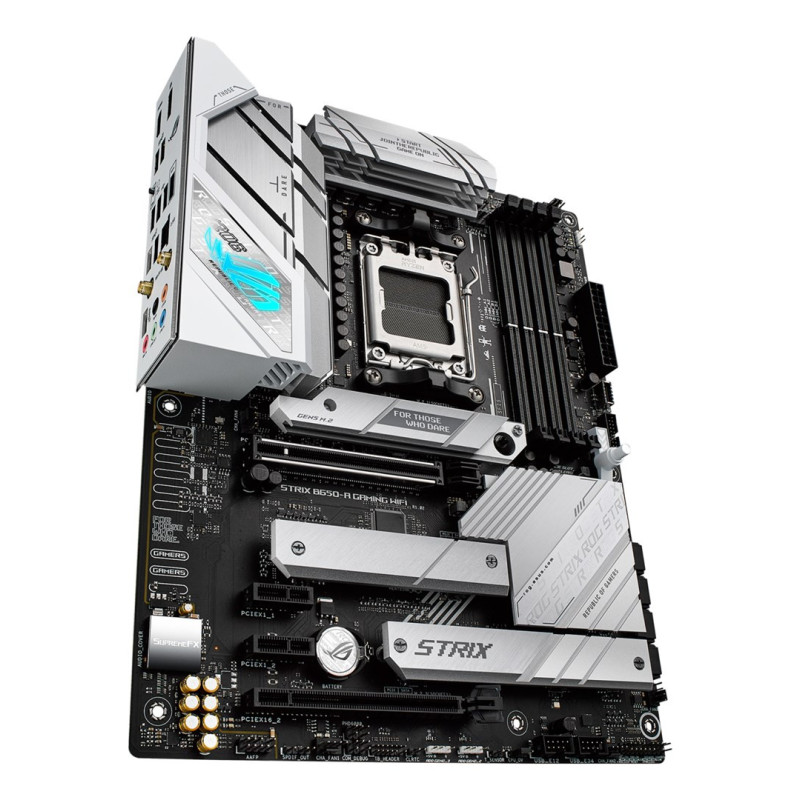

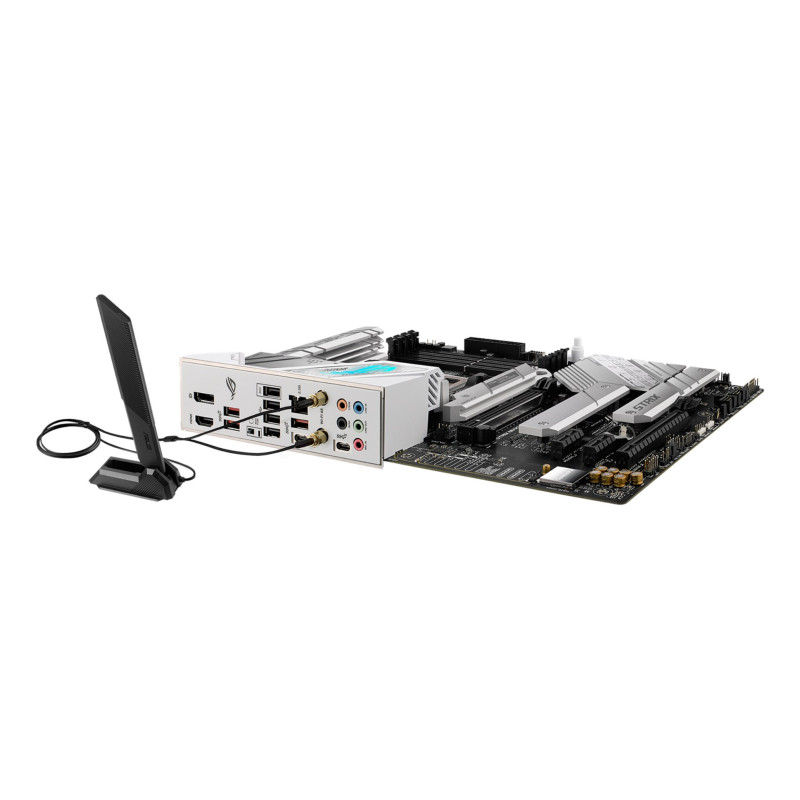

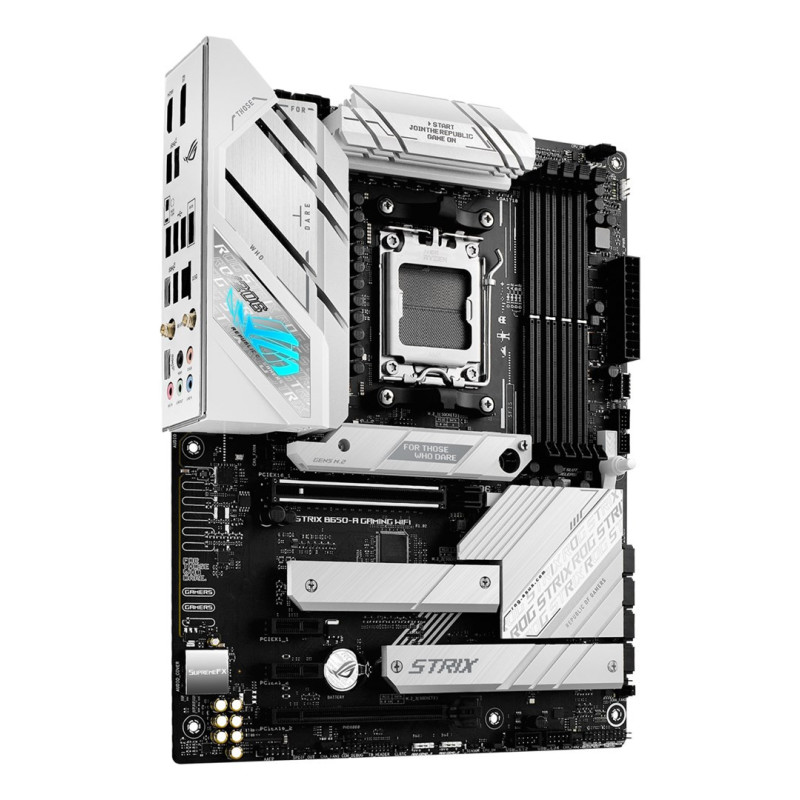

ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Socket AM5 ATX
Product reference:
6-90MB1BP0-M0EAY0
ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Socket AM5 ATX
Product reference:
6-90MB1BP0-M0EAY0
ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Cables included | SATA |
| Chassis intrusion connector | Yes |
| Clear CMOS button | Yes |
| Compatible processor series | AMD Ryzen™ 7 |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPorts quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 3 |
| LAN controller | Intel I225-V |
| Line-in | Yes |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 7 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black, Silver |
| RAID levels | 1, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600 MHz, 5800, 6000, 6200, 6400 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 4 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Warnings | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Width | 305 mm |
| Windows operating systems supported | Windows 11 x64 |
