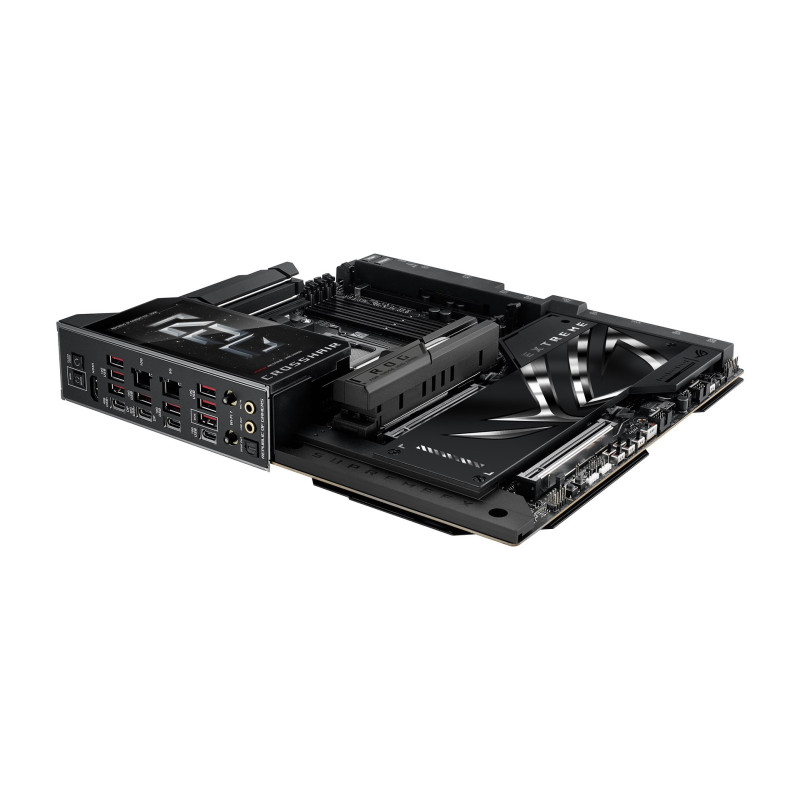

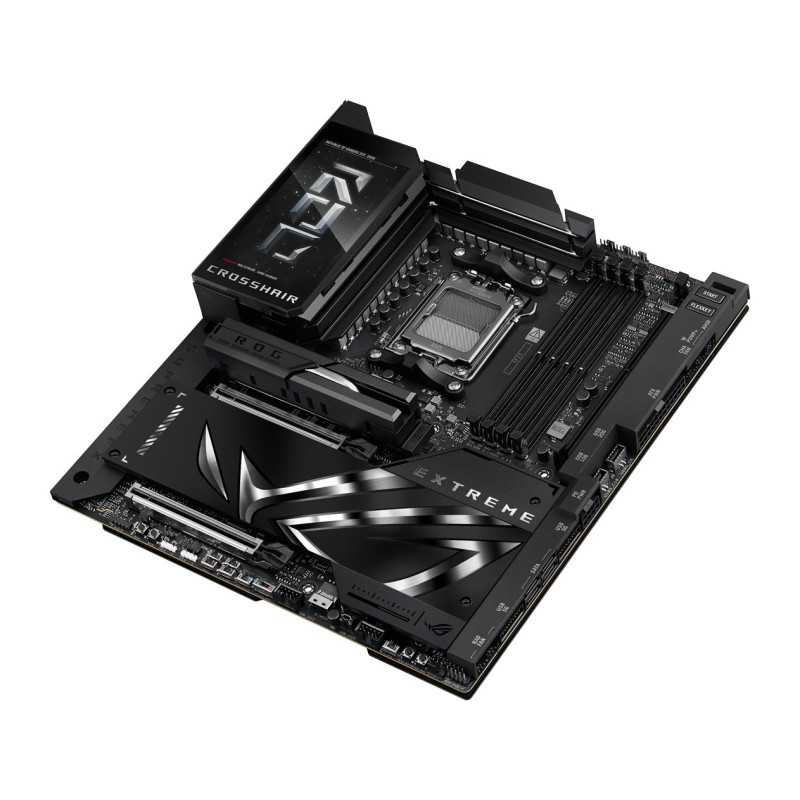

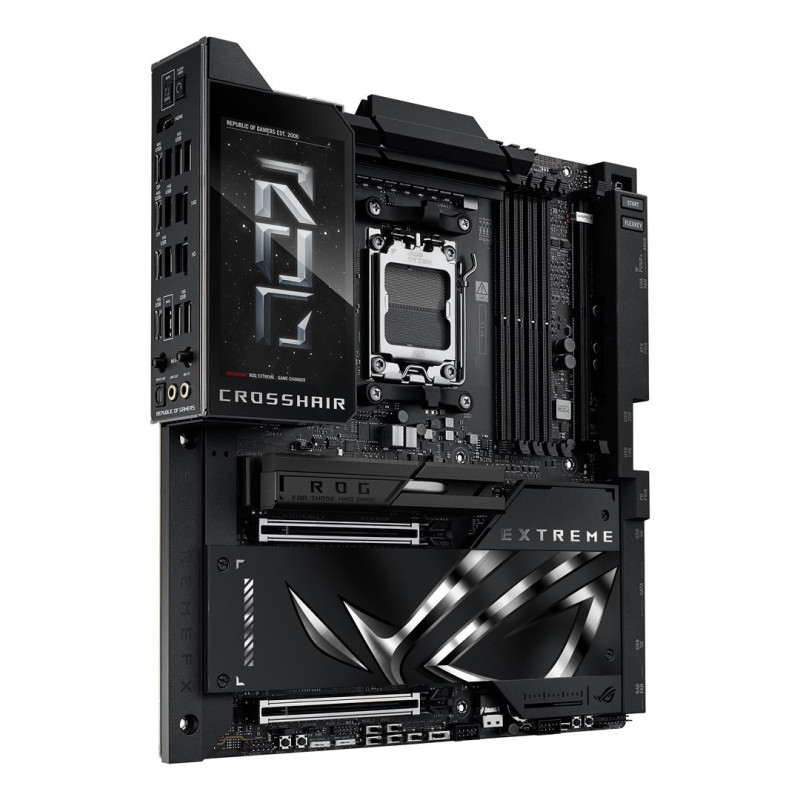

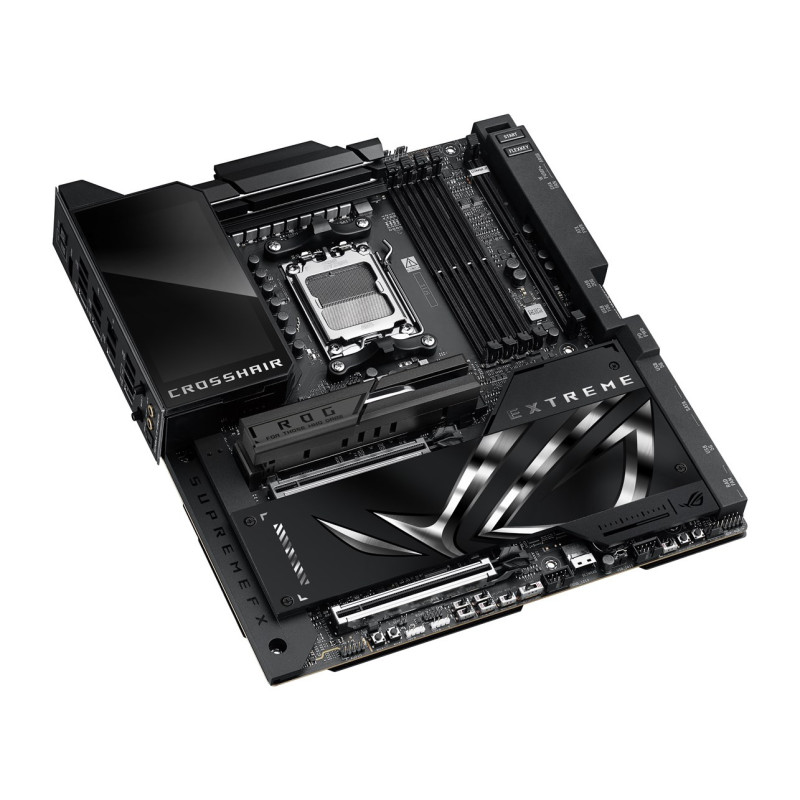

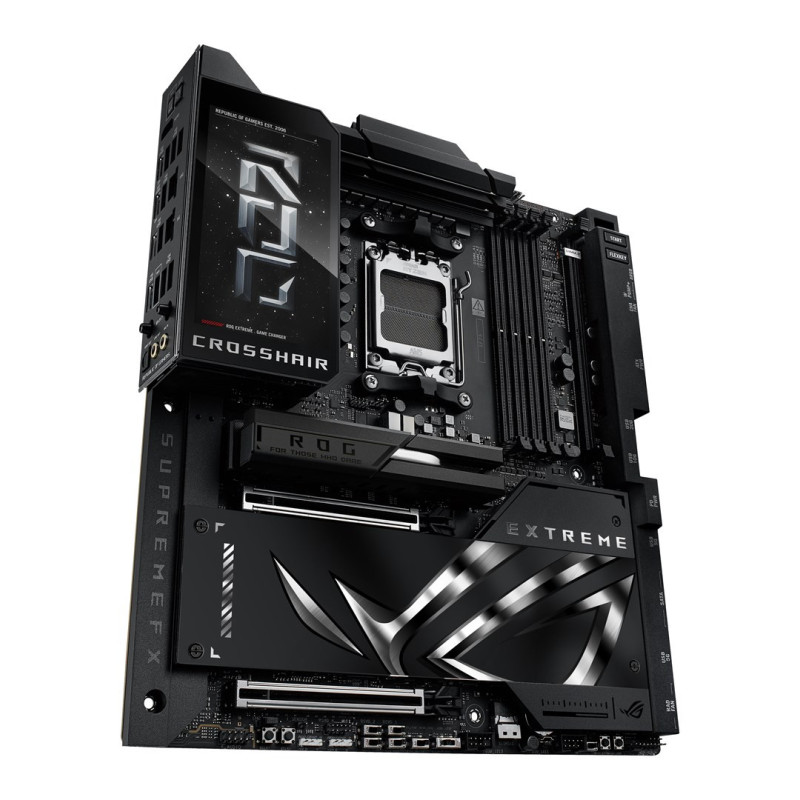

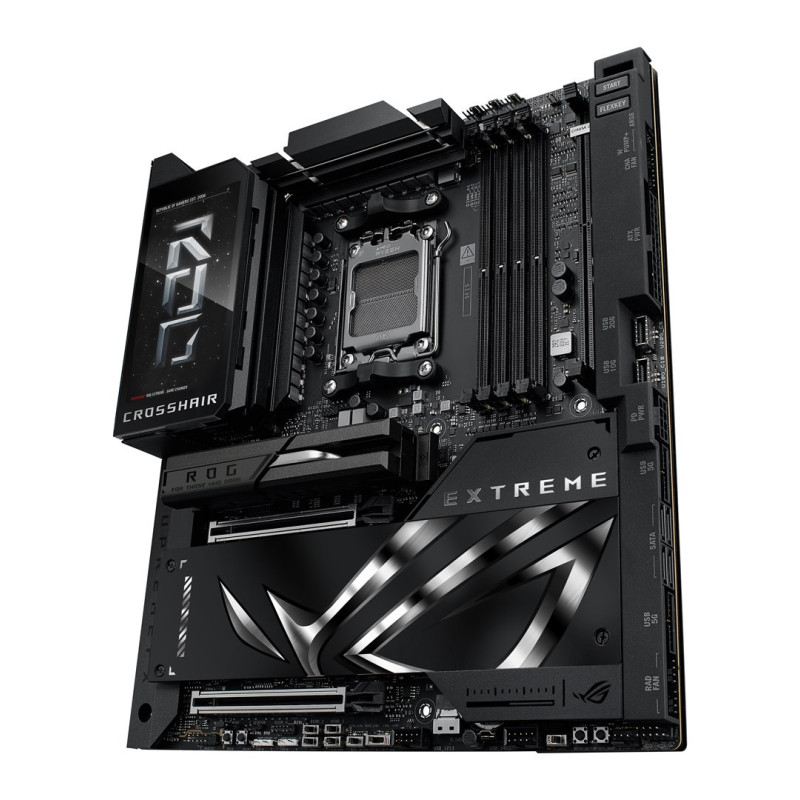

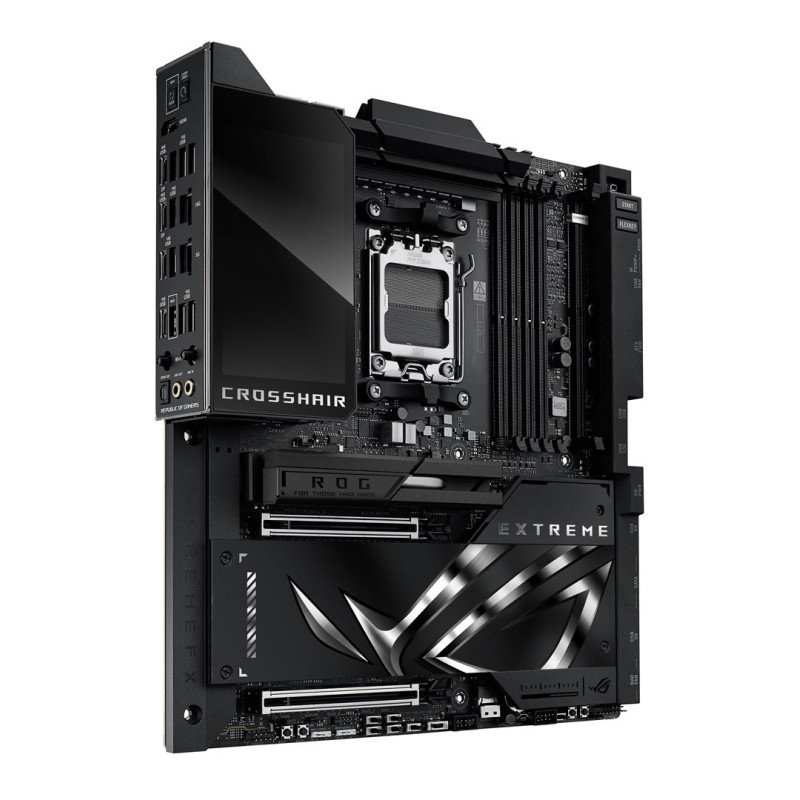

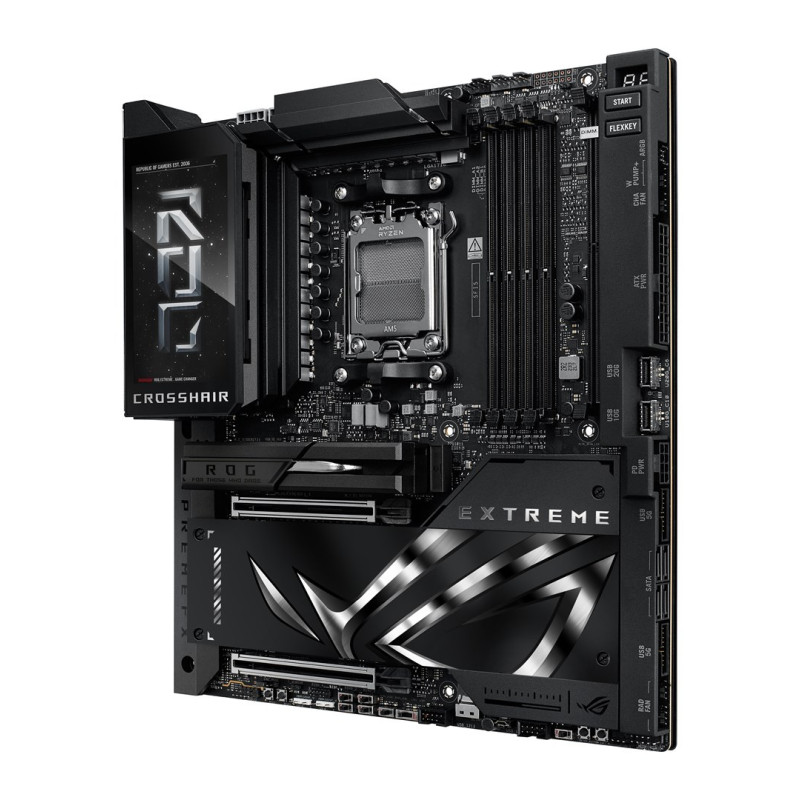

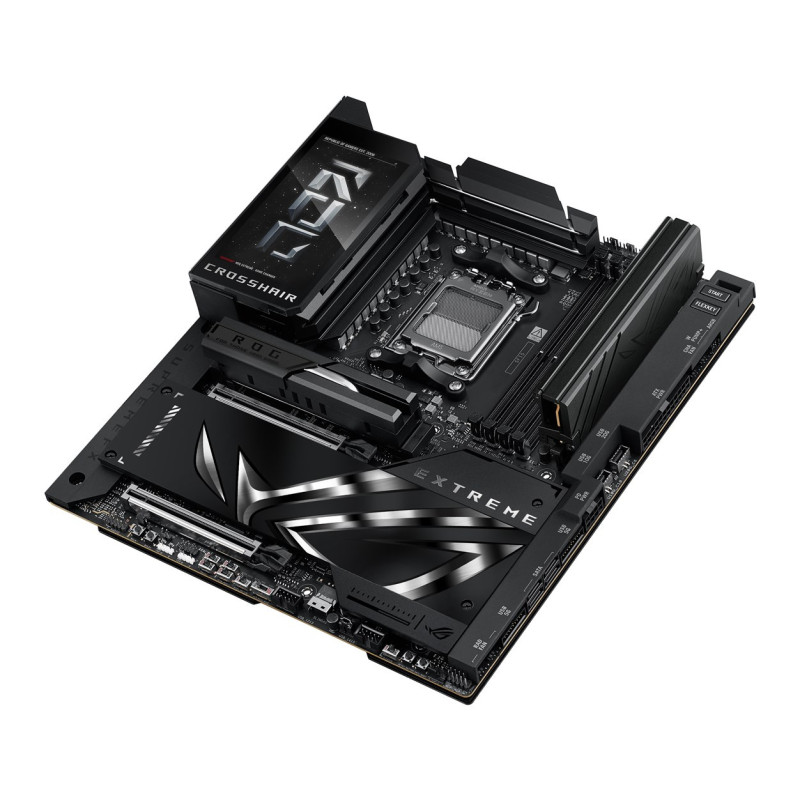

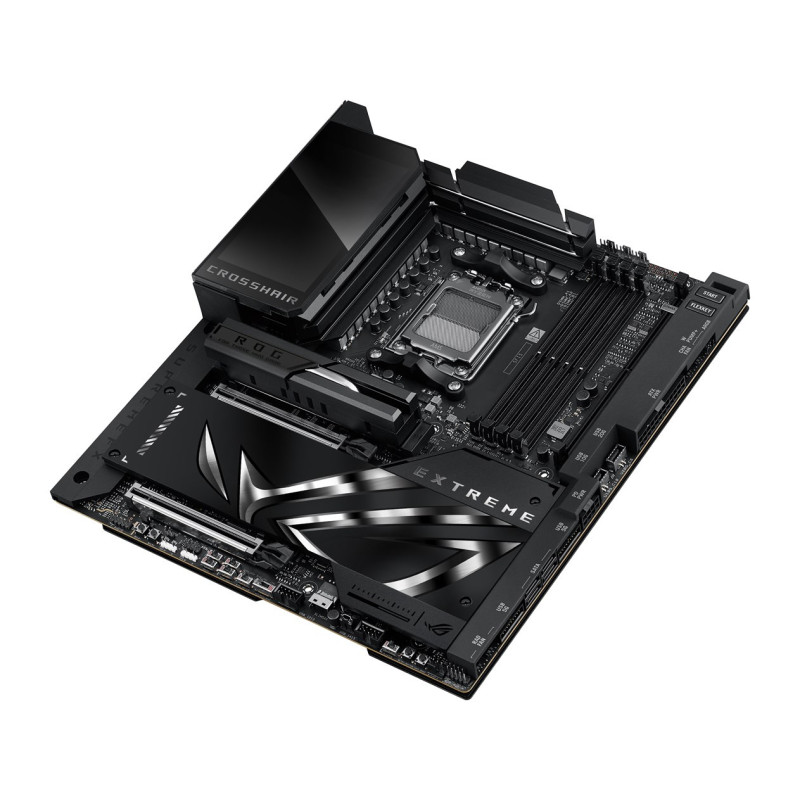

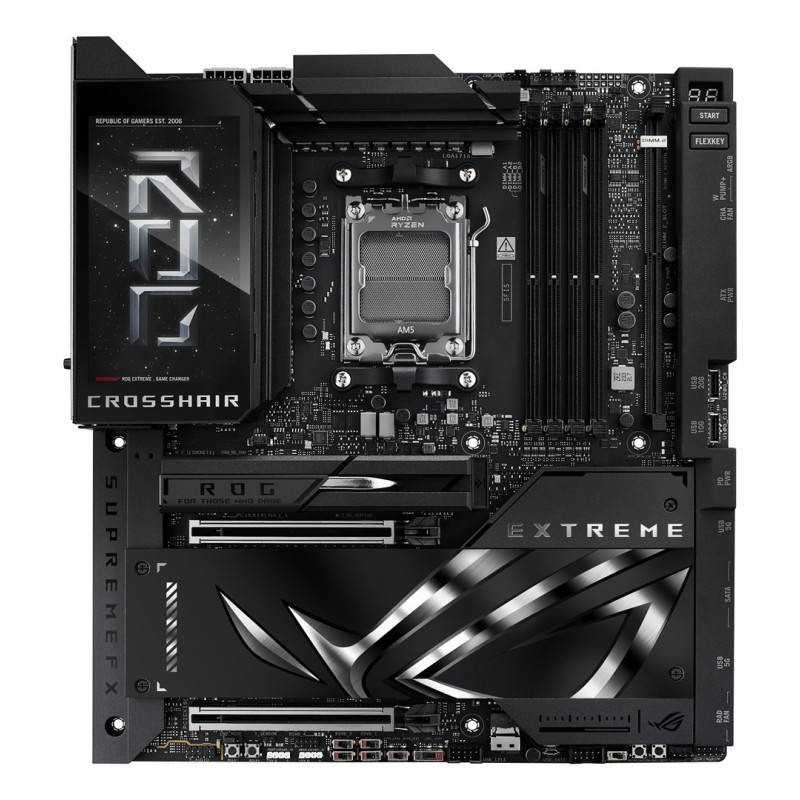

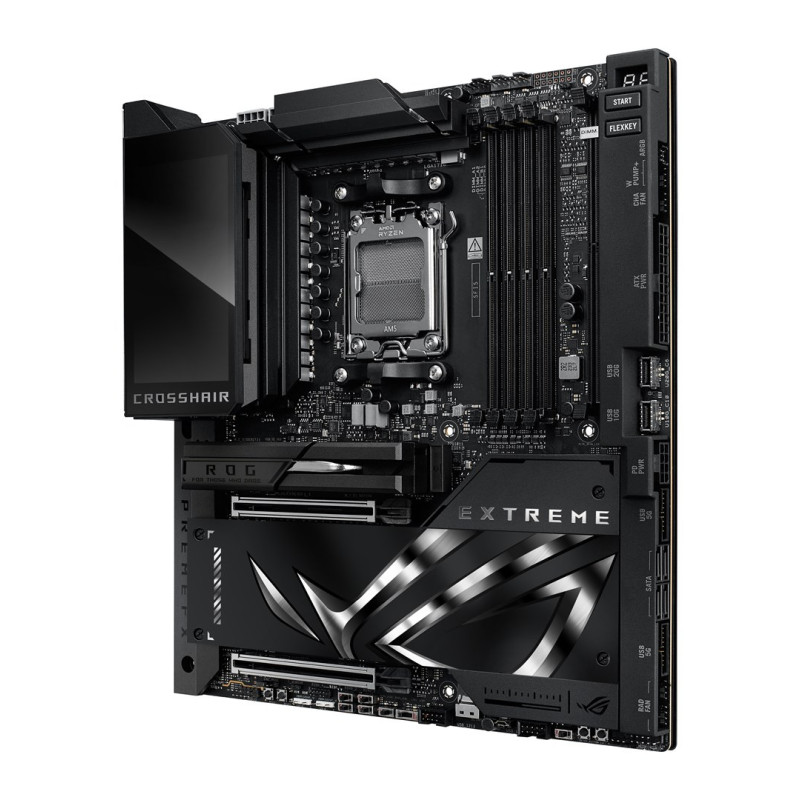

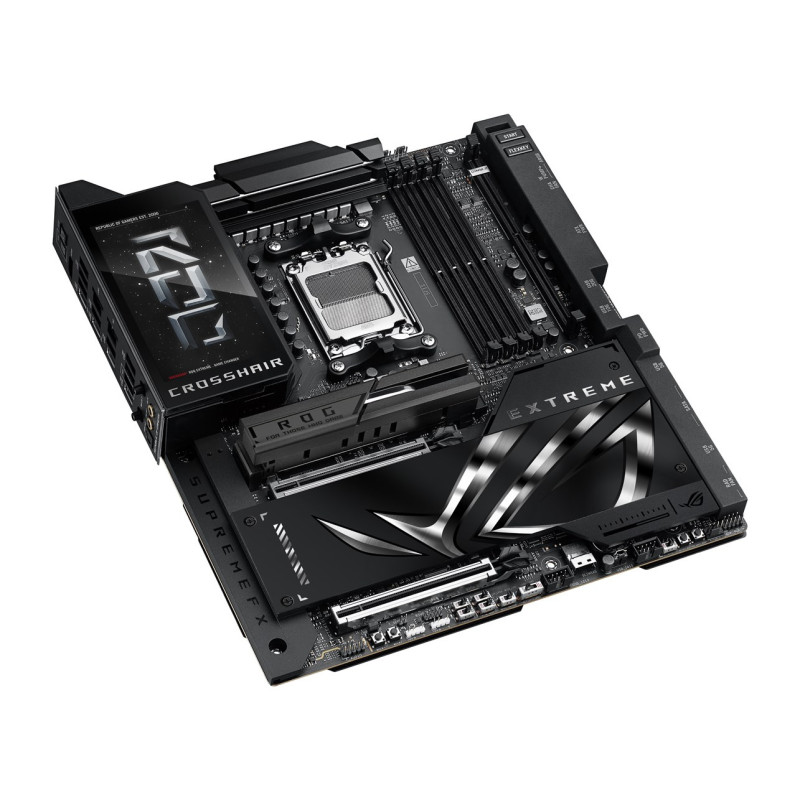

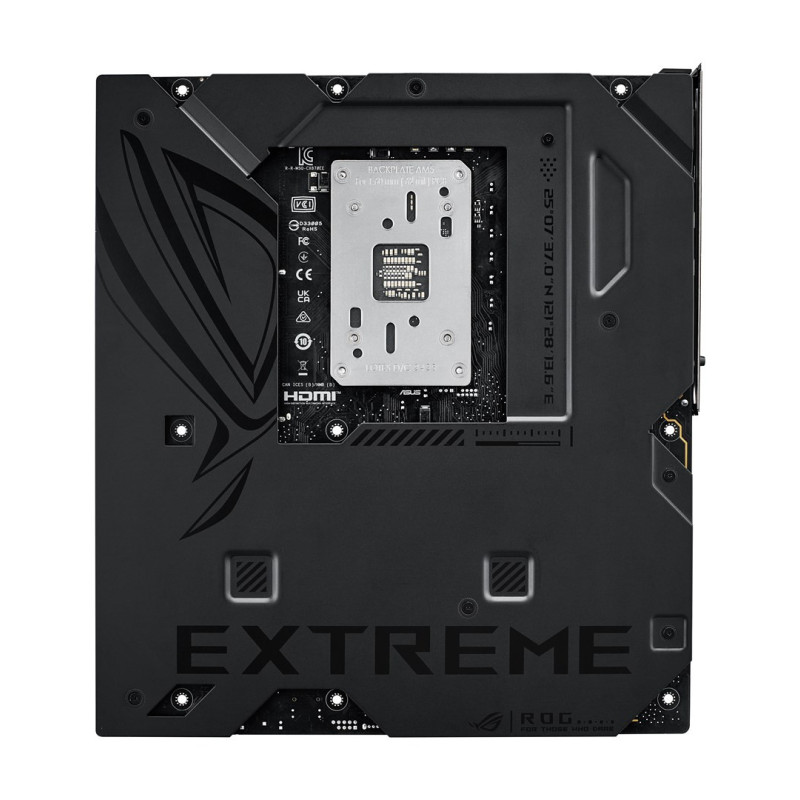

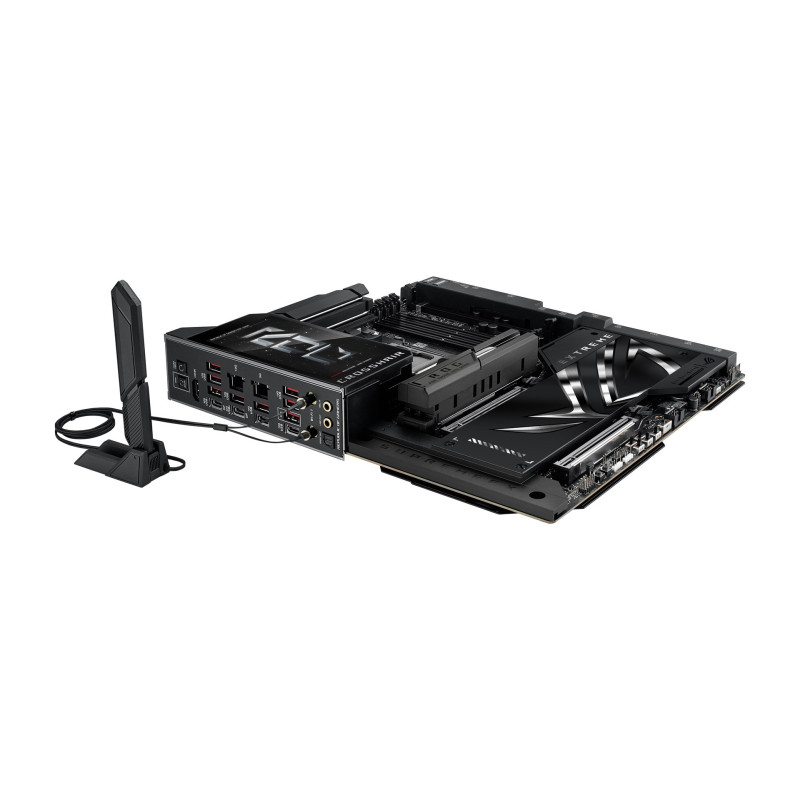

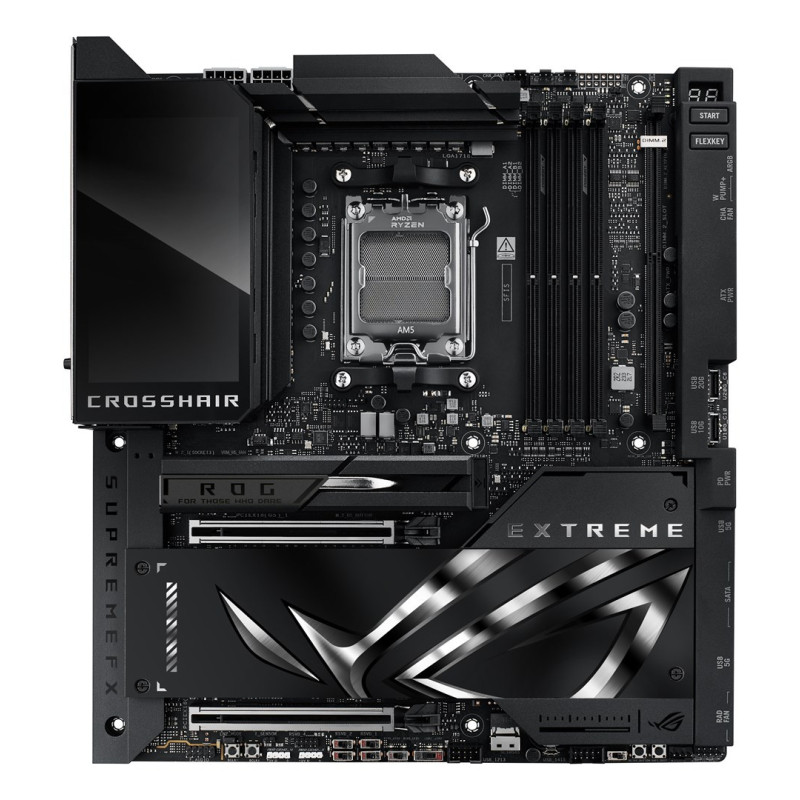

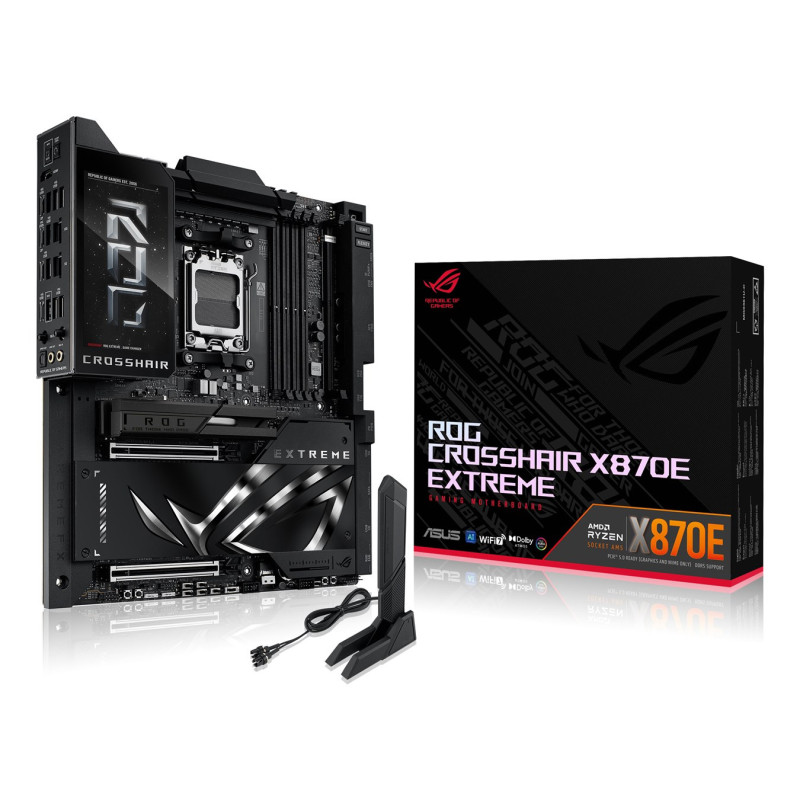

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
Product reference:
6-90MB1LB0-M0EAY0
ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
Product reference:
6-90MB1LB0-M0EAY0
ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | Socket AM5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Windows operating systems supported | Windows 11 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset family | AMD |
| Motherboard form factor | Extended ATX |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Depth | 277 mm |
| Width | 305 mm |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Drivers included | Yes |
| Antenna included | Yes |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| RAID support | Yes |
| RAID levels | 10, 1, 5 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 10 |

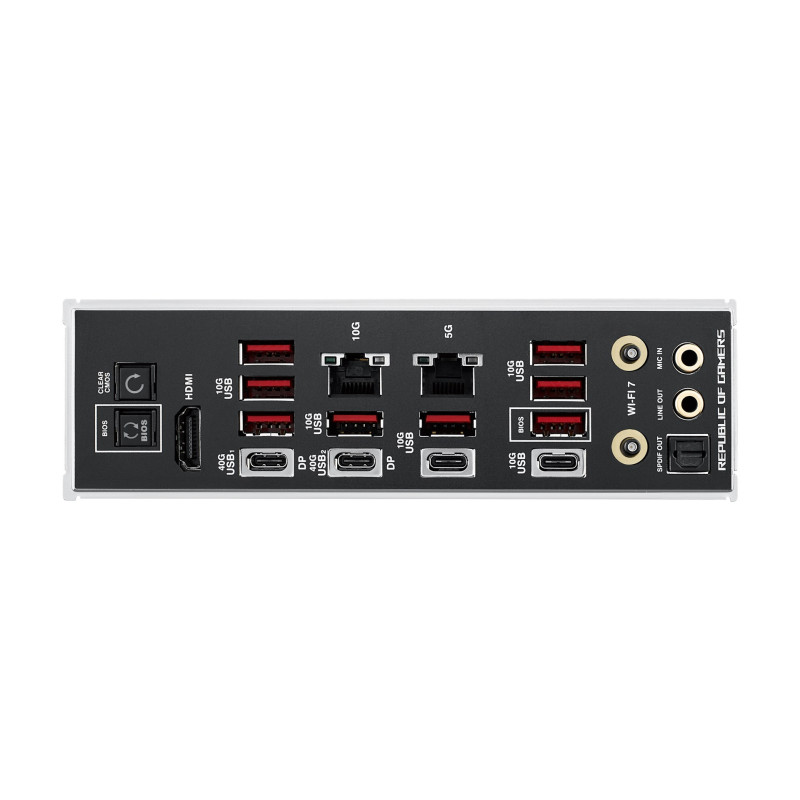

| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| PS/2 ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 5 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 5th M.2 largest key size | 22110 |
| PCI Express x16 (Gen 4.x) slots | 2 |
