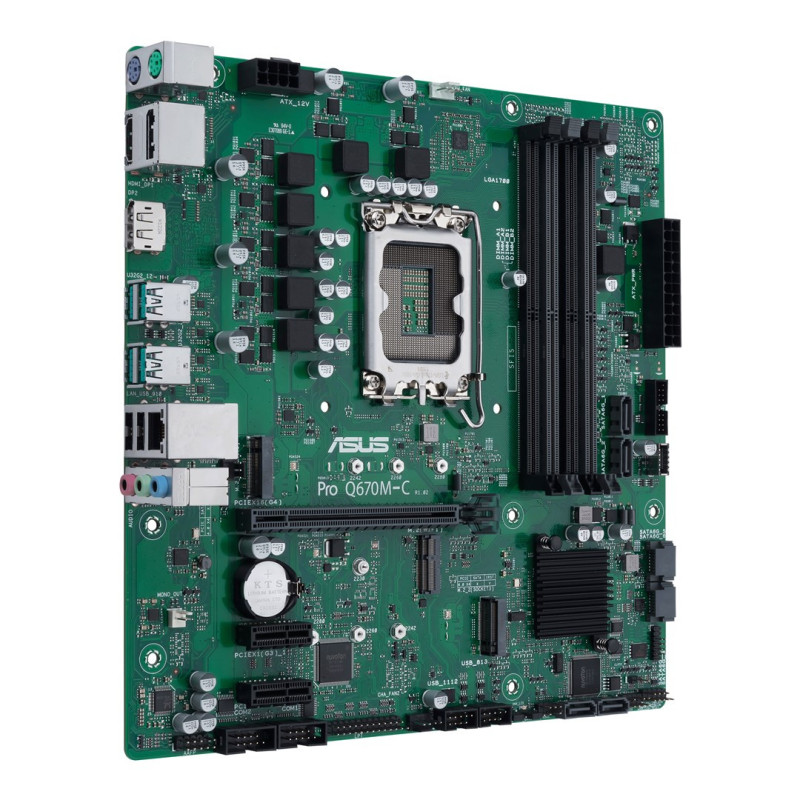

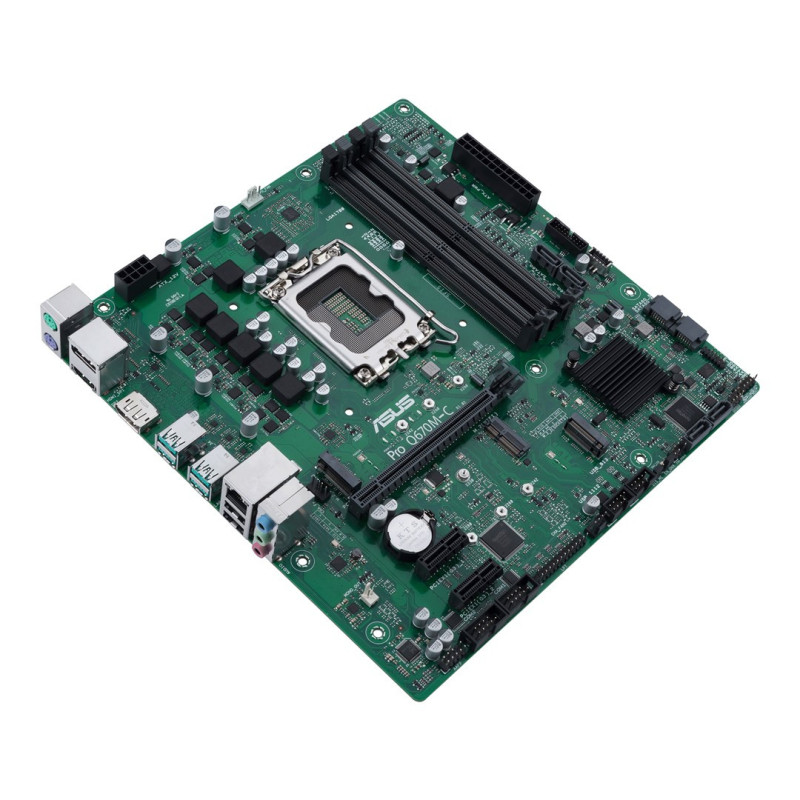

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
Product reference:
6-90MB19E0-M2EAYC
ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
Product reference:
6-90MB19E0-M2EAYC
ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
10 - 14
business days
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Pentium G, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Compatible operating systems | Windows® 11 64-bit, Windows® 10 64-bit |
| Number of mounting holes | 8 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Q670 |
| Windows operating systems supported | Windows 11, Windows 10 |
| Power source type | ATX |
| Cooling type | Active |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Supported memory types | DDR5-SDRAM |
| Supported memory module capacities | 16GB, 8GB, 4GB, 32GB |
| Memory slots type | DIMM |
| ECC сompatibility | ECC & Non-ECC |
| Depth | 244 mm |
| Height | 51 mm |
| Width | 244 mm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of COM connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Cables included | SATA |
| Drivers included | Yes |
| Number of storage drives supported | 8 |
| RAID levels | 5, 10, 1 |
| RAID support | Yes |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| PS/2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| Weight | 634 g |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
