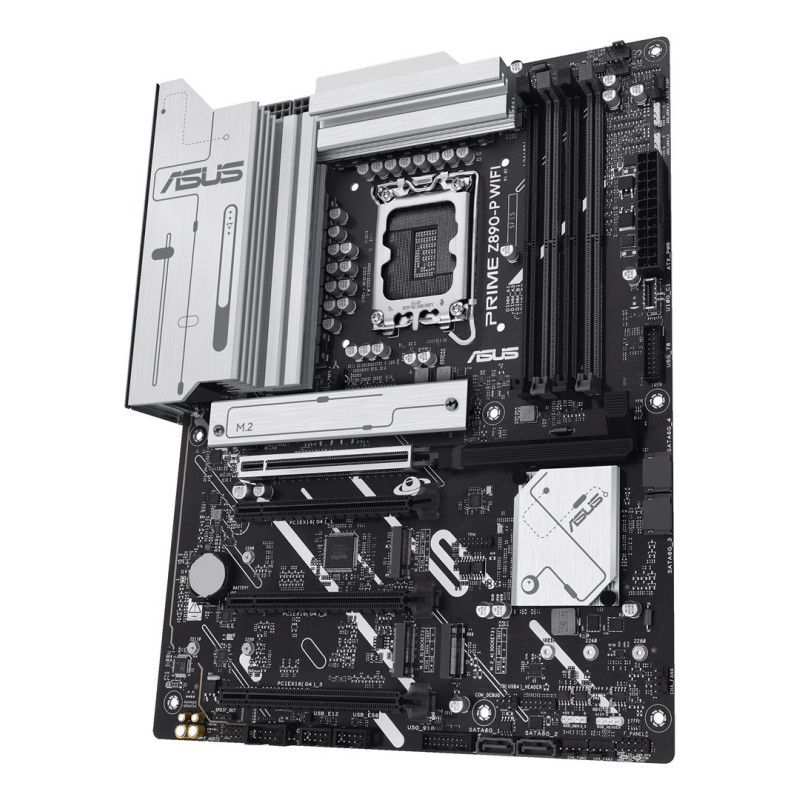

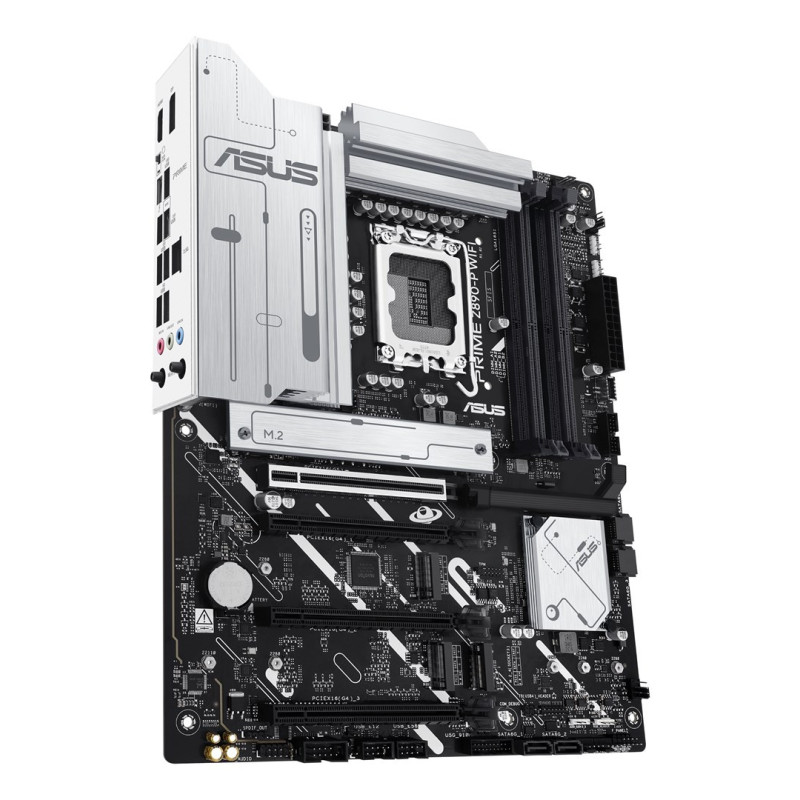

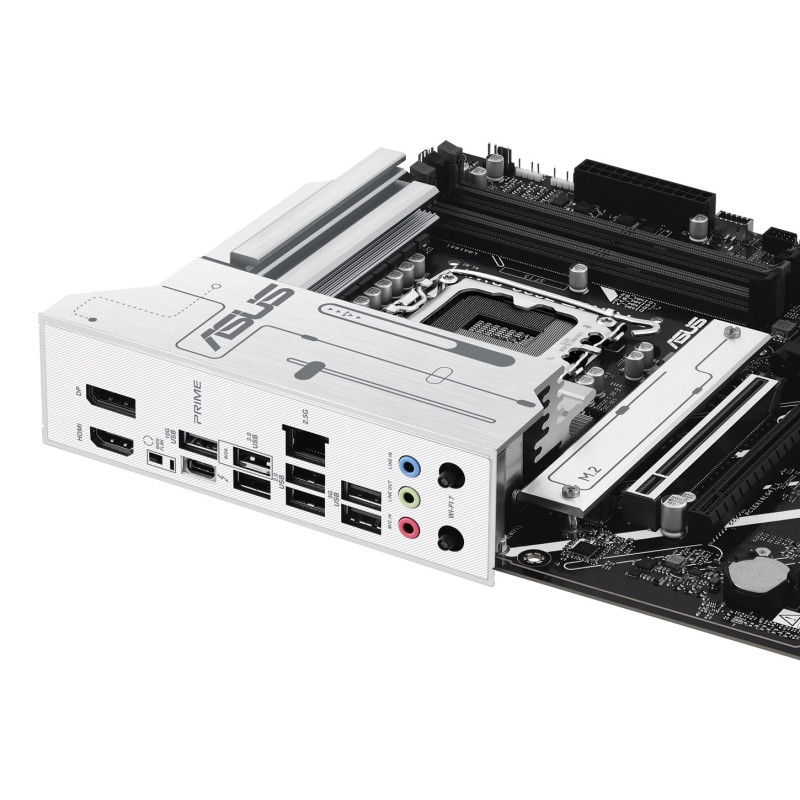

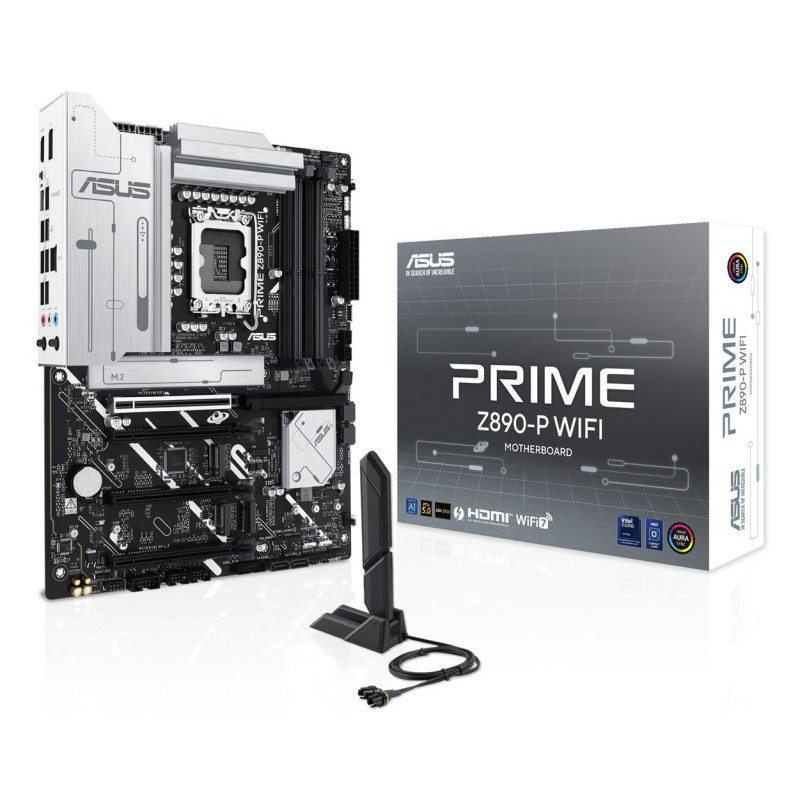

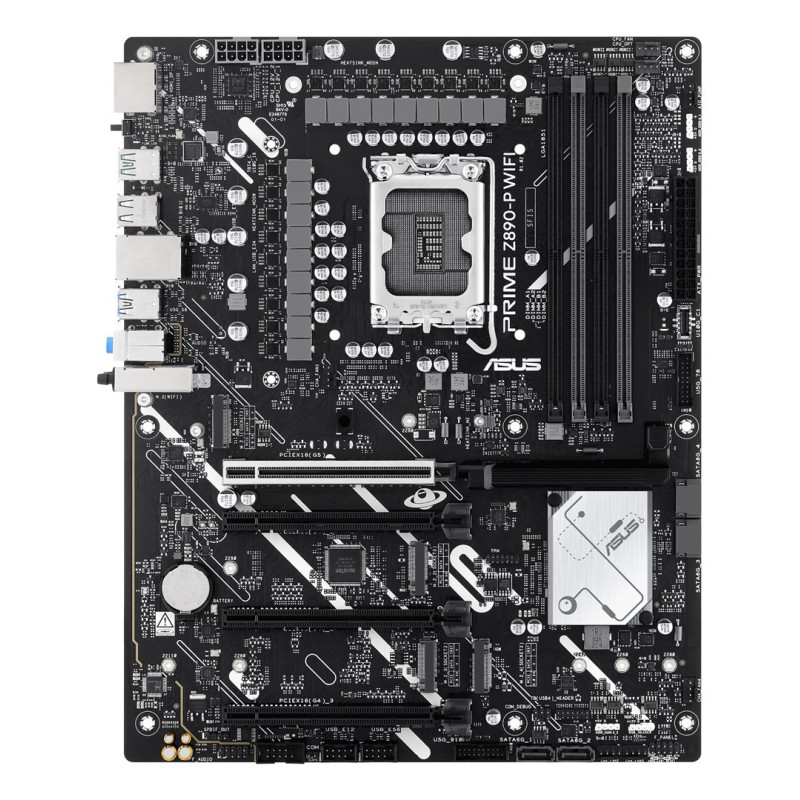

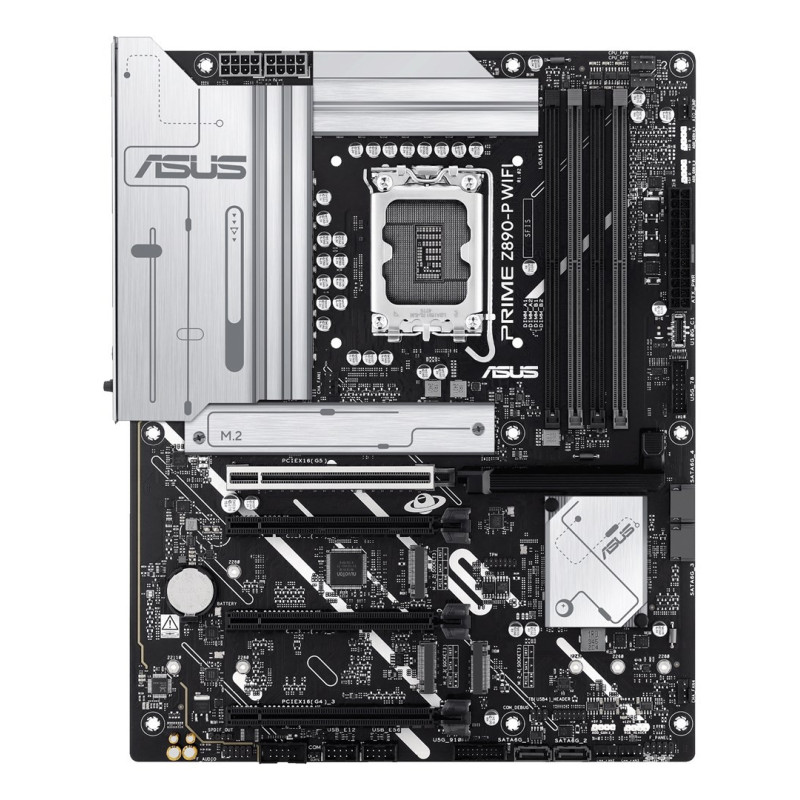

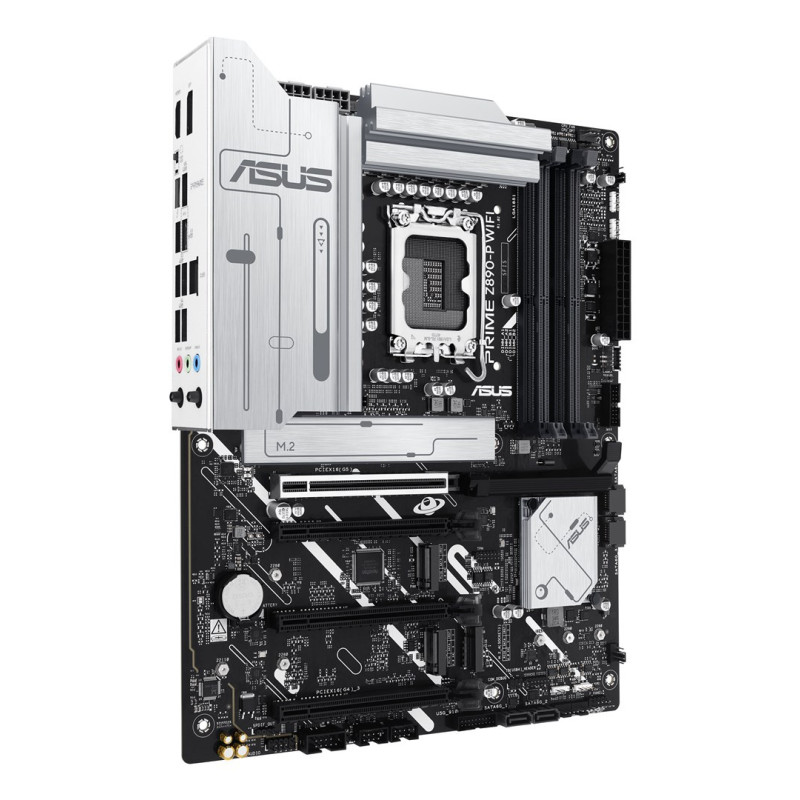

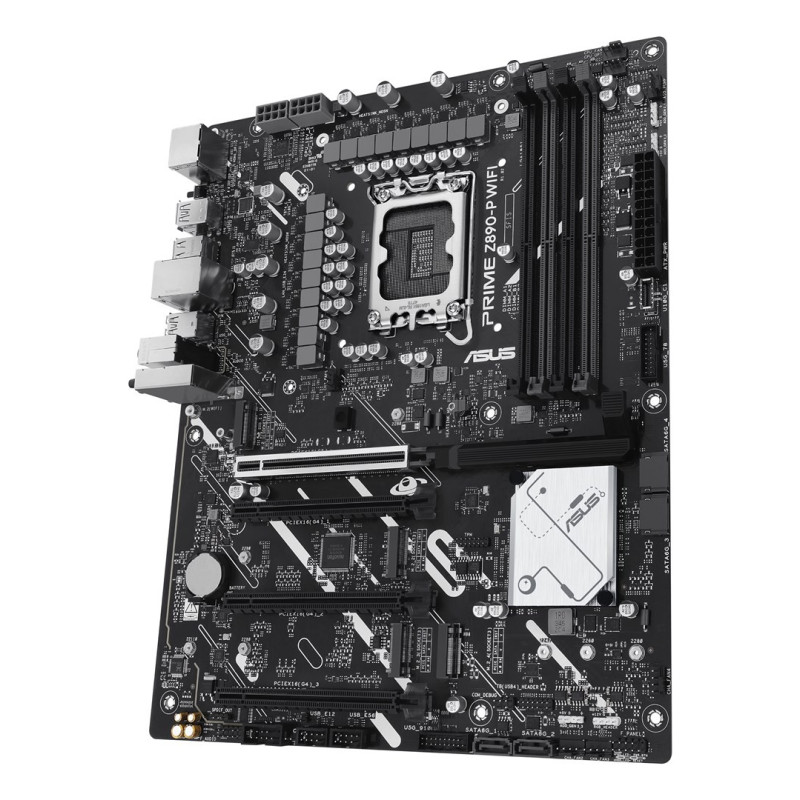

ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1I70-M0EAY0
ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1I70-M0EAY0
ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Power source type | ATX |
| Product colour | Black |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10, Windows 11 |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 7600 MHz |
| Width | 305 mm |
| Depth | 244 mm |

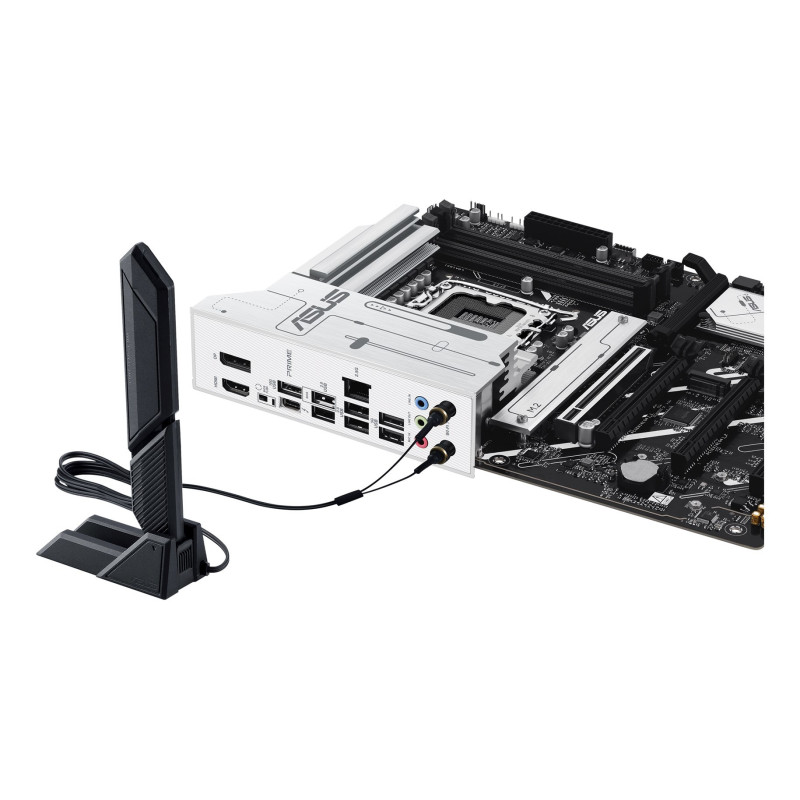

| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| S/PDIF out connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| RAID levels | 1, 10, 5 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |

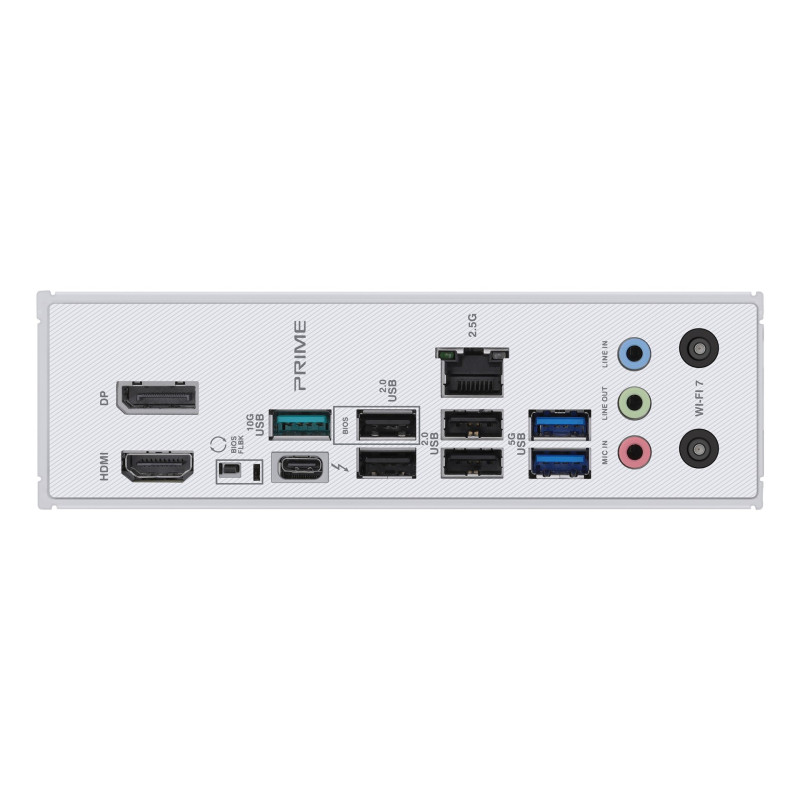

| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 4 |
| Back-to-BIOS button | Yes |

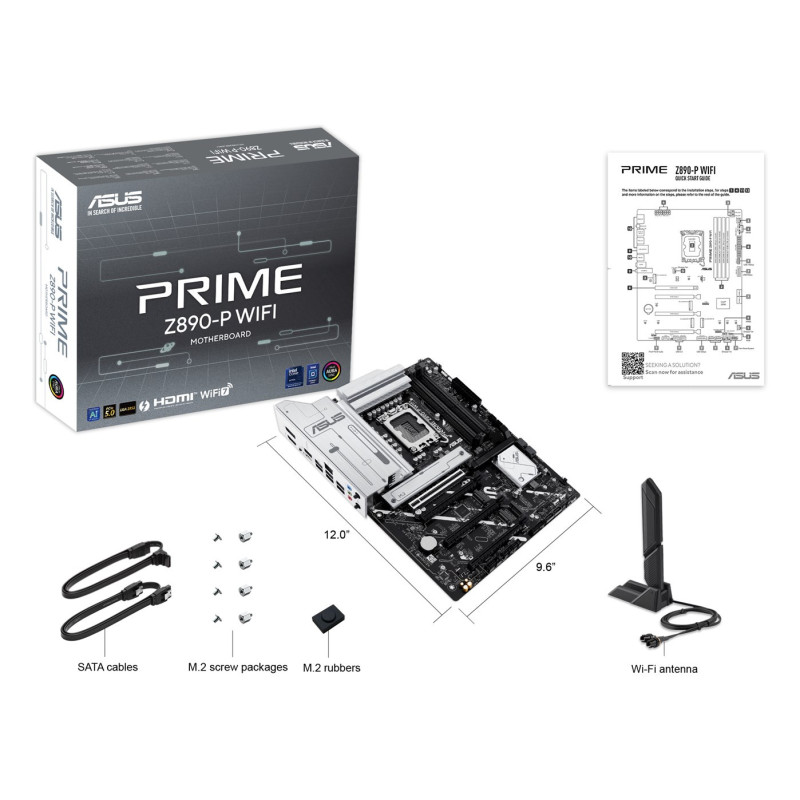

| Quick installation guide | Yes |
| Warnings | Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics. |
