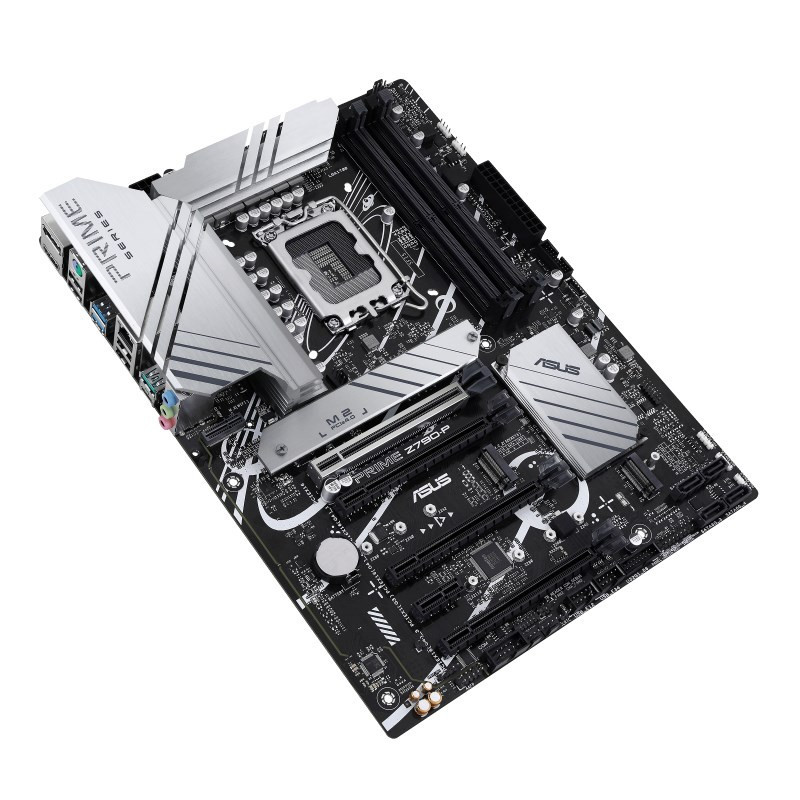

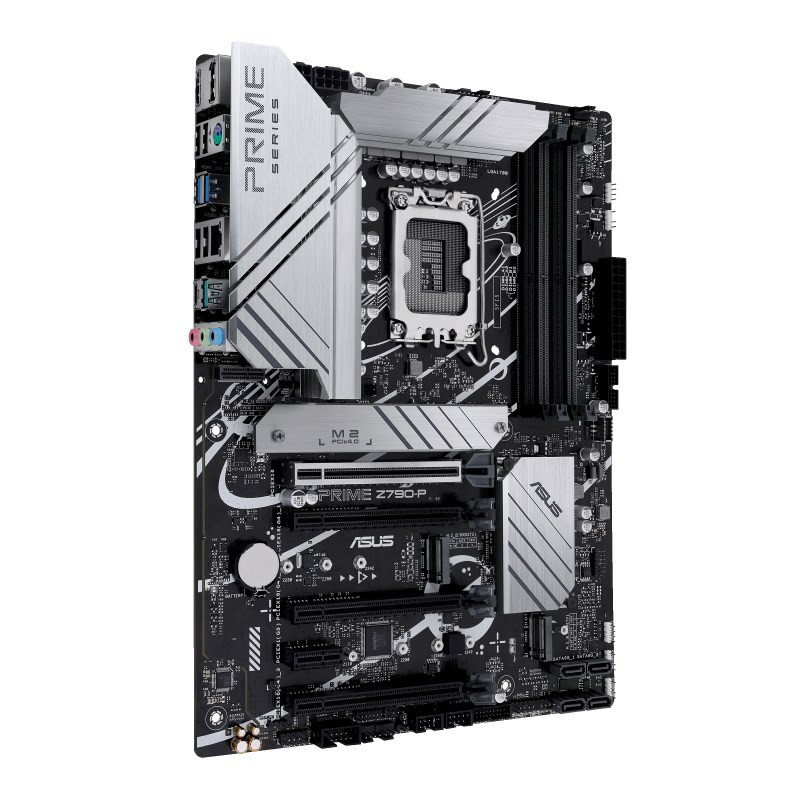

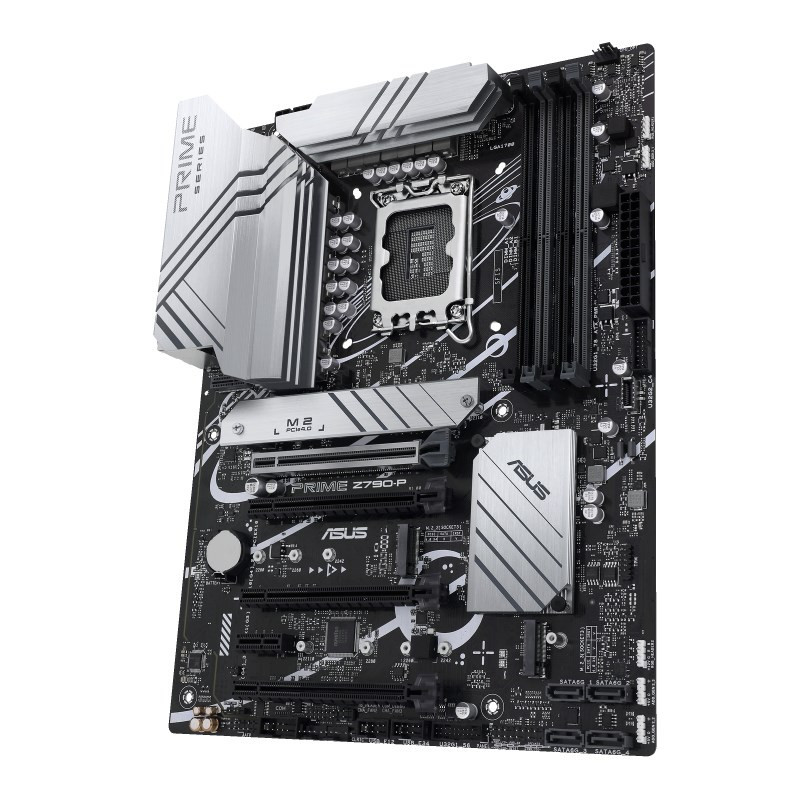

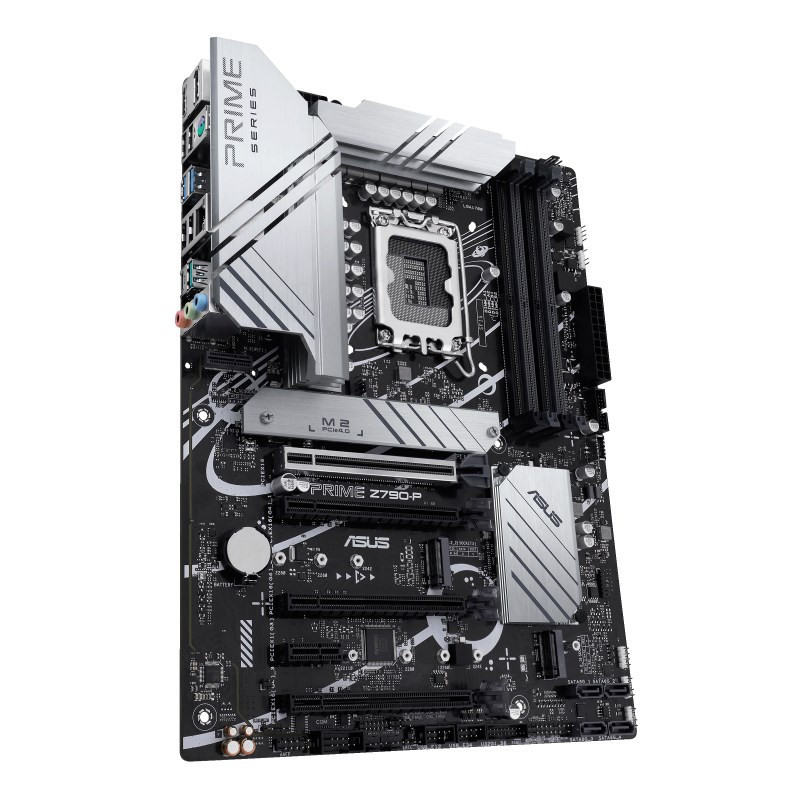

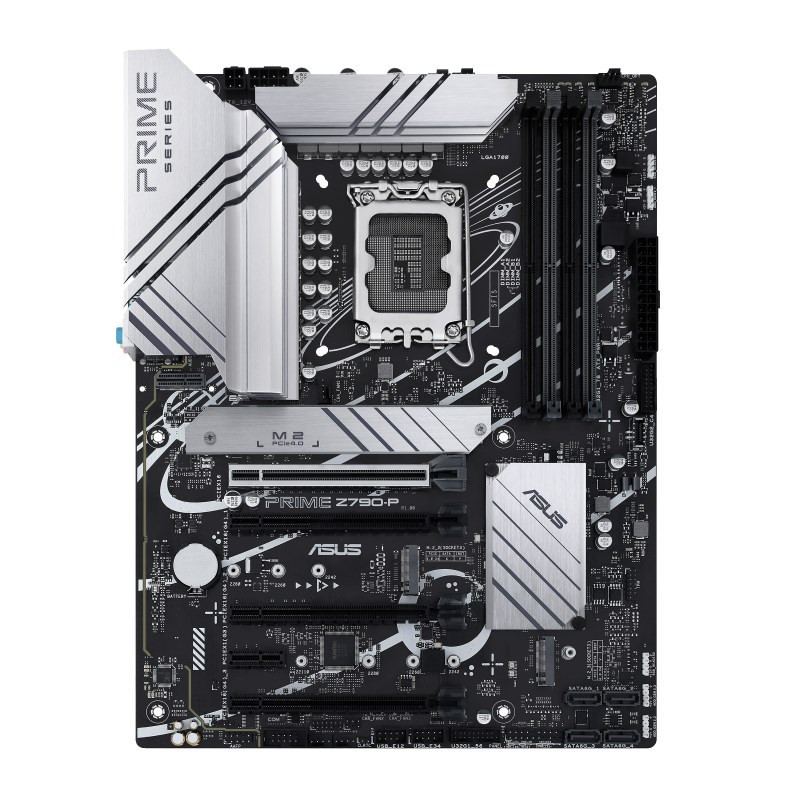

ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
Product reference:
6-90MB1CK0-M1EAY0
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
Product reference:
6-90MB1CK0-M1EAY0
ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 10
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |

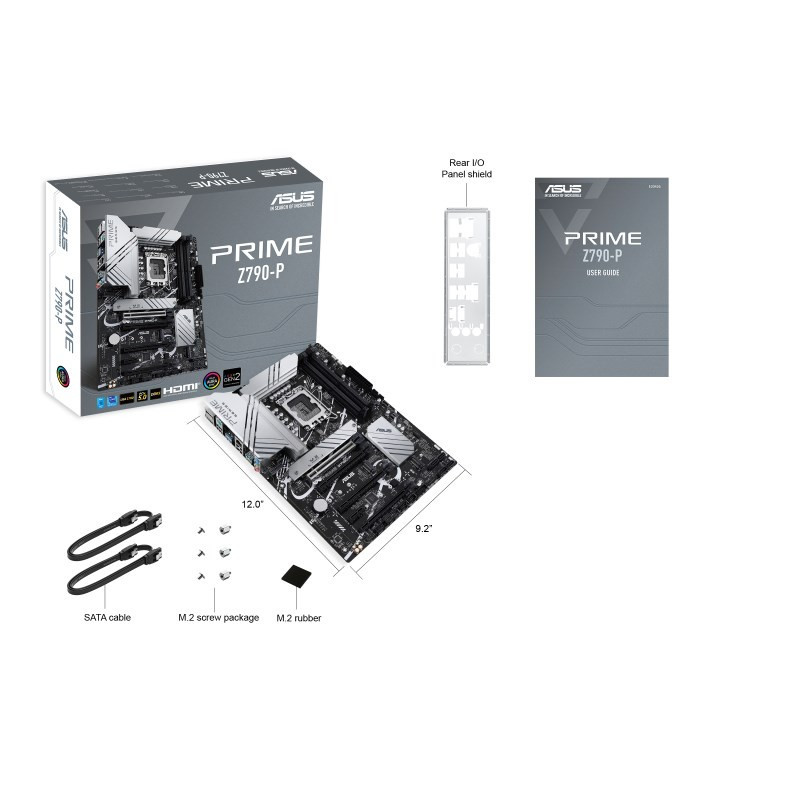

| Cables included | SATA |
| Clear CMOS button | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CPU fan connector | Yes |
| Depth | 234 mm |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of M.2 (E) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 4800 MHz, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz, 6600, 6800, 7000, 7200 |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Wi-Fi | Yes |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
