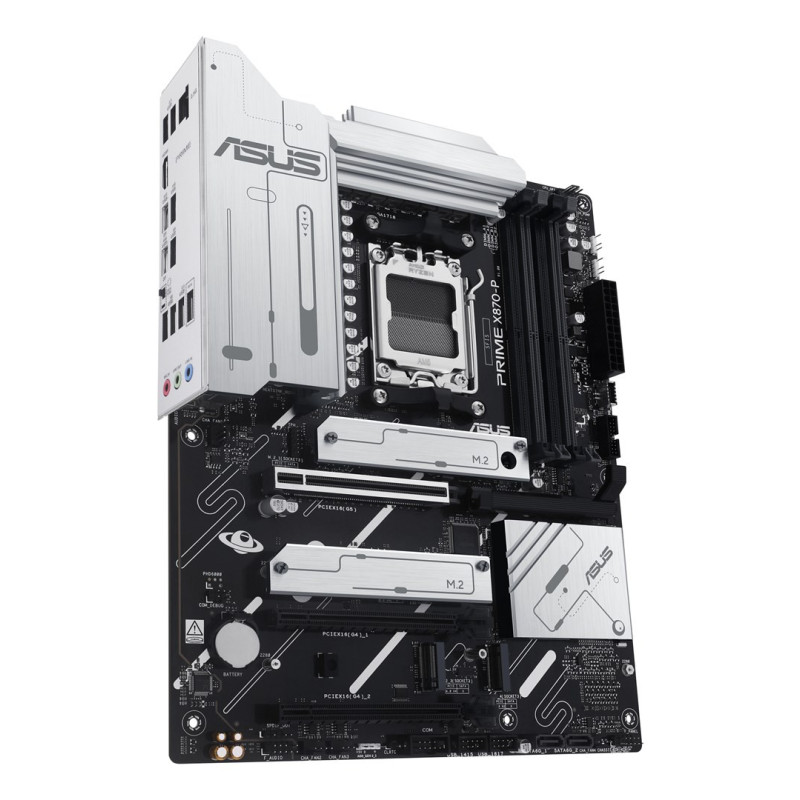

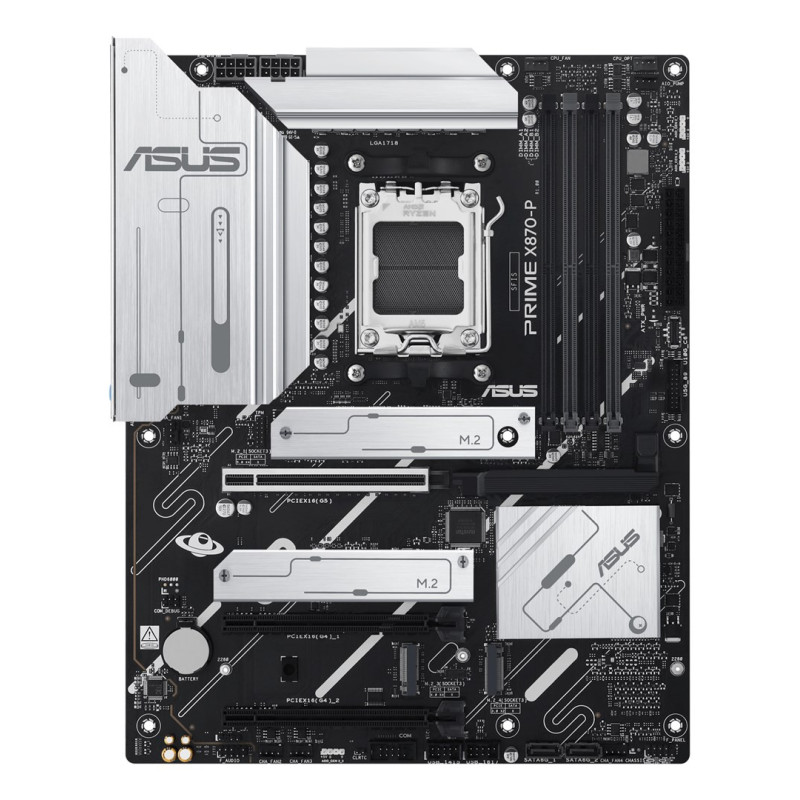

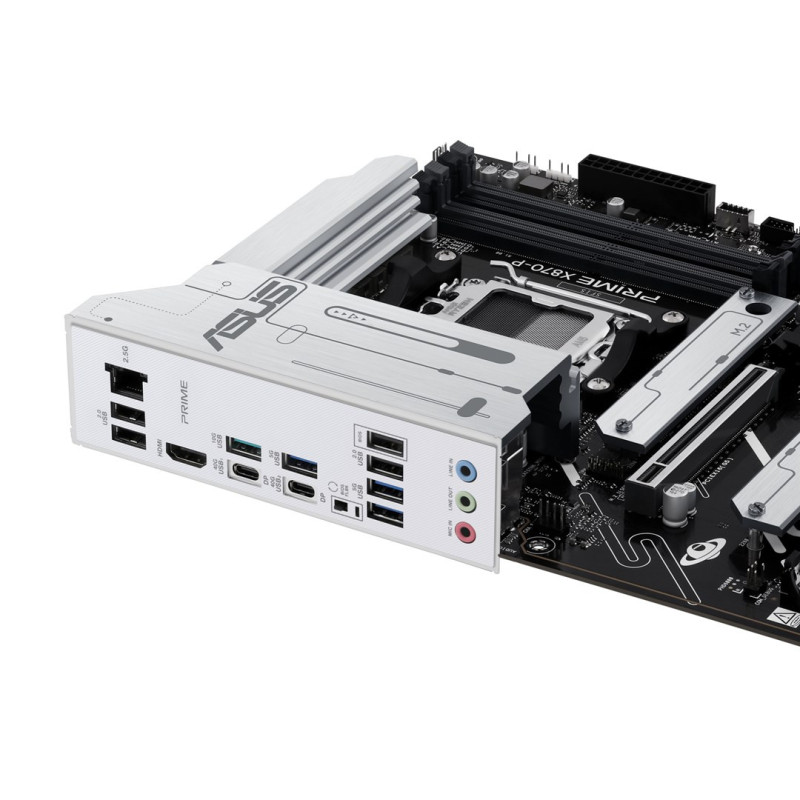

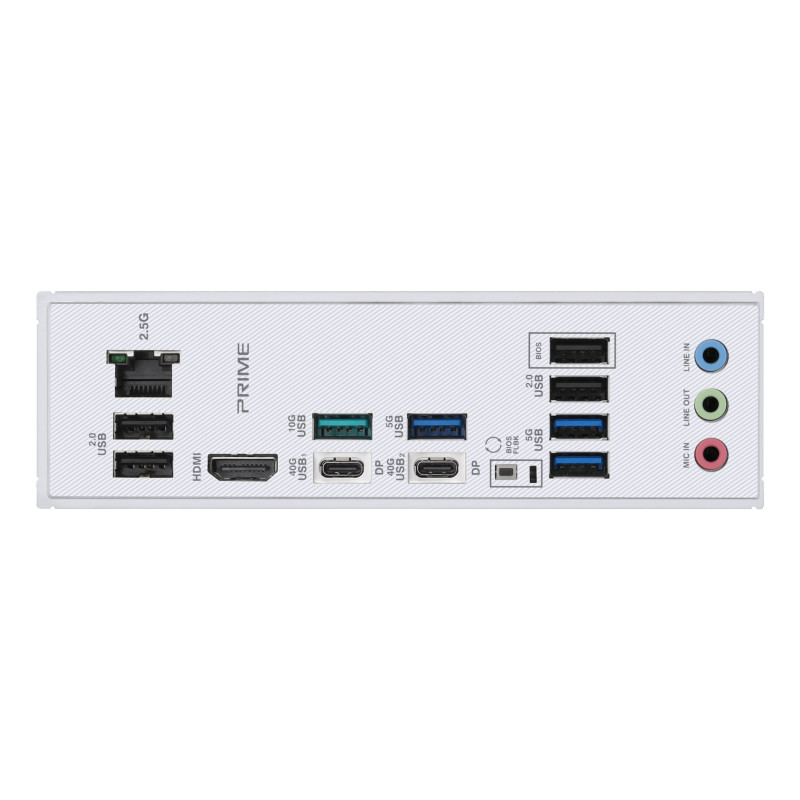

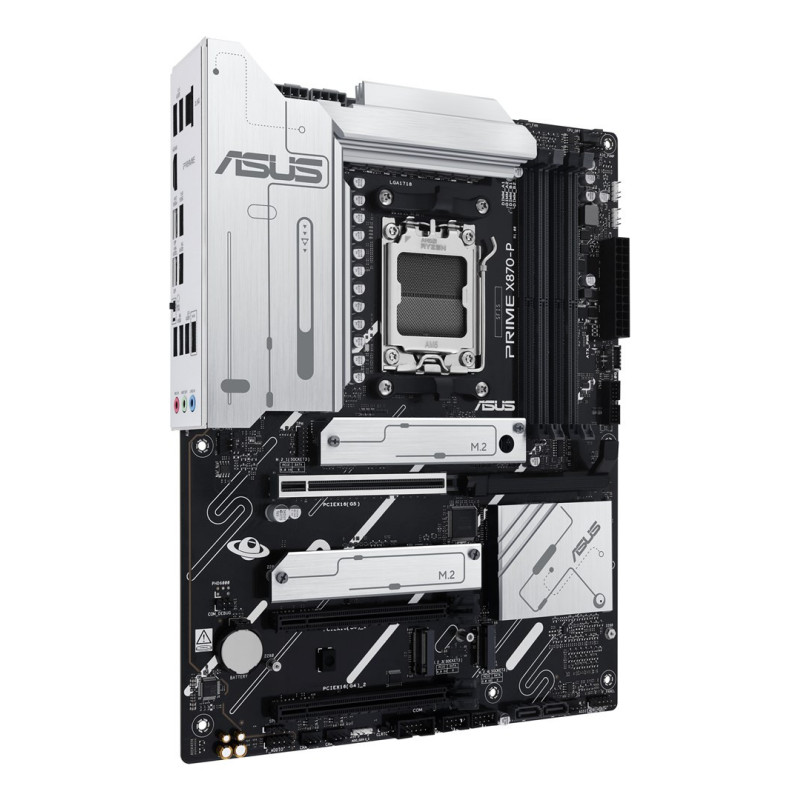

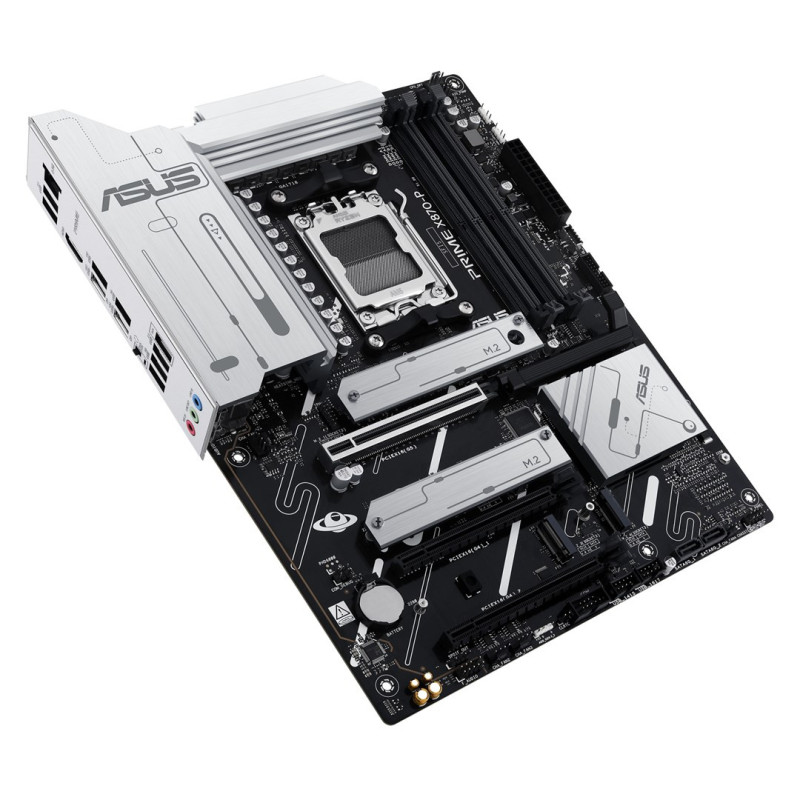

ASUS PRIME X870-P AMD X870 Socket AM5 ATX
Product reference:
6-90MB1IT0-M0EAY0
ASUS PRIME X870-P AMD X870 Socket AM5 ATX
ASUS PRIME X870-P AMD X870 Socket AM5 ATX
Product reference:
6-90MB1IT0-M0EAY0
ASUS PRIME X870-P AMD X870 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Back-to-BIOS button | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Cooling type | Passive |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DisplayPort version | 1.4a |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Height | 48 mm |
| Line-in | Yes |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD X870 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of HDDs supported | 2 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 2 |
| Number of storage drives supported | 6 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Product colour | Black |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Not available |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Warnings | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
| Weight | 1.44 kg |
| Wi-Fi | No |
| Width | 305 mm |
| Windows operating systems supported | Windows 10, Windows 11 |
