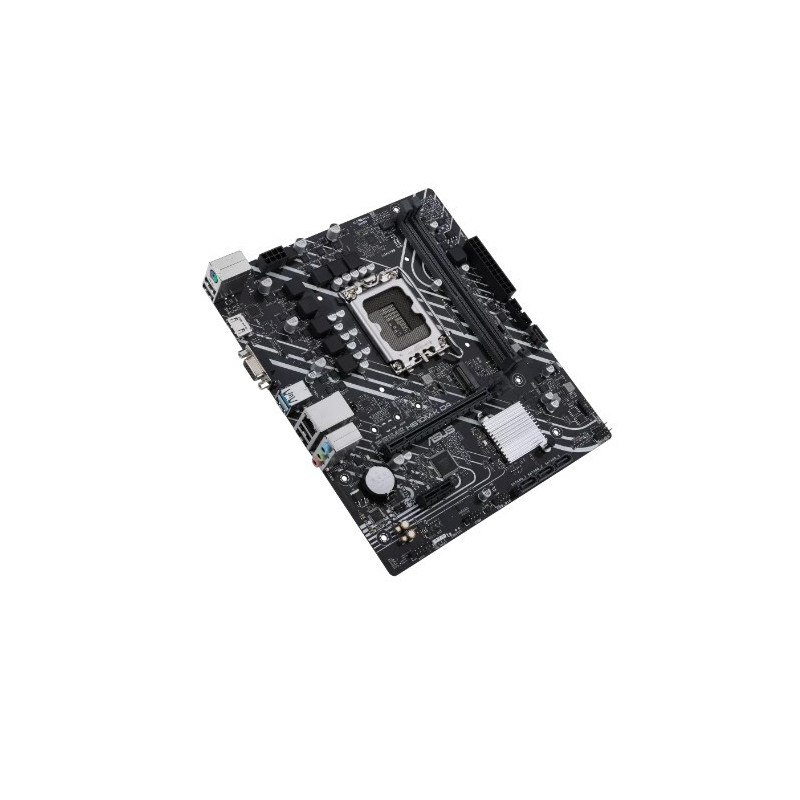

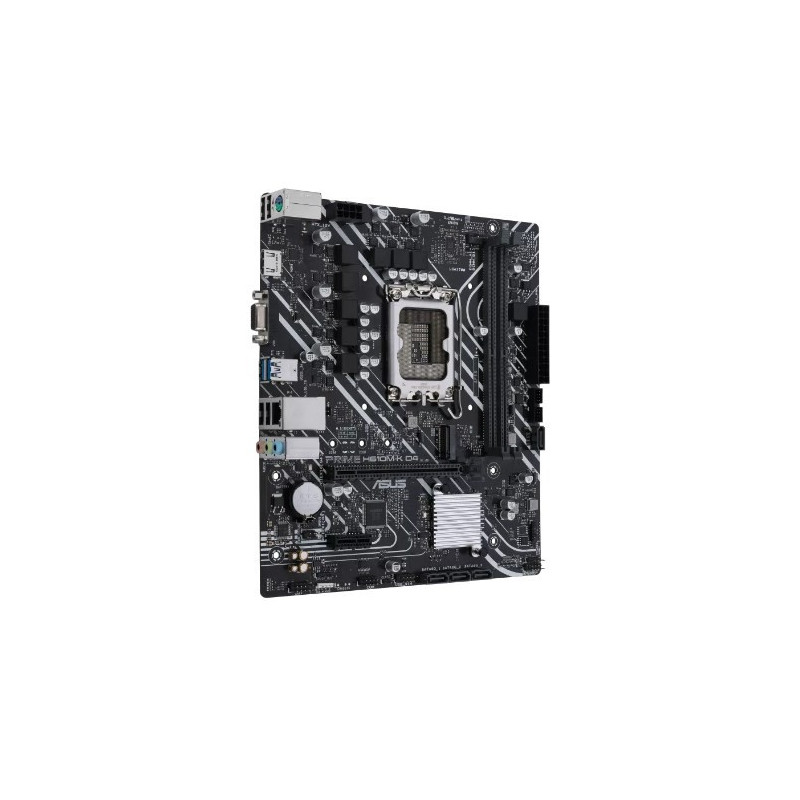

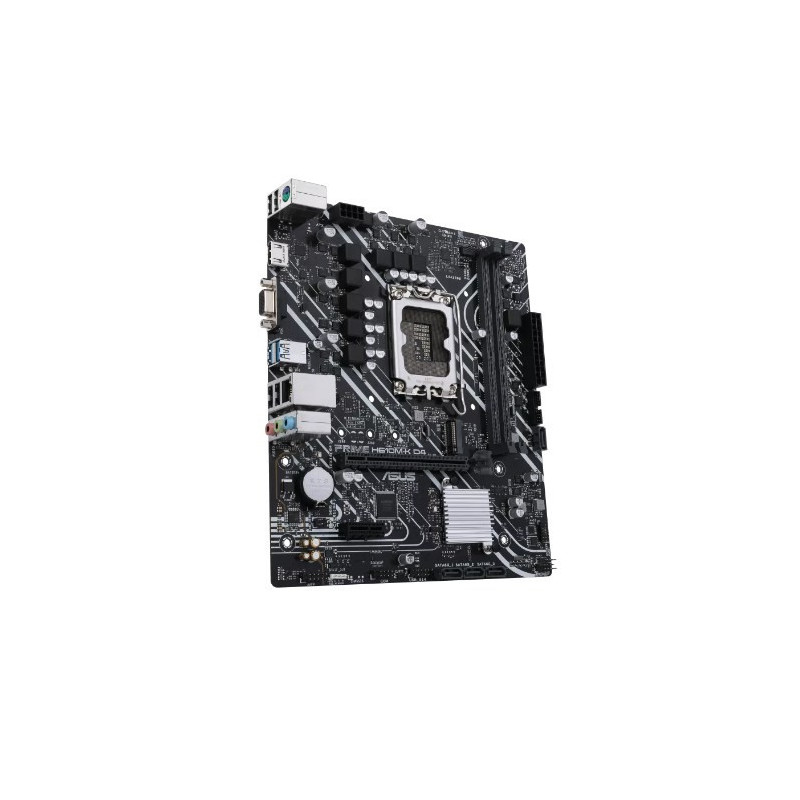

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
Product reference:
6-90MB1A10-M0EAY0
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
Product reference:
6-90MB1A10-M0EAY0
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Number of displays supported | 2 |
| Harmonized System (HS) code | 84733020 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Supported memory clock speeds | 2933, 3200, 2666, 3000, 2400, 2800, 2133 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Unbuffered memory | Yes |
| Width | 234 mm |
| Height | 51 mm |
| Depth | 203 mm |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| RGB LED pin header | Yes |
| Front panel audio connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 1 |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Drivers included | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |

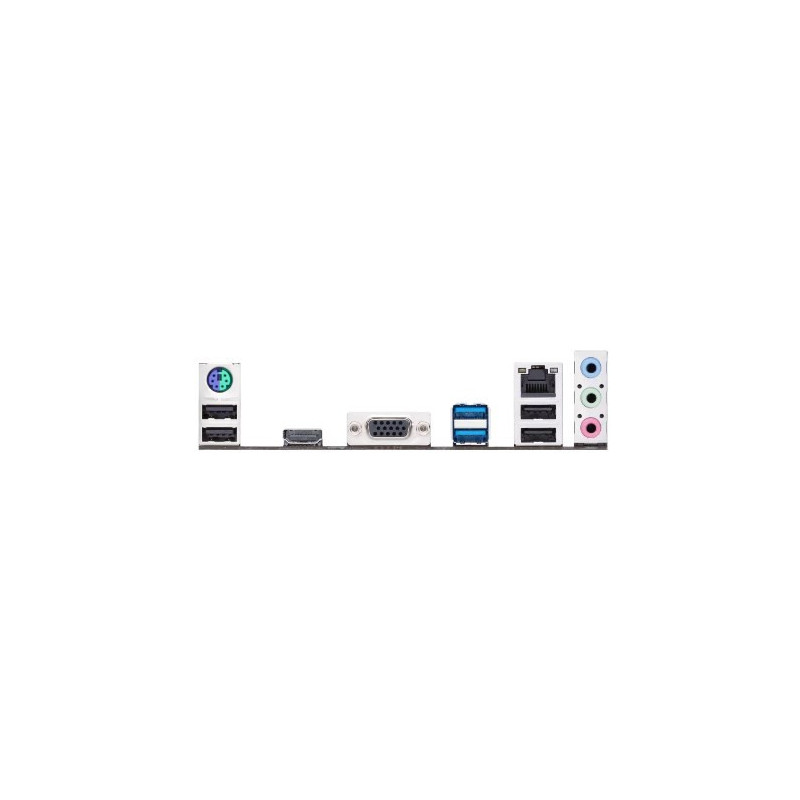

| PS/2 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Weight | 842 g |
