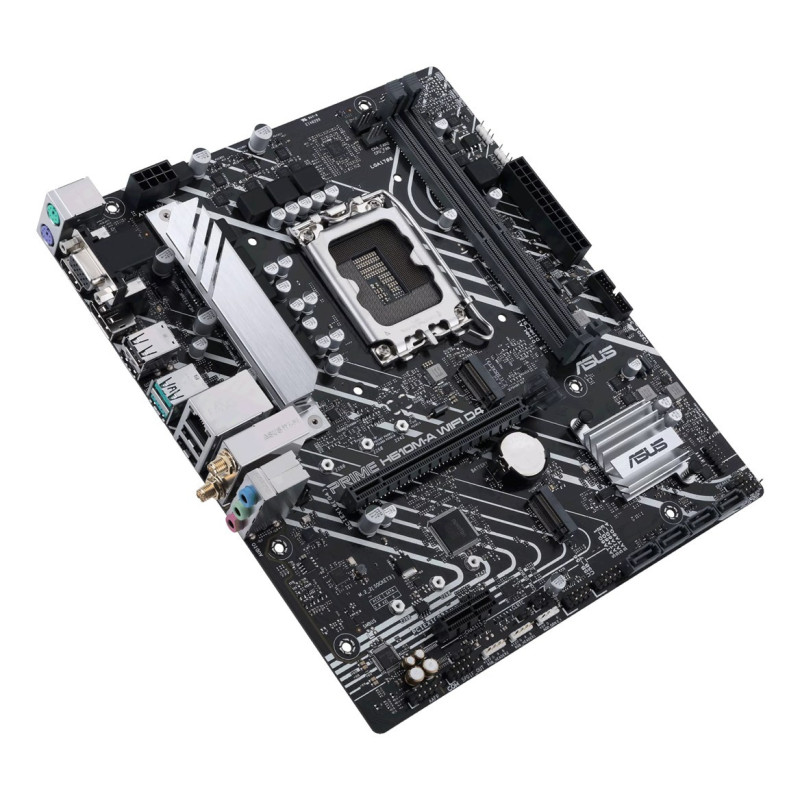

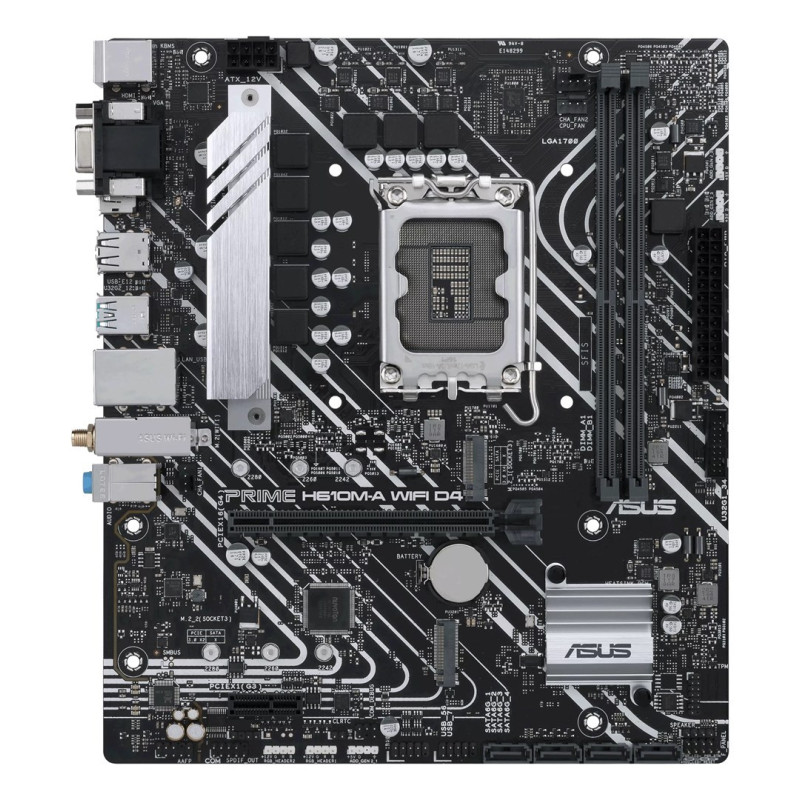

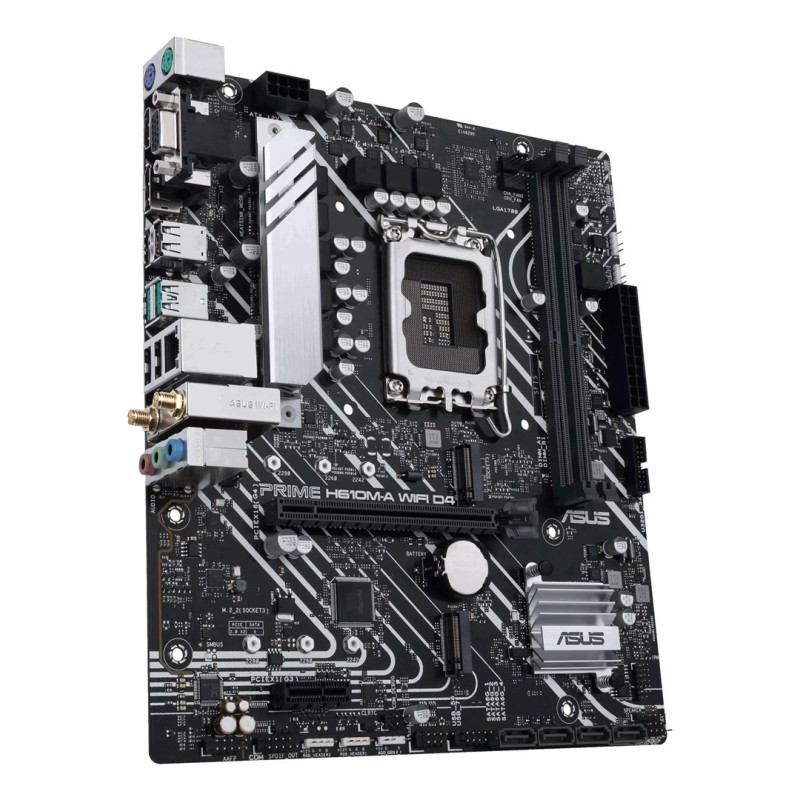

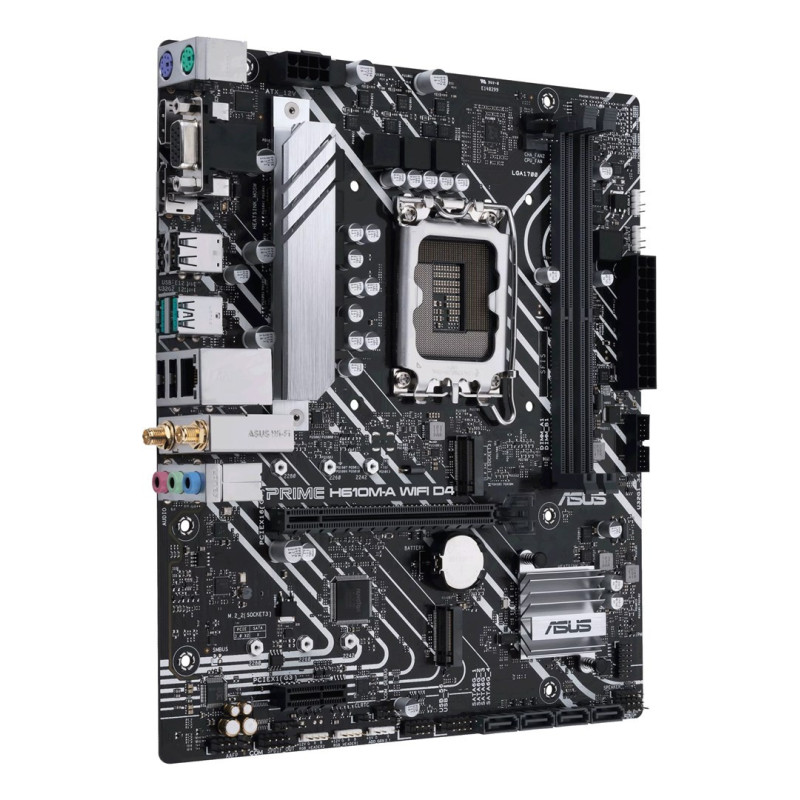

ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
Product reference:
6-90MB1C80-M0EAY0
ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
Product reference:
6-90MB1C80-M0EAY0
ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Number of displays supported | 3 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel H610 |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 3000, 2400, 2800, 2933, 2133, 3200, 2666 |
| Maximum internal memory | 64 GB |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Width | 244 mm |
| Depth | 211 mm |
| Height | 58 mm |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth version | 5.0 |
| Ethernet interface type | Gigabit Ethernet |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 2 |
| RGB LED pin header | Yes |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Drivers included | Yes |
| Supported storage drive interfaces | M.2, SATA |
| Supported storage drive types | HDD & SSD |

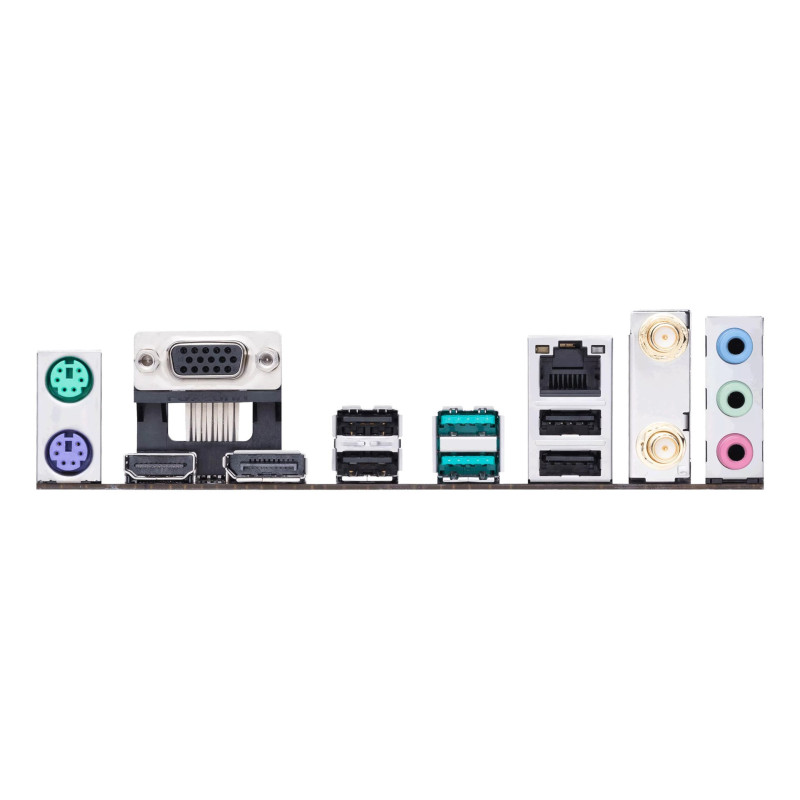

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Weight | 815 g |
| Harmonized System (HS) code | 84733020 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
