ASUS PRIME B850M-F WIFI

ASUS PRIME B850M-F WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 8400 MHz
Maximum internal memory: 128 GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 1
Number of chassis fan connectors: 2
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector

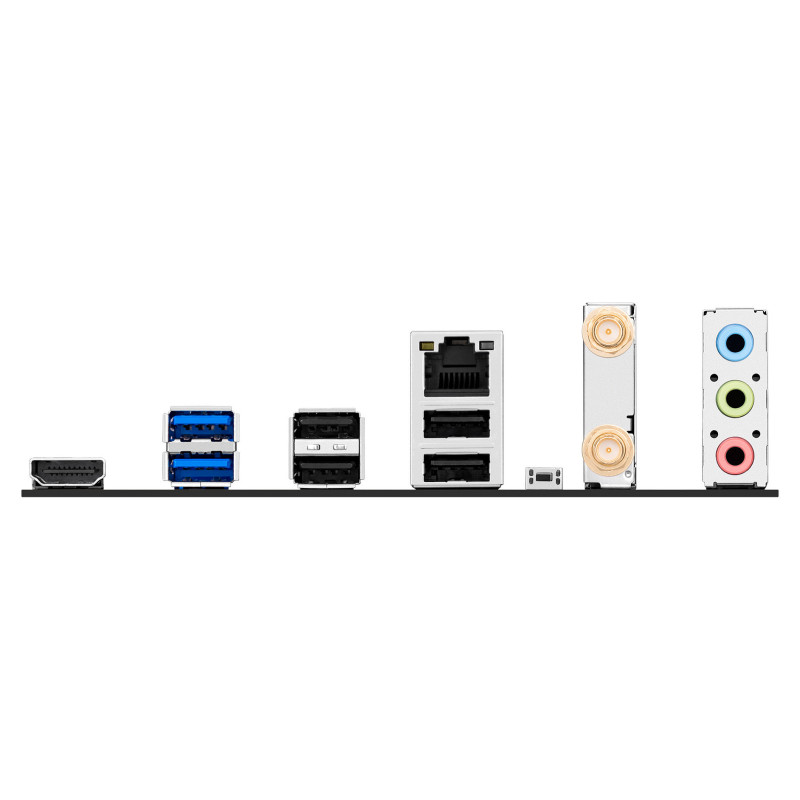

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Headphone outputs: 1
Feature: Microphone in

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

Features

Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 270 mm
Package depth: 260 mm
Package height: 51.5 mm
Package weight: 937 g

Weight & dimensions

Width: 222 mm
Depth: 226 mm
Height: 36.5 mm

Other features

Weight: 550 g
