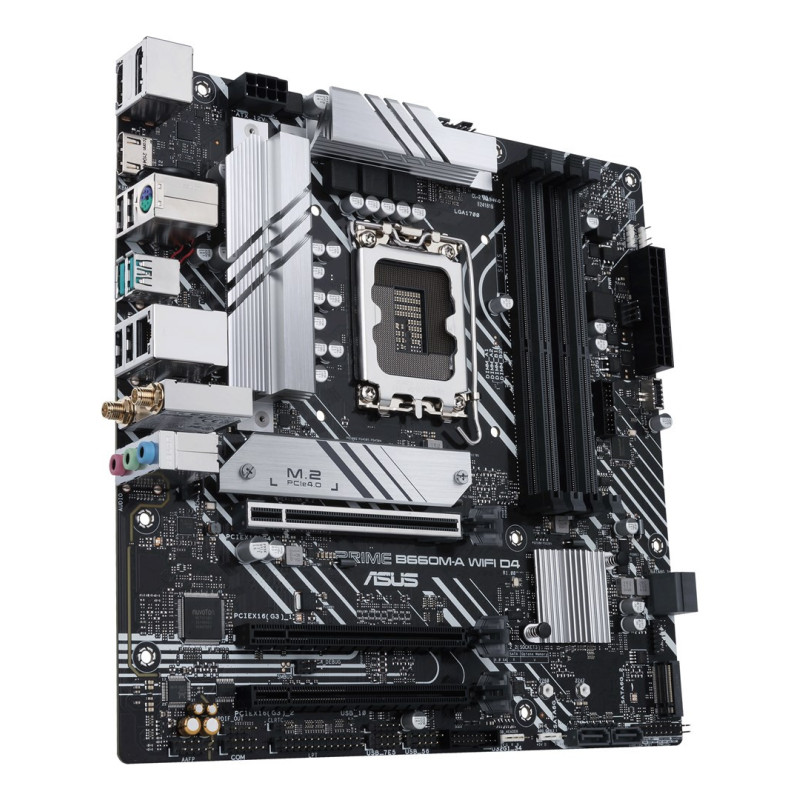

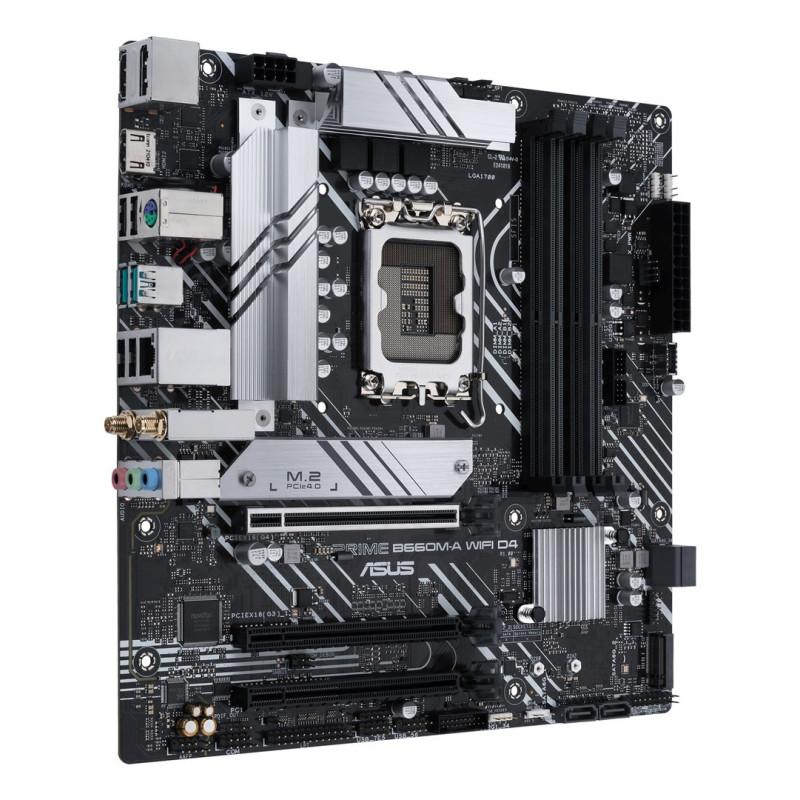

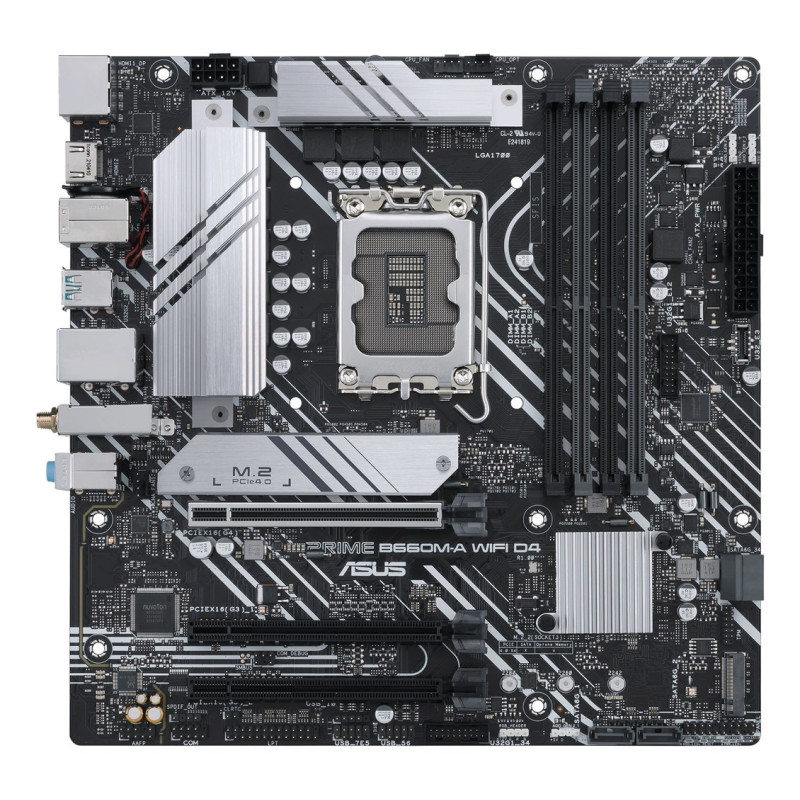

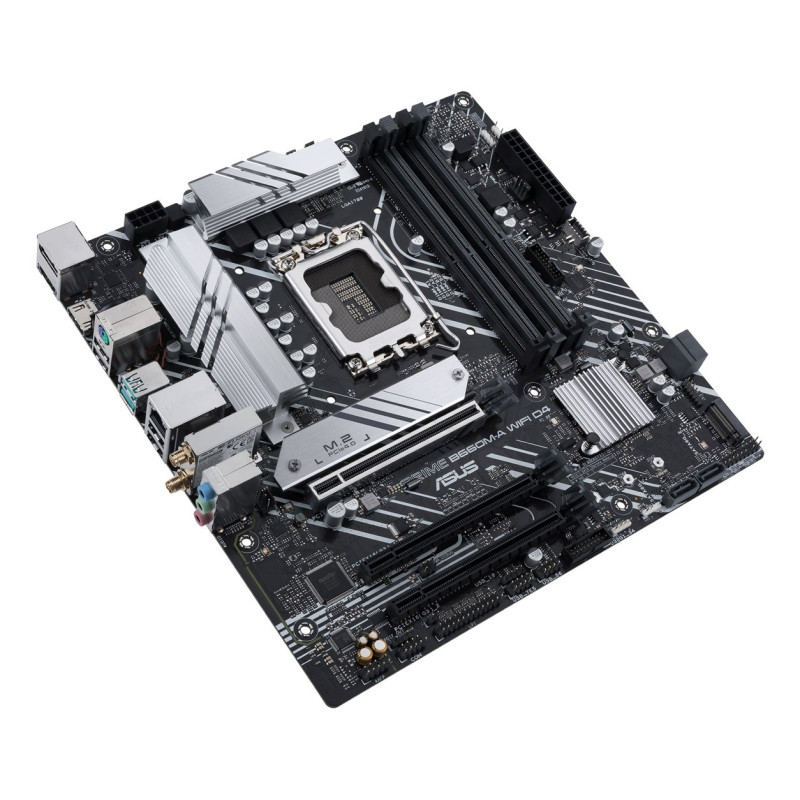

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
Product reference:
6-90MB1AE0-M1EAY0
ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
Product reference:
6-90MB1AE0-M1EAY0
ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of displays supported | 3 |
| Motherboard chipset | Intel B660 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Supported memory clock speeds | 3000, 5333 MHz, 3466, 3400, 4600, 3733, 4400, 5000, 4000, 4800 MHz, 2400, 2800, 3333, 2933, 3600, 3200 MHz, 2666, 2133 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Height | 60 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| USB 2.0 connectors | 3 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Drivers included | Yes |
| Supported storage drive types | HDD & SSD |
| RAID levels | 10, 1, 5 |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 ports quantity | 4 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Weight | 819 g |
| Harmonized System (HS) code | 84733020 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
