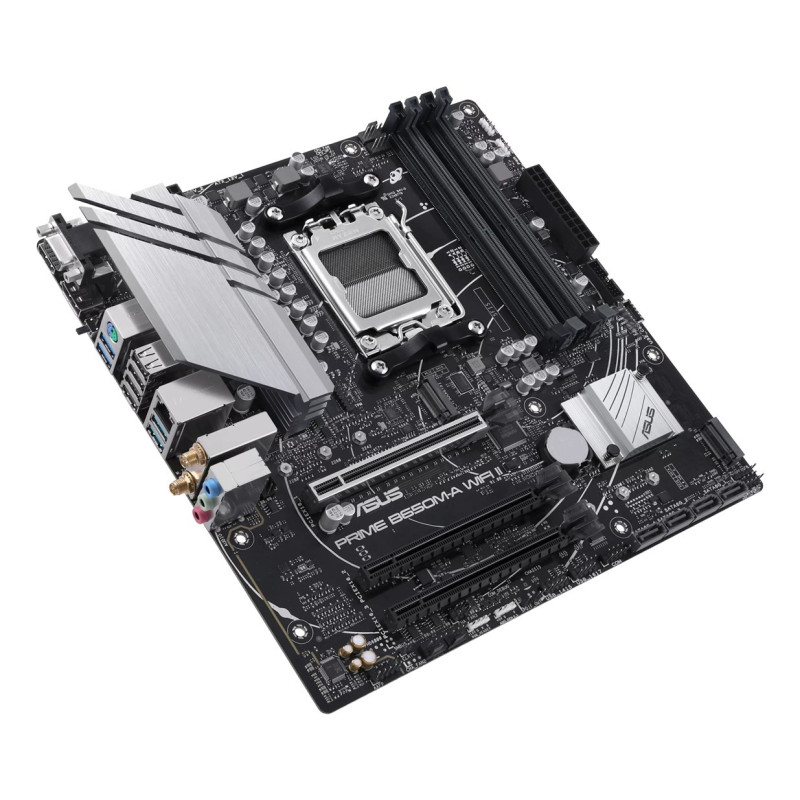

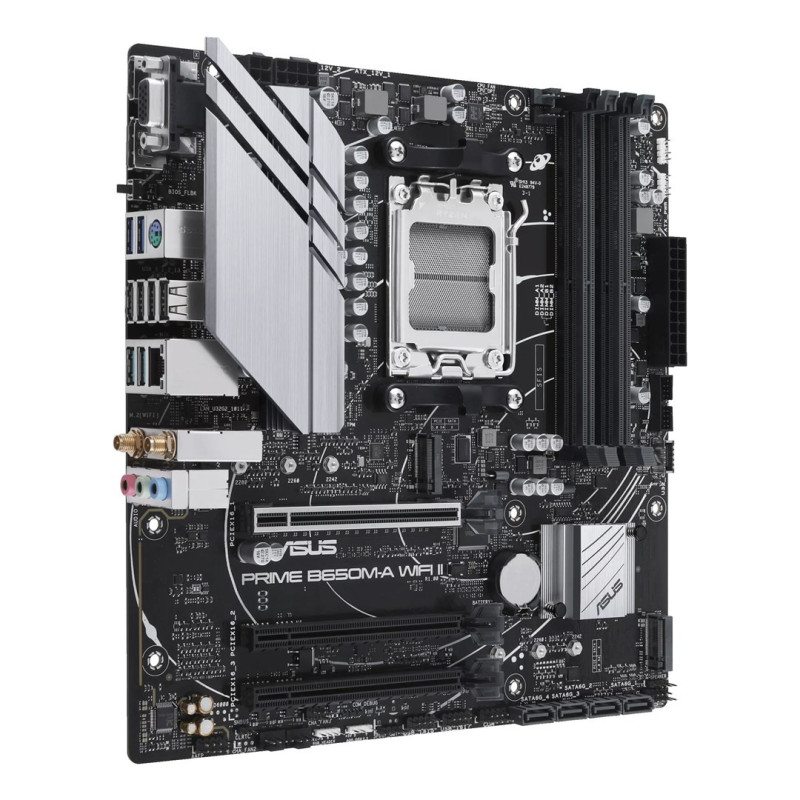

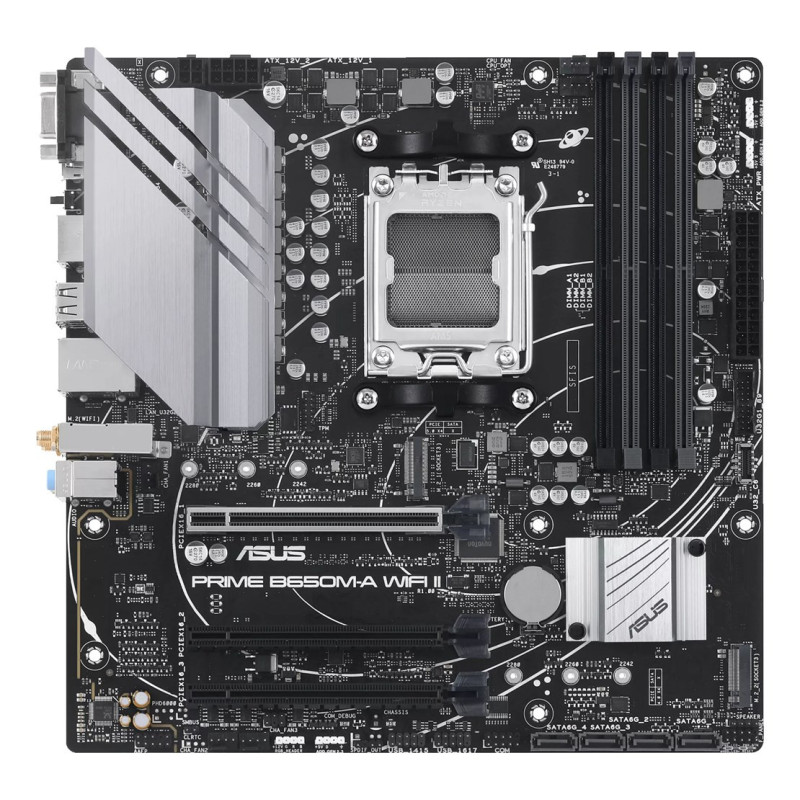

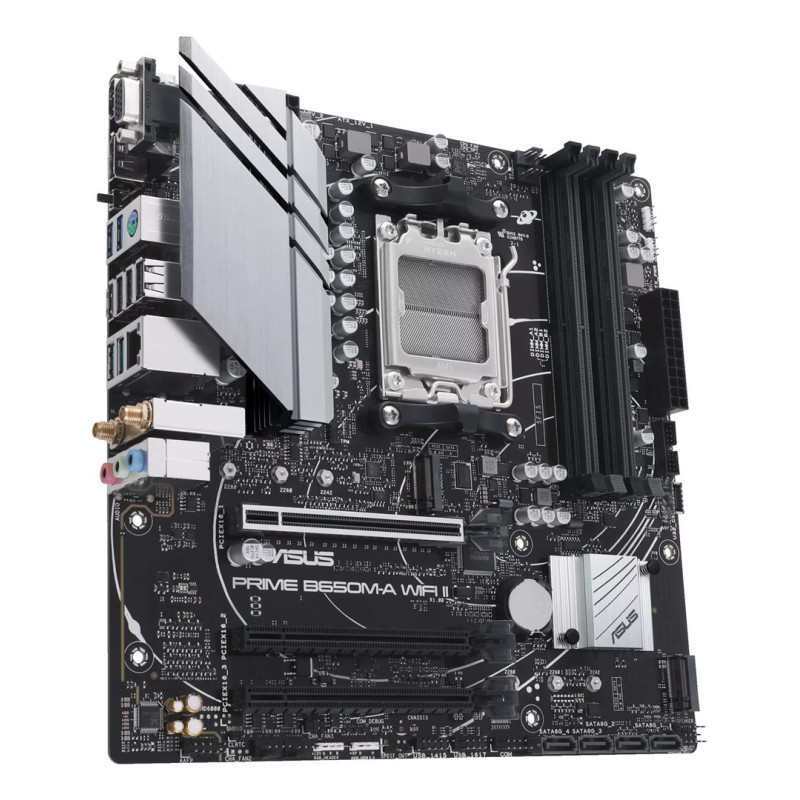

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
Product reference:
6-90MB1EG0-M0EAY0
ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
Product reference:
6-90MB1EG0-M0EAY0
ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7 |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 5600, 4800, 6400, 5200, 6000, 5800, 5400, 6200, 5000 |
| Width | 244 mm |
| Depth | 244 mm |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n) |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| 12V power connector | Yes |
| Total number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Number of SATA connectors | 4 |
| RGB LED pin header | Yes |
| Power fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU fan connector | Yes |
| Audio connector | Yes |
| Front panel connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Bundled software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |

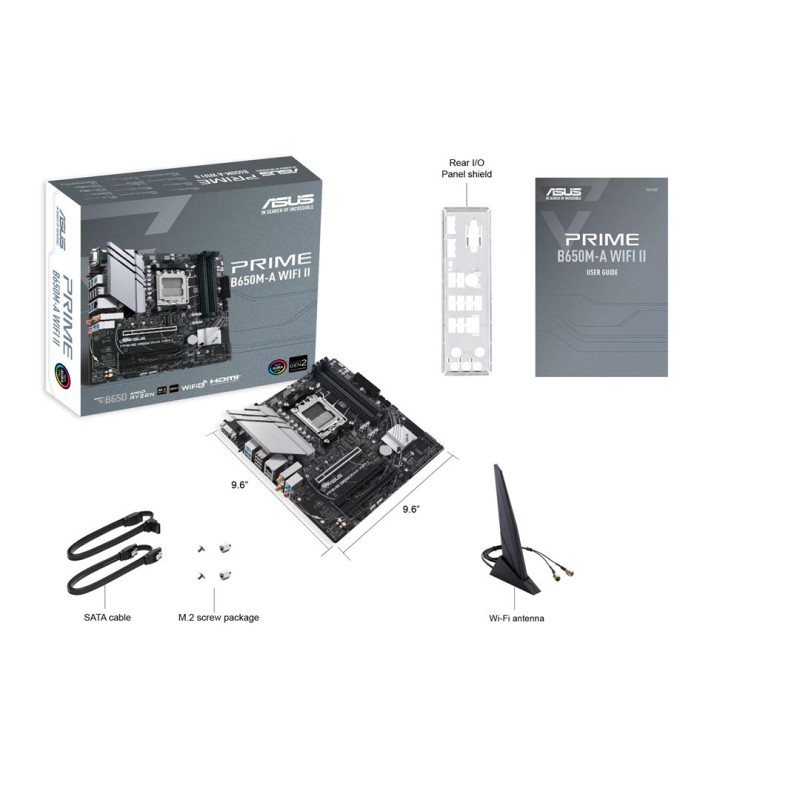

| Cables included | SATA |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 1, 10 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste. |
