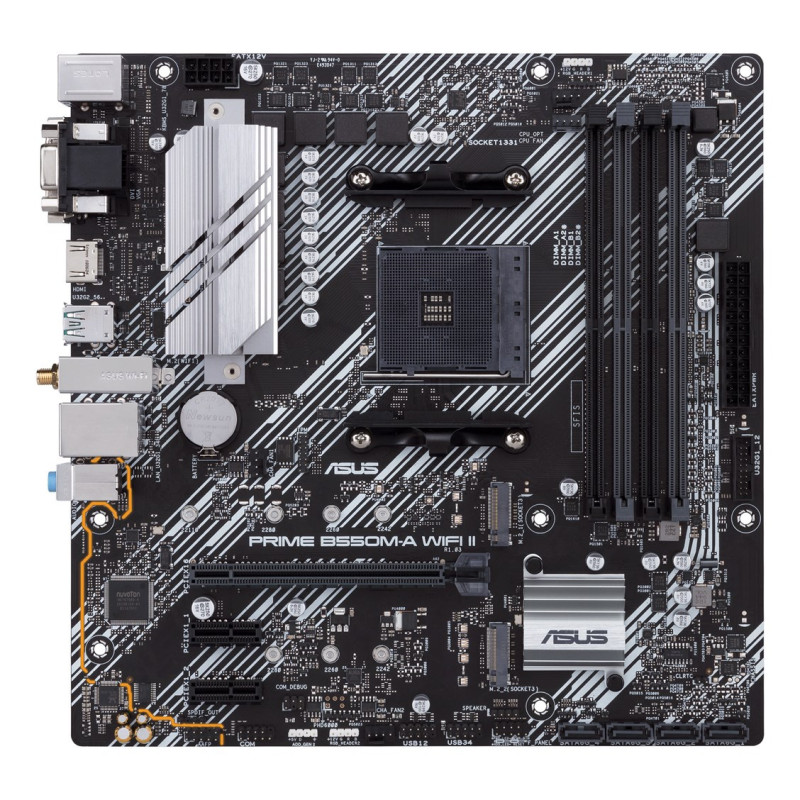

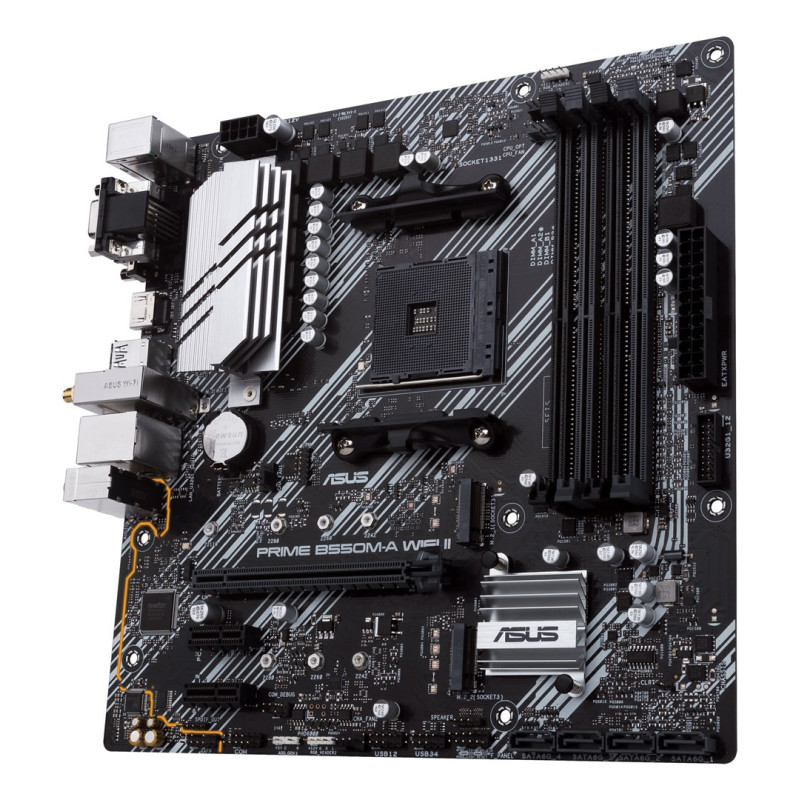

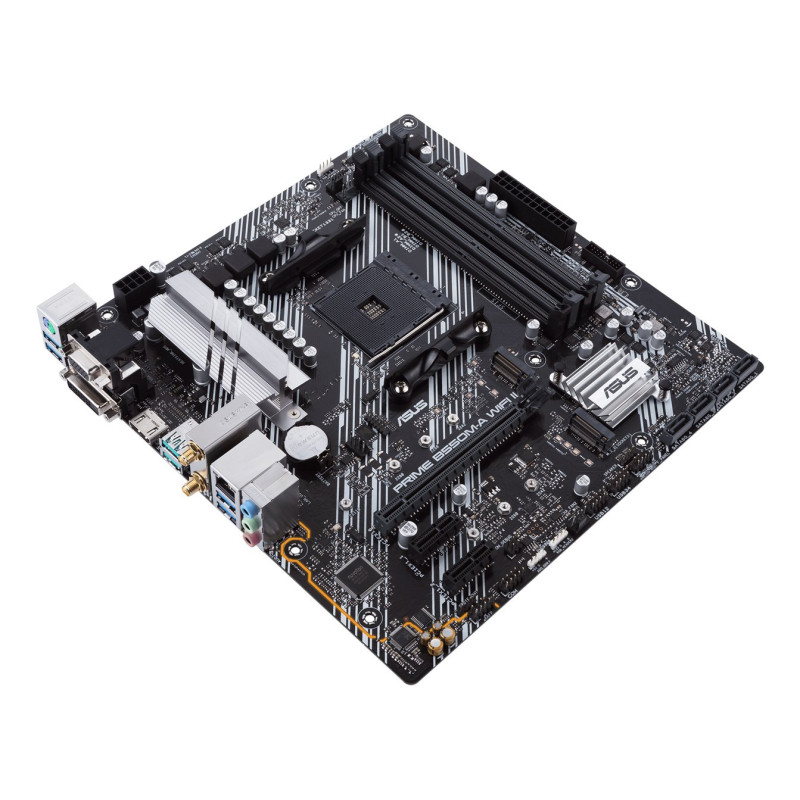

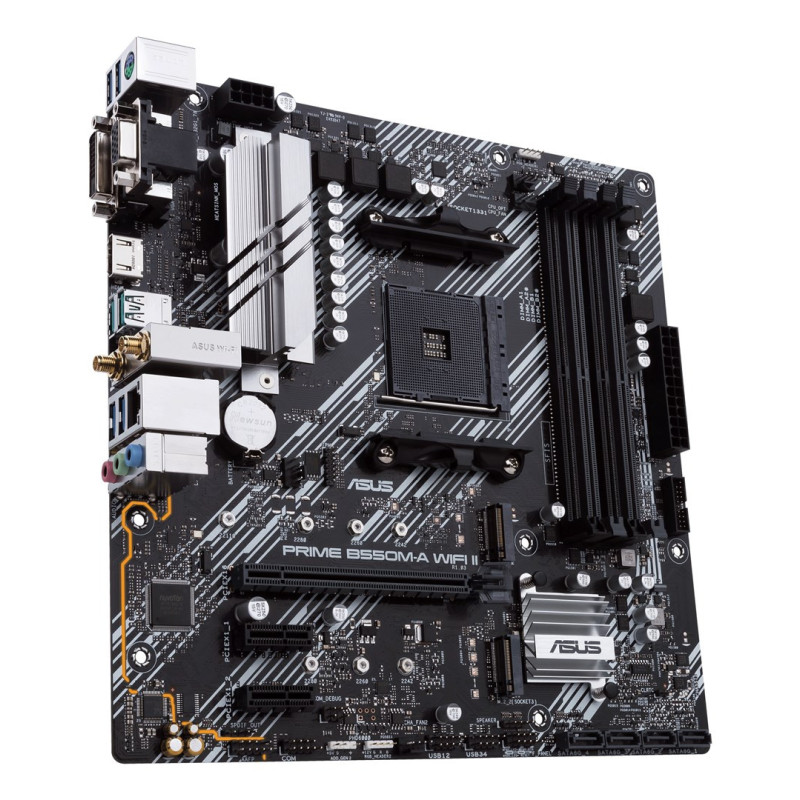

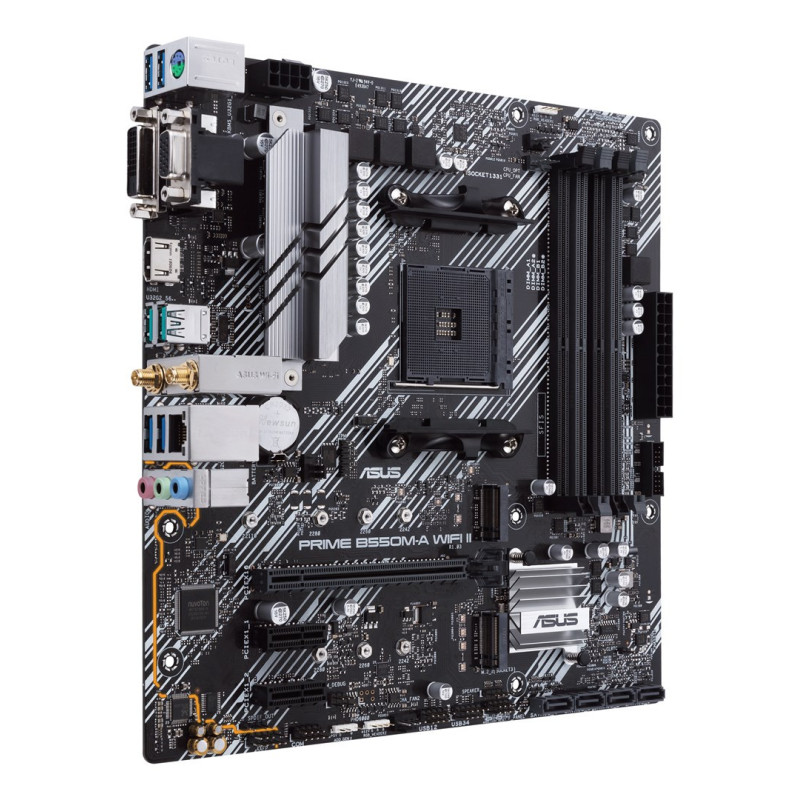

ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
Product reference:
6-90MB19X0-M0EAY0
ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
Product reference:
6-90MB19X0-M0EAY0
ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Cables included | SATA |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| CPU fan connector | Yes |
| Depth | 244 mm |
| Drivers included | Yes |
| DVI-D ports quantity | 1 |
| ECC сompatibility | ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Harmonized System (HS) code | 84733020 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 67 mm |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of EATX power connectors | 1 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 6 |
| On-board graphics card | No |
| Packaging content | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual |
| Parallel processing technology support | Not supported |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Product colour | Multicolour |
| PS/2 ports quantity | 1 |
| RAID levels | 1, 10 |
| RAID support | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4600 MHz, 4800, 4866 |
| Supported memory types | DDR4-SDRAM |
| Supported processor sockets | Socket AM4 |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| Warnings | Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture. |
| Weight | 845 g |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Width | 244 mm |
| WiFi-AP antenna jack | 1 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
