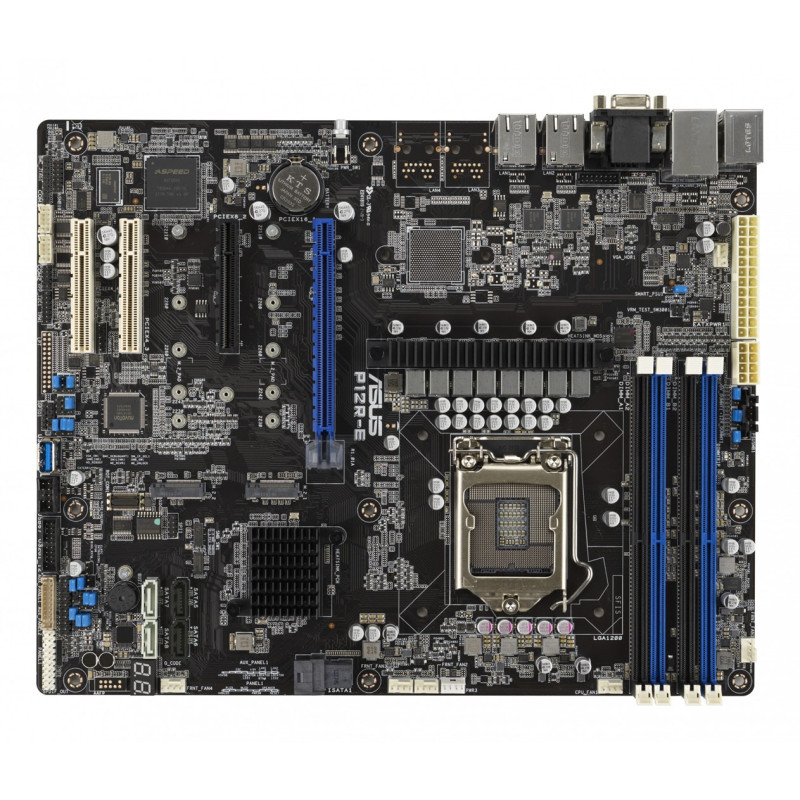

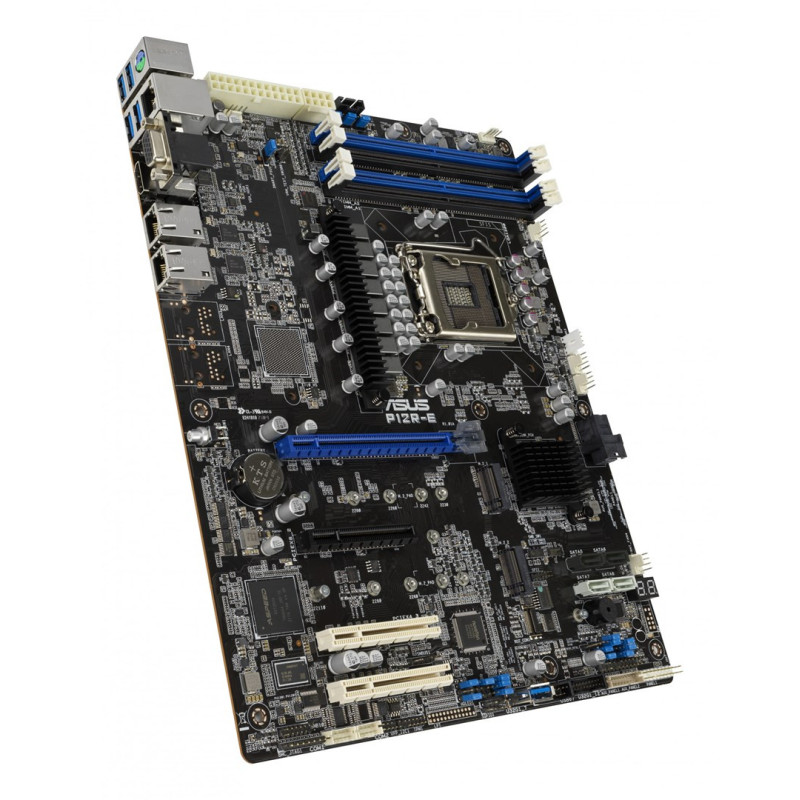

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
Product reference:
6-90SB0A90-M0UAY0
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
Product reference:
6-90SB0A90-M0UAY0
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 7
business days
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel Xeon E, Intel® Pentium® |
| Component for | Server |
| Depth | 244 mm |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Graphics card family | ASPEED |
| Harmonized System (HS) code | 84733020 |
| HDMI ports quantity | 1 |
| Height | 68 mm |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Motherboard chipset | Intel C256 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of COM connectors | 1 |
| Number of HDDs supported | 8 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 8 |
| Number of storage drives supported | 10 |
| On-board graphics card | Yes |
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2600 |
| Operating temperature (T-T) | 10 - 50 °C |
| PC health monitoring | CPU, Fan |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Power fan connector | Yes |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| PS/2 ports quantity | 1 |
| RAID support | Yes |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 2666, 2933, 3200 MHz |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Warnings | Adjust adequate ventilation to avoid overheating and potential damage., Avoid contact with liquids and moisture to prevent damage to equipment., The product contains electrical components - take care during installation to avoid injury. |
| Weight | 800 g |
| Wi-Fi | No |
| Width | 305 mm |
