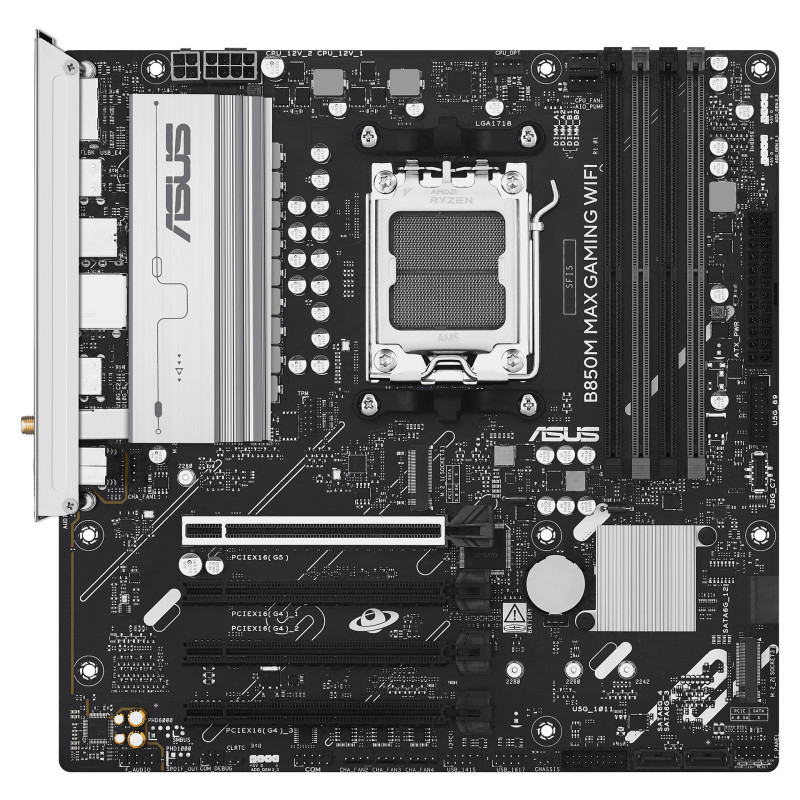

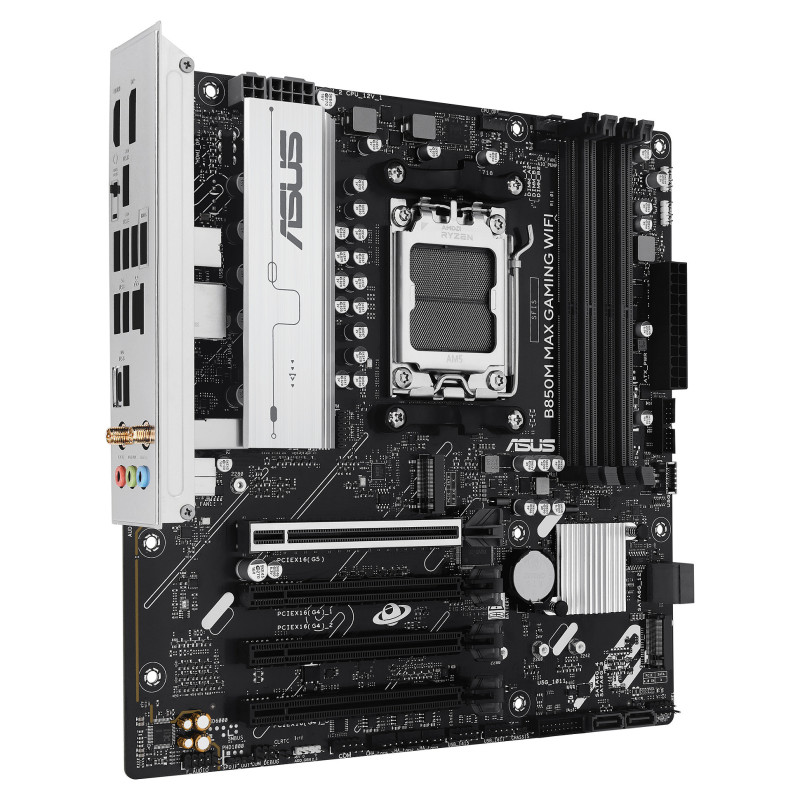

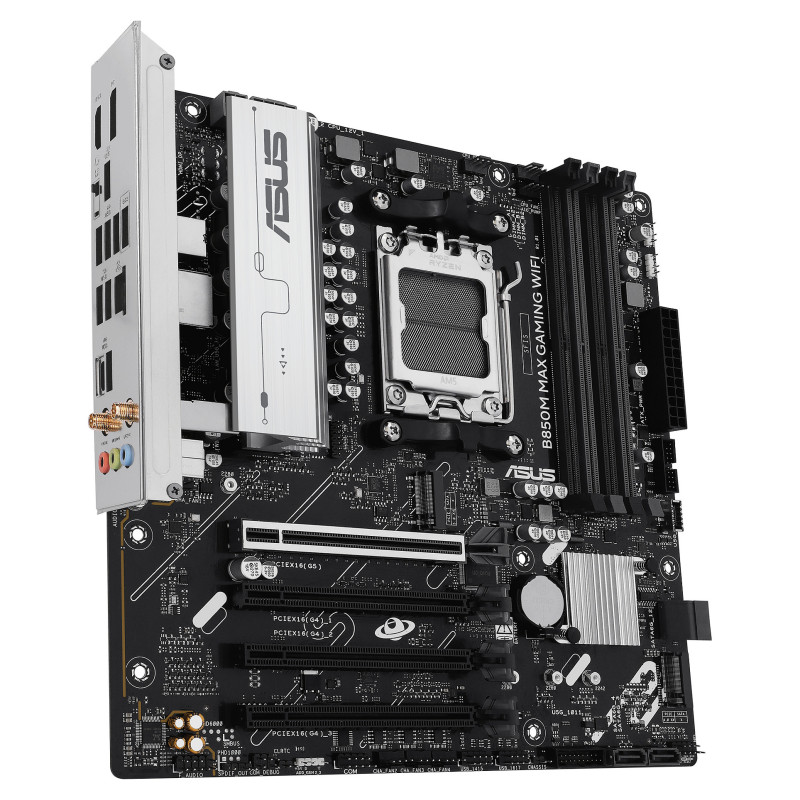

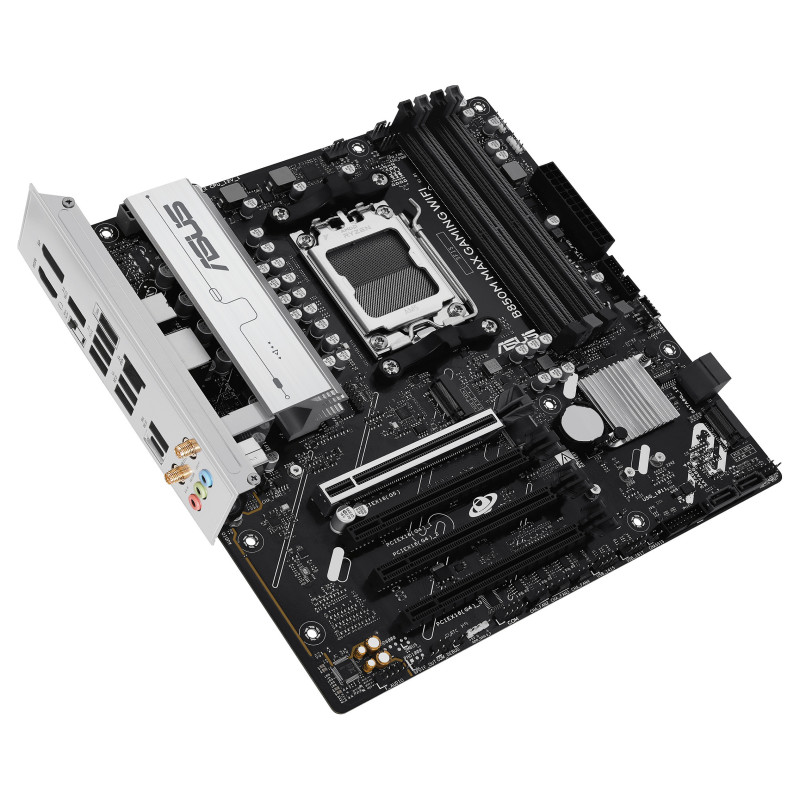

Asus B850M MAX Gaming WiFi

ASUS B850M MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
__KINDERGARTEN_2__ __KINDERGARTEN_3__ GAMING WIFI
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC Non-ECC
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 3

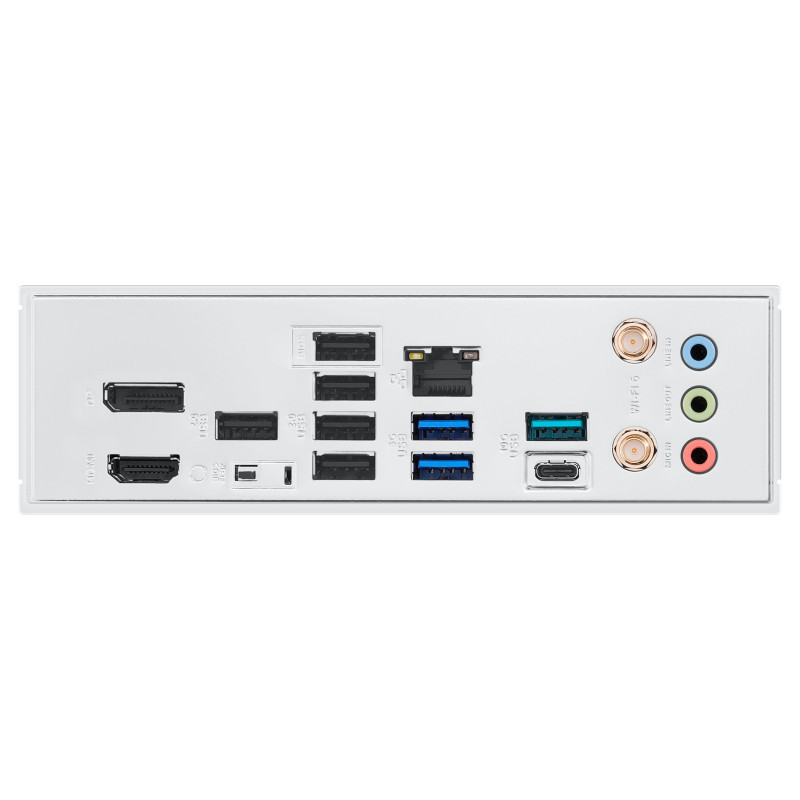

Rear panel I/O ports

USB 2.0 ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Line-in: Yes
Microphone in: Yes

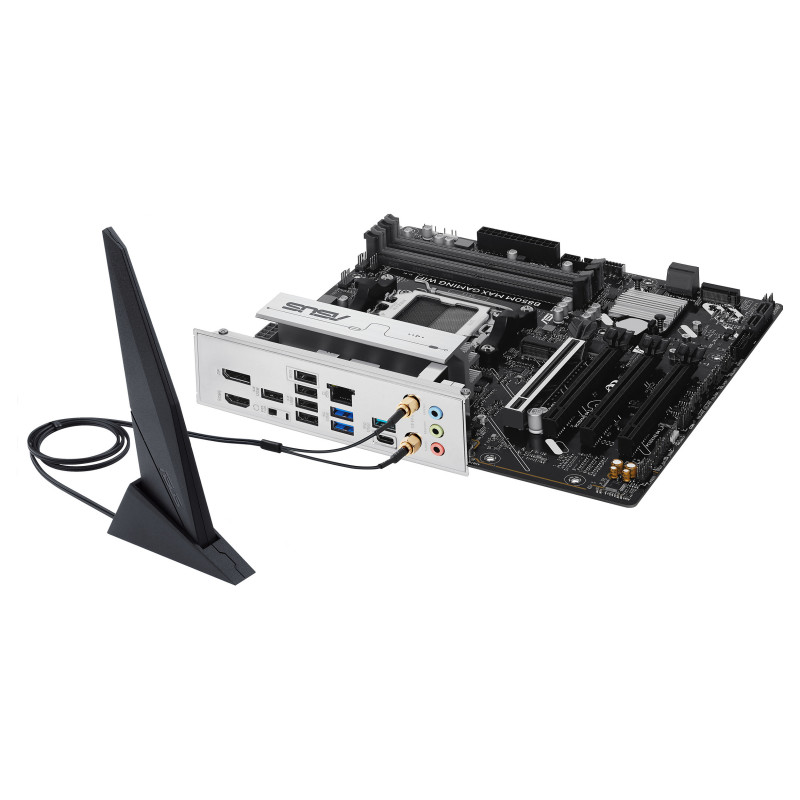

WiFi-AP antenna jack: 1

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: AMD B850
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 1.38 kg

Weight dimensions

Width: 244 mm
Depth: 244 mm

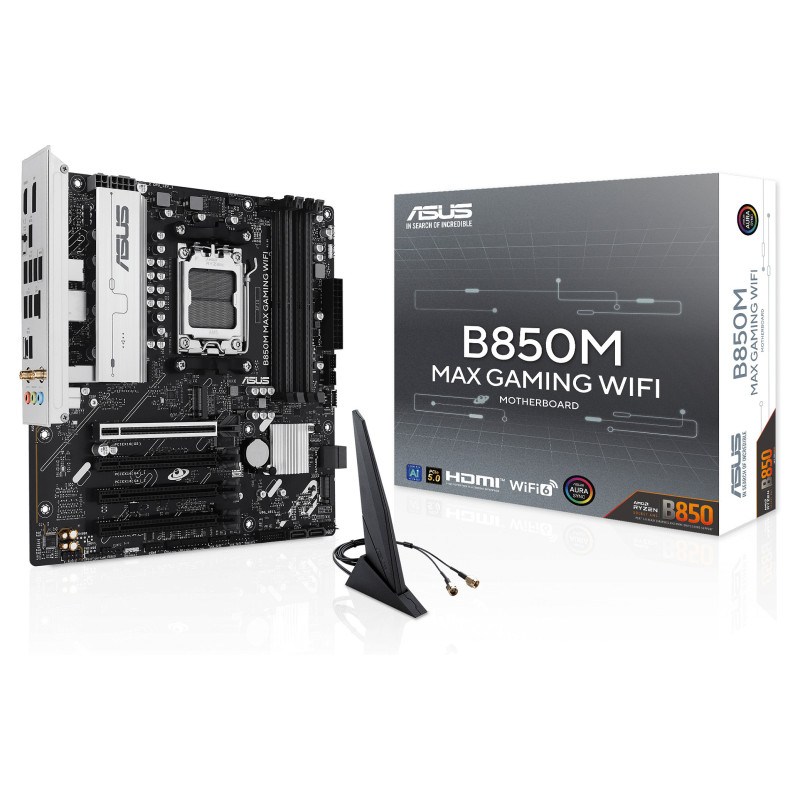

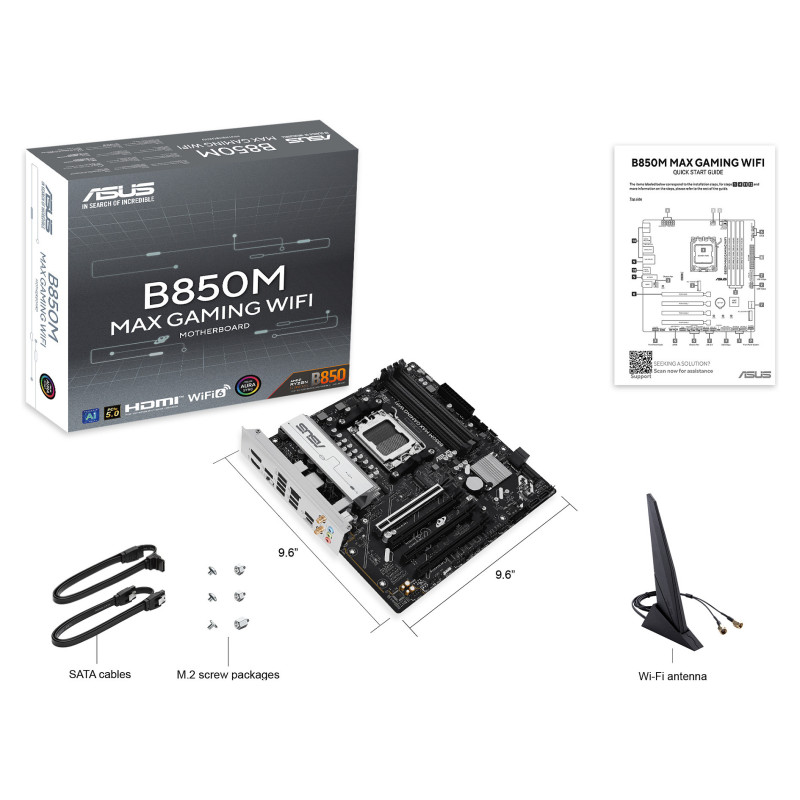

Packaging content

Cables included: SATA
Antenna included: Yes
Screws included: Yes

Other features

Weight: 859 g
