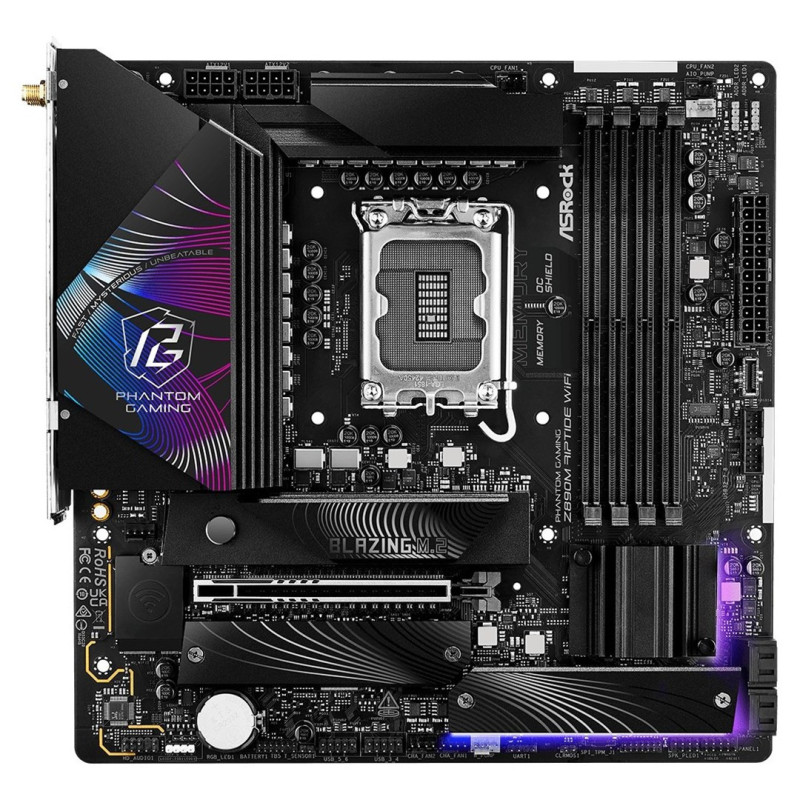

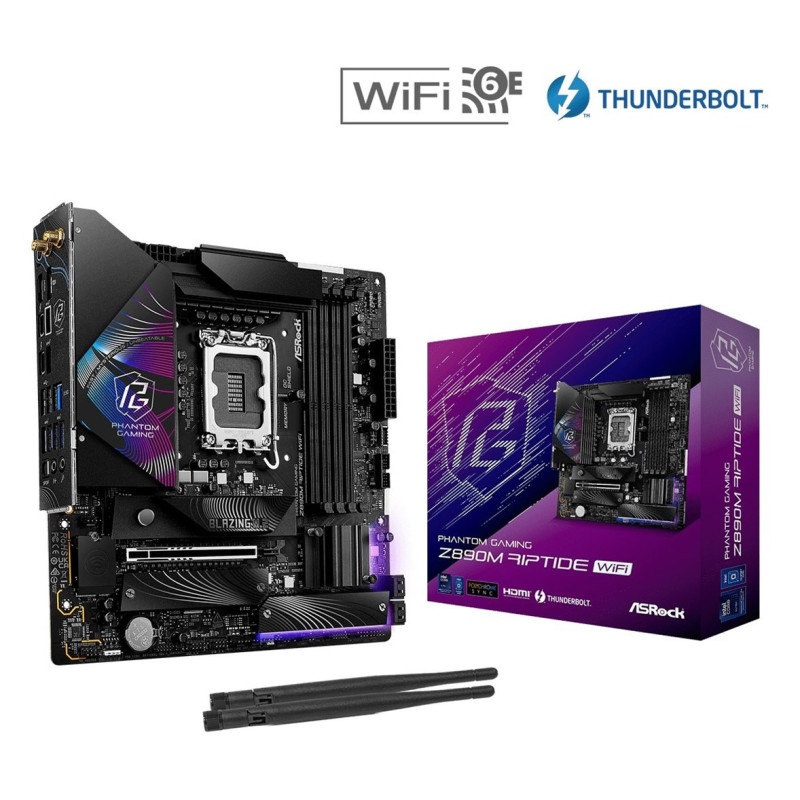

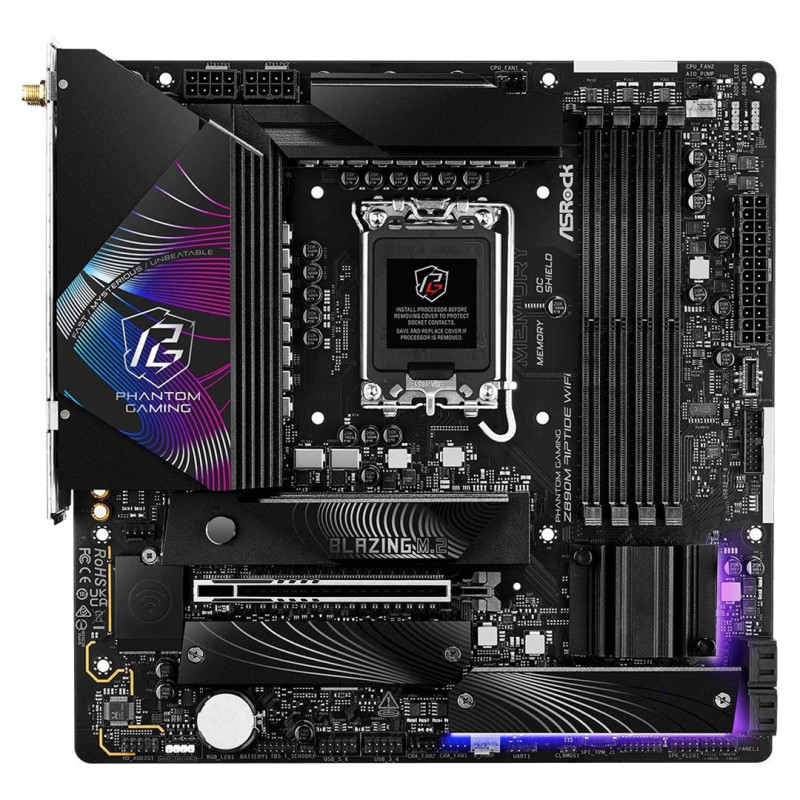

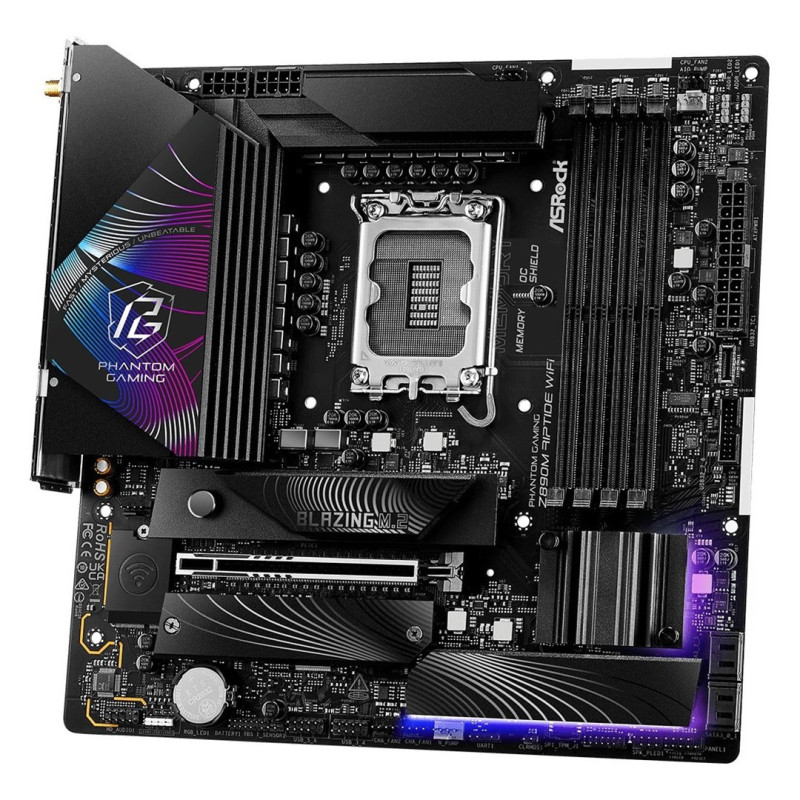

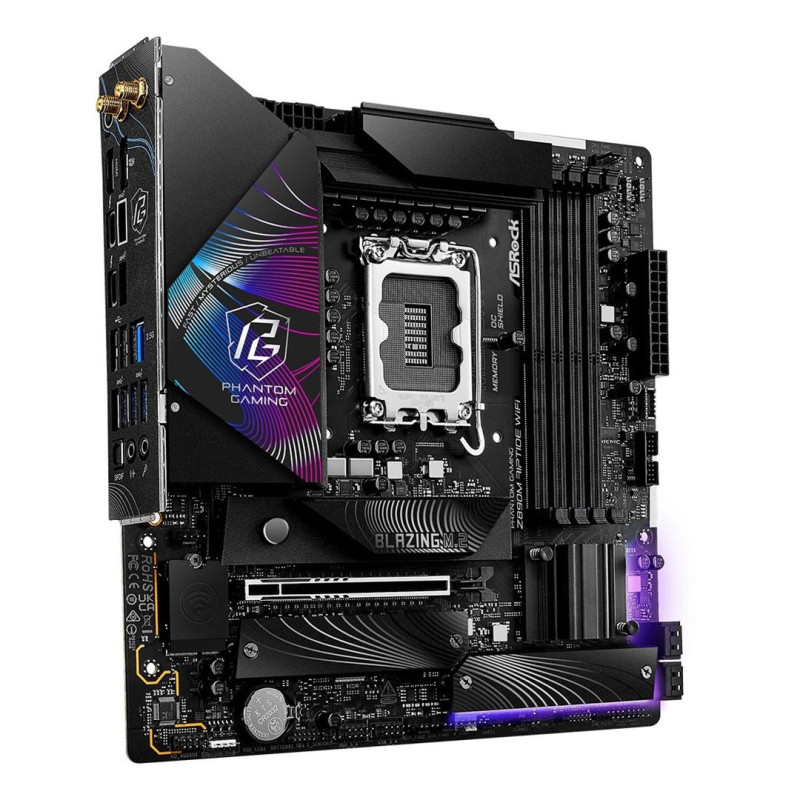

ASRock Z890M Riptide WiFi Motherboard
Product reference:
6-Z890M Riptide WiFi
ASRock Z890M Riptide WiFi Motherboard
ASRock Z890M Riptide WiFi Motherboard
Product reference:
6-Z890M Riptide WiFi
ASRock Z890M Riptide WiFi Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 8-pin power connector 12 V | 2 |
| AIO pump fan connector | 1 |
| Antennas quantity | 2 |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | ARGB Splitter Cable x 1, SATA III 2 pcs., Thermistor Cable x 1 |
| Certificates | CE, ErP/EuP ready, FCC |
| Chassis fan connector (4-pin) | 3 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| CPU fan connector | 2 |
| Depth | 244 mm |
| DisplayPort out quantity | 1 |
| DisplayPort version | 1.4 |
| ECC сompatibility | Non-ECC |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Graphics card | Intel Xe LPG |
| HDMI ports quantity | 1 |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Intel® Turbo Boost Technology | 3.0 |
| LAN controller | Killer E3100G |
| Line-out | Yes |
| Maximum internal memory | 256 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Memory speed (max) | 9466 MHz |
| Motherboard | Yes |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Number of addressable LED slots | 2 |
| Number of antenna connectors | 2 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of microphone inputs | 1 |
| Number of RGB LED pin headers | 1 |
| Number of SATA III connectors | 4 |
| Number of Thunderbolt 4 USB-C ports | 2 |
| Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA1851RL-ILM |
| Pump connector | 1 |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| SPDIF optical output | Y |
| Supported memory types | DDR5 DIMM |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Termistora Header | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Wi-Fi | Yes |
| Wi-Fi antenna | Yes |
| Wi-Fi frequency | 2,4 Ghz / 5 GHz / 6 GHz |
| Wi-Fi standards | 802.11 ax, 802.11 axe, 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n |
| Width | 244 mm |
| Windows operating systems supported | Windows 11 x64 |
| Wireless statistics | Yes |
