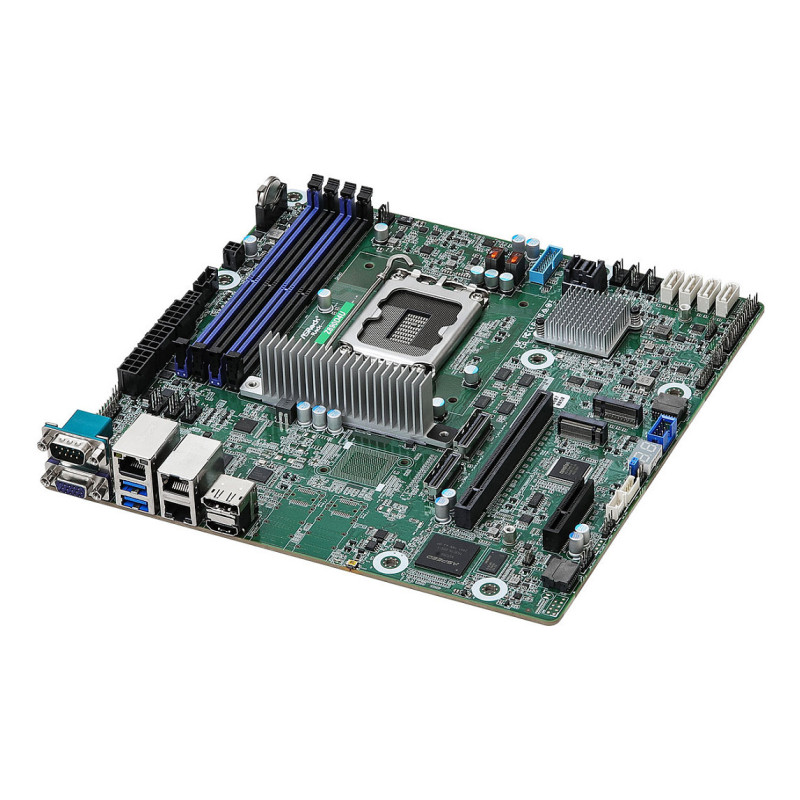

Asrock Z890D4U motherboard

Asrock Z890D4U. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400,4800,5600 MHz
Maximum internal memory: 64 GB

Storage controllers

Supported storage drive interfaces: SATA III
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

On-board graphics card: Yes
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Power fan connector: Yes
TPM connector: Yes

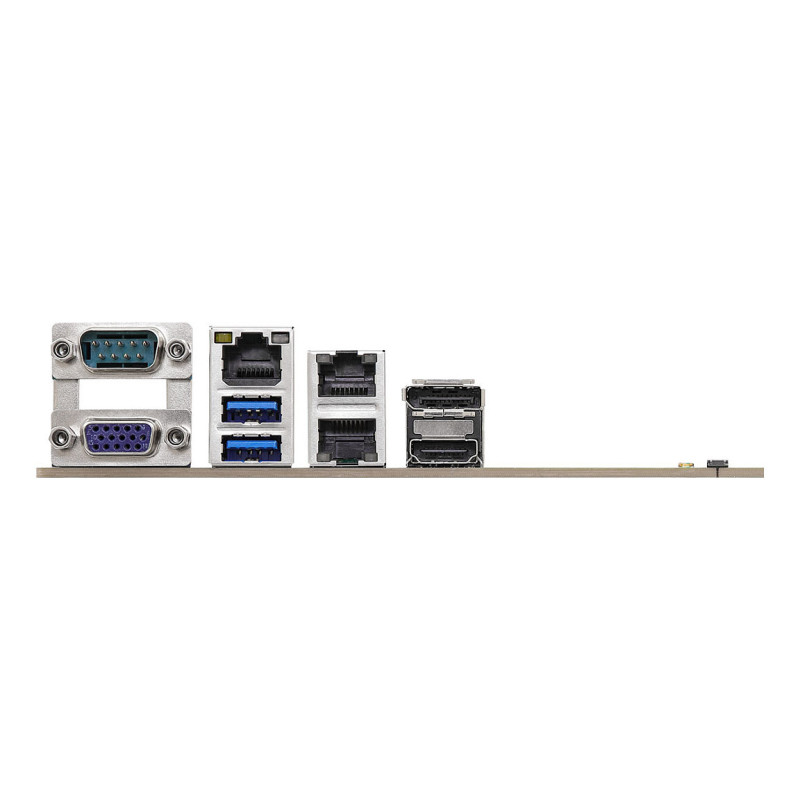

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Serial ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210
Wi-Fi: No

Features

Motherboard chipset: Intel Z890
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX, DC
Linux operating systems supported: Ubuntu 24.04 LTS, SuSE Linux 15, Red Hat Enterprise Linux 10.0, Red Hat Enterprise Linux 9.6
Windows operating systems supported: Windows 10, Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.3

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight dimensions

Width: 243.8 mm
Depth: 243.8 mm
