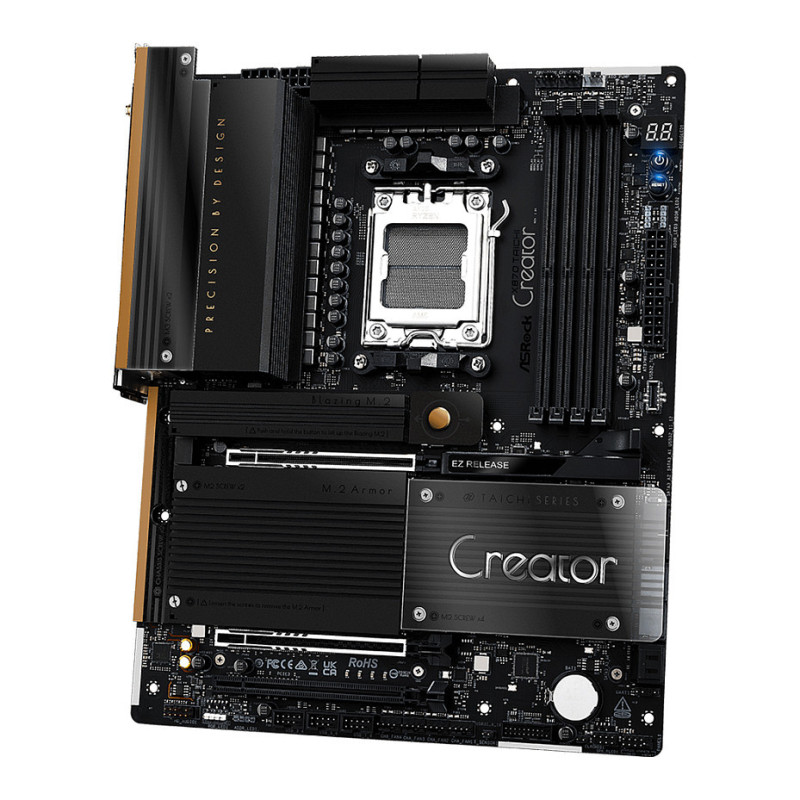

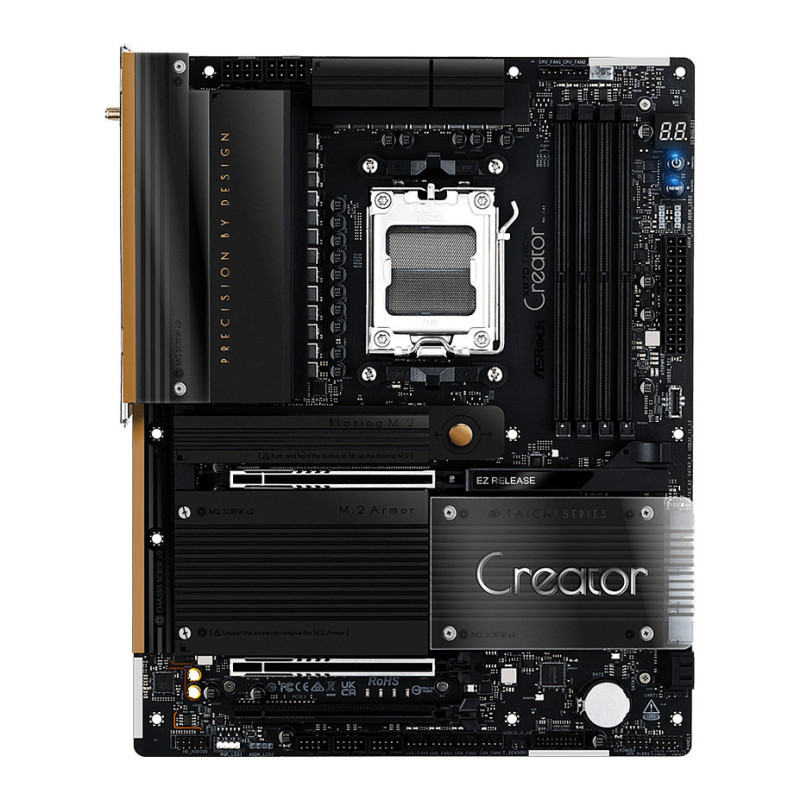

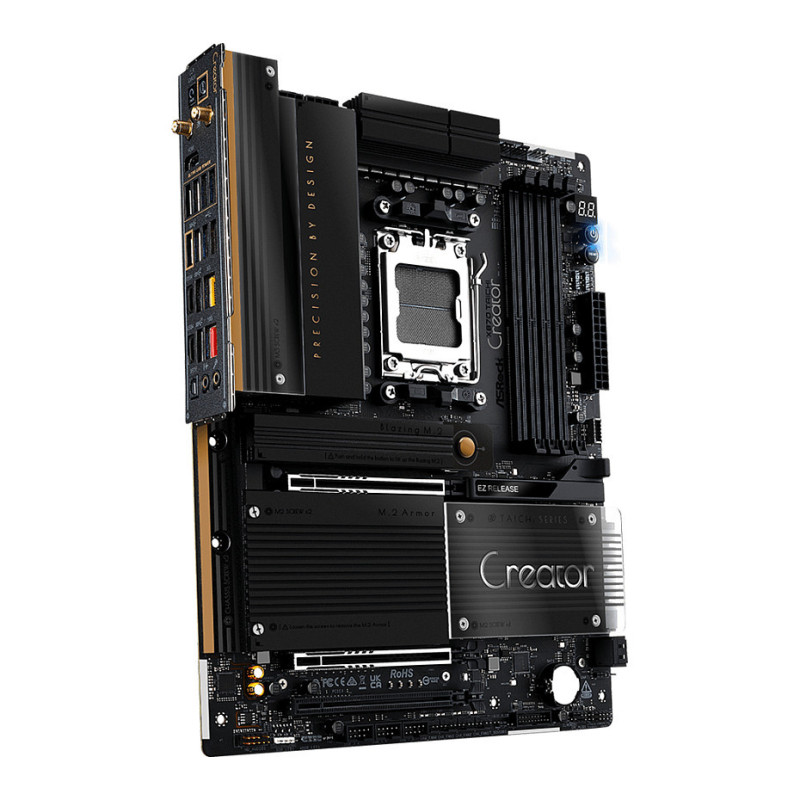

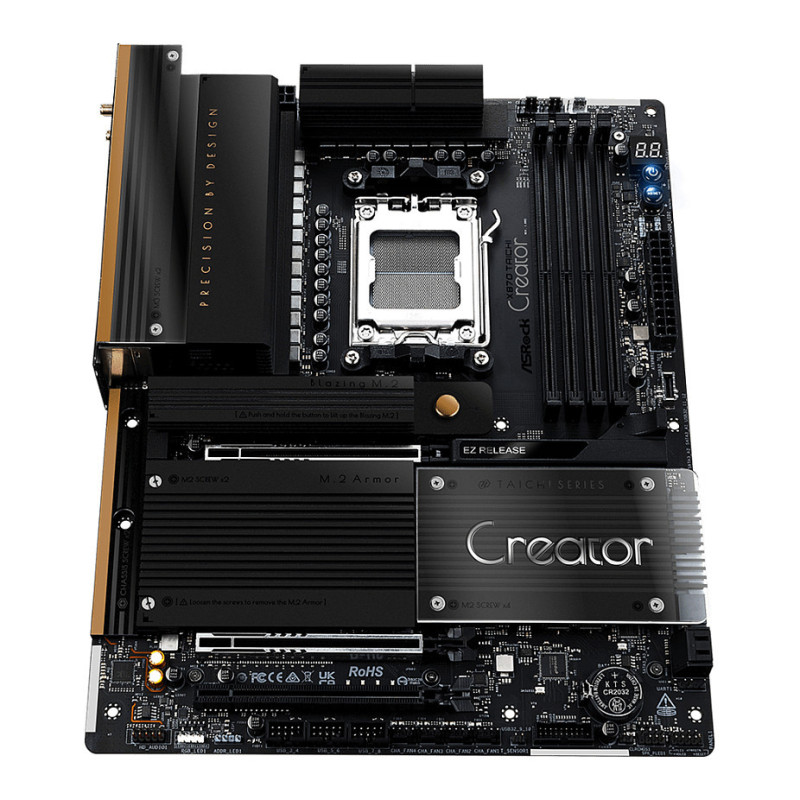

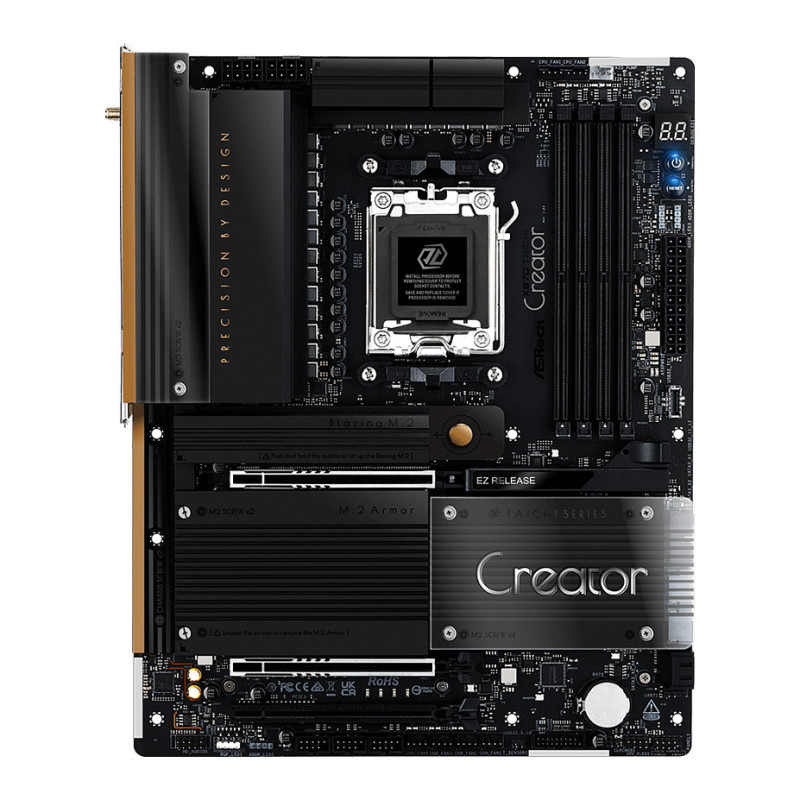

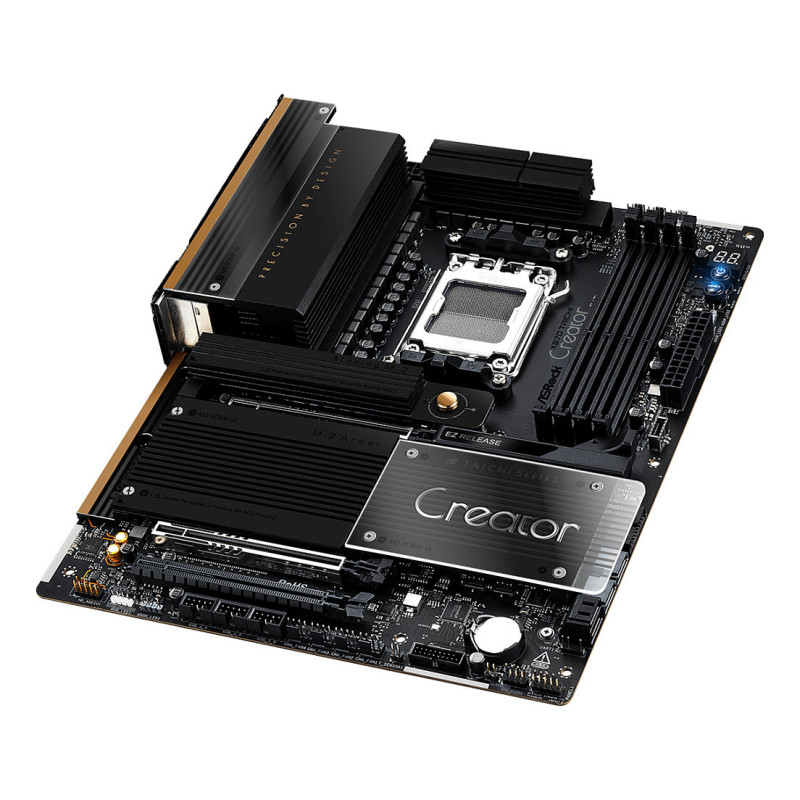

Asrock X870 Taichi Creator

Asrock X870 Taichi Creator. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQC113, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Built for professional creators, Taichi Creator motherboards deliver precise performance, stable power, and advanced connectivity—empowering your workflow with reliability and style.

8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Support Dual-GPU Configuration
Easily install two high-end GPUs for demanding workstation tasks like 3D rendering, AI training, and simulation.

Unleash Gen5 Speed with Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Advanced Thermal Design
Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.

40Gbps USB4 - Built for Creative Workflows
USB4 brings creators the speed and flexibility needed for modern production workflows. With up to 40Gbps transfer bandwidth, it's perfect for handling large video files, RAW images, and high-resolution assets in seconds.
Thanks to its versatile Type-C interface, USB4 supports data, display, and charging in one cable, streamlining your creative setup whether you're in the studio or on location. It's also compatible with Thunderbolt™ devices, giving you seamless access to high-speed external SSDs, 4K displays, and pro-grade accessories.

Next-Level Networking with 10GbE & 5GbE Dual LAN
Equipped with both AQUANTIA® 10GbE and 5GbE LAN, this dual Ethernet design delivers uncompromised bandwidth for professional creators and power users.
The 10GbE port, powered by AQUANTIA AQtion™ controller, supports blazing-fast 10-gigabit speeds over standard Cat6 cabling — perfect for high-resolution video editing, NAS access, and real-time backups. Meanwhile, the 5GbE port offers flexible multi-gigabit compatibility (5G/2.5G/1G) for versatile networking setups.
Whether you're syncing terabytes of raw footage, streaming uncompressed media, or collaborating on cloud projects, this dual-LAN solution ensures maximum speed, reliability, and future-ready connectivity.

Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Fast Charging Port for Phones, Tablets & Creative Gear
Equipped with USB Power Delivery 3.0, this motherboard delivers up to 36W (12V/3A) of fast charging directly from the front panel — perfect for creators who rely on smartphones, tablets, and portable accessories during shoots or on-location editing.
Whether you're recharging a power-hungry Pad, phone, or powering USB-based creative tools, this fast-charging port keeps your essential gear ready without the need for extra adapters or wall plugs.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Customized Thermal Management
The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 8000 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Feature: RAID support
RAID levels: 0, 1, 10

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 2
Feature: RGB LED pin header
Number of RGB LED pin headers: 1

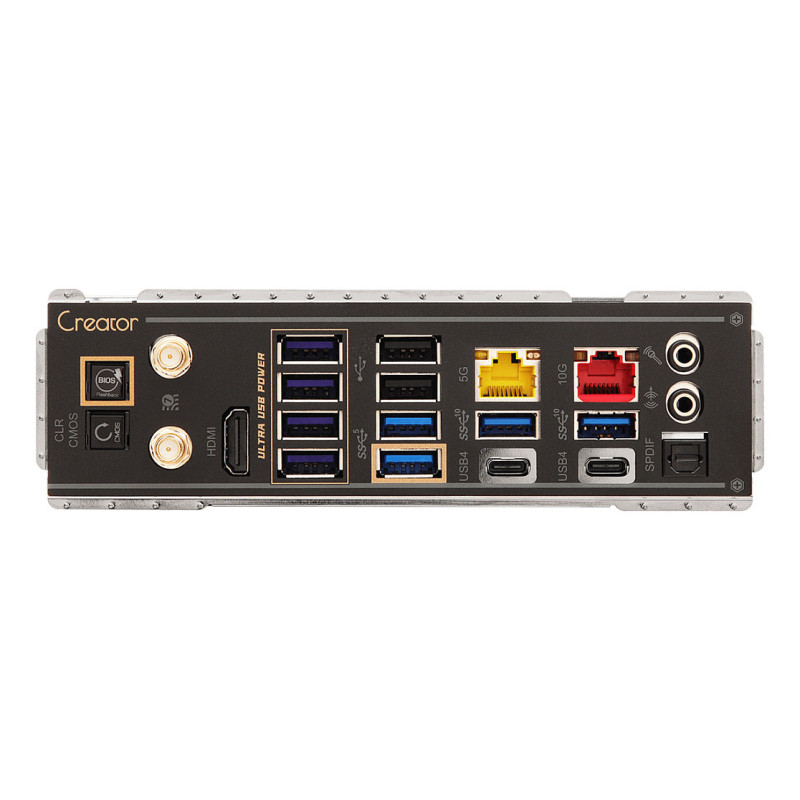

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Headphone outputs: 1
Feature: Microphone in
Feature: S/PDIF out port

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Marvell AQC113
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Features

Motherboard chipset: AMD X870
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 1

BIOS

BIOS type: EFI AMI
BIOS memory size: 512 Mbit

Weight & dimensions

Width: 305 mm
Depth: 244 mm

Packaging content

Cables included: SATA
Feature: Antenna included
