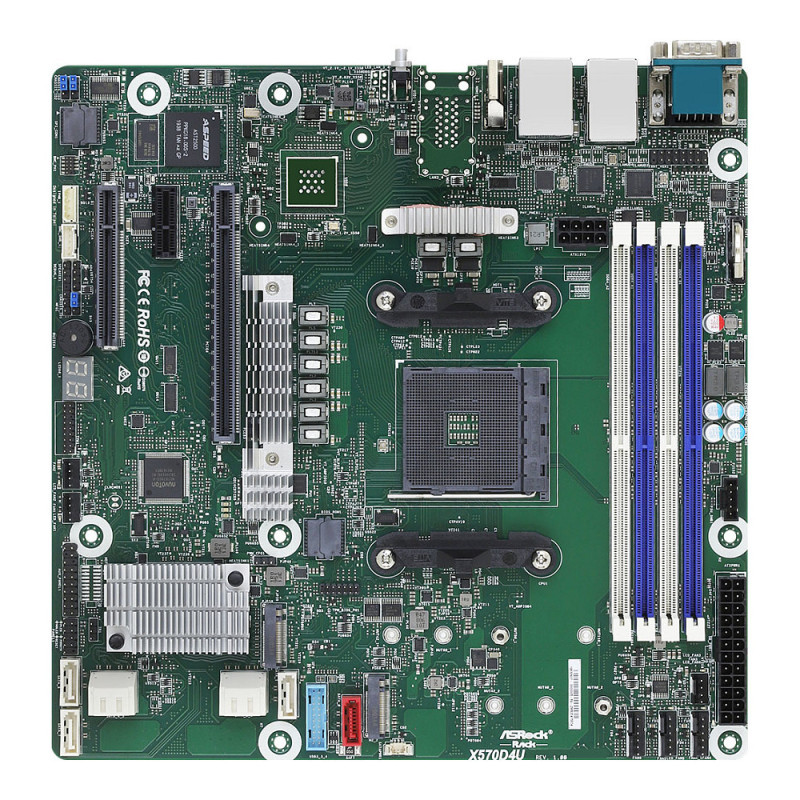

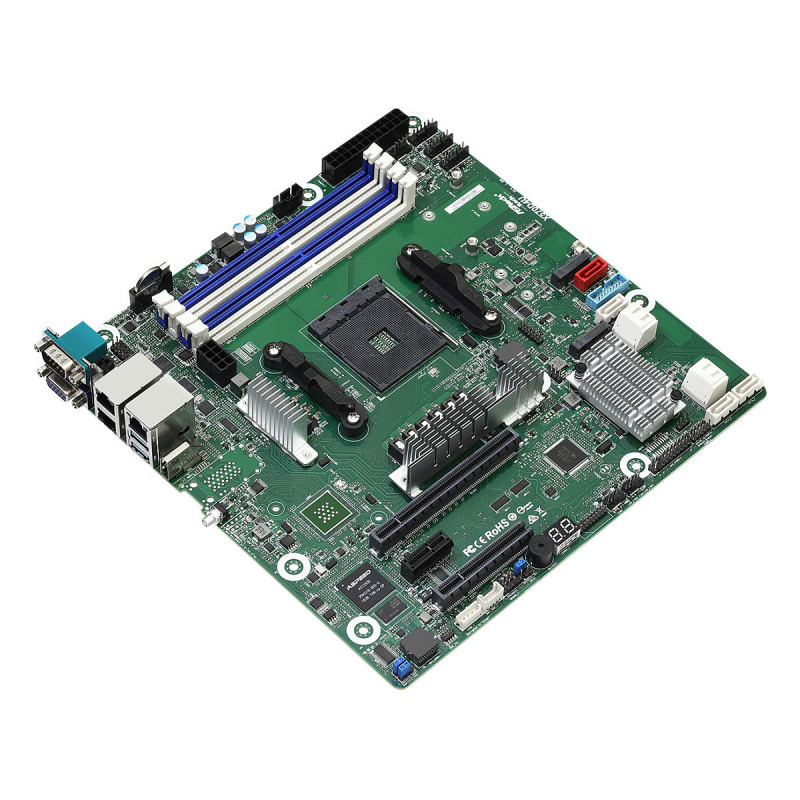

Asrock X570D4U motherboard

Asrock X570D4U. Processor socket: Socket AM4, Supported processor sockets: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Graphics card family: ASPEED, Graphics card: AST2500. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210, Realtek RTL8211E

Processor

Processor socket: Socket AM4
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2666,3200 MHz
Maximum internal memory: 32 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Graphics card family: ASPEED
Graphics card: AST2500

Internal I/O

Number of SATA III connectors: 12
Number of SATA connectors: 12
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
TPM connector: Yes
12V power connector: Yes

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210, Realtek RTL8211E

Features

Motherboard chipset: AMD X570
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x1 slots: 1
PCI Express x8 slots: 1
PCI Express x16 (Gen 4.x) slots: 1

BIOS

BIOS type: UEFI AMI
ACPI version: 2.0

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C

Logistics data

Harmonized System (HS) code: 84733020

Weight dimensions

Width: 244 mm
Depth: 244 mm
