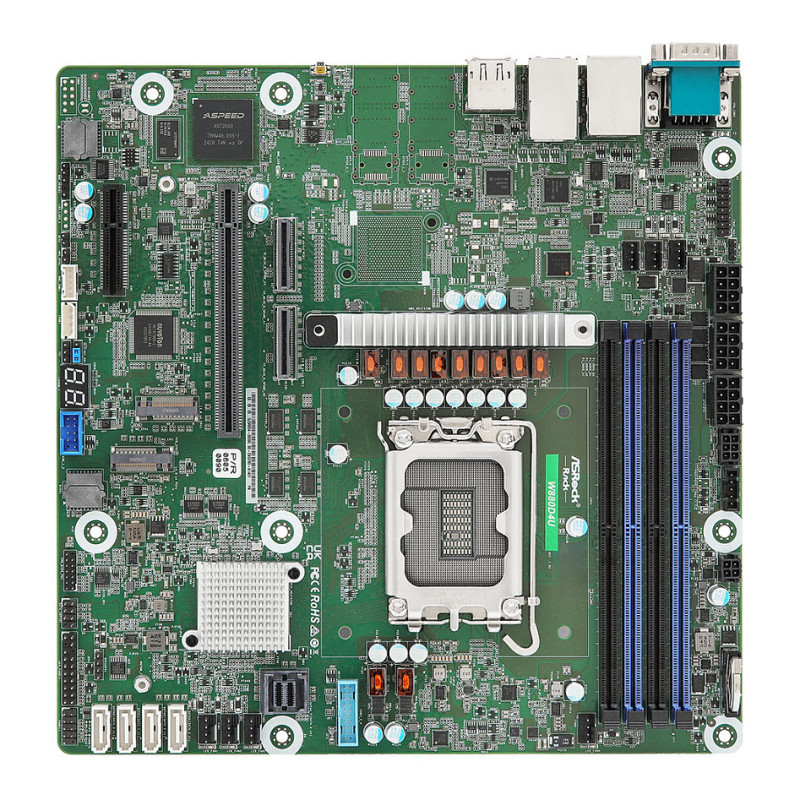

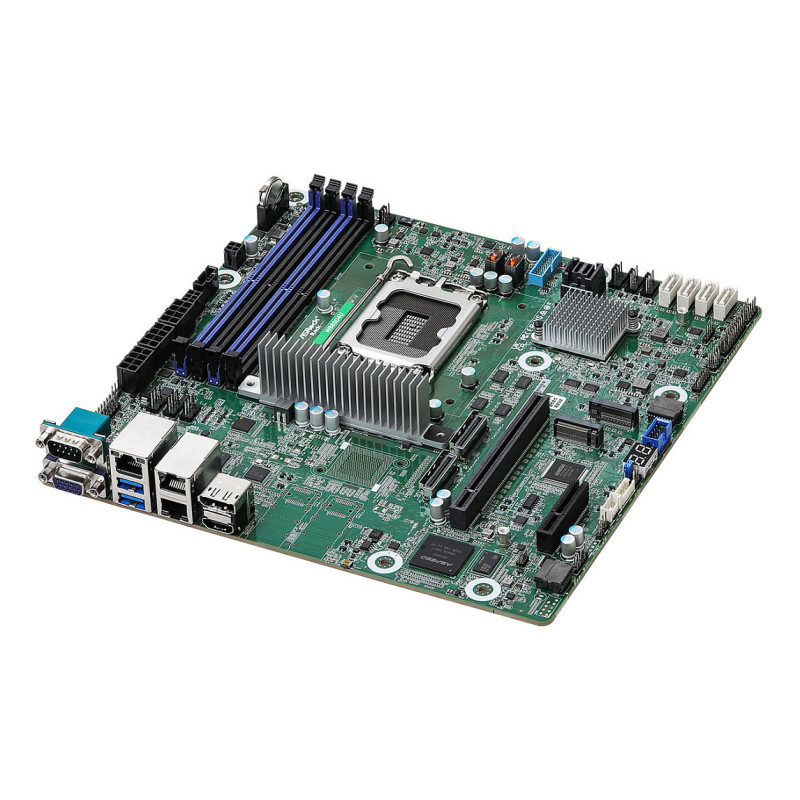

Asrock W880D4U motherboard

Asrock W880D4U. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
ECC сompatibility: ECC Non-ECC
Supported memory clock speeds: 4400,4800,5600 MHz
Maximum internal memory: 64 GB

Storage controllers

Supported storage drive interfaces: SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Feature: On-board graphics card
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Feature: TPM connector

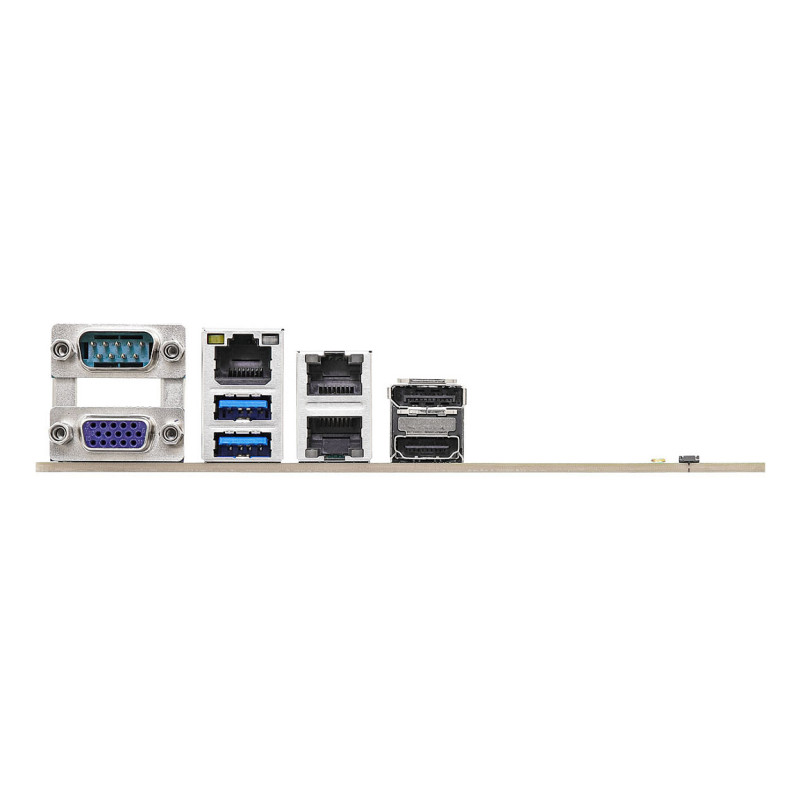

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Serial ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210

Features

Motherboard chipset: Intel W880
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

BIOS

BIOS type: AMI
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.3

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight dimensions

Width: 243.8 mm
Depth: 243.8 mm
