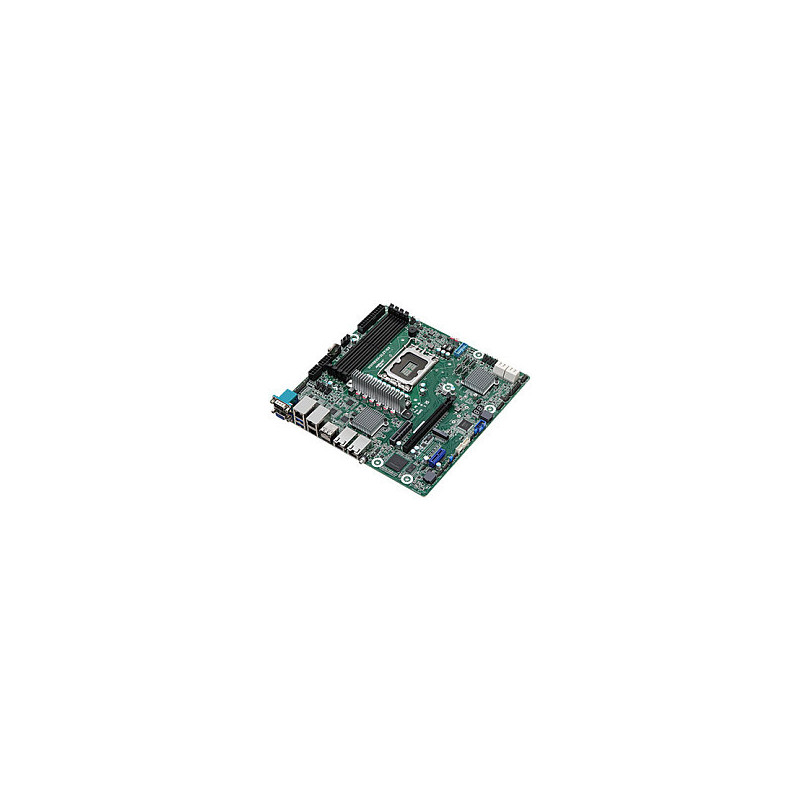

Asrock W680D4U-2L2T / G5 motherboard

Asrock W680D4U-2L2T/G5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i9 13th Gen, Intel Core i9 12th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 32 GB

Storage controllers

Supported storage drive interfaces: SATA
Feature: RAID support
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Feature: TPM connector
Feature: 12V power connector
Feature: RGB LED pin header

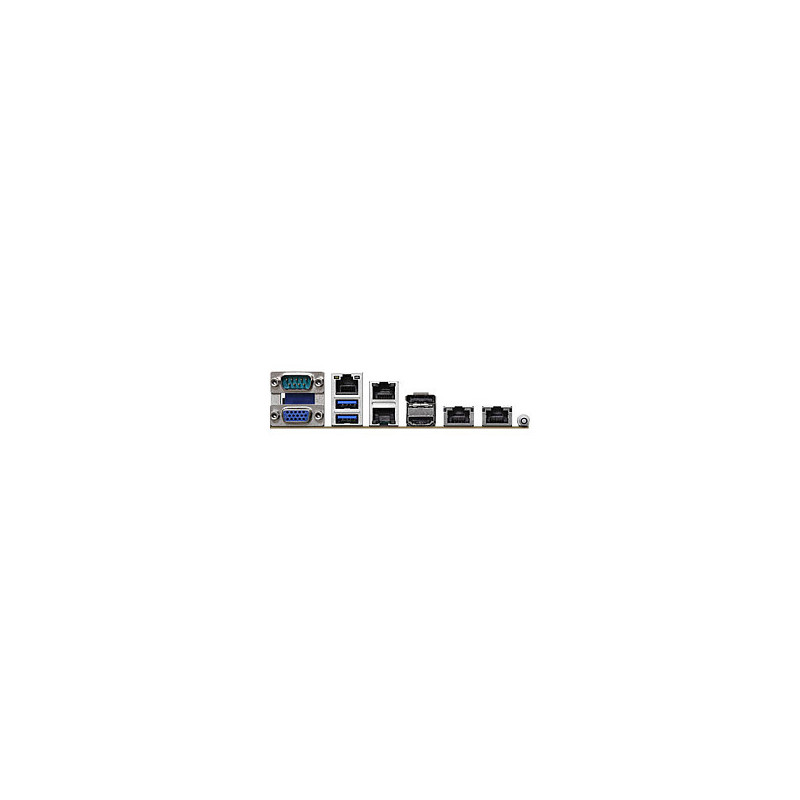

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Serial ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet

Features

Motherboard chipset: Intel W680
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

BIOS

BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 243.8 mm
Depth: 243.8 mm
