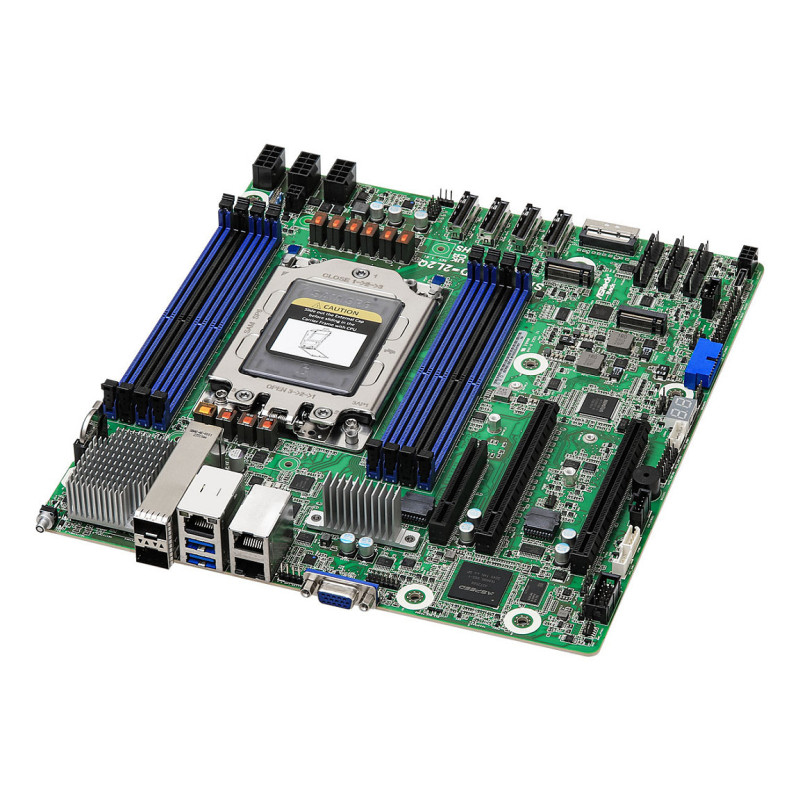

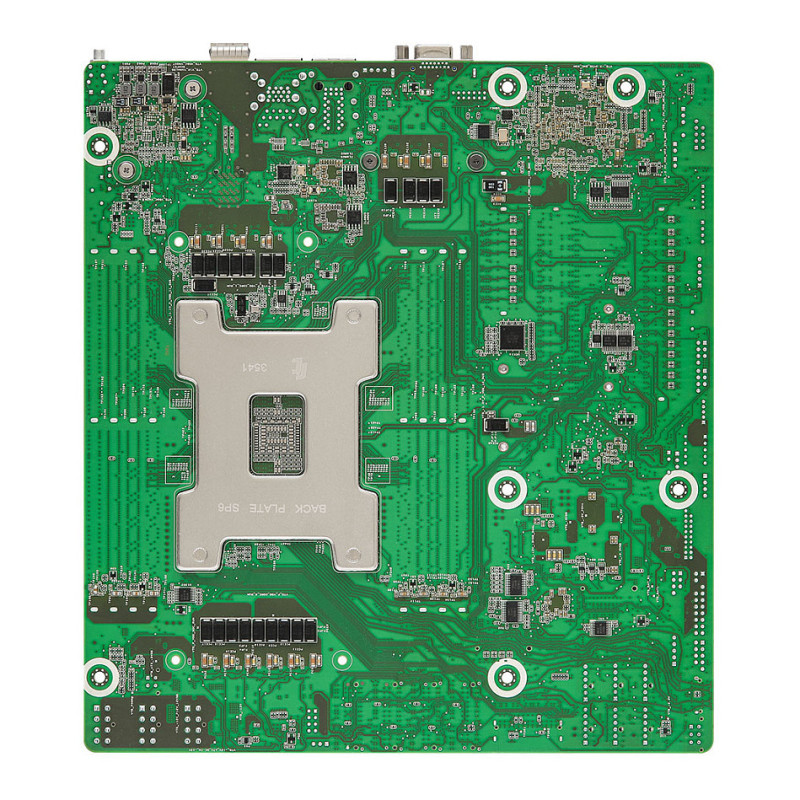

Asrock SIENAD8UD-2L2Q motherboard

Asrock SIENAD8UD-2L2Q. Processor manufacturer: AMD, Processor socket: Socket SP6, Compatible processor series: AMD EPYC. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory voltage: 1.1 V. Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 25 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Broadcom BCM57414, Intel I210

Processor

Processor manufacturer: AMD
Processor socket: Socket SP6
Compatible processor series: AMD EPYC

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory voltage: 1.1 V
Supported memory clock speeds: 4800 MHz
Supported memory clock speed (max): 4800 MHz
Supported memory module capacities: 96GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III

Graphics

Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 16
Feature: Audio connector
Feature: ATX Power connector (24-pin)
Feature: Chassis intrusion connector
Number of COM connectors: 1
Feature: TPM connector
Feature: 12V power connector

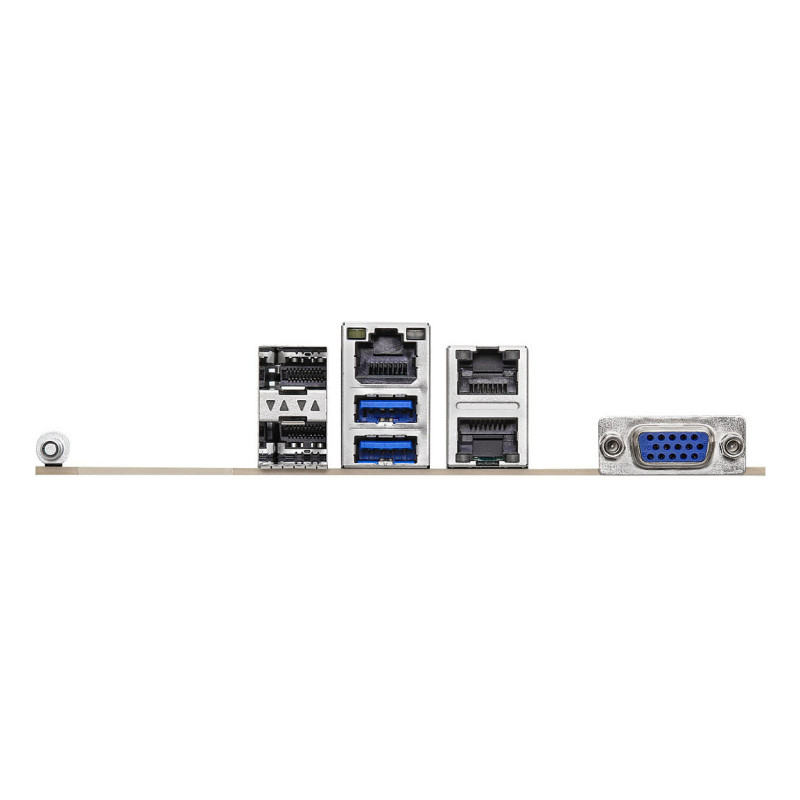

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 25 Gigabit Ethernet, Gigabit Ethernet
LAN controller: Broadcom BCM57414, Intel I210

Features

Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 243.8 mm
Depth: 266.7 mm
