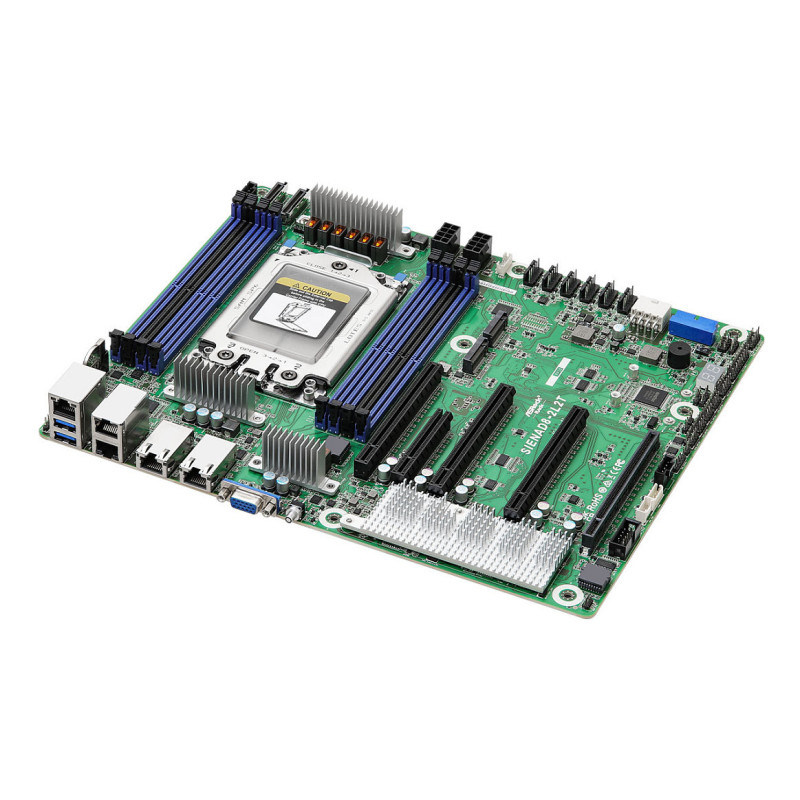

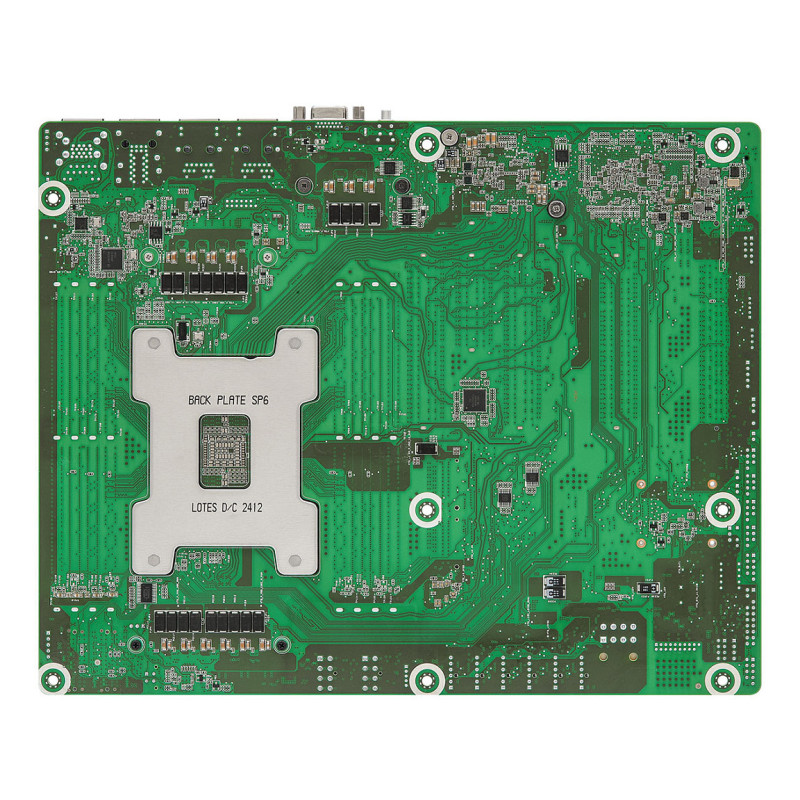

Asrock SIENAD8-2L2T motherboard

Asrock SIENAD8-2L2T. Processor manufacturer: AMD, Processor socket: Socket SP6, Compatible processor series: AMD EPYC. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Memory voltage: 1.1 V. Supported storage drive interfaces: M.2, PCI Express 5.0, Supported storage drive types: SSD. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Intel I210, Intel X710-AT2

Processor

Processor manufacturer: AMD
Processor socket: Socket SP6
Compatible processor series: AMD EPYC

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory voltage: 1.1 V
Supported memory clock speeds: 4800 MHz
Supported memory clock speed (max): 4800 MHz
Supported memory module capacities: 96GB

Storage controllers

Supported storage drive types: SSD
Supported storage drive interfaces: M.2, PCI Express 5.0

Graphics

Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Audio connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes

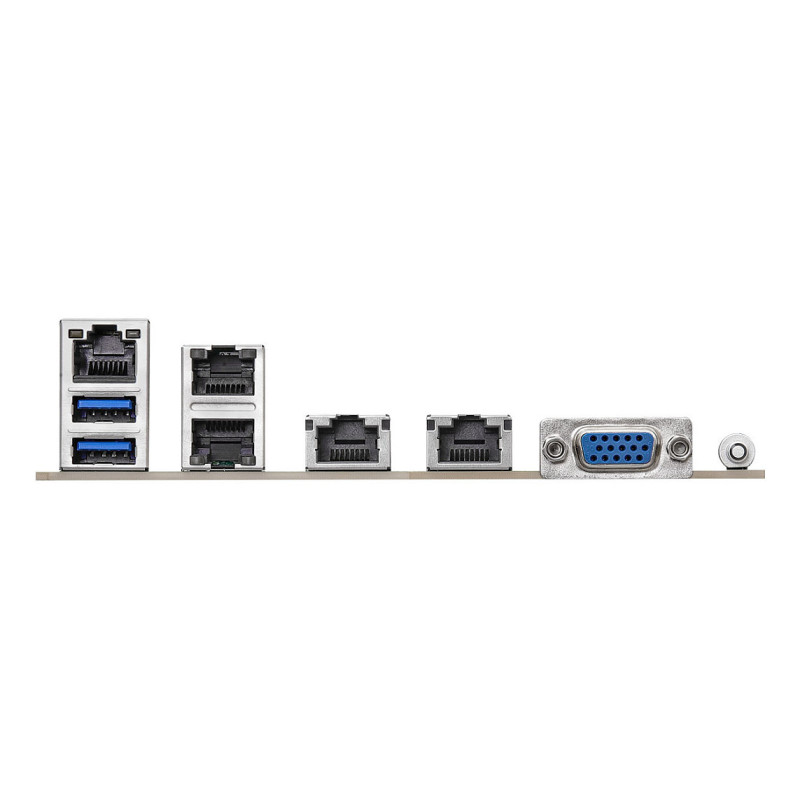

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
LAN controller: Intel I210, Intel X710-AT2

Features

Component for: Server
Motherboard form factor: ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x8 (Gen 5.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 4
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight dimensions

Width: 304.8 mm
Depth: 243.8 mm
