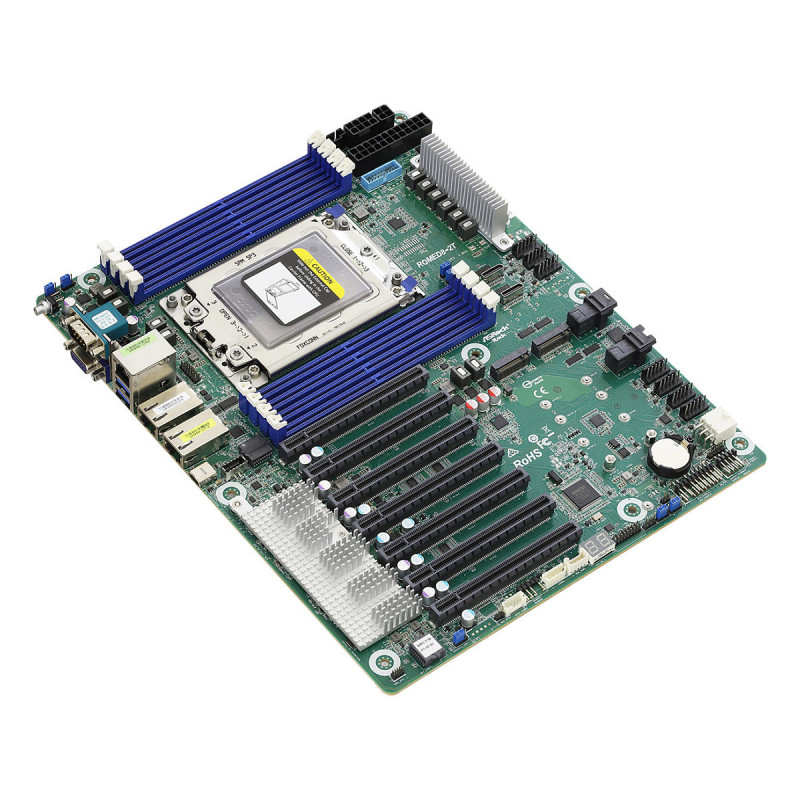

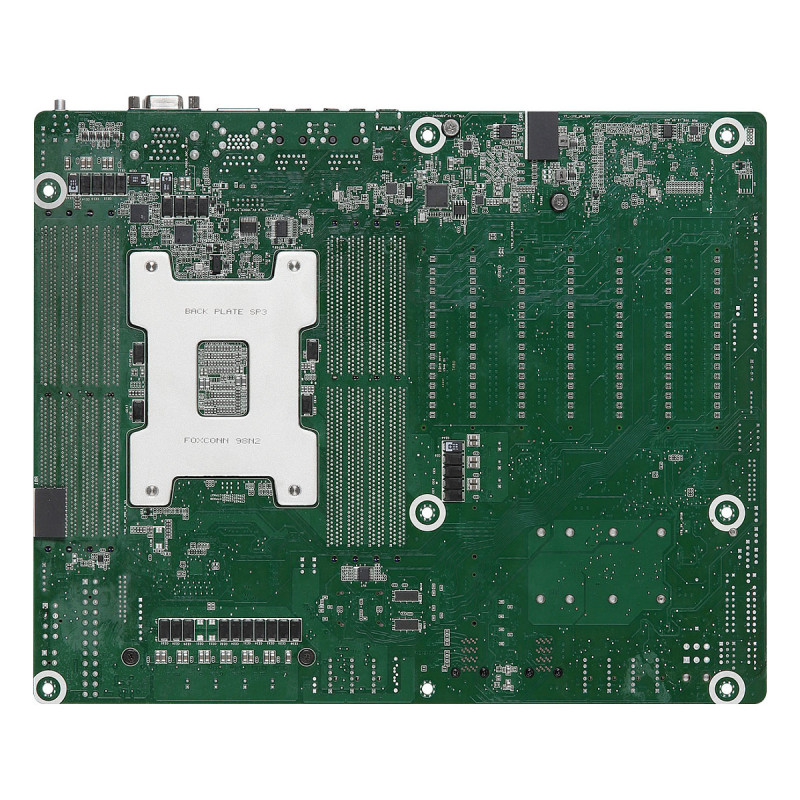

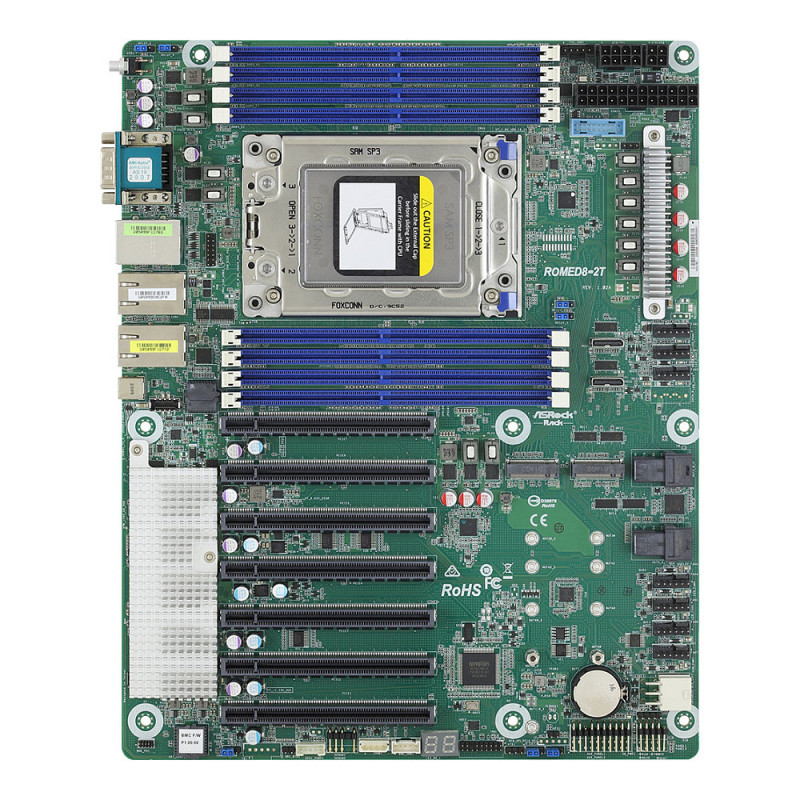

Asrock ROMED8-2T motherboard

Asrock ROMED8-2T. Processor manufacturer: AMD, Processor socket: LGA 4094, Compatible processor series: AMD EPYC. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD SSD. Graphics card: AST2500. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Realtek RTL8211E

Processor

Processor manufacturer: AMD
Processor socket: LGA 4094
Compatible processor series: AMD EPYC
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory channels: Octa-channel
Memory voltage: 1.2 V
Supported memory clock speeds: 2400,2666,2933,3200 MHz
Maximum internal memory: 2 TB
Supported memory module capacities: 8GB, 16GB, 32GB, 64GB, 128MB, 256MB

Storage controllers

Supported storage drive types: HDD SSD
Supported storage drive interfaces: M.2, SATA III

Graphics

Graphics card: AST2500

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 8
Feature: ATX Power connector (24-pin)
Feature: Power fan connector
Feature: CPU fan connector
Number of chassis fan connectors: 7
Feature: TPM connector

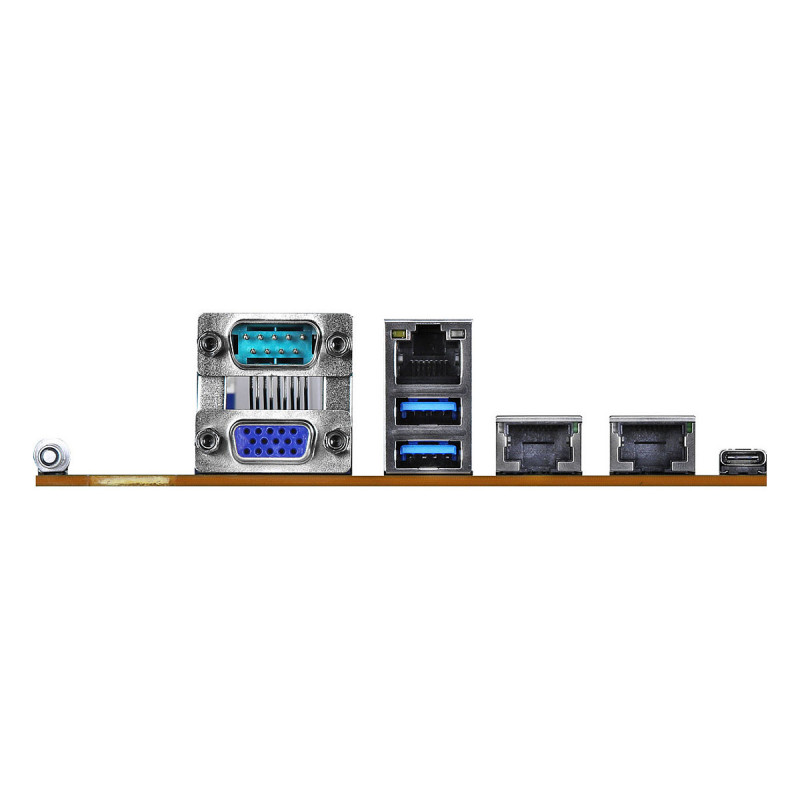

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 3
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Realtek RTL8211E
Feature: Wake-on-LAN ready

Features

Motherboard form factor: ATX

Expansion slots

PCI Express x16 (Gen 4.x) slots: 7
Number of M.2 (M) slots: 2

BIOS

BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 2.0
System Management BIOS (SMBIOS) version: 2.8
.

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C

Logistics data

Harmonized System (HS) code: 84733020

Weight dimensions

Width: 305 mm
Depth: 244 mm
Height: 70 mm

Other features

Weight: 1.69 kg

Technical details

Compliance certificates: RoHS
