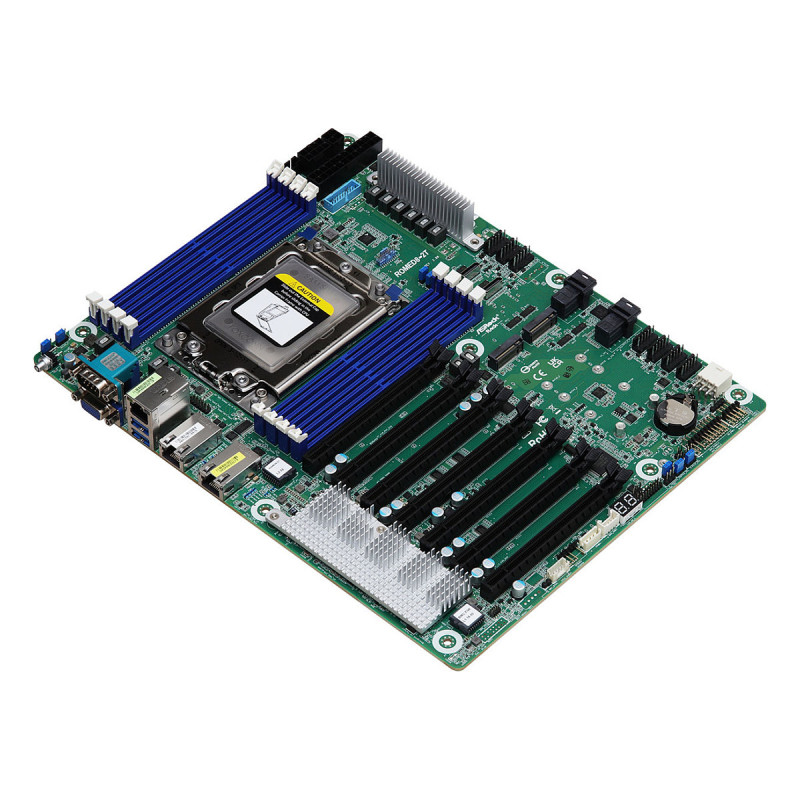

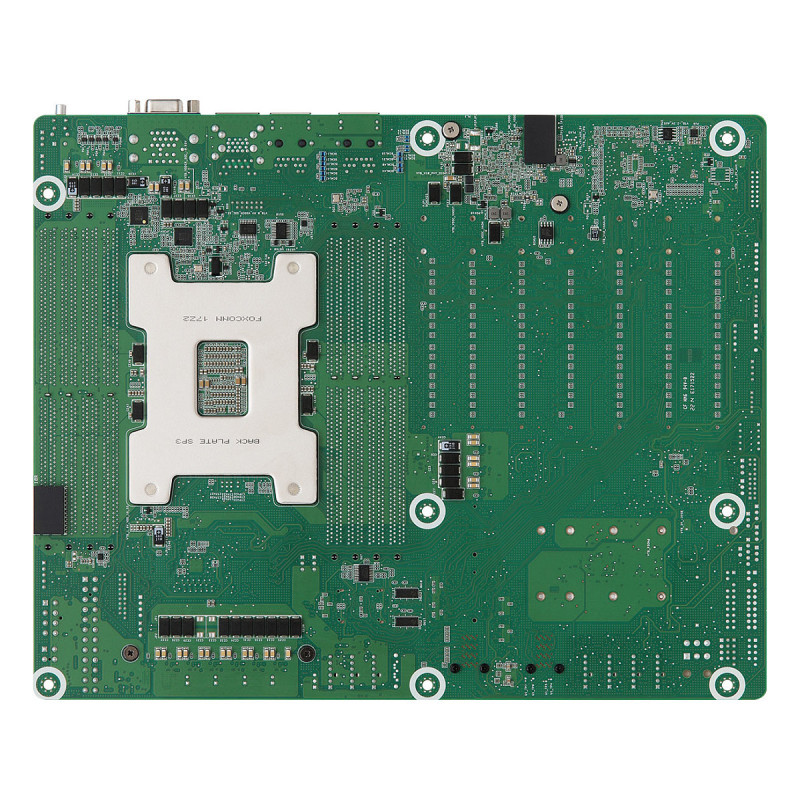

Asrock ROMED8-2T / BCM motherboard

Asrock ROMED8-2T/BCM. Processor manufacturer: AMD, Processor socket: Socket SP3, Compatible processor series: AMD EPYC 7003. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. On-board graphics card model: Aspeed AST2500, On-board graphics card memory: 512 MB. Component for: Server, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor

Processor manufacturer: AMD
Processor socket: Socket SP3
Compatible processor series: AMD EPYC 7003
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory voltage: 1.2 V
Maximum internal memory: 2 TB
Maximum RDIMM memory: 256 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Graphics

On-board graphics card model: Aspeed AST2500
On-board graphics card memory: 512 MB

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 10
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Feature: TPM connector

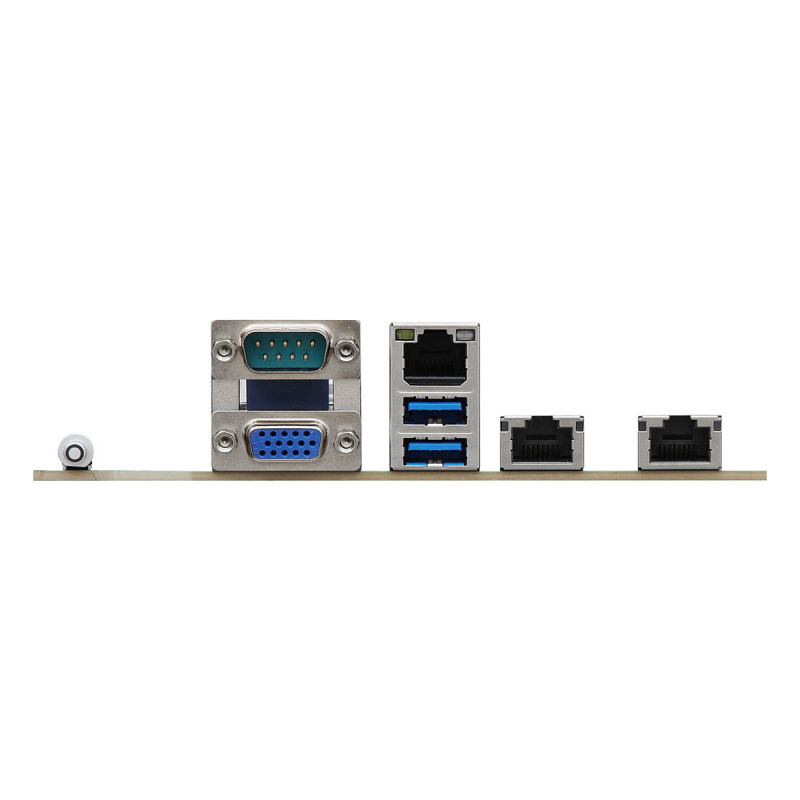

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 3
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1

Network

Feature: Ethernet LAN

Features

Component for: Server
Motherboard form factor: ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x16 (Gen 4.x) slots: 7

BIOS

BIOS type: UEFI AMI
BIOS memory size: 32 Mbit
ACPI version: 6.3
System Management BIOS (SMBIOS) version: 3.3.0

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 305 mm
Depth: 244 mm
