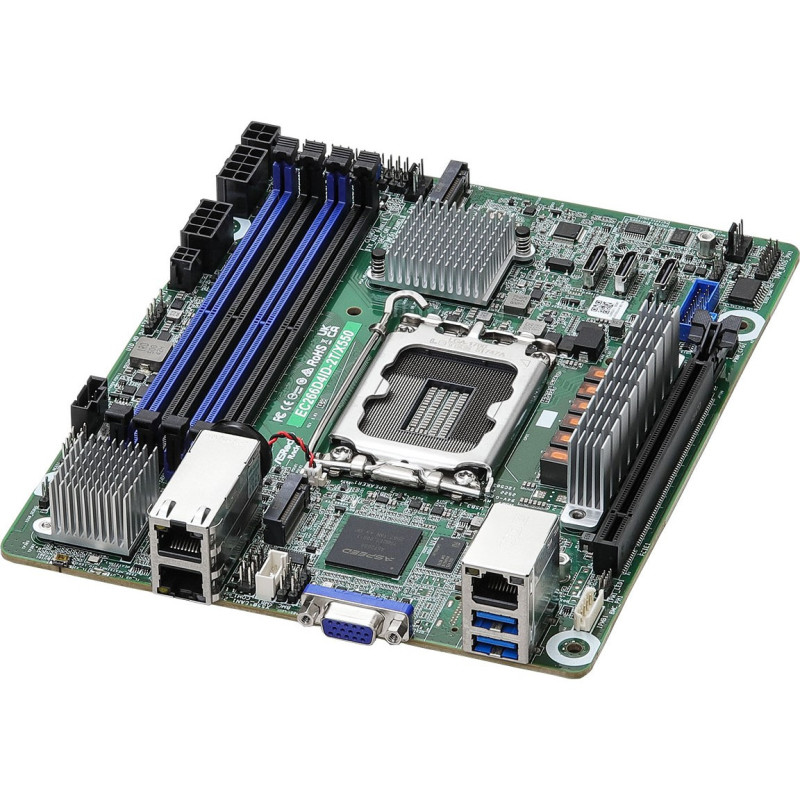

Asrock EC266D4ID-2T / X550 motherboard

Asrock EC266D4ID-2T/X550. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Pentium® Gold, Intel Xeon E. Supported memory types: DDR5-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Pentium® Gold, Intel Xeon E
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory slot pin count: 288
Memory voltage: 1.1 V
Supported memory clock speeds: 3600,4000,4400 MHz
Maximum internal memory: 32 GB

Storage controllers

Supported storage drive interfaces: SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Feature: On-board graphics card
Graphics card family: ASPEED
Graphics card: AST2600

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 8
Number of COM connectors: 1
Feature: TPM connector

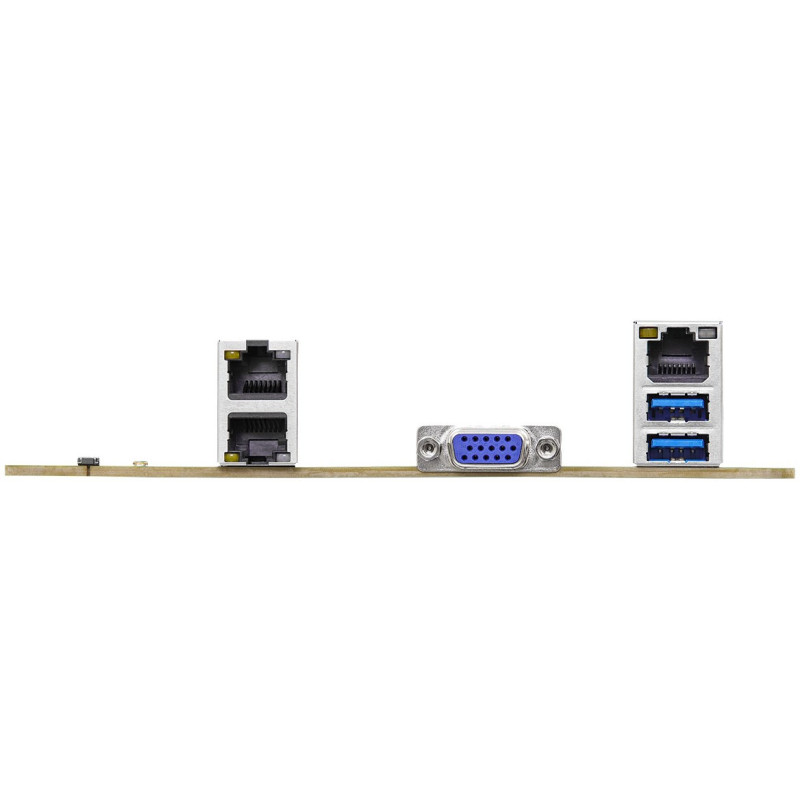

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Network

Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel® X550

Features

Motherboard chipset: Intel C266
Component for: Server
Motherboard form factor: mini ITX
Motherboard chipset family: Intel

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
PCI Express OCuLink connectors (NVMe support): 1

BIOS

BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8

Weight & dimensions

Width: 170.2 mm
Depth: 208.3 mm
