ASRock H610M-H2 / M.2 motherboard

Product reference: 6-H610M-H2/M.2

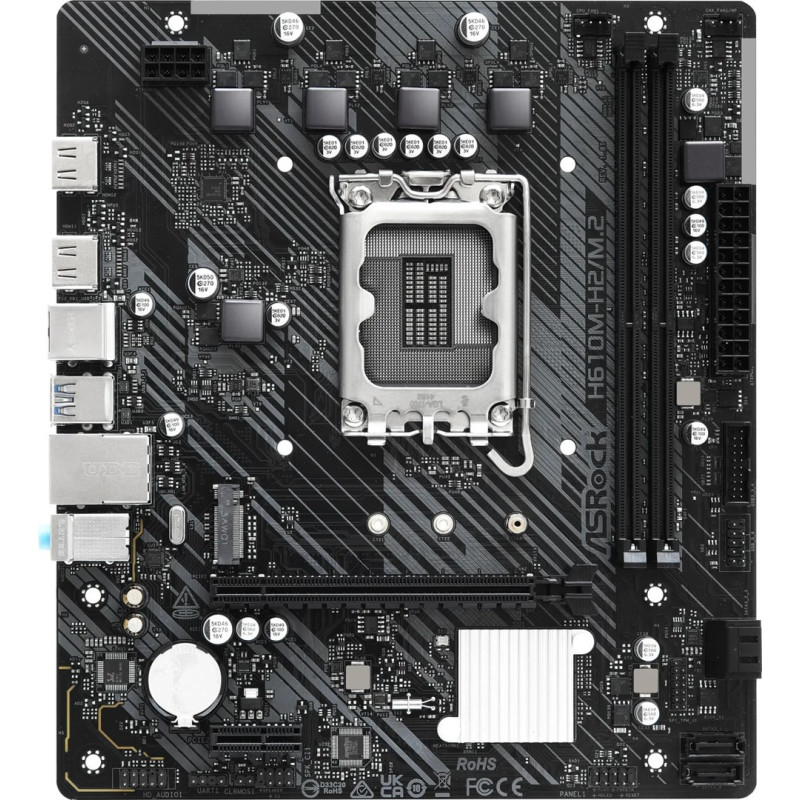

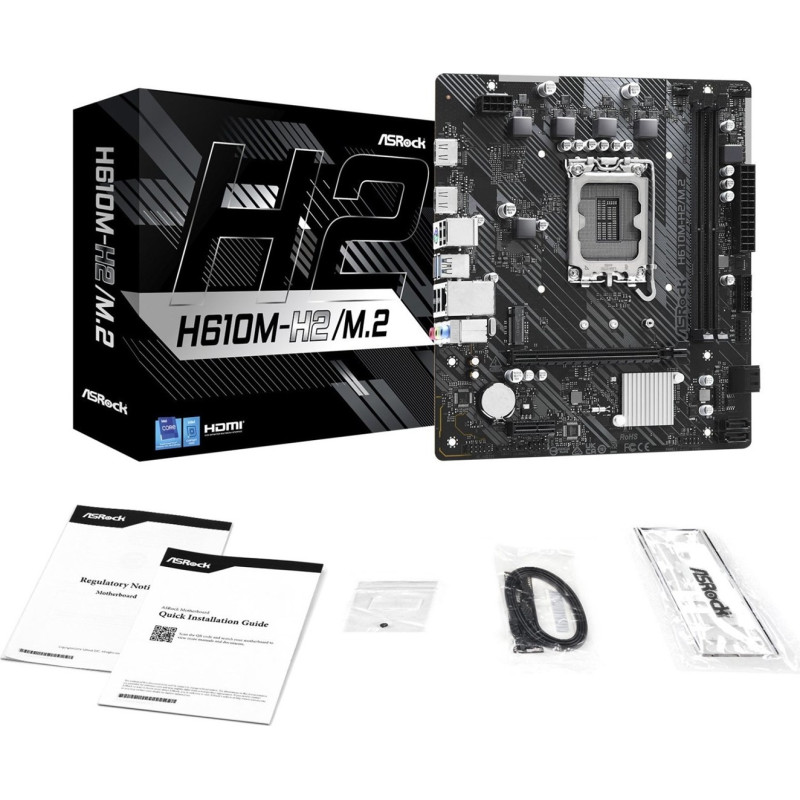

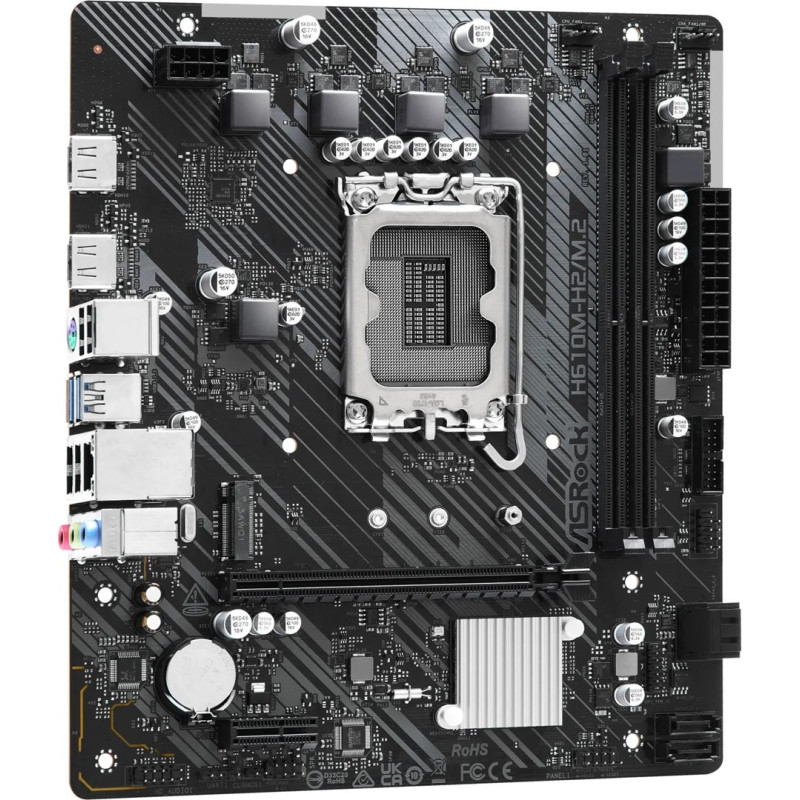

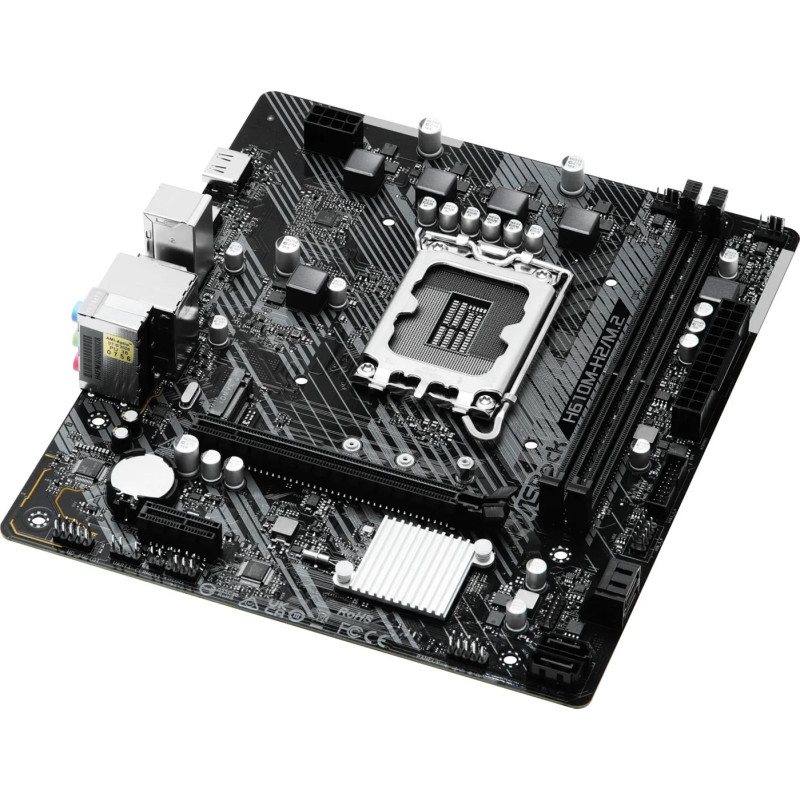

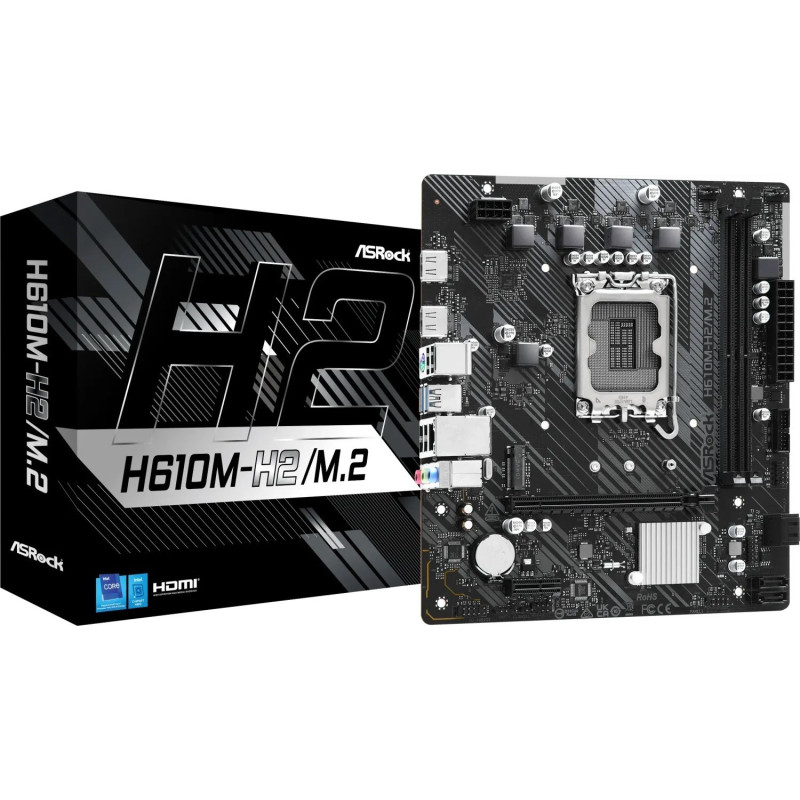

ASRock H610M-H2/M.2 motherboard

You have 3 products in compare list, please remove someone and try again

Add to compare

68,07 €

69,45 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 9
business days

Your message has been successfully sent!

Fill in the required fields*

12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
BIOS type	UEFI AMI
Chassis intrusion connector	Yes
CPU fan connector	Yes
Depth	193 mm
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
HDCP	Yes
HDMI ports quantity	2
LAN controller	Realtek 8111H
Maximum internal memory	64 GB
Maximum number of SMP processors	1
Maximum resolution	7680 x 4320 pixels
Memory channels	Dual-channel
Memory slots type	DIMM
Motherboard chipset	Intel H610
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Number of memory slots	2
Number of SATA III connectors	4
Parallel processing technology support	Not supported
PC health monitoring	CPU, Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1700
PS/2 ports quantity	1
Supported memory clock speed (max)	3200 MHz
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Wi-Fi	No
Width	220 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
