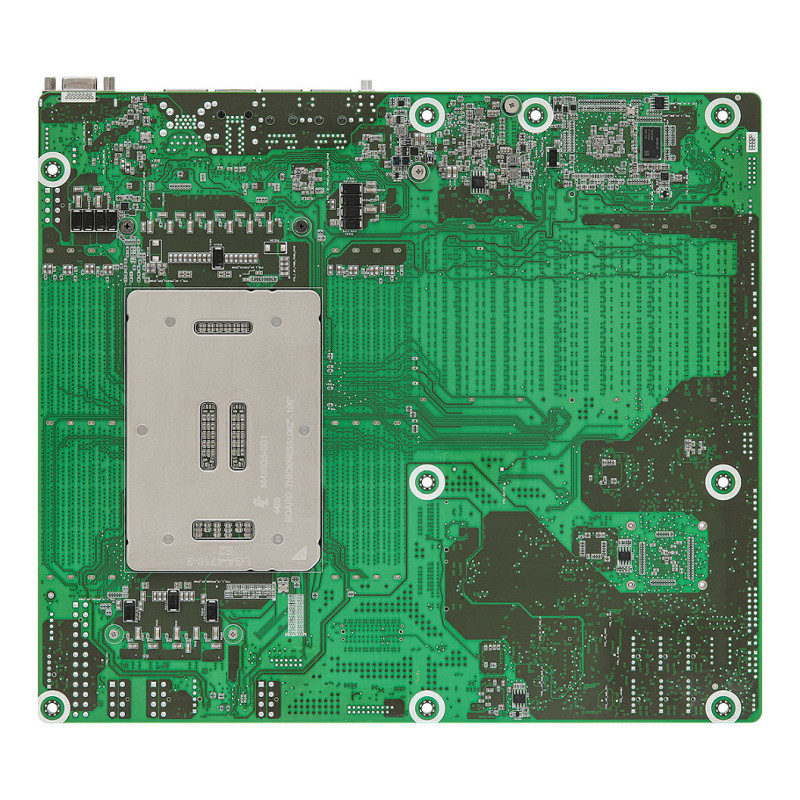

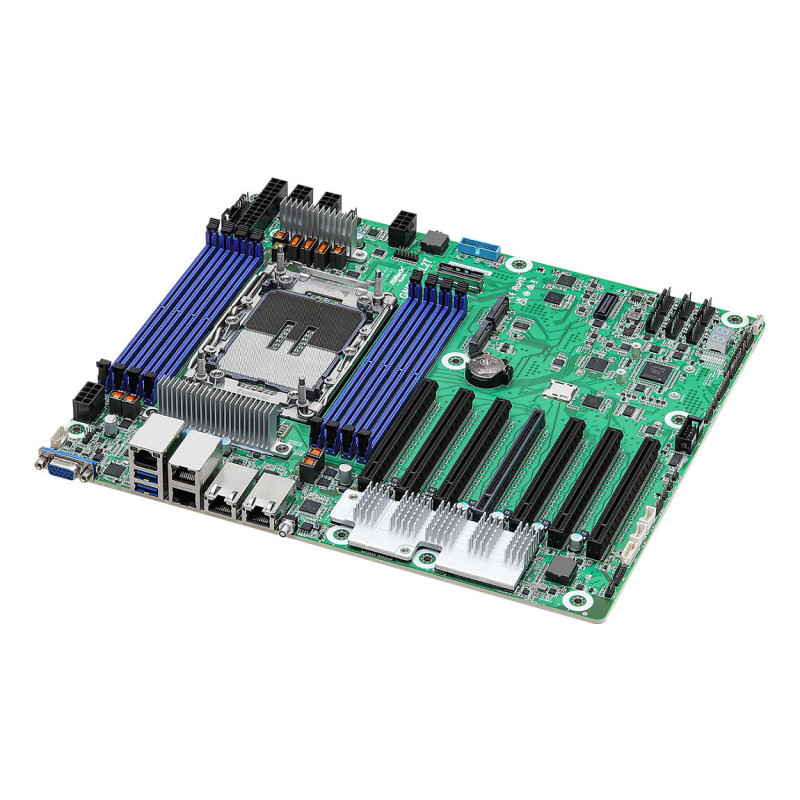

Asrock GNRD8-2L2T motherboard

Asrock GNRD8-2L2T. Processor manufacturer: Intel, Processor socket: LGA 4710 (Socket E2), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory voltage: 1.1 V. Supported storage drive interfaces: M.2. On-board graphics card model: Aspeed AST2600. Motherboard form factor: SSI CEB, Motherboard chipset family: Intel, PC health monitoring: CPU, Fan

Processor

Processor manufacturer: Intel
Processor socket: LGA 4710 (Socket E2)
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 4710 (Socket E2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory voltage: 1.1 V
Supported memory clock speed (max): 6400 MHz
Maximum internal memory: 128 GB

Storage controllers

Supported storage drive interfaces: M.2

Graphics

On-board graphics card model: Aspeed AST2600

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Feature: ATX Power connector (24-pin)
Number of COM connectors: 1

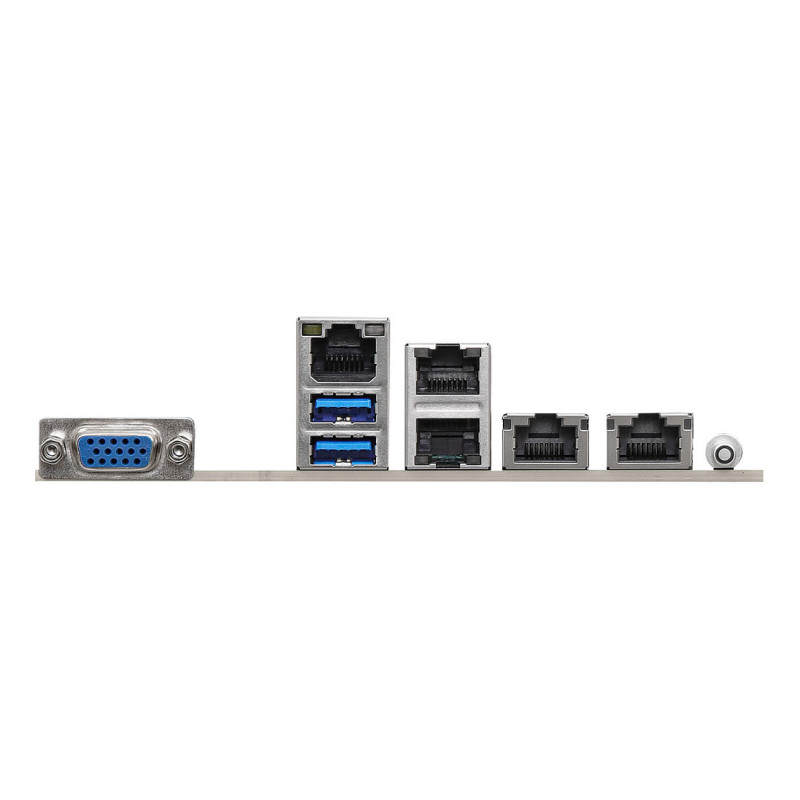

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Features

PC health monitoring: CPU, Fan
Motherboard form factor: SSI CEB
Motherboard chipset family: Intel

Expansion slots

PCI Express x16 (Gen 5.x) slots: 7
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 4.0
System Management BIOS (SMBIOS) version: 3.4

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 304.8 mm
Depth: 266.7 mm
