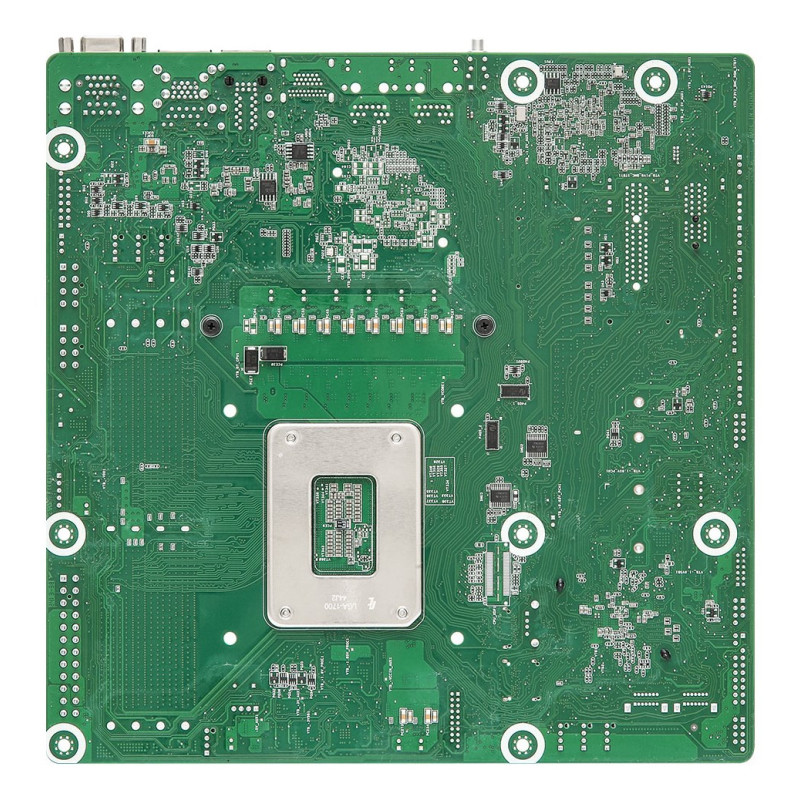

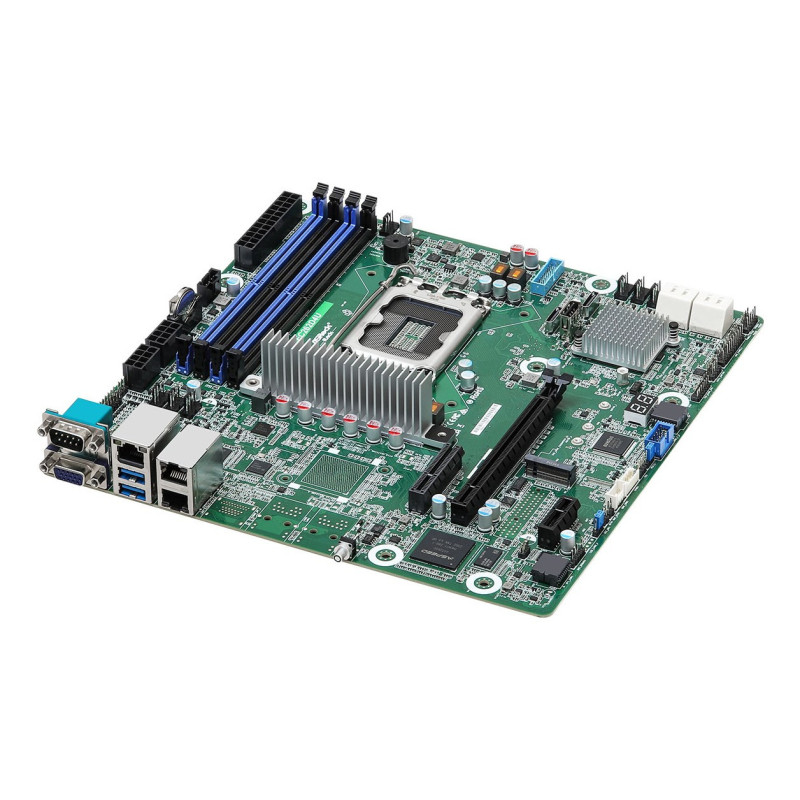

Asrock EC262D4U motherboard Intel C262 LGA 1700 micro ATX

Product reference: 6-EC262D4U

You have 3 products in compare list, please remove someone and try again

Add to compare

327,03 €

333,71 €

Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 7
business days

Your message has been successfully sent!

Fill in the required fields*

ACPI version	6.4
ATX Power connector (24-pin)	Yes
BIOS memory size	256 Mbit
BIOS type	AMI
COM ports quantity	1
Compatible operating systems	Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server)
Compatible processor series	Intel® Xeon®
Depth	244 mm
ECC сompatibility	ECC
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
IPMI LAN (RJ-45) port	Yes
Memory slots type	DIMM
Memory voltage	1.1 V
Motherboard chipset	Intel C262
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Number of M.2 (M) slots	1
Number of memory slots	4
Number of SATA III connectors	8
Operating temperature (T-T)	10 - 35 °C
PC health monitoring	CPU, Fan
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	1
Peripheral (Molex) power connectors (4-pin)	1
Processor manufacturer	Intel
Processor socket	LGA 1700
RAID levels	1, 5, 10
RAID support	Yes
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-40 - 70 °C
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2
System Management BIOS (SMBIOS) version	2.8
TPM connector	Yes
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Wi-Fi	No
Width	244 mm
