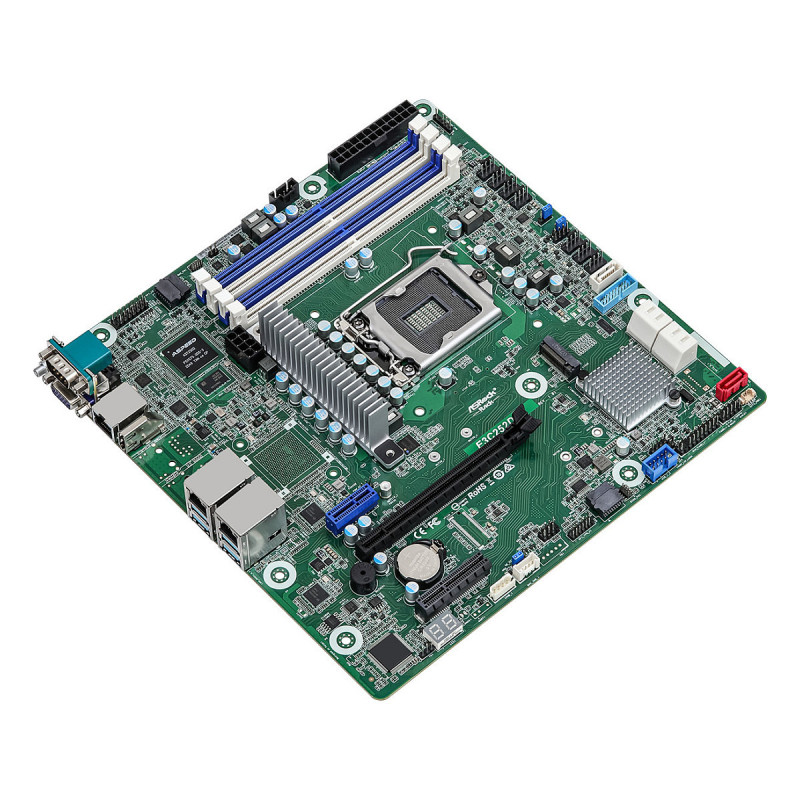

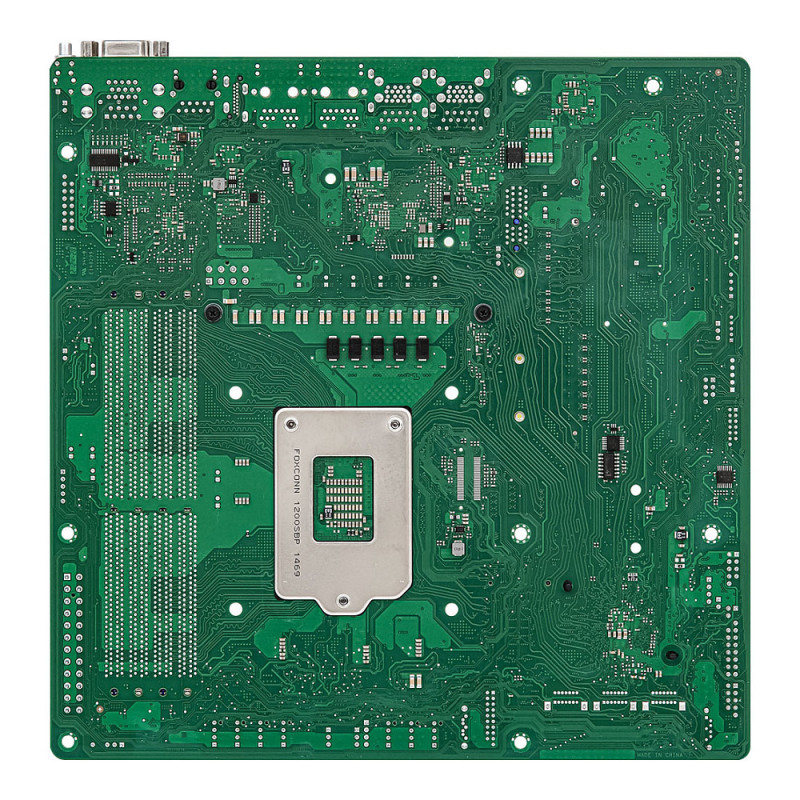

Asrock E3C252D4U motherboard

Asrock E3C252D4U. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Graphics card family: ASPEED, Graphics card: AST2500, On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Xeon®
Intel Xeon series: E-2300

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.2 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 2666 MHz
Maximum internal memory: 32 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA
Feature: RAID support
RAID levels: 0, 1, 5, 10

Graphics

Graphics card family: ASPEED
Graphics card: AST2500
On-board graphics card model: Aspeed AST2500
On-board graphics card memory: 256 MB

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210

Features

Motherboard chipset: Intel C252
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

BIOS

BIOS type: UEFI AMI
ACPI version: 6.2
System Management BIOS (SMBIOS) version: 3.3
