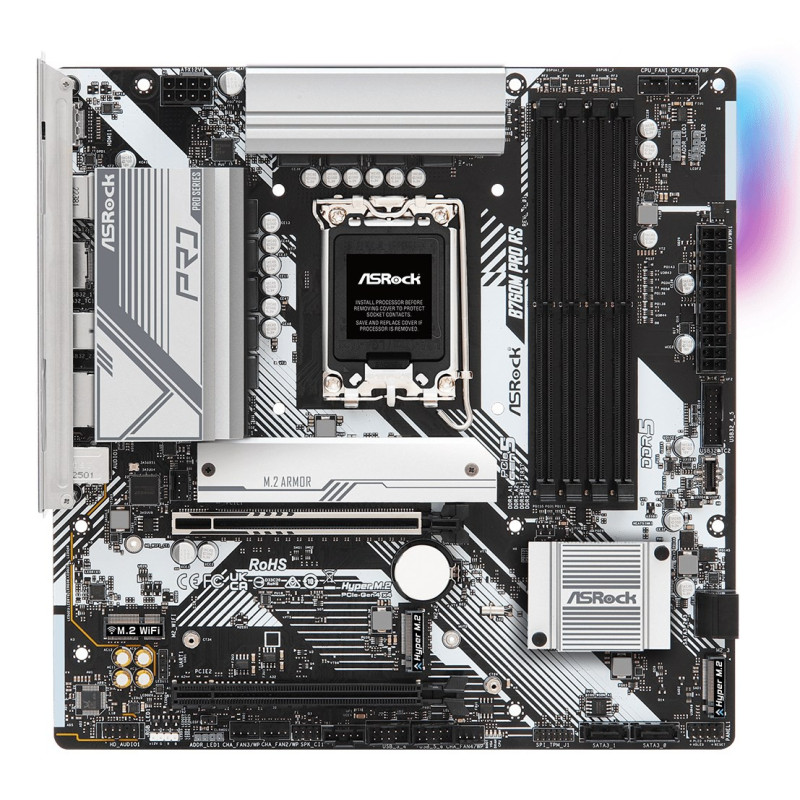

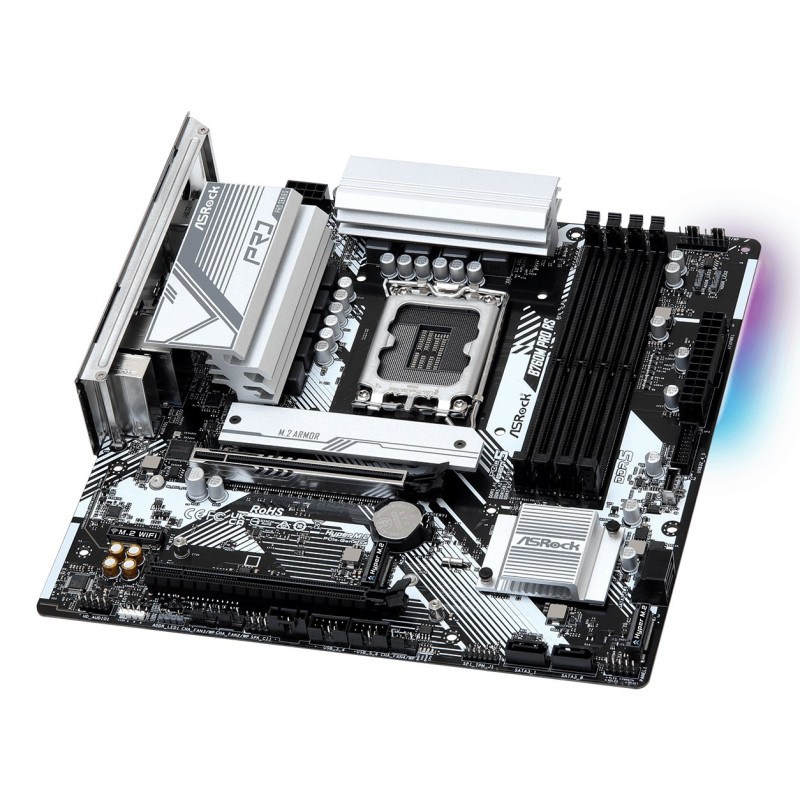

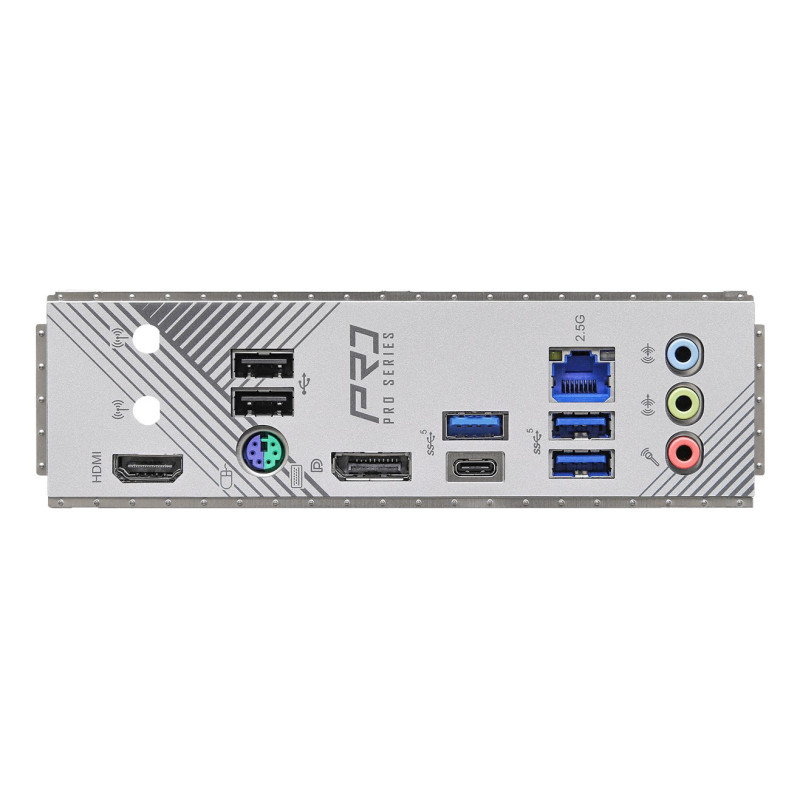

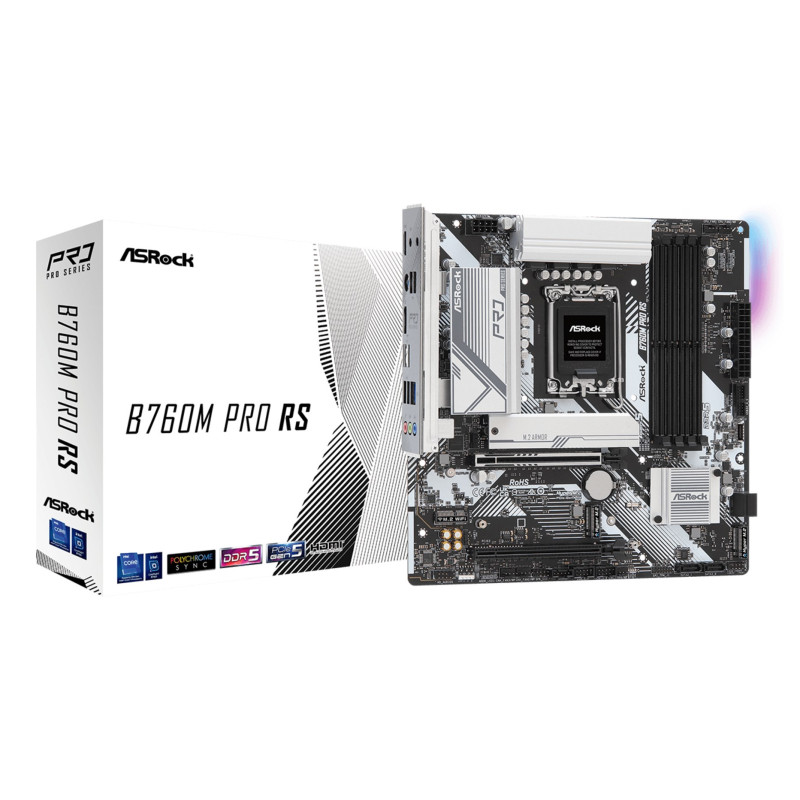

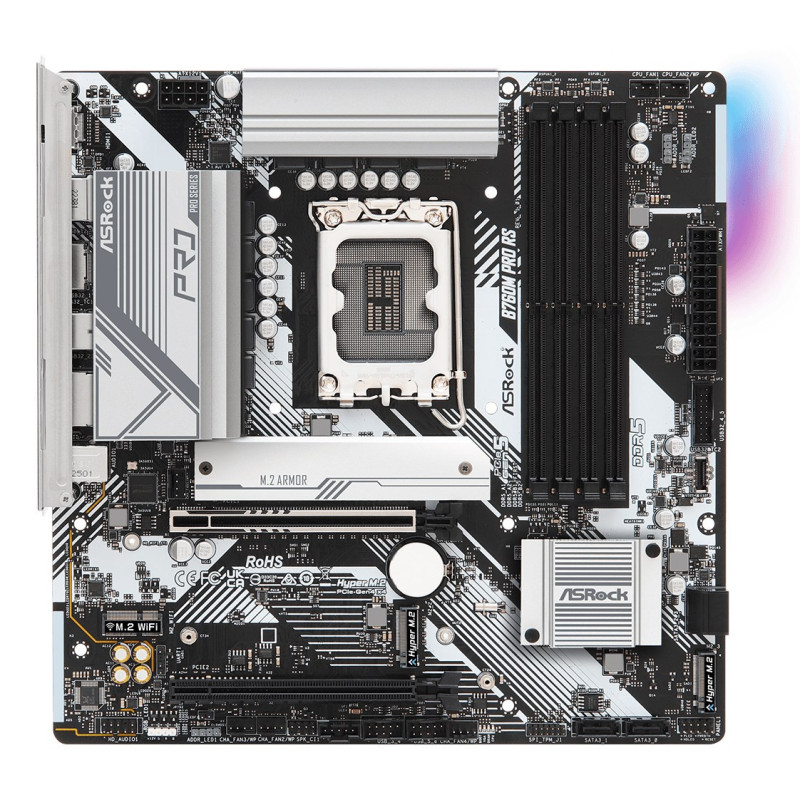

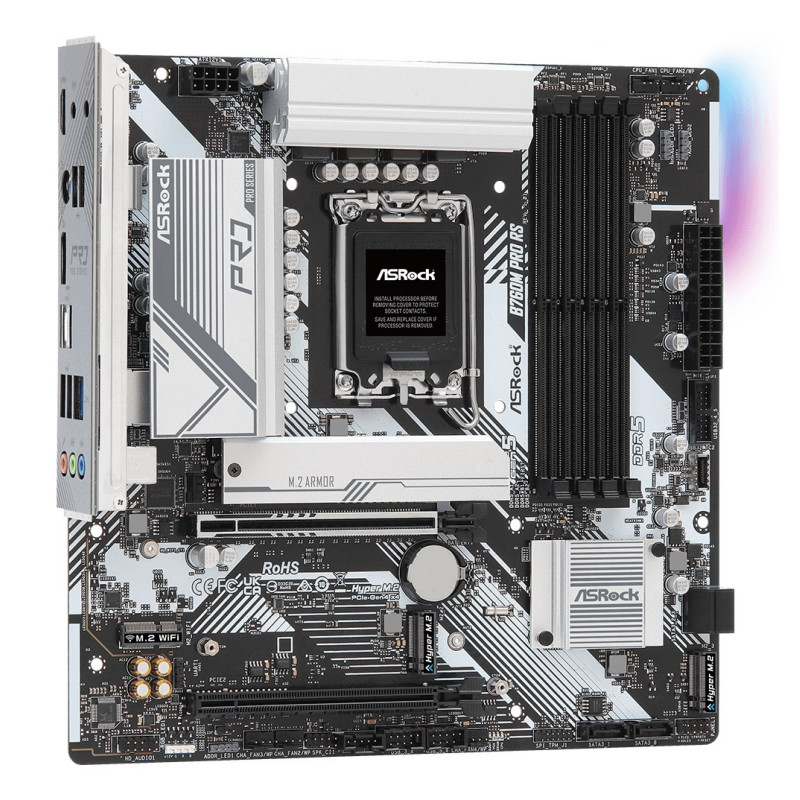

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

Product reference: 6-B760M PRO RS

You have 3 products in compare list, please remove someone and try again

Add to compare

139,91 €

142,77 €

Product in warehouse

Guarantee
36 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
BIOS type	UEFI AMI
Compatible processor series	Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
CPU fan connector	Yes
Depth	244 mm
DisplayPort version	1.4
DisplayPorts quantity	1
ECC сompatibility	Non-ECC
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
HDMI ports quantity	1
LAN controller	Realtek RTL8125-BG
Line-in	Yes
Maximum internal memory	256 GB
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Number of M.2 (M) slots	1
Number of memory slots	4
Number of SATA III connectors	4
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1700
PS/2 ports quantity	1
RGB LED pin header	Yes
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt headers	1
TPM connector	Yes
USB 2.0 connectors	6
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Wi-Fi	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
