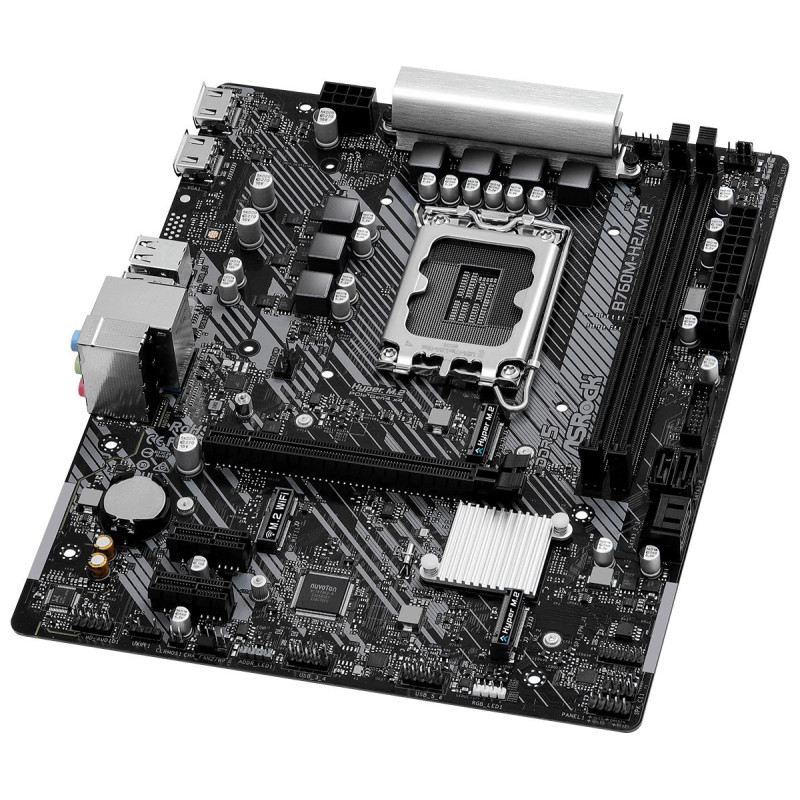

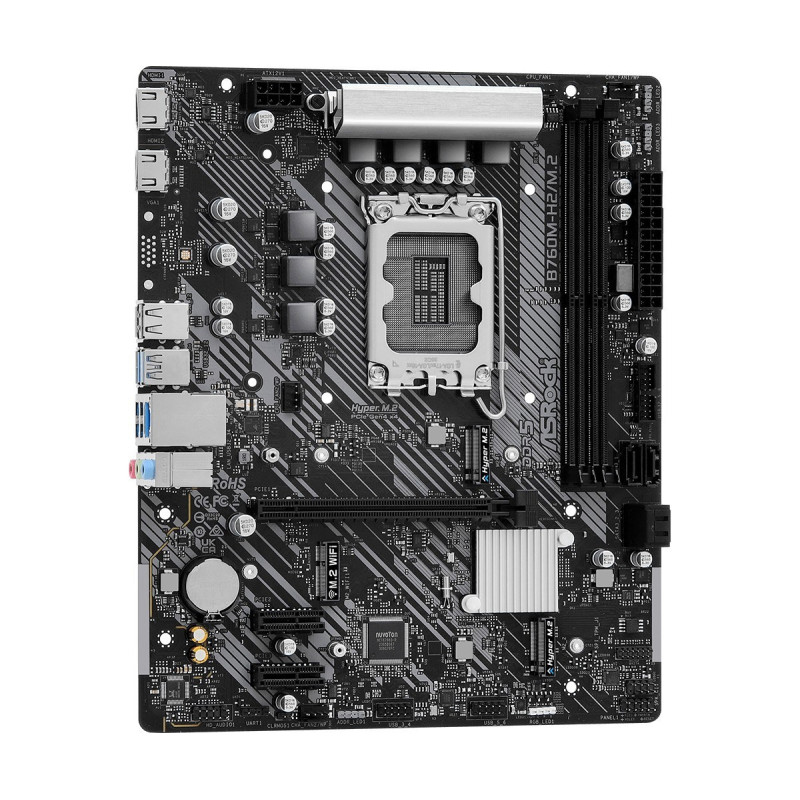

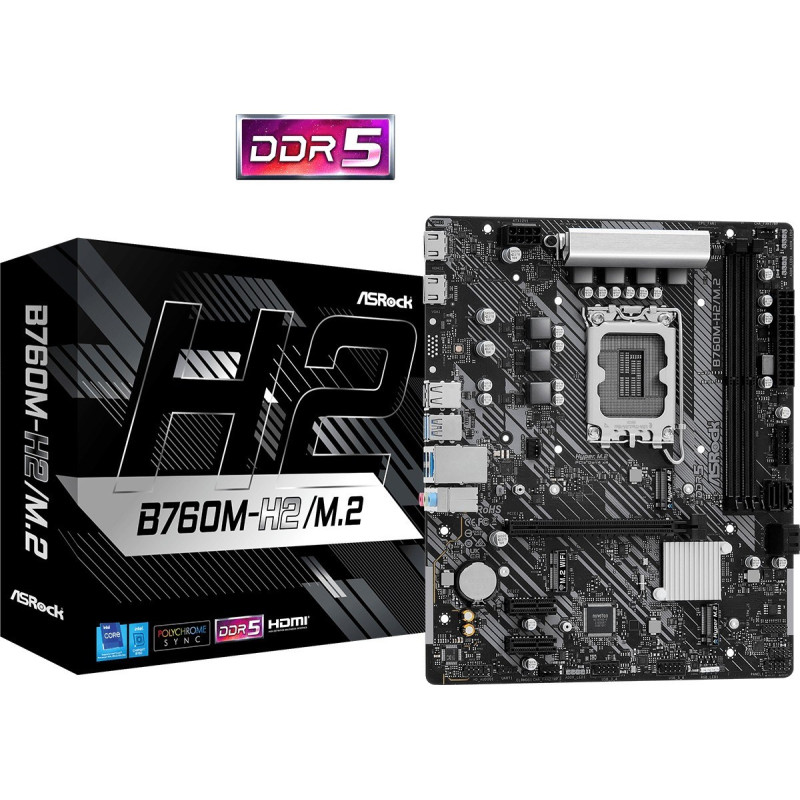

ASRock B760M-H2 / M.2 motherboard

Product reference: 6-B760M-H2/M.2

ASRock B760M-H2/M.2 motherboard

You have 3 products in compare list, please remove someone and try again

Add to compare

99,04 €

101,06 €

Product in warehouse

Guarantee
36 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

12V power connector (8-pin)	Y
ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
BIOS type	UEFI AMI
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
CPU fan connector	Yes
Depth	201 mm
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
HDMI ports quantity	2
LAN controller	Dragon RTL8125BG
LED connector	Y
Maximum internal memory	96 GB
Maximum number of SMP processors	1
Memory slots type	DIMM
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Number of audio jack connectors	3
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
Parallel processing technology support	Not supported
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1700
RAID levels	1, 5, 10
RAID support	Yes
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	Yes (Requires antenna)
Width	244 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
