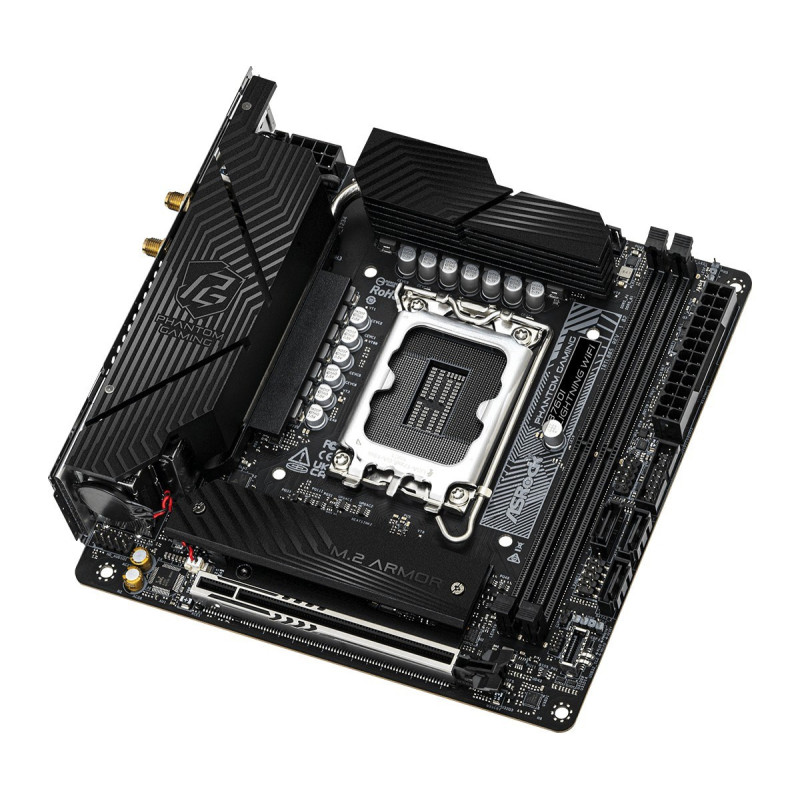

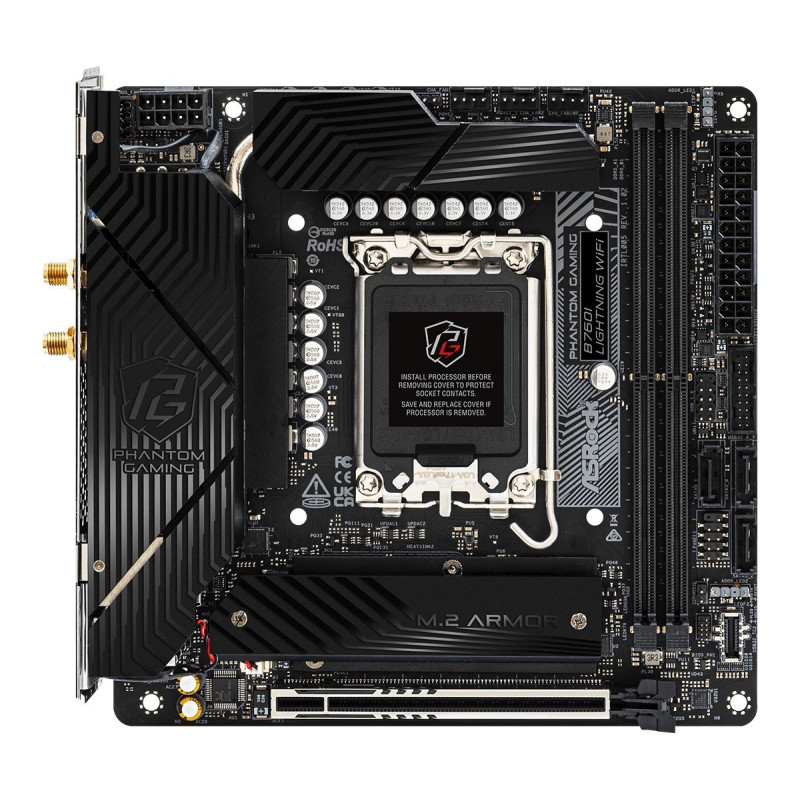

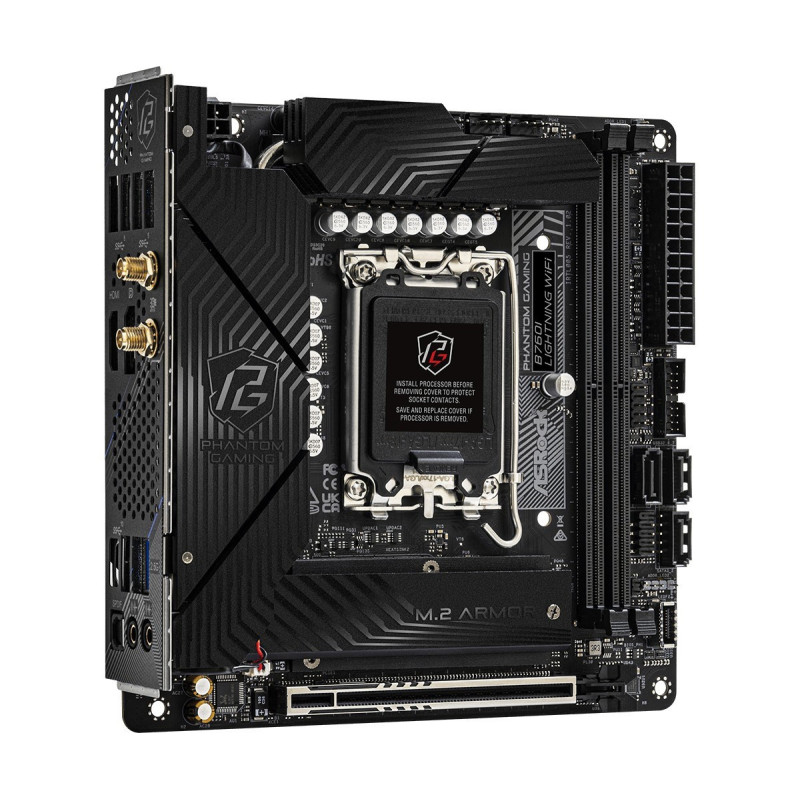

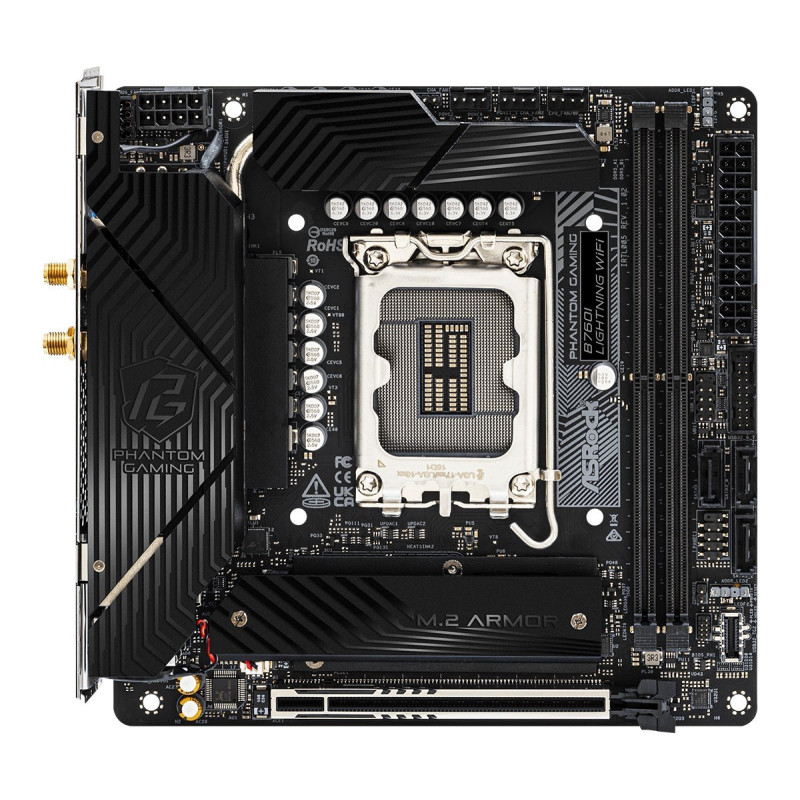

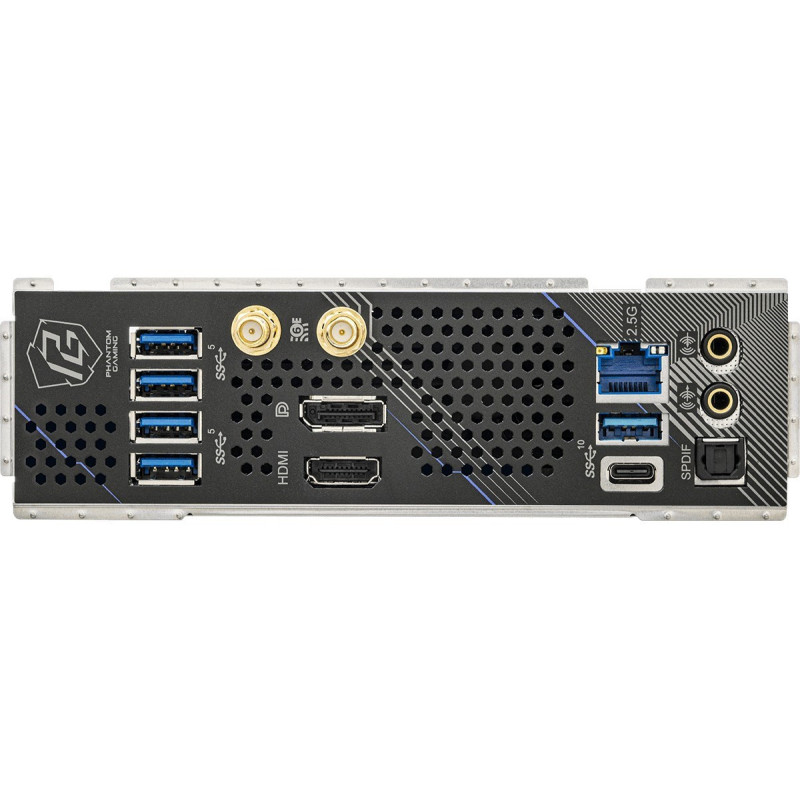

ASRock B760I LIGHTNING WIFI Motherboard
Product reference:
6-B760I LIGHTNING WIFI
ASRock B760I LIGHTNING WIFI Motherboard
ASRock B760I LIGHTNING WIFI Motherboard
Product reference:
6-B760I LIGHTNING WIFI
ASRock B760I LIGHTNING WIFI Motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Cables included | SATA |
| Certification | FCC, CE, ErP/EuP |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CPU fan connector | Yes |
| Depth | 170 mm |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDMI ports quantity | 1 |
| LAN controller | Dragon RTL8125BG |
| Line-out | Yes |
| Maximum internal memory | 96 GB |
| Maximum resolution | 7680 x 4320 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| MIC input | 1 |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | Mini-ITX |
| Number of addressable LED slots | 2 |
| Number of chassis fan connectors | 2 |
| Number of M.2 (M) slots | 2 |
| Number of memory slots | 2 |
| Number of SATA III connectors | 3 |
| Number of storage drives supported | 5 |
| Number of USB 3.2 Gen 1 ports | 4 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| Number of USB 3.2 Gen 2 Type-C ports | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Black |
| RAID levels | 1, 5 |
| RAID support | Yes |
| Screws included | Yes |
| SPDIF optical output | Y |
| Supported memory clock speed (max) | 8600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Top Wi-Fi standard | Wi-Fi 6E (802.11axe) |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB Type-C socket on the front panel | Y |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11 axe, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Width | 170 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
