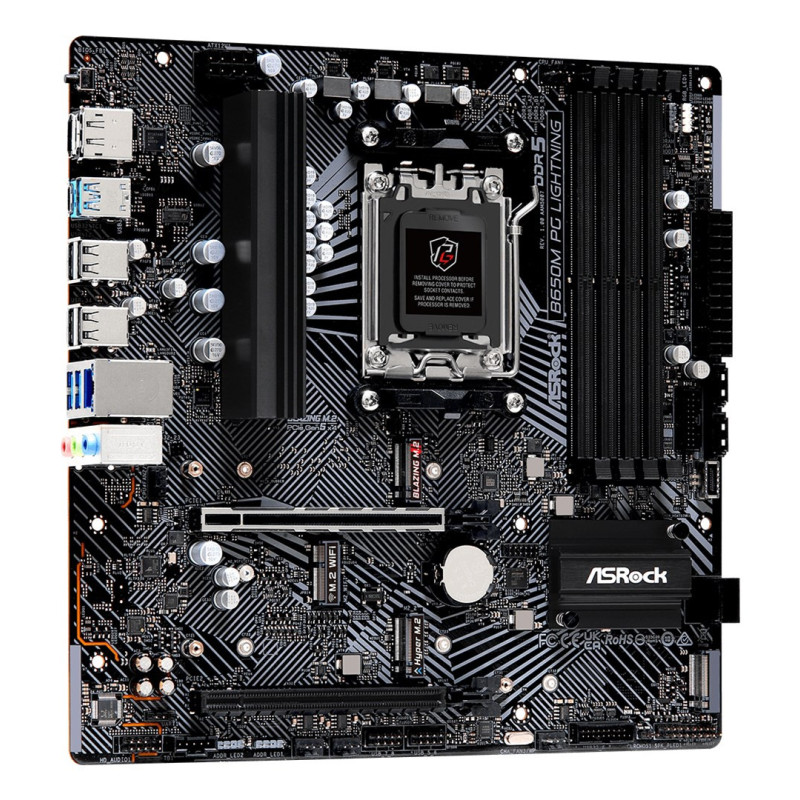

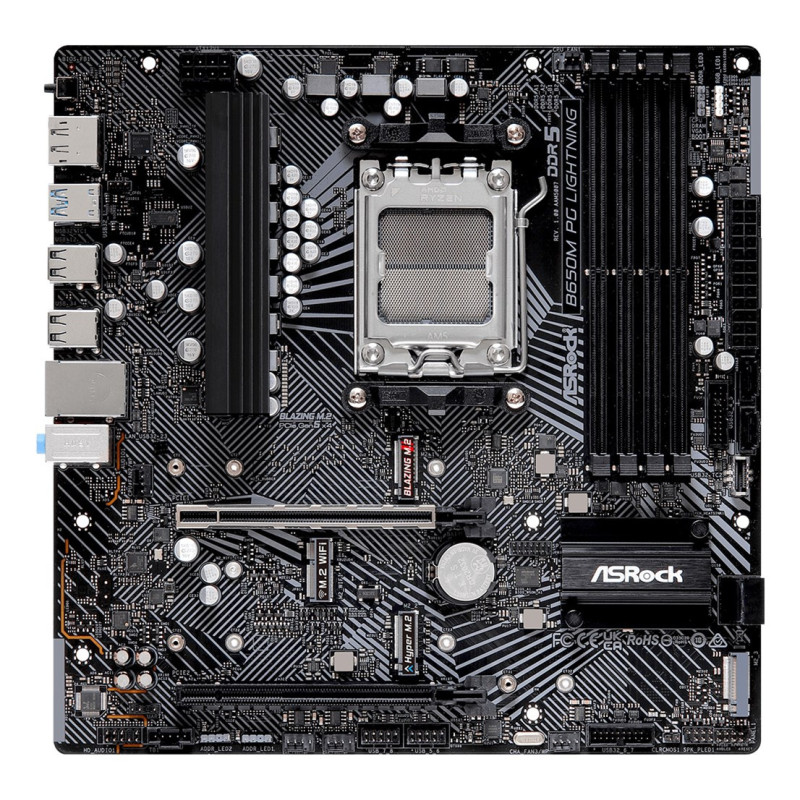

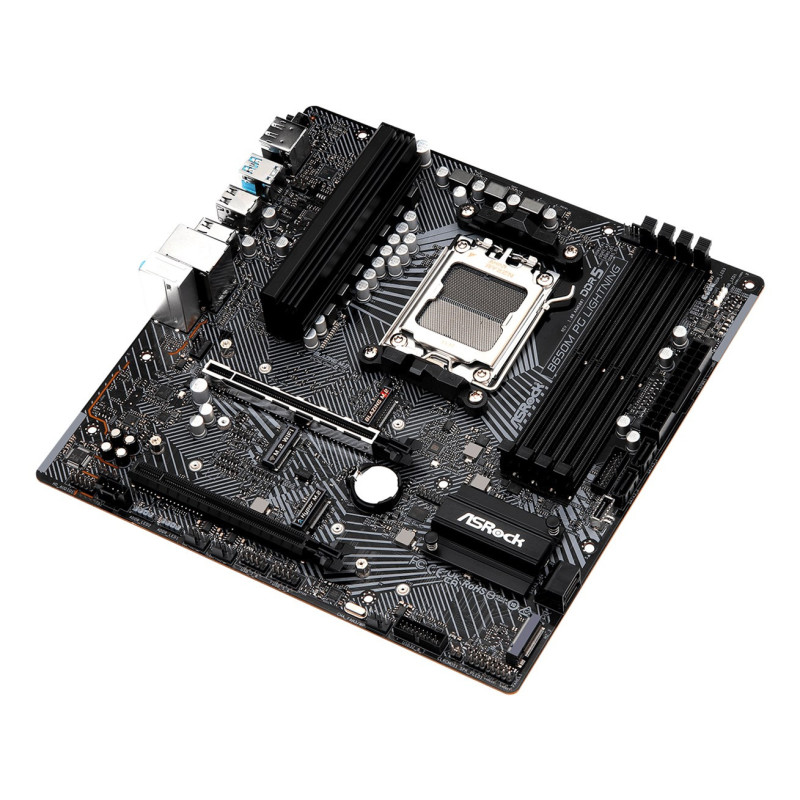

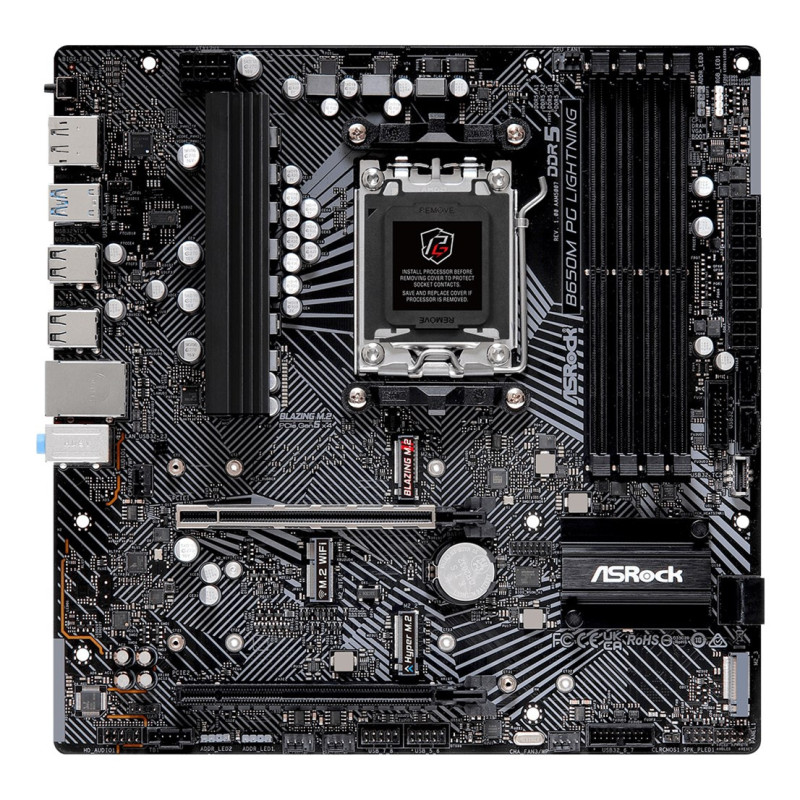

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
Product reference:
6-B650M PG LIGHTNING
Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
Product reference:
6-B650M PG LIGHTNING
Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Parallel processing technology support | CrossFire |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Product colour | Black |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 6200, 6000, 4800, 6600, 6800, 4400 MHz, 6400, 7000, 5600 MHz, 7200, 5200 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7200 MHz |
| Width | 244 mm |
| Depth | 244 mm |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Chassis intrusion connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 3 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Screws included | Yes |
| RAID levels | 10, 1 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 7 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Headphone outputs | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage. |
