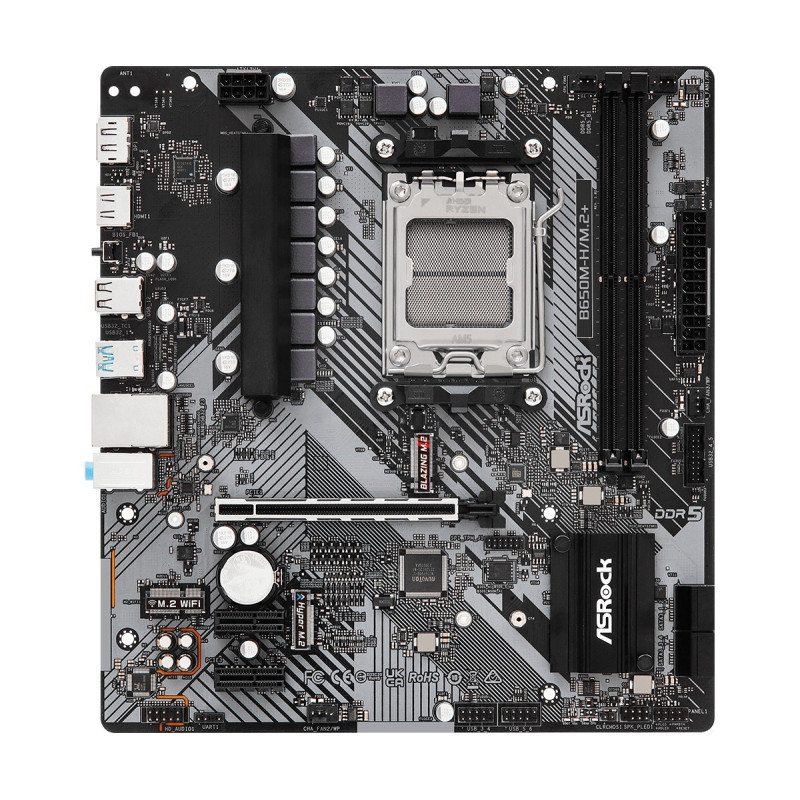

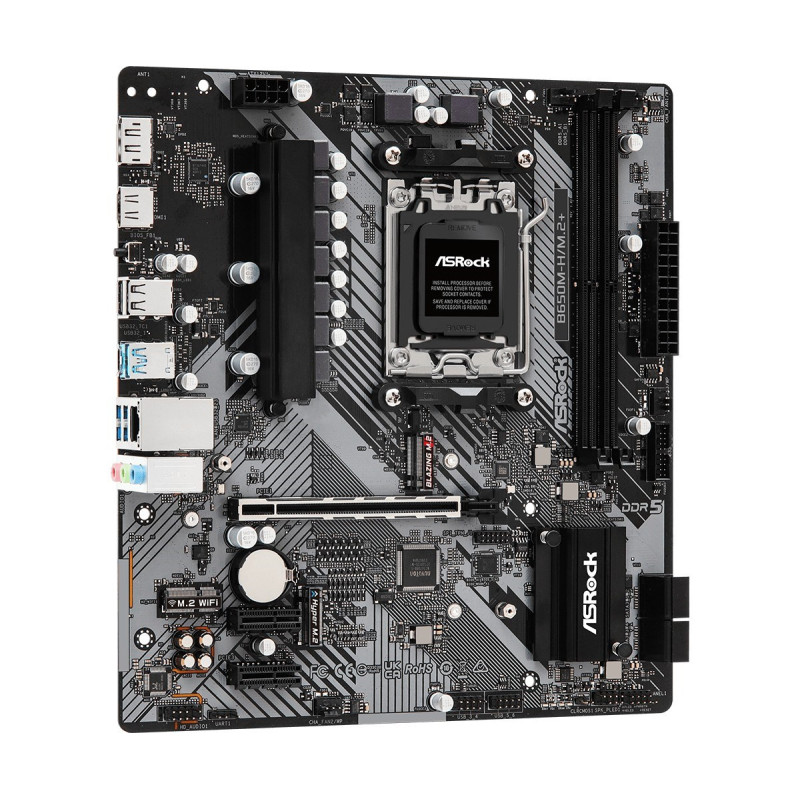

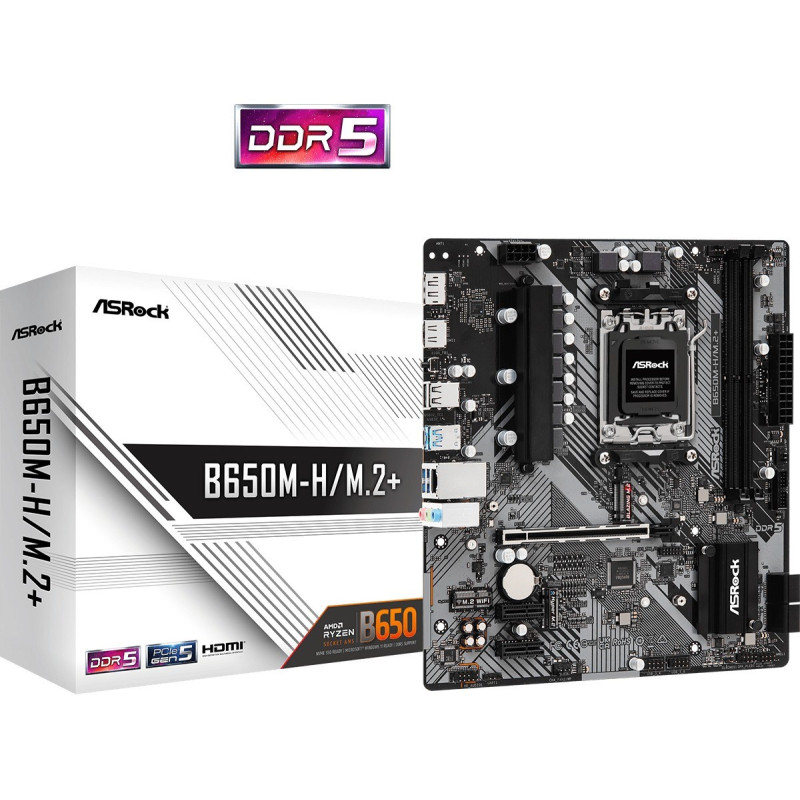

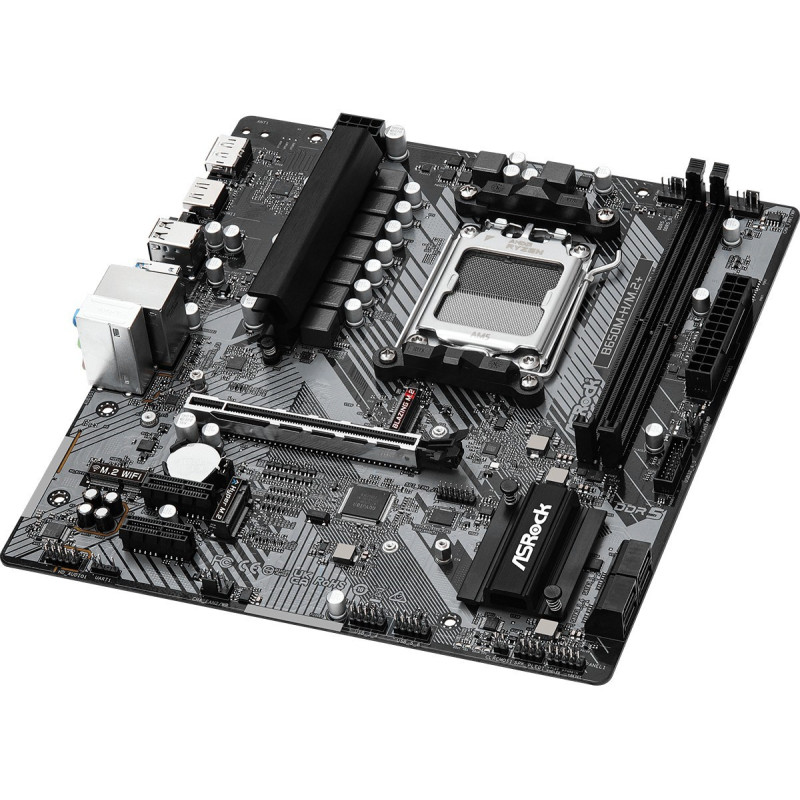

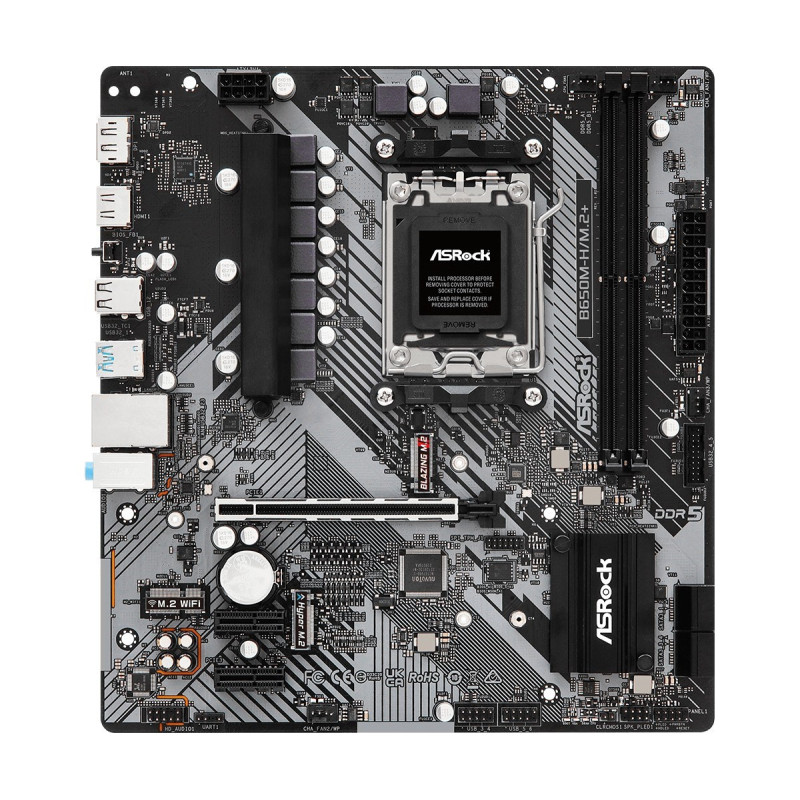

ASRock B650M-H / M.2+ motherboard

Product reference: 6-B650M-H/M.2+

ASRock B650M-H/M.2+ motherboard

You have 3 products in compare list, please remove someone and try again

Add to compare

94,68 €

Product in warehouse

Guarantee
36 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

ATX Power connector (24-pin)	Yes
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Back-to-BIOS button	Yes
BIOS type	UEFI AMI
Compatible processor series	AMD Ryzen™ 7
CPU fan connector	Yes
Depth	226 mm
DisplayPort version	1.4
DisplayPorts quantity	1
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Front panel audio connector	Yes
HDMI ports quantity	1
LAN controller	Realtek 8111H
Line-in	Yes
Maximum internal memory	96 GB
Memory slots type	DIMM
Microphone in	Yes
Motherboard chipset	AMD B650
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Processor manufacturer	AMD
Processor socket	Socket AM5
RAID levels	1, 10
RAID support	Yes
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Wi-Fi	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
