Asrock B650D4U motherboard

Asrock B650D4U. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 3600,5200 MHz
Supported memory clock speed (max): 5200 MHz
Maximum internal memory: 32 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Feature: RAID support
RAID levels: 0, 1, 10

Graphics

On-board graphics card model: Aspeed AST2600

Internal I/O

Number of SATA III connectors: 4
Feature: ATX Power connector (24-pin)
Feature: EPS power connector (8-pin)
Number of COM connectors: 1
Feature: TPM connector

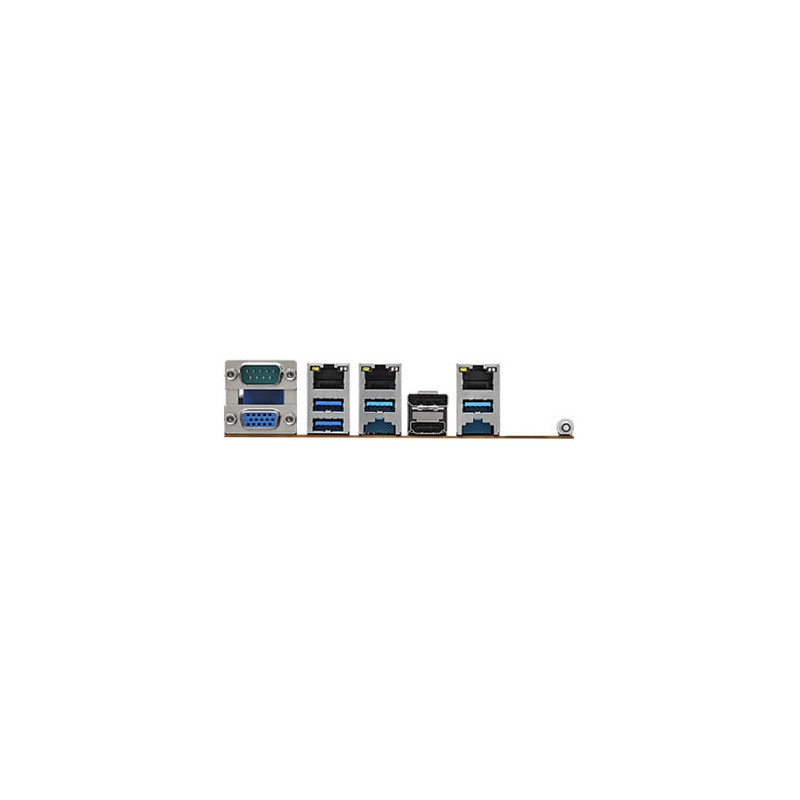

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Serial ports quantity: 1

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Top Wi-Fi standard: Not available

Features

Motherboard chipset: AMD B650 Express
PC health monitoring: CPU, Fan, Voltage
Component for: Server
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5

Operational conditions

Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 243.8 mm
Depth: 243.8 mm
