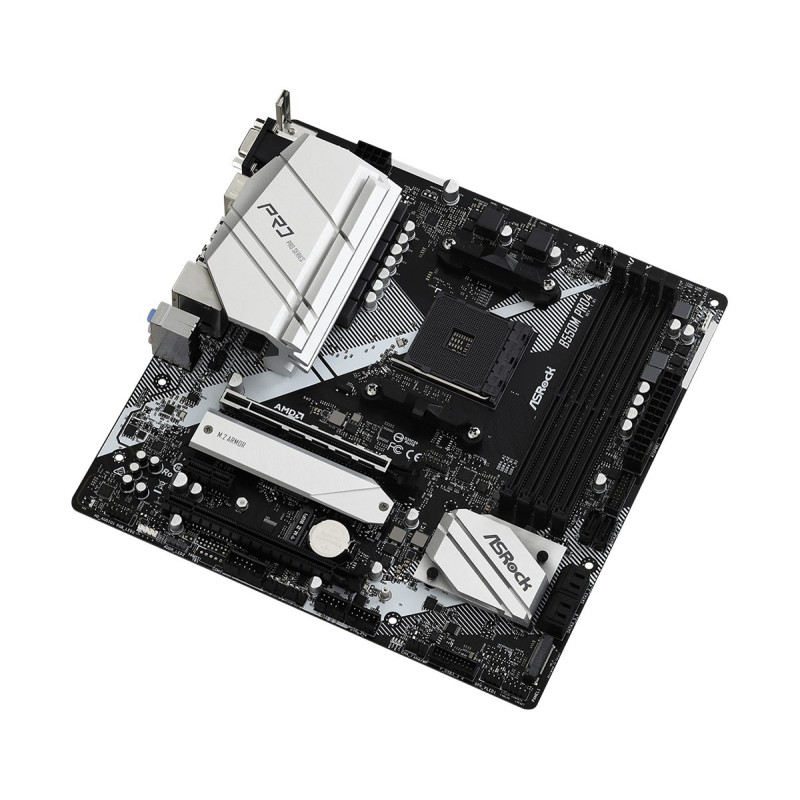

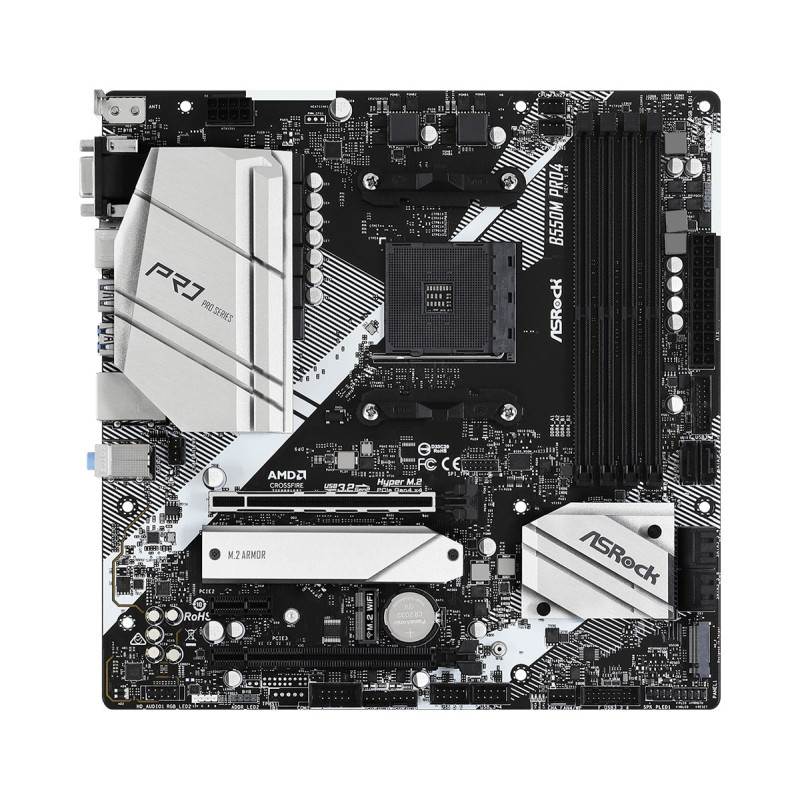

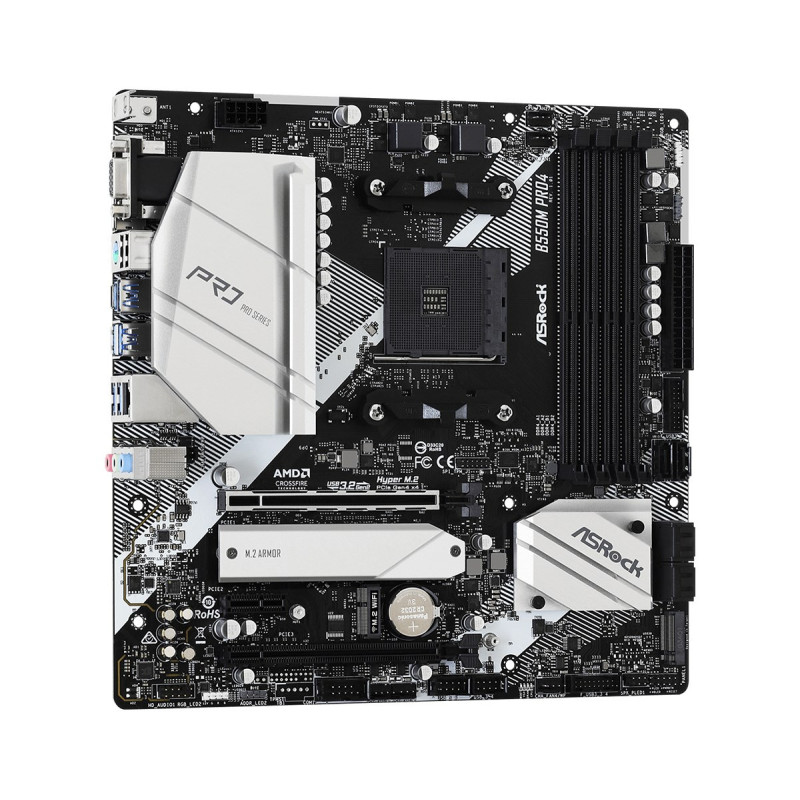

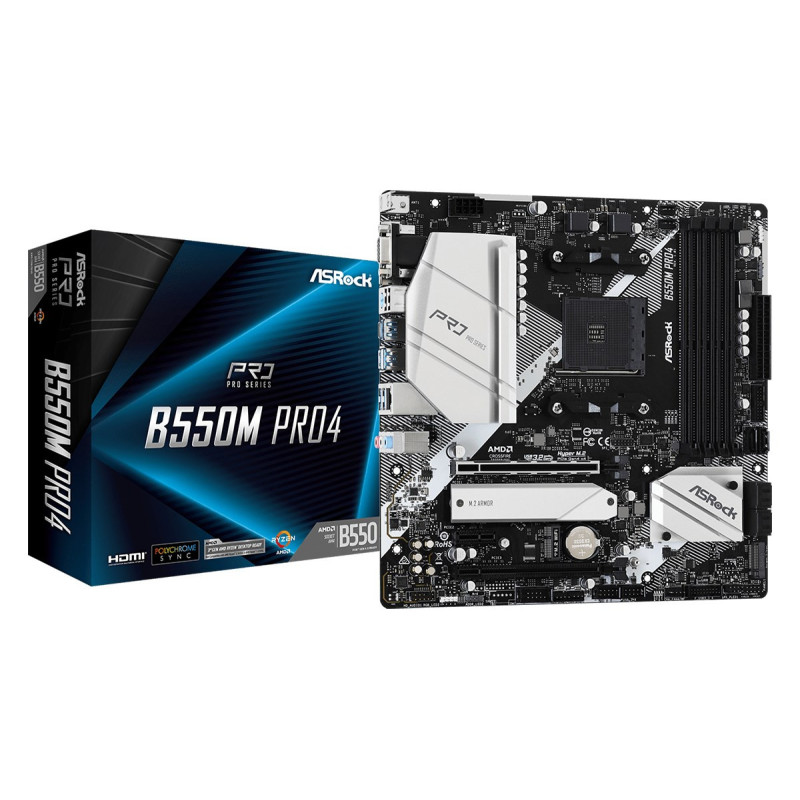

Asrock B550M Pro4 Socket AM4 micro ATX AMD B550
Product reference:
6-B550M PRO4
Asrock B550M Pro4 Socket AM4 micro ATX AMD B550
Asrock B550M Pro4 Socket AM4 micro ATX AMD B550
Product reference:
6-B550M PRO4
Asrock B550M Pro4 Socket AM4 micro ATX AMD B550
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
14 - 18
business days
| Maximum number of SMP processors | 1 |
| Processor socket | Socket AM4 |
| Compatible processor series | 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9 |
| Processor manufacturer | AMD |
| Parallel processing technology support | Not supported |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC1200 |
| Motherboard chipset family | AMD |
| Supported memory clock speeds | 2933, 3600, 3800, 4466, 3200 MHz, 4266 MHz, 2133, 4200, 4333, 2667, 3733, 3866, 3466, 4400 MHz, 2400, 4533 MHz, 4133, 4000 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Depth | 244 mm |
| Width | 244 mm |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Number of SATA II connectors | 6 |
| Front panel connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
| USB 2.0 connectors | 2 |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| BIOS type | UEFI AMI |
| Drivers included | Yes |
| Supported storage drive interfaces | M.2, Serial ATA III |

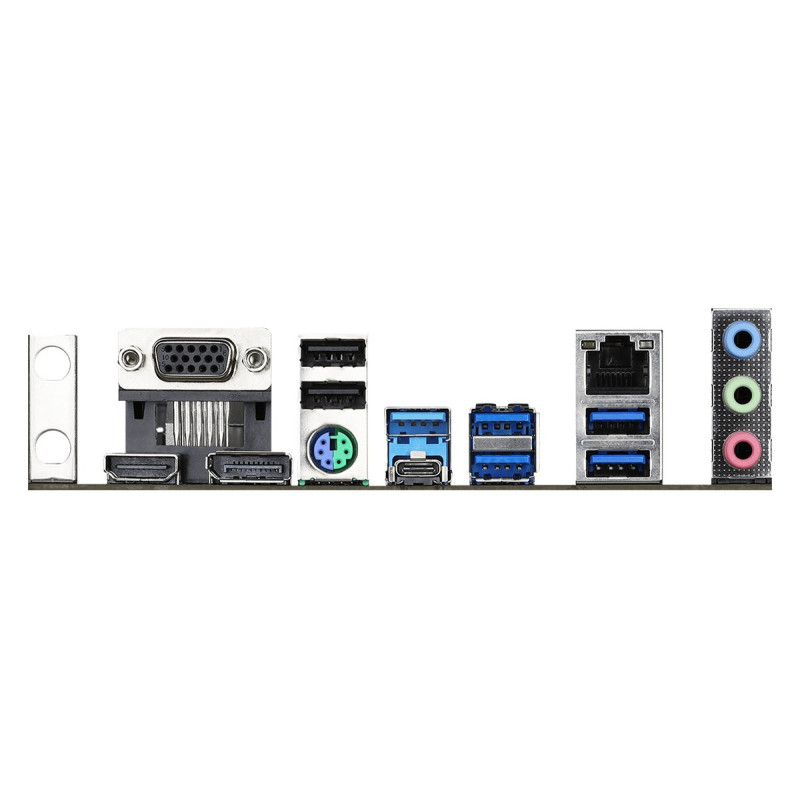

| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
