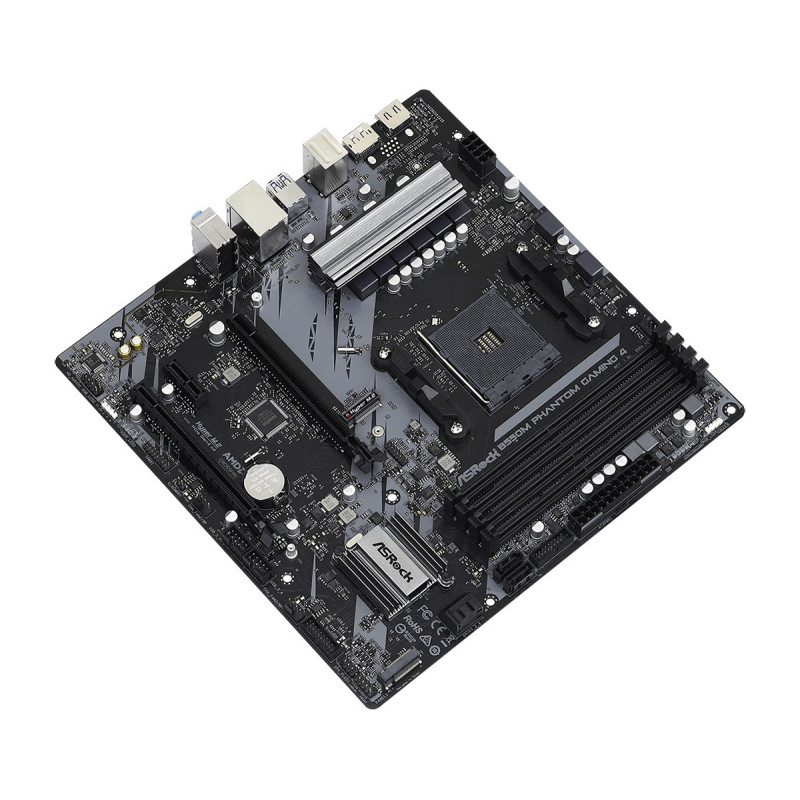

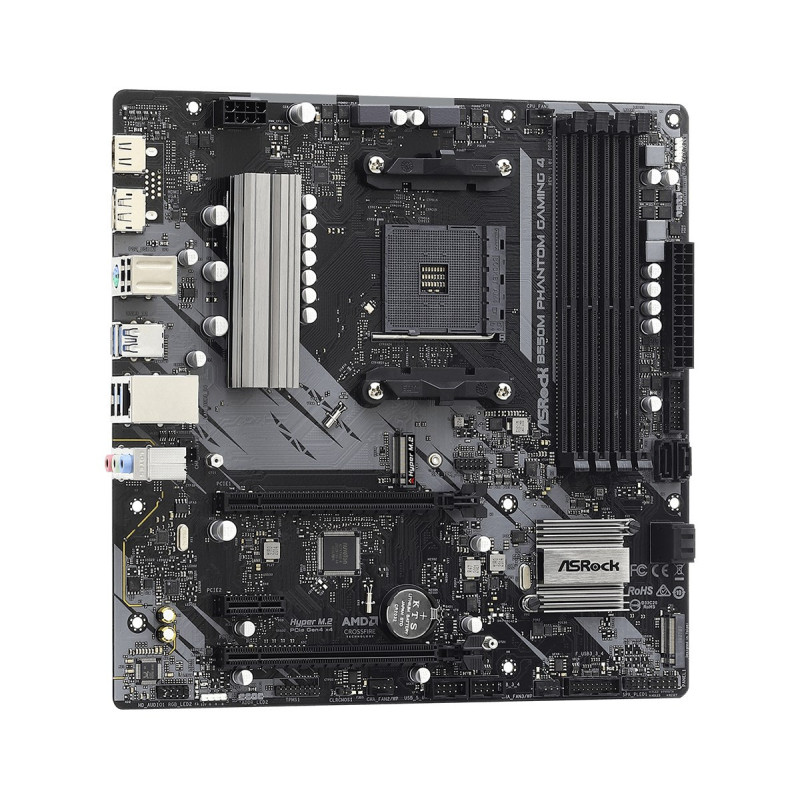

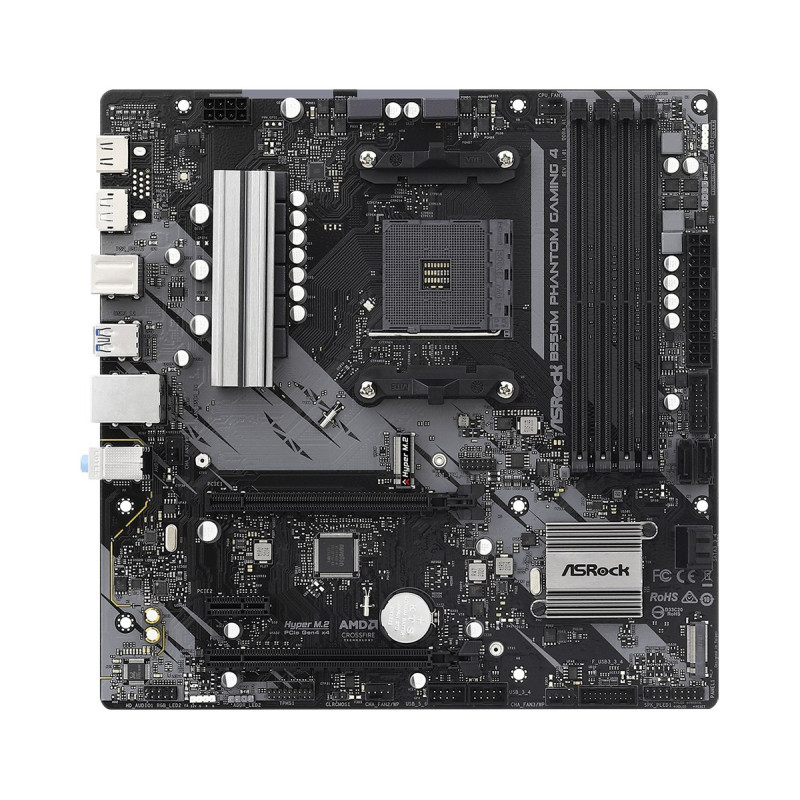

Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
Product reference:
6-B550M PHANTOM GAMING 4
Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
Product reference:
6-B550M PHANTOM GAMING 4
Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| CPU fan connector | Yes |
| Depth | 244 mm |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 128 GB |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 5120 x 2880 pixels |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Number of chassis fan connectors | 3 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 4 |
| Overclocking features | FCC, CE ErP/EuP |
| PC health monitoring | Fan, Temperature, Voltage |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RGB LED pin header | Yes |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3466, 3600 MHz, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533 |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDD & SSD |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Wake-on-LAN ready | Yes |
| Warnings | Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture. |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64 |
