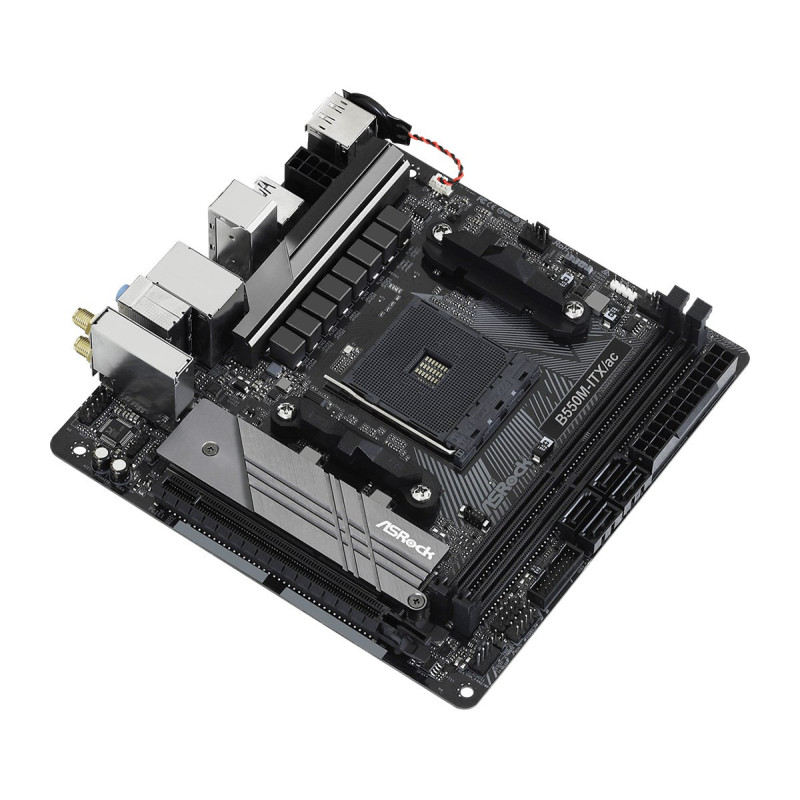

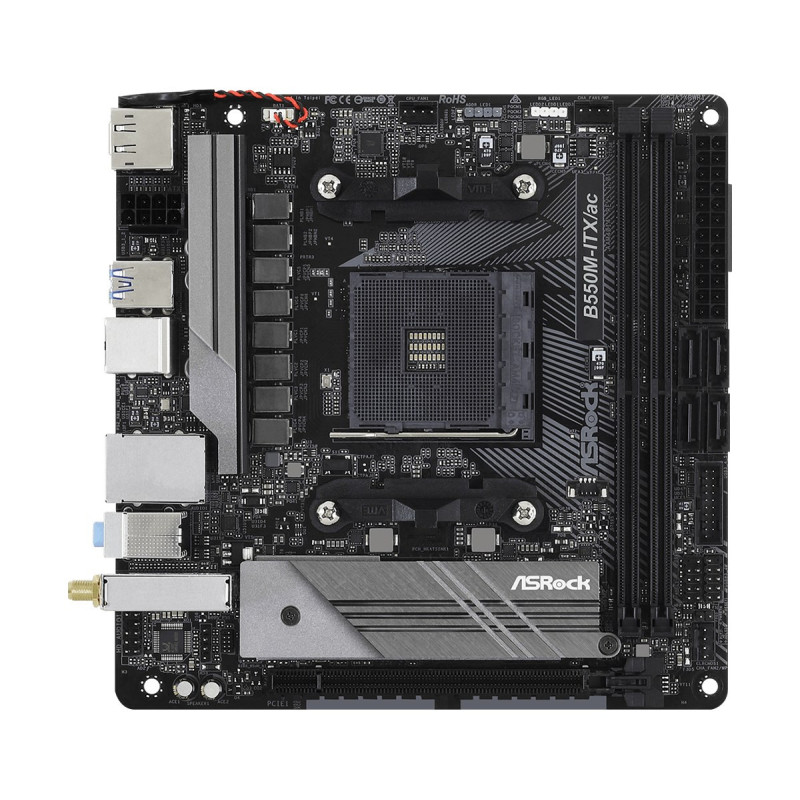

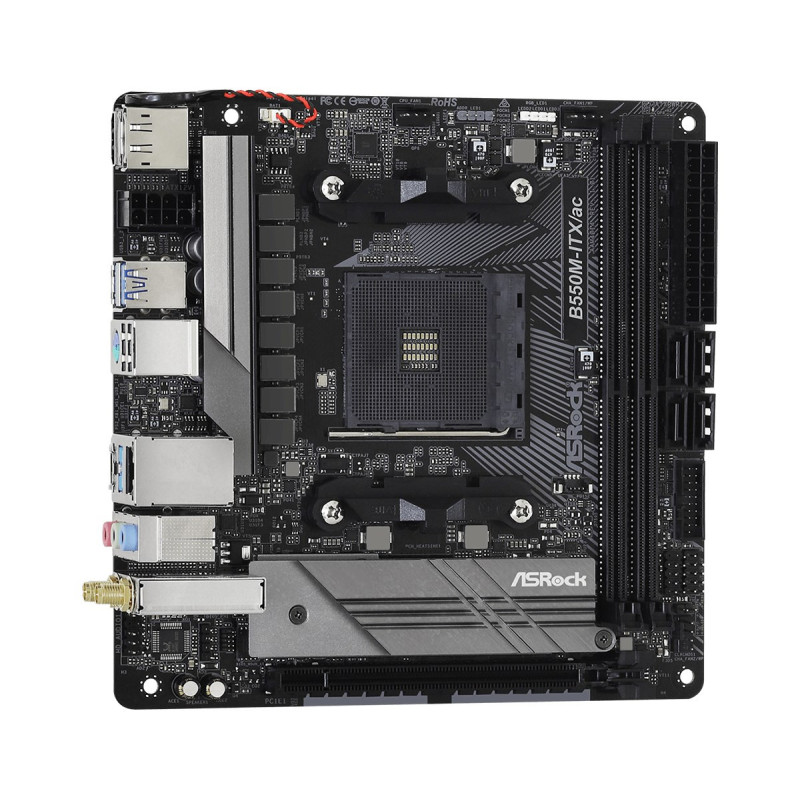

Asrock B550M-ITX / ac Socket AM4 mini ITX AMD B550
Product reference:
6-B550M-ITX/AC
Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
Asrock B550M-ITX / ac Socket AM4 mini ITX AMD B550
Product reference:
6-B550M-ITX/AC
Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| ATX Power connector (24-pin) | Yes |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Compatible processor series | 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| CPU fan connector | Yes |
| Depth | 170 mm |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Drivers included | Yes |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Front panel audio connector | Yes |
| Graphics card | Radeon Vega |
| Graphics card family | AMD |
| HDCP | Yes |
| HDMI ports quantity | 1 |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 64 GB |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Number of memory slots | 2 |
| Number of SATA III connectors | 4 |
| On-board graphics card | Yes |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| PS/2 ports quantity | 1 |
| RGB LED pin header | Yes |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533 MHz, 4600 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width | 170 mm |
