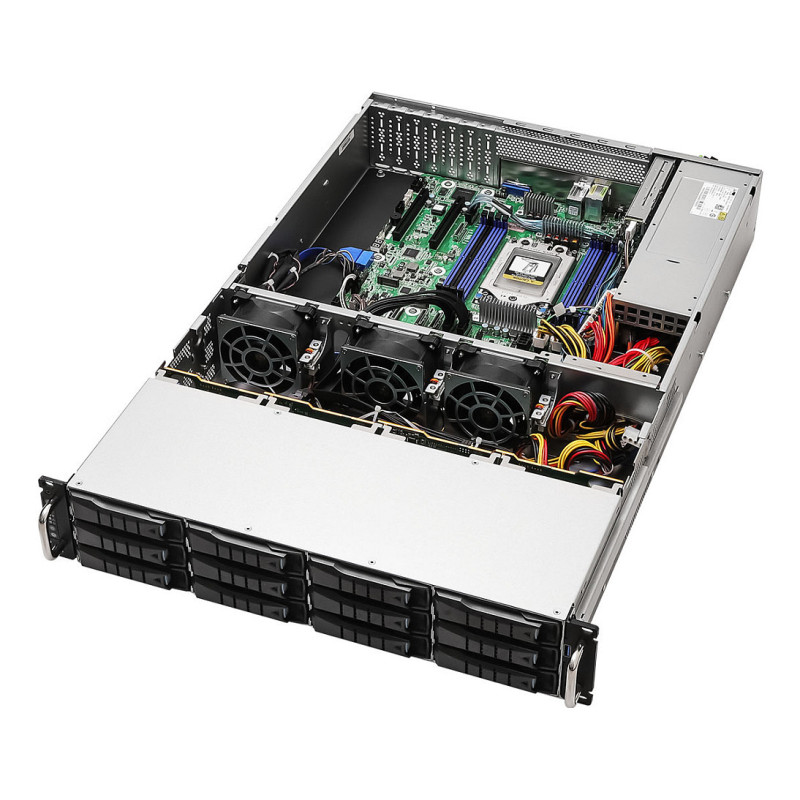

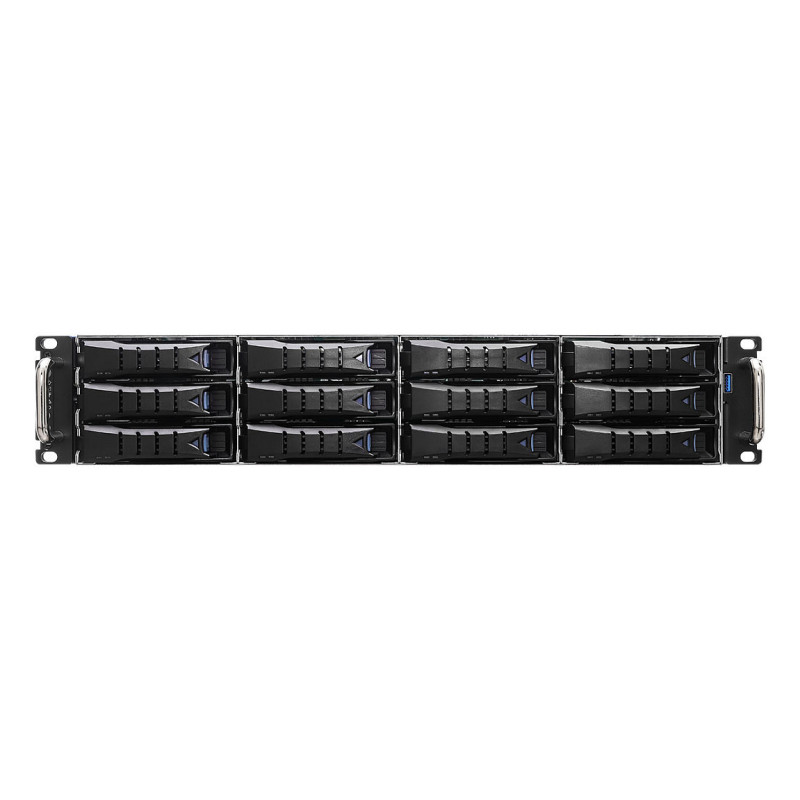

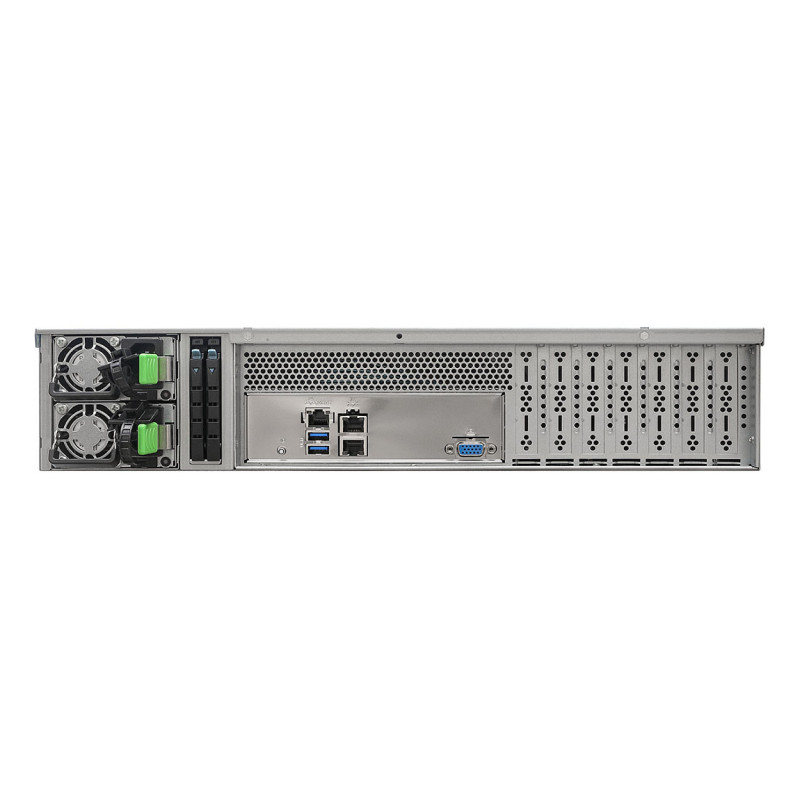

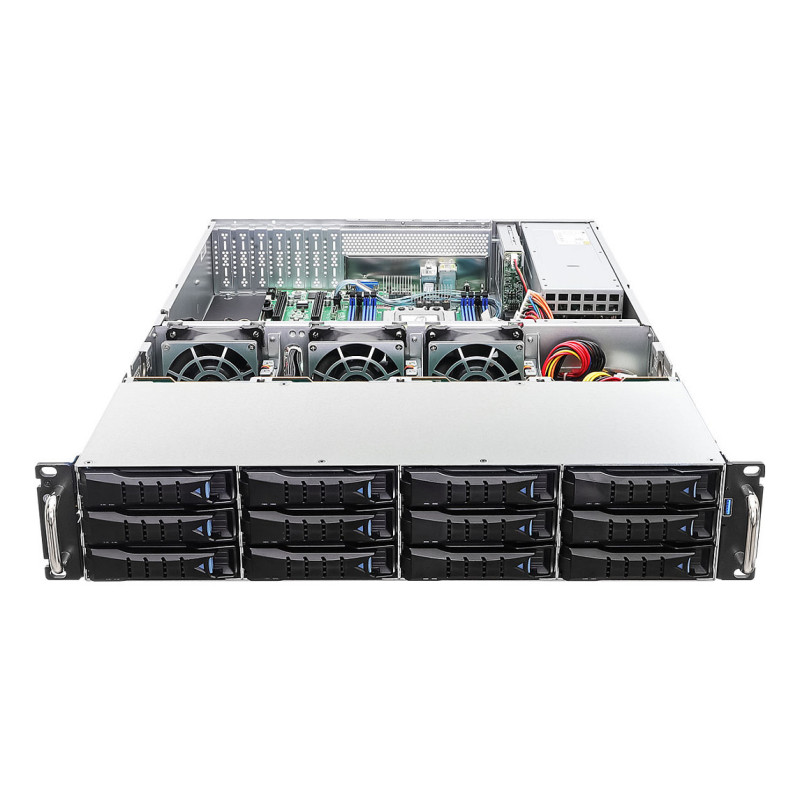

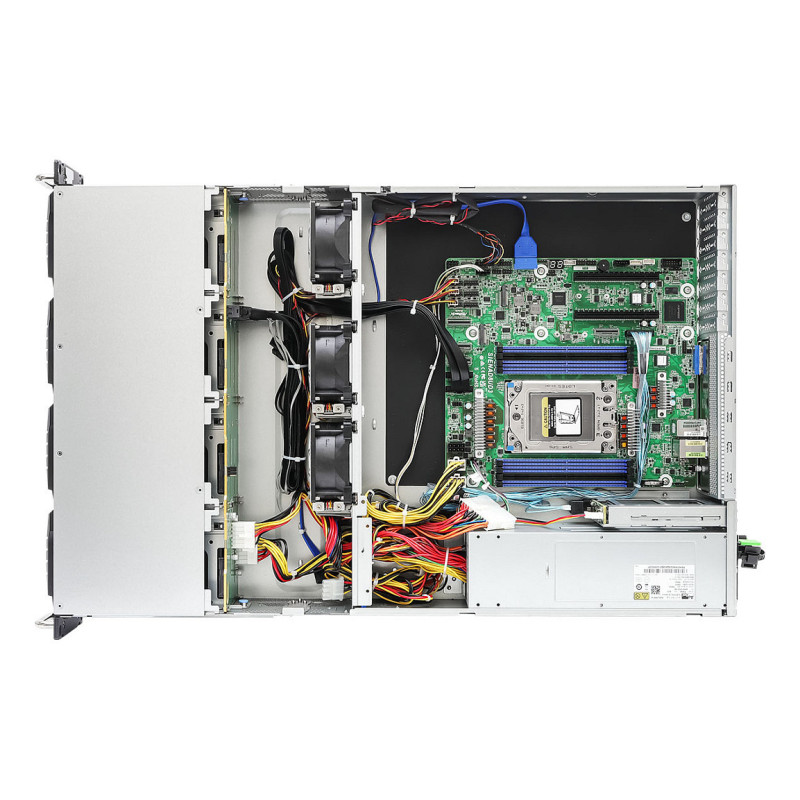

Asrock 2U12L2S-SIENA barebone server

Asrock 2U12L2S-SIENA. Motherboard chipset: AMD SoC, Processor socket: Socket SP6. Supported memory types: DDR5-SDRAM, Maximum RDIMM memory: 96 GB, Memory form factor: 288-pin DIMM. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210. BIOS type: UEFI AMI, BIOS memory size: 256 Mbit

Processor

Built-in processor: No
Motherboard chipset: AMD SoC
Processor socket: Socket SP6

Memory

Number of DIMM slots: 8
Supported memory types: DDR5-SDRAM
Maximum RDIMM memory: 96 GB
Memory form factor: 288-pin DIMM
Memory voltage: 1.1 V

Storage

Number of storage drives supported: 14
Hot-swap HDD bays: Yes
Number of 2.5" bays: 2
Number of 3.5" bays: 12

Graphics

On-board graphics card model: Aspeed AST2600

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I210

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5
Plug and Play: Yes

Design

Chassis type: Rack (2U)

Power

Power supply: 800 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 90%

Weight dimensions

Width: 430 mm
Depth: 680 mm
Height: 88 mm
