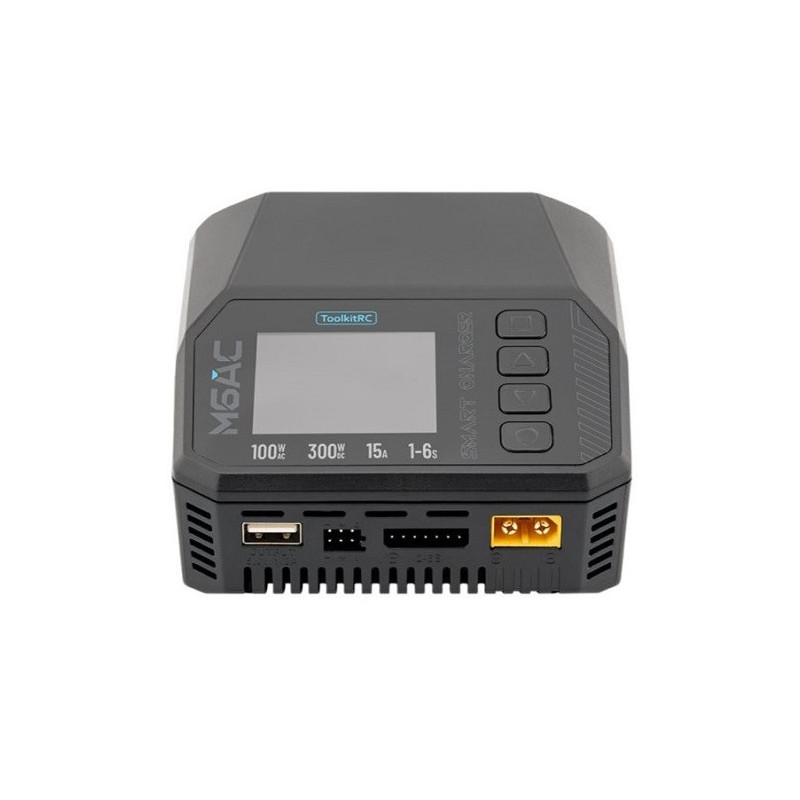

M6AC Smart Battery Charger, AC 100W, DC 300W

High-quality AC/DC balance charger with microprocessor-controlled charging, discharging, signal measurement and power supply functions. Supports major battery types (LiPo, LiHV, LiFe, NiMH and Pb), operates on AC or DC voltage. Has a USB Type-A fast charging output and a 2-inch color IPS display.Features:The smart balance charger is designed for RC enthusiasts and technology lovers. The M6AC multi-function charger combines the functions of a balance charger, discharger, signal meter and signal source in one compact device. It supports both alternating current (AC) and direct current (DC) power supply. The device charges, discharges and balances various types of batteries, such as LiPo, LiHV, LiFe, Li-ion, LTO, NiMH and lead-acid (Pb). It is equipped with a more powerful balancing current (1000 mA), which allows faster and more accurate cell balancing (< 0.005 V). The charger has standard RC connectors and a clear 2.0' IPS LCD screen, which ensures good visibility in any situation. In addition to the usual charging functions, it also functions as a signal tester and generator (reads PWM / PPM / SBUS signals) and a regulated constant voltage/current power supply (CC / CV mode). Other convenient features include built-in protection, software upgrade, and a multilingual user interface. The charger has protection against overvoltage, overcurrent, short circuit, overheating, low input voltage, overcharging (time out), deep discharge, and is also flameproof V0. This device is suitable for charging, discharging, and balancing RC model batteries (drones, airplanes, cars, and boats); for diagnosing lithium packs and measuring internal resistance; for testing and outputting signals from RC transmitters, receivers, and servos; for use as a regulated laboratory power supply (constant voltage/current mode); and for fast charging USB devices.Technical data:Input: 100-240 V AC, max. 120 W / 7-28 V DC, max. 30 A. Charging current: 0.1-15.0 A @ max. 300 W. Maximum charging power: 100W in AC mode, 300 W in DC mode. Maximum discharging power: 15W (0.1-3.0A) / Recycle mode 300 W (0.1-15.0A). Supported battery types: LiPo / LiHV / LiFe / Li-ion / LTO 1-6S; NiMH 1-16S; Pb 1-10S. Balancing current: 1000 mA. Balancing accuracy: < 0.005 V. Measurement functions: PWM / PPM / SBUS signals; voltage; internal battery resistance; ESC testing. Connectors: DC input, AC input, Signal connector (PWM / PPM / SBUS); Balance connector 2-6S, XT60 output, USB Type-A output. USB Type-A output: 5.0 V / 1.0 A @ 10 W. Display: 2.0 inch IPS LCD (320 x 240). Dimensions: 108 x 106 x 60 mm. Weight: 347 g.The set includes:M6AC charger, AC power cable 120cm, USB Type-A to USB Type-A cable 30cm, user manual and screen protector.Warranty:24 months
