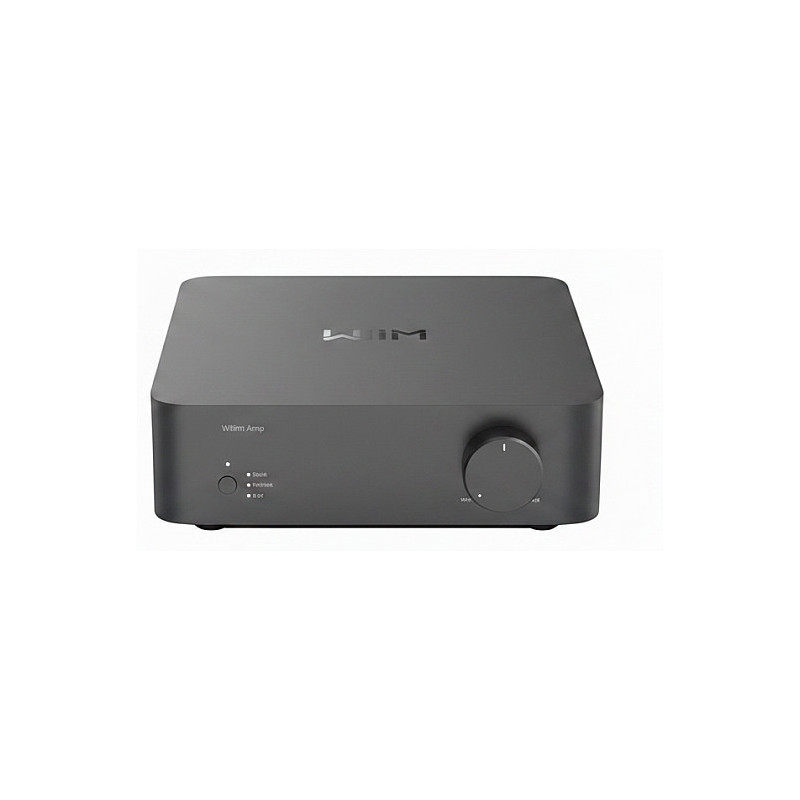

WiiM Vibelink Amp

WiiM Vibelink Amp. Audio output channels: 1.0 channels, Peak power per channel: 200 W, Amplifier class: D. Speakers connectivity type: Binding post. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 200 mm, Depth: 212.5 mm, Height: 66 mm
Power. Precision. Pure Performance.
Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.
Premium Build, Modern Aesthetic
Crafted from a sleek, unibody aluminum chassis, the WiiM Vibelink Amp offers exceptional durability and peak performance. Its premium, minimalist design blends seamlessly into any audio setup, whether on a media console or in a high-end rack. Engineered with advanced thermal management, including a copper heat pipe and a large aluminum heatsink, it ensures efficient cooling and long-term reliability, even under demanding conditions.

Audio

Audio output channels: 1.0 channels
Peak power per channel: 200 W
Amplifier class: D
Total Harmonic Distortion (THD): 0.0005%
Signal-to-Noise Ratio (SNR): 120 dB
RMS power output per channel (4 Ohm): 200 W
RMS power output per channel (8 Ohm): 100 W
Frequency range: 20 - 20000 Hz
Audio quality: 24 bit

Ports interfaces

Speakers connectivity type: Binding post
Digital audio optical in: 1
Digital audio coaxial in: 1
Line inputs (RCA): 1

Technical details

Purpose: Multi-purpose
Connectivity technology: Wired
Product colour: Grey
Volume control: Rotary
Cooling type: Passive
Material: Aluminium
Equalizer: Yes

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 3 A

Weight dimensions

Width: 200 mm
Depth: 212.5 mm
Height: 66 mm
Weight: 2.05 kg

Indication

LED indicators: Yes

Packaging content

User guide: Yes
